Extron TLP Pro 725C 7″ Cable Cubby TouchLink Pro Touchpanel

Product Description

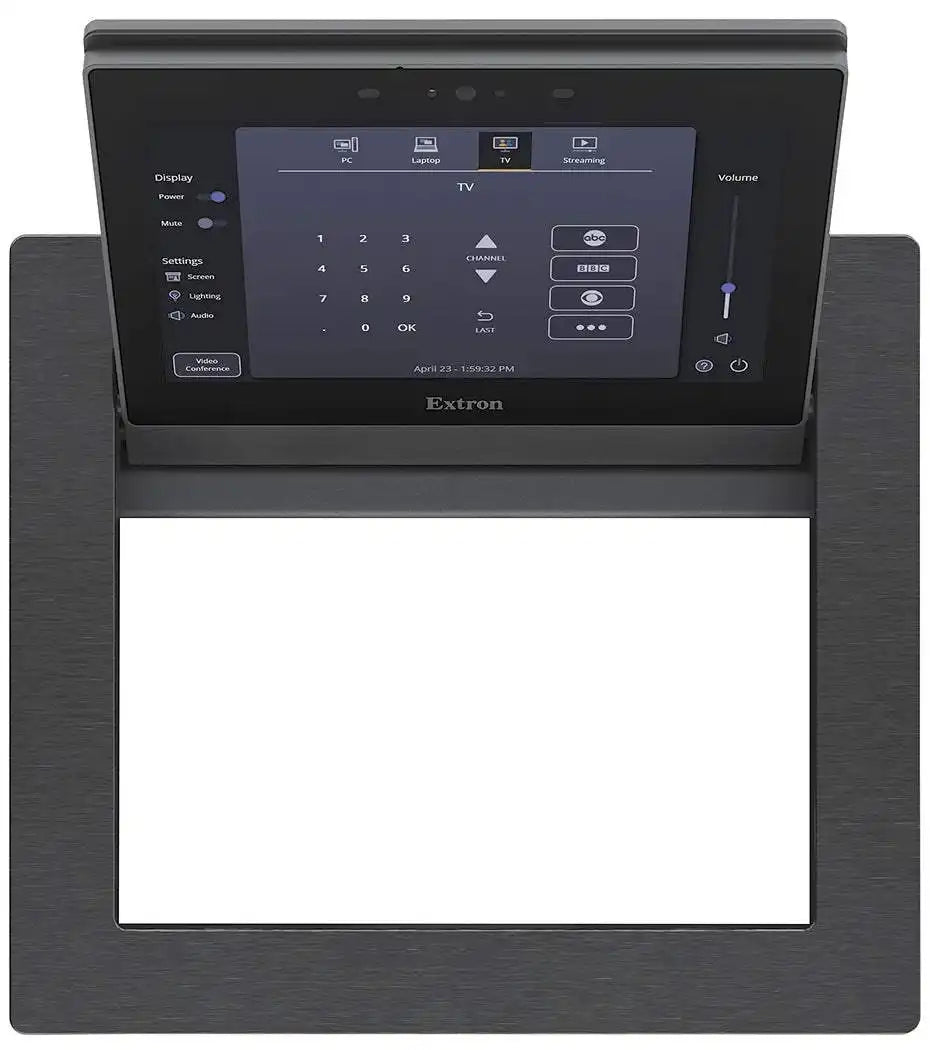

The Extron TLP Pro 725C is a 7-inch Cable Cubby TouchLink Pro touchpanel that combines a flip-up capacitive touchscreen with an integrated cable access enclosure, putting AV control and table connectivity in a single furniture-mounted unit. The 1024x600 (WSVGA) display is built with scratch- and smudge-resistant Corning Gorilla Glass and driven by a quad-core processor with eight times the memory of the previous generation. The enclosure accommodates AC 100 Series and AC+USB power modules, Retractor cable retraction modules, AV cables, or AAP Connectivity Modules, making this Cable Cubby touchpanel a strong fit for conference tables, huddle spaces, and lecterns that need both connectivity and a customizable control interface.

The TLP Pro 725C works with any Extron control processor and HC 400 Series system over standard network infrastructure, installing with cost-effective Ethernet cable and Power over Ethernet (PoE 802.3af, class 3). An integrated side-clamp system secures the enclosure to a furniture surface without additional parts or tools, and AV connectivity can be serviced from the top after installation. The panel can be turned into a standalone Pro xi Series control system using LinkLicense for TLP Control Processor with the optional TLCA 1 TouchLink Control Port Expansion Adapter, which adds two bidirectional serial ports, one digital input, one IR port, and two relays. The unit is JITC certified for government and mission-critical environments, and a TAA-compliant version is available. Browse related panels in our Extron collection.

Key Features

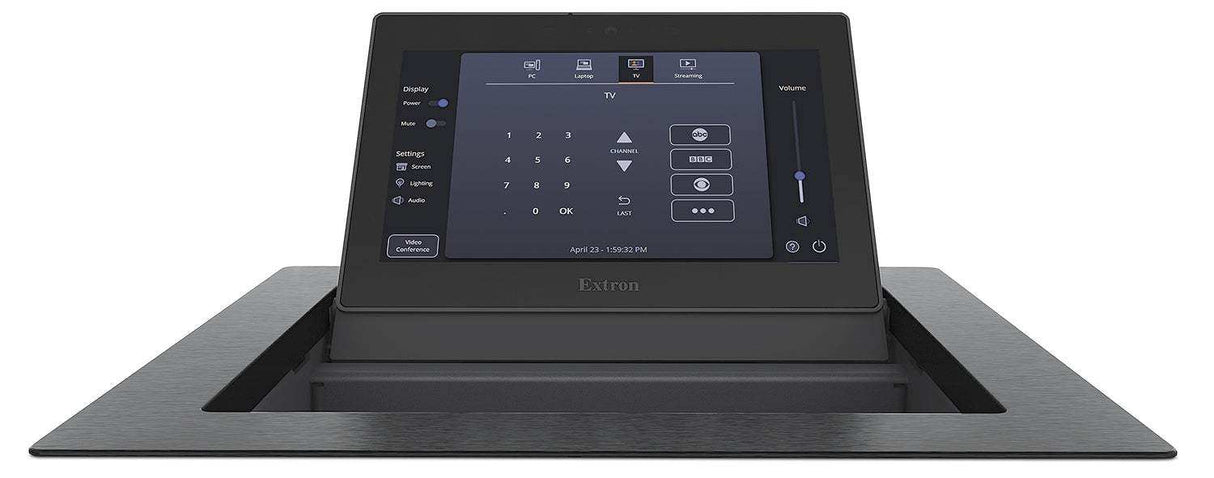

• 7-inch Flip-Up Capacitive Touchscreen — Edge-to-edge glass display with 1024x600 resolution and 24-bit color that flips up from the enclosure when in use and stows flush when closed.
• Corning Gorilla Glass — Tough, scratch- and smudge-resistant glass that maintains touch sensitivity, color saturation, and brightness.
• Quad-Core Processor — Faster processing and eight times more memory than the prior generation for responsive operation.

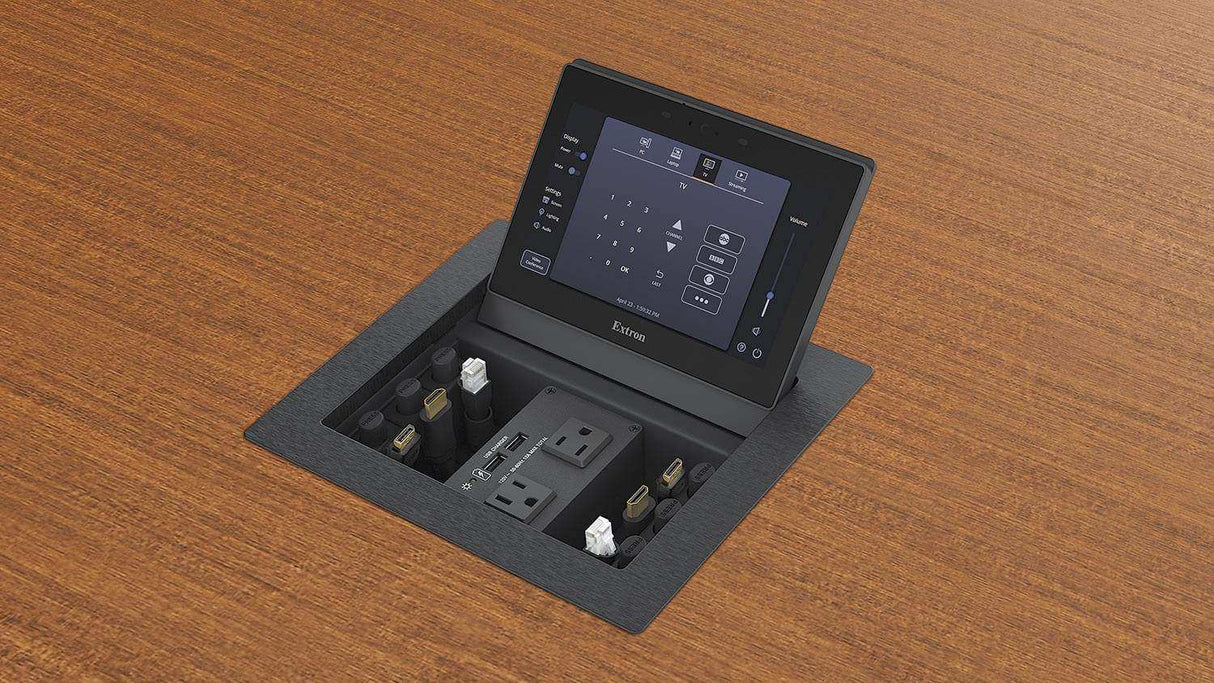

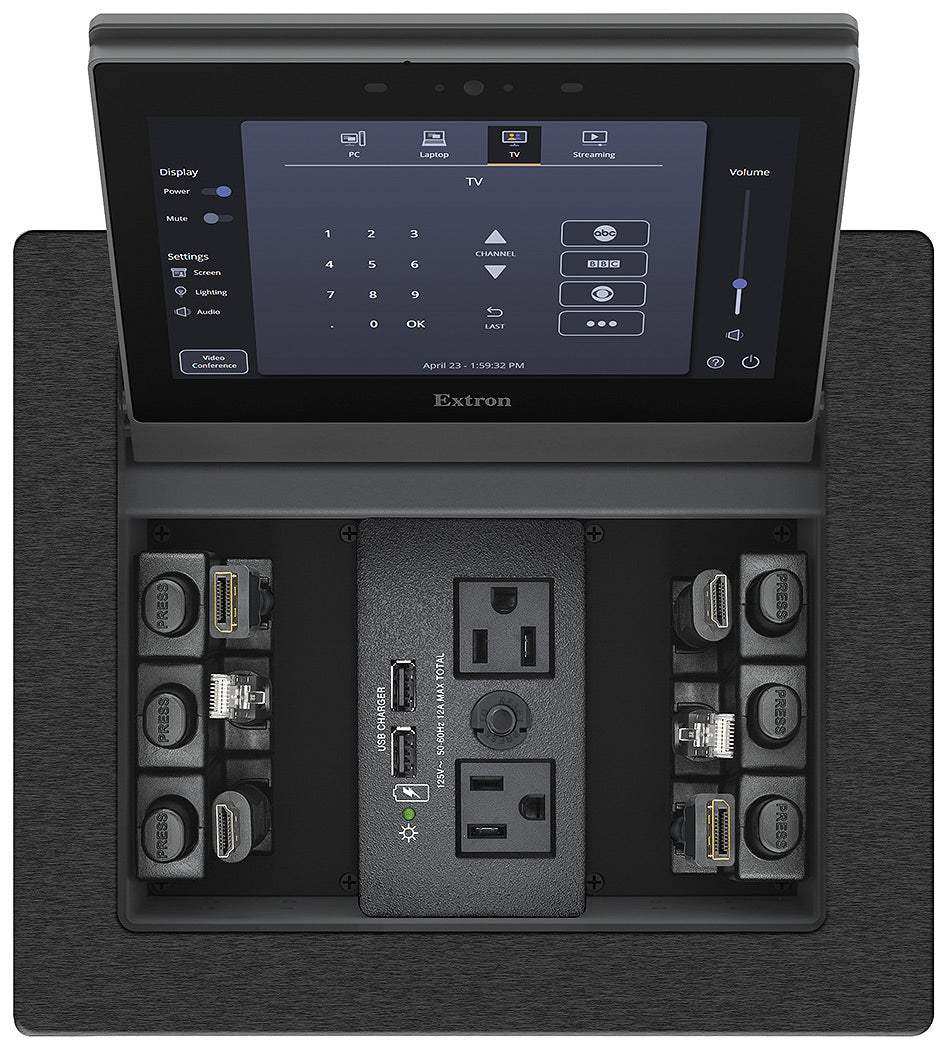

• Integrated Cable Access Enclosure — Accommodates a Cable Cubby AC+USB power module plus up to three Retractors, eight AV cables, and/or three AAP AV Connectivity Modules per bracket.

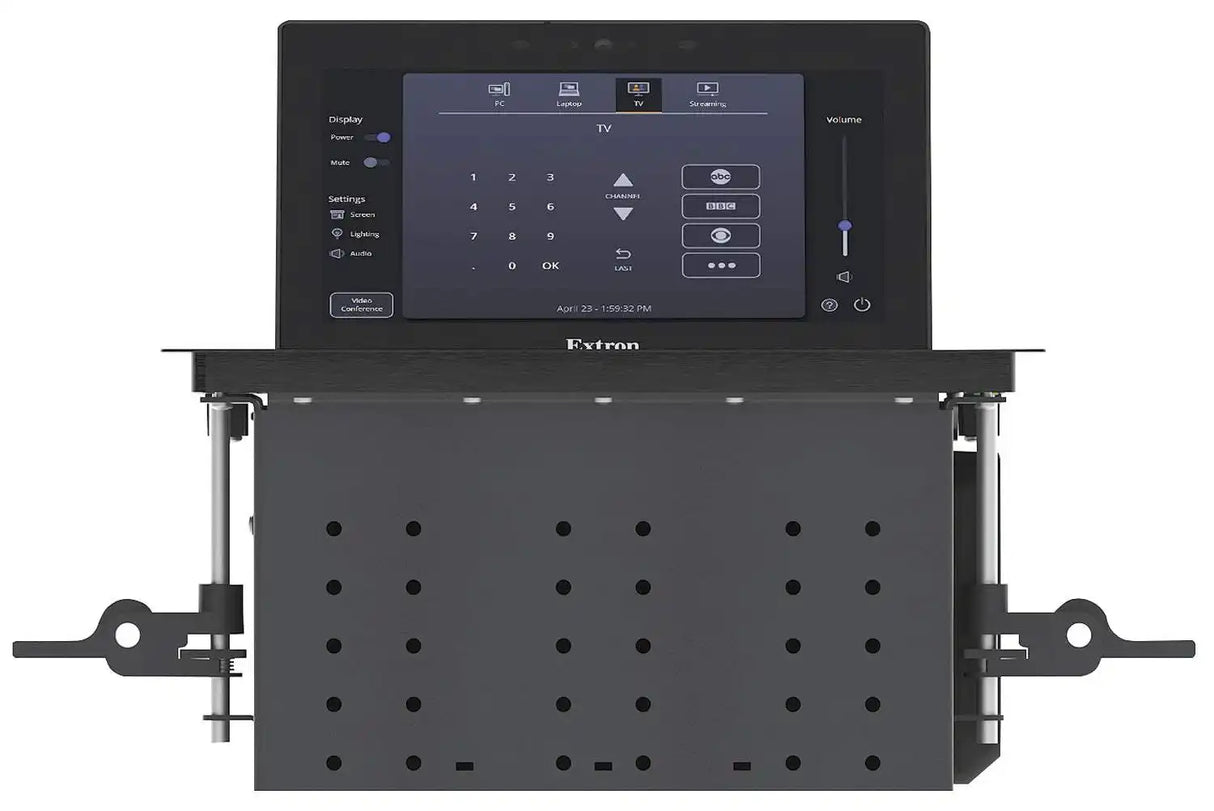

• Tool-Free Clamp Mounting — Integrated side clamps secure the enclosure to a furniture surface without additional parts or tools, with top-access serviceability.
• Standalone Control Option — Becomes an all-in-one Pro xi Series control system with LinkLicense for TLP Control Processor and the optional TLCA 1 adapter (serial, IR, digital input, and relay ports).
• Power over Ethernet — Single Ethernet cable carries power and communication using PoE (802.3af, class 3).
• Integrated Lid Switch — Automatically wakes the touchpanel when opened and can trigger any other system function.
• Light Sensor and Built-In Speaker — Light sensor adjusts brightness to ambient lighting; built-in speaker provides audible feedback from button presses.
• JITC Certified and TAA Available — Completed JITC interoperability and information assurance testing; a TAA-compliant version is available on request.
• Broad Control System Compatibility — Works with any Extron control processor and HC 400 Series system, fully customizable in GUI Designer with GlobalViewer Enterprise remote management.

Technical Specifications

Frequently Asked Questions

What control processors is the TLP Pro 725C compatible with?

It works with any Extron control processor and the HC 400 Series system over standard Ethernet. It can also operate as a standalone Pro xi Series control system using LinkLicense for TLP Control Processor with the optional TLCA 1 adapter.

How is the touchpanel powered?

It is powered by Power over Ethernet (PoE 802.3af, class 3) over a single Ethernet cable, which carries both power and communication. No power supply is included.

What can the Cable Cubby enclosure hold?

Per bracket, it accommodates a Cable Cubby AC+USB power module plus up to three Retractors, eight AV cables, and/or three AAP AV Connectivity Modules. AC and AC+USB power modules are available for US, European, and other major markets.

How does it install into furniture?

An integrated side-clamp system secures the enclosure to a furniture surface without additional parts or tools. Use the appropriate Extron metal routing template to cut the surface opening before installation. AV connectivity can be installed or serviced from the top after the enclosure is in place.

Is it suitable for government or secure installations?

Yes. The TLP Pro 725C is JITC certified, having completed interoperability and information assurance testing, and a TAA-compliant version is available on request.

How does this compare to other TouchLink Pro panels?

The 725C is the 7-inch Cable Cubby model with integrated table connectivity. For dedicated control panels without the enclosure, see the 12-inch TLP Pro 1225MG wall mount and TLP Pro 1225TG tabletop, or the 15.6-inch TLP Pro 1535M and TLP Pro 1535T.

What warranty is included?

Extron provides a 3-year parts and labor warranty, with display and overlay components covered for 1 year.
