Extron TLP Pro 1225MG 12" Wall Mount TouchLink Pro Touchpanel
Product Description
The Extron TLP Pro 1225MG is a 12-inch wall mount TouchLink Pro touchpanel with a capacitive, edge-to-edge glass touchscreen built to control video, audio, lighting, shades, HVAC, security, and other systems across virtually any commercial AV environment. Its 1280x800 (WXGA) display renders 16.7 million colors on a responsive control surface, and HDMI and XTP video preview inputs let operators monitor HDCP-compliant sources directly on the panel. The large control surface and multi-source video preview make this wall mount touchpanel well suited to conference rooms, lecture halls, command and control spaces, and any room that requires a fully customizable AV control interface.
The TLP Pro 1225MG works with any Extron control processor and HC 400 Series system, operating over standard network infrastructure for straightforward installation with Ethernet cable. It is powered by PoE+ (802.3at, class 4), eliminating bulky local power supplies. All TouchLink Pro touchpanels are designed in Extron GUI Designer software, which provides ready-to-use templates for a wide range of rooms and presentation environments that can be used as-is or customized. For other panels in this family, see our Extron collection.
Key Features
- 12-inch Capacitive Touchscreen — Edge-to-edge glass display with 1280x800 (WXGA) resolution and 16.7 million colors for a vibrant, responsive control surface.
- Quad-Core Processor — Drives fast page loads and a responsive interface during operation.
- HDMI and XTP Video Preview — Full-motion video preview and monitoring of HDCP-compliant sources directly on the panel.
- Broad Control System Compatibility — Works with any Extron control processor and HC 400 Series system for complete, interactive control of source devices.
- PoE+ Powered — Powered directly by a PoE+ (802.3at, class 4) switch or injector, eliminating local power supplies.
- Built-In Stereo Speakers — Provide audio for video preview and audible feedback from button presses, plus a 3.5 mm line-level output for local audio.
- Motion and Light Sensors — Light sensor adjusts brightness to ambient lighting; motion detector wakes the panel, with an adjustable sleep timer for energy savings.
- Configurable Status Light — Red and green indicator shows room availability or call status at a glance.
- Dual USB 2.0 Ports — Two high-speed USB type A ports for expansion and peripherals.
- Flexible Mounting — Installs on a wall, lectern, or flat surface with included hardware; optional BB 700M back box satisfies local codes that require a rear metal enclosure.
- Fully Customizable Interface — Designed with GUI Designer plus Global Configurator Plus/Professional or ControlScript, with support for the Extron Control App and GlobalViewer Enterprise remote management.
Technical Specifications
| Specification | Details |
|---|---|
| Screen type | TFT active matrix color LCD |
| Screen size | 12.1" (307 mm) diagonal |
| Resolution | 1280 x 800 (WXGA) |
| Pixel density | 124.75 PPI |
| Aspect ratio | 16:10 |
| Color depth | 24-bit, 16.7M colors |
| Brightness | 340 nits (cd/m²) |
| Contrast ratio | 1000:1 |
| Backlight | LED |
| Viewing angle | ±85° horizontal, ±85° vertical |
| Touchscreen | Capacitive |
| RAM | 2 GB |
| Storage | 8 GB |
| Video input resolution range | 640x480 @ 60 Hz through 1920x1200 @ 60 Hz (includes 480p, 576p, 720p, 1080p, 2K) |

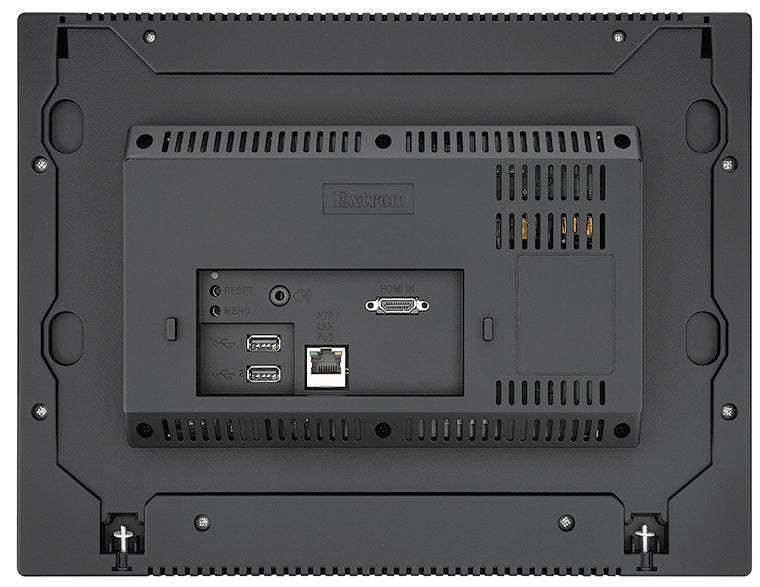

| Video inputs | 1 HDMI (HDCP compliant, female HDMI type A); 1 XTP (female RJ-45, shared with Ethernet) |
| Video standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
| Ethernet | 1 RJ-45 (shared with XTP video), 10/100Base-T, half/full duplex with autodetect |
| USB | 2 USB type A receptacles, high-speed USB 2.0 |
| Audio output – speaker | 2 stereo, 90 dB max SPL @ 0.1 m; 400 Hz to 20 kHz ±5 dB |
| Audio output – line level | 1 stereo unbalanced, 3.5 mm mini jack, -10 dBV nominal |
| Sensors | Motion sensor (on/off); light sensor (auto/manual) |
| Power input | Power over Ethernet (802.3at, class 4) |
| Power consumption | 21.0 W device; 23.6 W device and power injector (with XTP) |
| Operating temperature | +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing |

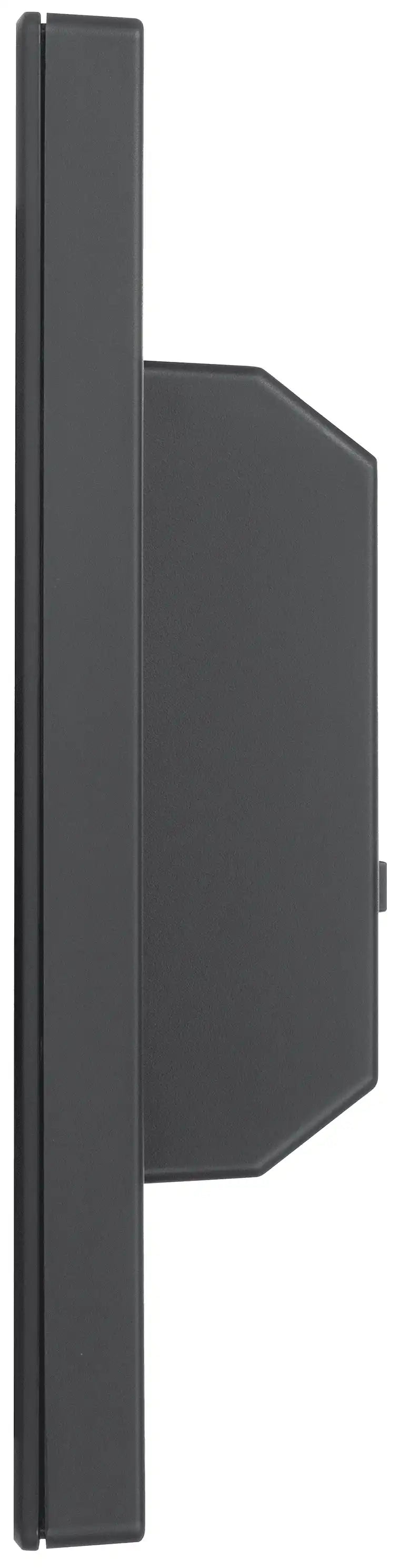

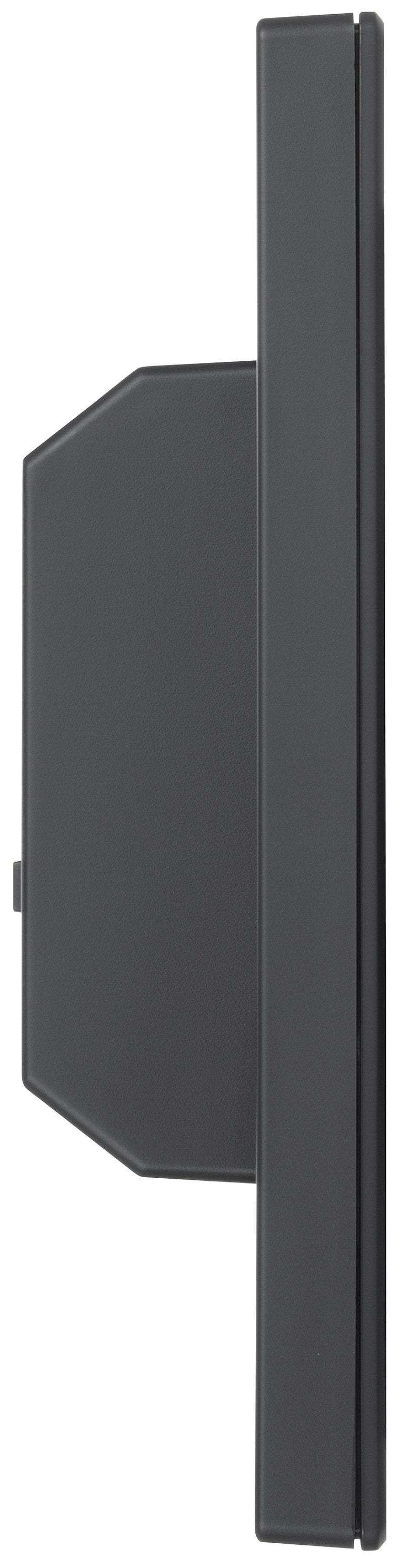

| Faceplate dimensions | 9.80" H x 12.77" W x 0.81" D (249 x 324 x 21 mm) |
| Enclosure dimensions | 5.50" H x 8.74" W x 1.76" D (140 x 222 x 44 mm) |
| Product weight | 4.06 lbs (1.84 kg) |
| Mounting | Furniture or wall mount (included hardware); rack mount with optional kit |
| Enclosure type | Plastic |
| Regulatory compliance | BIS, CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, WEEE |
| Warranty | 3 years parts and labor; display and overlay components 1 year |
Frequently Asked Questions
What control processors is the TLP Pro 1225MG compatible with?
It works with any Extron control processor and the HC 400 Series system, operating over standard Ethernet network infrastructure.
How is the touchpanel powered?
It is powered by PoE+ (802.3at, class 4) from a compatible switch or power injector. No local power supply is included or required.
Can it preview live video sources?
Yes. The panel includes HDMI and XTP video preview inputs and supports full-motion preview of HDCP-compliant sources up to 1920x1200 @ 60 Hz directly on the touchscreen.
How does it mount, and is a back box available?
It mounts to a wall, lectern, or flat surface using included hardware. The optional BB 700M back box can be used where local codes require a rear metal enclosure.
How does this compare to other TouchLink Pro panels?
The 1225MG is the 12-inch wall mount model with HDMI/XTP video preview. For the same display in a tabletop form factor, see the TLP Pro 1225TG tabletop touchpanel. For larger 15.6-inch panels, see the TLP Pro 1535M wall mount and TLP Pro 1535T tabletop.
What warranty is included?
Extron provides a 3-year parts and labor warranty, with display and overlay components covered for 1 year.
