Extron TLP Pro 1225TG 12" Tabletop TouchLink Pro Touchpanel
Product Description

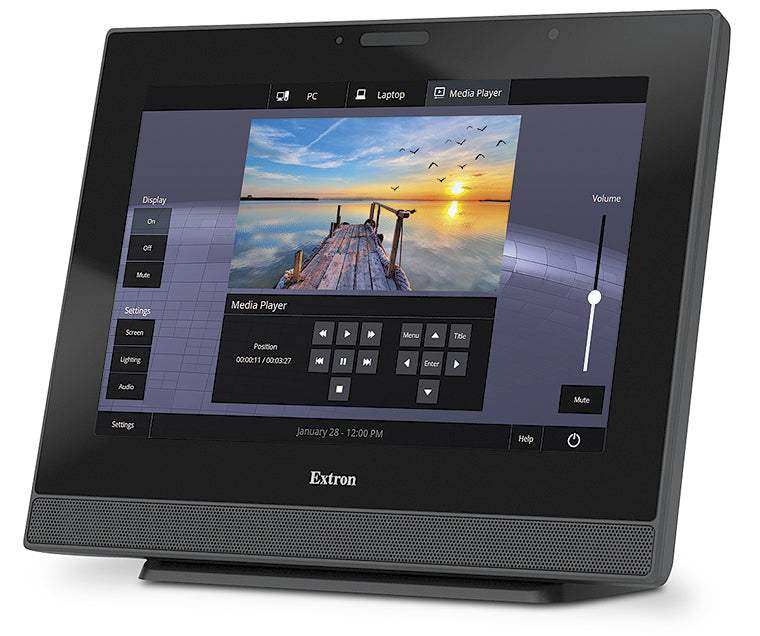

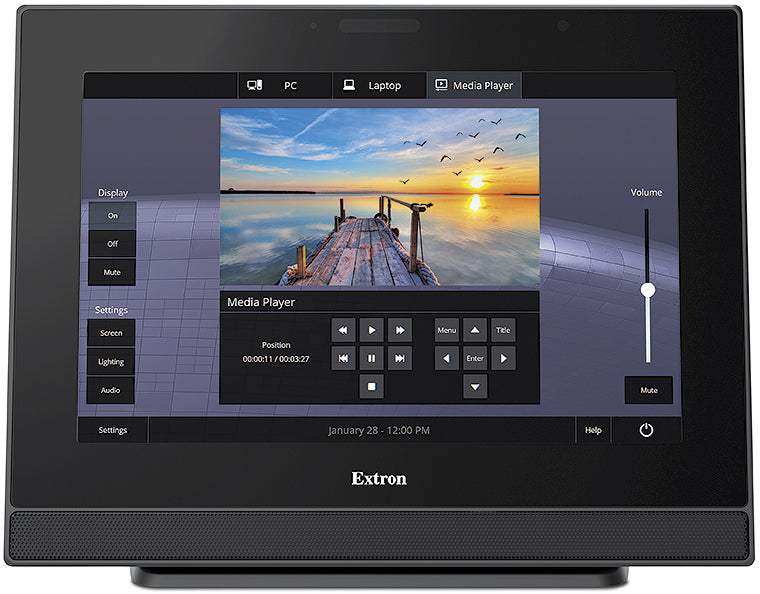

The Extron TLP Pro 1225TG is a 12-inch tabletop TouchLink Pro touchpanel with a capacitive, edge-to-edge glass touchscreen built to control video, audio, lighting, shades, HVAC, security, and other systems across virtually any commercial AV environment. Its 1280x800 (WXGA) display renders 16.7 million colors on a responsive control surface, and HDMI and XTP video preview inputs let presenters monitor HDCP-compliant sources directly from the table. The tilt-adjustable tabletop design and multi-source video preview make this touchpanel well suited to conference rooms, boardrooms, lecture halls, and any space that needs a fully customizable AV control interface within reach of the operator.
The TLP Pro 1225TG works with any Extron control processor and HC 400 Series system, operating over standard network infrastructure for straightforward installation with Ethernet cable. It can be powered by PoE+ (802.3at, class 4) or 12 VDC local power. The base includes threaded holes and Kensington lock support for securing the panel to a table, and it supports the optional SMA-1 Swivel Mount Adapter and VESA FDMI Type D 100 mm mounting. A TAA-compliant version is available on request. All TouchLink Pro touchpanels are designed in Extron GUI Designer software with ready-to-use room templates. For other panels in this family, see our Extron collection.
Key Features
- 12-inch Capacitive Touchscreen — Edge-to-edge glass display with 1280x800 (WXGA) resolution and 16.7 million colors for a vibrant, responsive control surface.
- Quad-Core Processor — Drives fast page loads and a responsive interface during operation.
- HDMI and XTP Video Preview — Full-motion video preview and monitoring of HDCP-compliant sources directly on the panel.
- Broad Control System Compatibility — Works with any Extron control processor and HC 400 Series system for complete, interactive control of source devices.
- Flexible Power — Operates on PoE+ (802.3at, class 4) or 12 VDC local power, eliminating bulky supplies when PoE+ is used.
- Tilt-Adjustable Tabletop Base — Sits on the table and tilts through a 40-degree range; threaded holes secure it to the surface, with optional SMA-1 Swivel Mount Adapter and VESA D 100 mm mounting.
- Kensington Lock Support — Allows the touchpanel to be physically locked to a table or flat surface for security in open spaces.
- Built-In Stereo Speakers — Provide audio for video preview and audible feedback, plus a 3.5 mm line-level output for local audio.
- Motion and Light Sensors — Light sensor adjusts brightness to ambient lighting; motion detector wakes the panel, with an adjustable sleep timer for energy savings.
- Dual USB 2.0 Ports — Two high-speed USB type A ports for expansion and peripherals.
- Fully Customizable Interface — Designed with GUI Designer plus Global Configurator Plus/Professional or ControlScript, with support for the Extron Control App and GlobalViewer Enterprise remote management. A TAA-compliant version is available.
Technical Specifications
| Specification | Details |
|---|---|
| Screen type | TFT active matrix color LCD |
| Screen size | 12.1" (30.7 cm) diagonal |
| Resolution | 1280 x 800 (WXGA) |
| Pixel density | 124.75 PPI |
| Aspect ratio | 16:10 |
| Color depth | 24-bit, 16.7M colors |
| Brightness | 340 nits (cd/m²) |
| Contrast ratio | 1000:1 |
| Backlight | LED |
| Viewing angle | ±85° horizontal, ±85° vertical |
| Touchscreen | Capacitive |
| RAM | 2 GB |
| Storage | 8 GB |
| Video input resolution range | 640x480 @ 60 Hz through 1920x1200 @ 60 Hz (includes 480p, 576p, 720p, 1080p, 2K) |

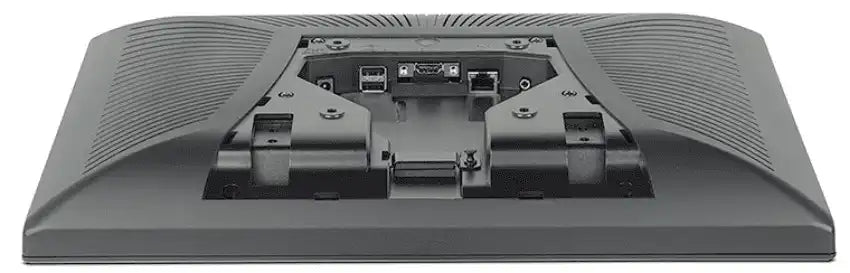

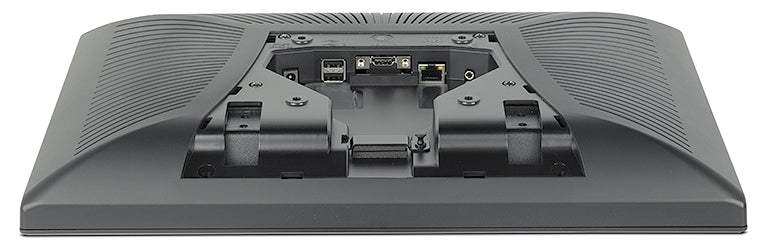

| Video inputs | 1 HDMI (HDCP compliant, female HDMI type A); 1 XTP (female RJ-45, shared with Ethernet) |
| Video standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
| Ethernet | 1 RJ-45 (shared with XTP video), 10/100Base-T, half/full duplex with autodetect |
| USB | 2 USB type A receptacles, high-speed USB 2.0 |
| Audio output – speaker | 2 stereo, 90 dB max SPL @ 0.1 m; 400 Hz to 20 kHz ±5 dB |
| Audio output – line level | 1 stereo unbalanced, 3.5 mm mini jack, -10 dBV nominal |
| Sensors | Motion sensor (on/off); light sensor (auto/manual) |
| Power input | 12 VDC or Power over Ethernet (802.3at, class 4) |
| Power consumption | 22.5 W device (PoE+ with XTP); 20.3 W device (PS 1230 supply) |
| Operating temperature | +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing |
| Mounting adjustment | Tilts through a 40° range |
| Enclosure dimensions | 9.8" H x 12.8" W x 8.4" D (249 x 324 x 212 mm); max height/depth vary with tilt |
| Product weight | 10.98 lbs (4.98 kg) |
| Mounting | Set on tabletop or mount to optional VESA D 100 mm panel mount kit |
| Enclosure type | Plastic |
| Regulatory compliance | BIS, CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, WEEE |
| Warranty | 3 years parts and labor; display and overlay components 1 year |
Frequently Asked Questions
What control processors is the TLP Pro 1225TG compatible with?
It works with any Extron control processor and the HC 400 Series system, operating over standard Ethernet network infrastructure.
How is the touchpanel powered?
It can be powered by PoE+ (802.3at, class 4) from a compatible switch or injector, or by 12 VDC local power using a supply such as the PS 1230. No power supply is included.
Can it preview live video sources?
Yes. The panel includes HDMI and XTP video preview inputs and supports full-motion preview of HDCP-compliant sources up to 1920x1200 @ 60 Hz directly on the touchscreen.
How does it mount, and can it be secured?
It sits on a tabletop and tilts through a 40-degree range. Threaded holes in the base allow secure mounting, it supports the optional SMA-1 Swivel Mount Adapter and VESA D 100 mm mounting, and Kensington lock support lets you physically lock it to the surface.
Is a TAA-compliant version available?
Yes. A TAA-compliant version is available. Inform your Extron representative or Creation Networks if your order requires compliance with TAA regulations.
How does this compare to other TouchLink Pro panels?
The 1225TG is the 12-inch tabletop model with HDMI/XTP video preview. For the same display as a wall mount, see the TLP Pro 1225MG wall mount touchpanel. For larger 15.6-inch panels, see the TLP Pro 1535M wall mount and TLP Pro 1535T tabletop.
What warranty is included?
Extron provides a 3-year parts and labor warranty, with display and overlay components covered for 1 year.
