Extron TLP Pro 1535T Black Tabletop TouchLink Pro Touchpanel
Product Description

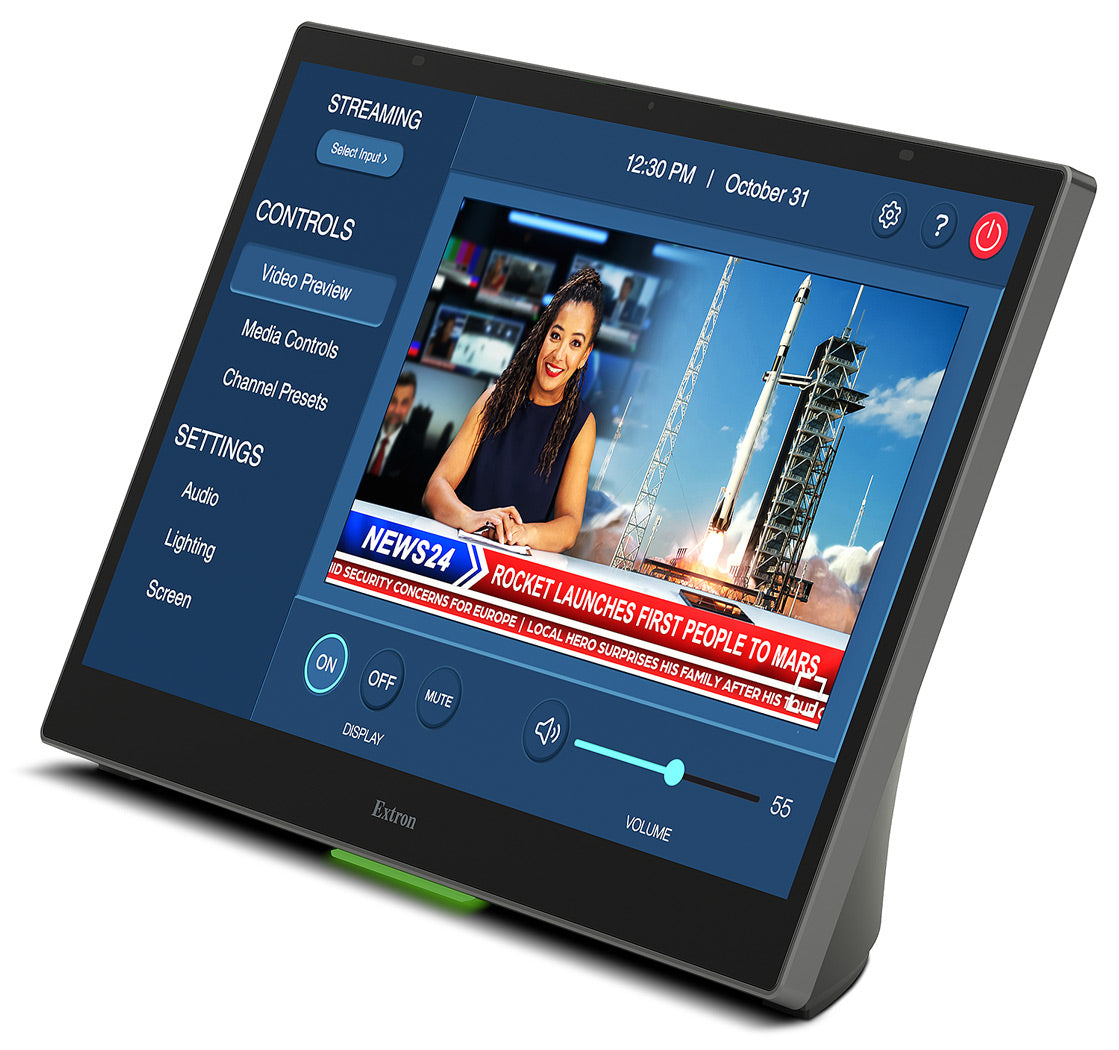

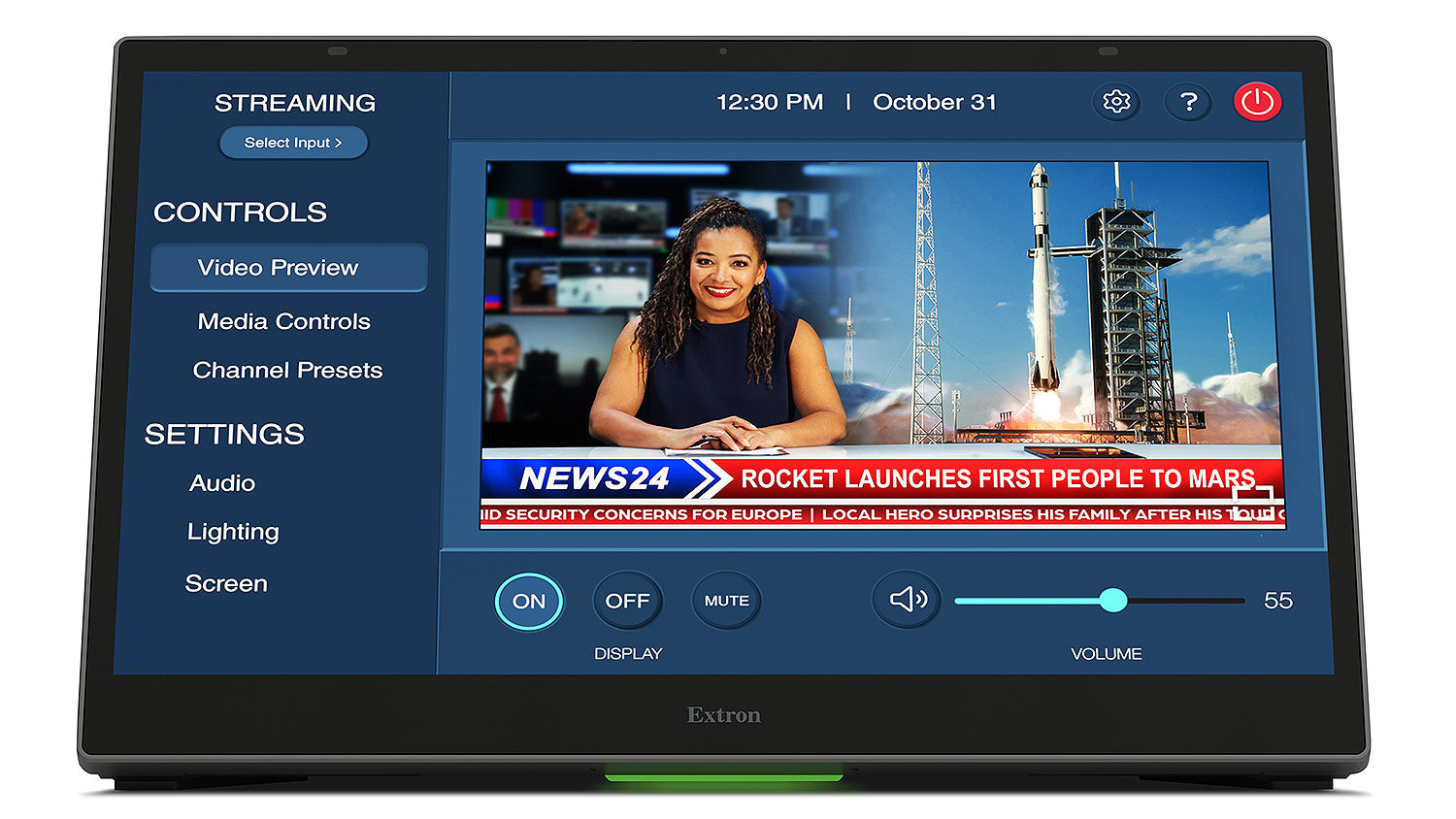

The Extron TLP Pro 1535T is a 15.6-inch tabletop TouchLink Pro touchpanel built for large-format AV control in conference rooms, boardrooms, training facilities, and corporate environments. Its IPS TFT active-matrix LCD delivers 1920x1080 FHD resolution at 141.2 PPI with 24-bit color, 450 nits of brightness, and a wide ±85 degree viewing angle, keeping the interface sharp and readable across the meeting table. The projected capacitive touchscreen provides accurate, responsive control of AV systems, displays, lighting, shades, and environmental settings from a single panel that sits directly on the table where presenters need it.
The TLP Pro 1535T deploys over a single Ethernet cable using PoE+ (802.3at, class 4) for power, network, and control, simplifying installation in tabletop locations. Native H.264 streaming support lets the panel display a live video preview from an IP camera or streaming encoder. Built-in motion and ambient light sensors wake the panel and adjust brightness automatically. The base includes threaded holes for securing the panel to a table with owner-furnished screws, and it supports swivel operation with an optional Swivel Mount Adapter. As part of the Extron TouchLink Pro family, this tabletop touchpanel works with any Extron IP Link Pro xi control processor and can be configured as a standalone control system using LinkLicense for TLP Control Processor with the TLCA 2 adapter. Browse the full lineup in our Extron collection.
Key Features
- 15.6-inch FHD IPS Touchscreen — Displays a 1920x1080 image at 141.2 PPI with 24-bit color, 450 nits brightness, and an 800:1 contrast ratio for a clear tabletop control interface.
- Projected Capacitive Touch — Provides accurate, responsive multi-point control across the full 15.6-inch surface.
- Single-Cable PoE+ Power — Powers the panel over one Ethernet cable using PoE+ (802.3at, class 4), carrying power, network, and control together.
- Native H.264 Video Preview — Decodes and displays live H.264 streams from an IP camera or encoder directly on the panel.

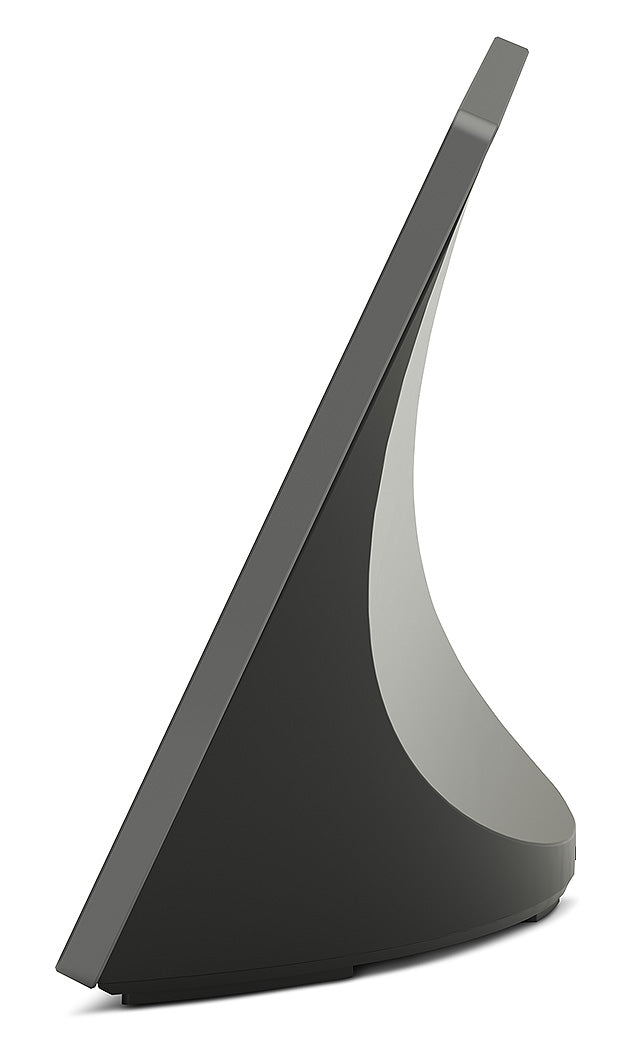

- Secure Tabletop Base — Threaded holes in the base allow the panel to be fastened to the table with owner-furnished screws; an optional Swivel Mount Adapter adds swivel positioning.
- Motion and Light Sensors — Automatically wake the panel on approach and adjust display brightness to ambient room conditions.
- IP Link Pro xi Compatibility — Operates with any Extron IP Link Pro xi control processor for centralized AV control system integration.
- Standalone Control Option — Becomes a self-contained controller when paired with LinkLicense for TLP Control Processor and the TLCA 2 adapter.
- USB-C Connectivity — Includes a high-speed USB 2.0 device port on a USB-C receptacle for configuration and accessories.
- Three-Year Warranty — Backed by Extron's 3-year parts and labor warranty (display and overlay components covered for 1 year).
Technical Specifications
| Specification | Details |
|---|---|
| Screen type | IPS TFT active matrix color LCD |
| Screen size | 15.6" (39.6 cm) diagonal |
| Resolution | 1920 x 1080 (FHD) |
| Pixel density | 141.2 PPI |
| Aspect ratio | 16:9 |
| Color depth | 24-bit, 16.7M colors |
| Brightness | 450 nits (cd/m²) |
| Contrast ratio | 800:1 |
| Backlight | LED with auto brightness control |
| Viewing angle | ±85° horizontal, ±85° vertical |
| Touchscreen | Projected capacitive |
| RAM | 4 GB DDR4 |
| Storage | 64 GB eMMC (32 GB usable project storage) |
| Audio | 2 stereo speaker output; WAV (LPCM) playback up to 192 kHz |
| Ethernet | 1 RJ-45, 10/100Base-T, half/full duplex with autodetect |
| USB | 1 USB-C receptacle, high-speed USB 2.0 device |
| Sensors | Motion sensor (on/off); light sensor (auto/manual) |
| Power input | PoE+ (802.3at, class 4) |
| Power consumption | 16.1 W device; 19.5 W with PoE+ |
| Operating temperature | +32 to +104 °F (0 to +40 °C), 10% to 90% noncondensing |
| Enclosure dimensions | 8.67" H x 14.4" W x 4.92" D (220 x 366 x 125 mm) |
| Enclosure type | Plastic |
| Mounting | Set on or mount to tabletop |
| Regulatory compliance | CE, c-UL, UL, C-Tick, FCC Class A, ICES, VCCI, RoHS, UKCA, WEEE |
| Warranty | 3 years parts and labor; display and overlay components 1 year |
Frequently Asked Questions
What control processors is the TLP Pro 1535T compatible with?
The panel works with any Extron IP Link Pro xi control processor. It can also operate as a standalone control system when paired with LinkLicense for TLP Control Processor and the TLCA 2 adapter.
How is the touchpanel powered and cabled?
It uses a single Ethernet cable for power, network, and control via PoE+ (802.3at, class 4). No separate power supply is included; a PoE+ source or compatible power injector is required.
How does the tabletop panel stay in place?
The base has threaded holes so the panel can be secured to the table with owner-furnished screws. An optional Swivel Mount Adapter adds swivel positioning for shared meeting tables.
Can it display live video?
Yes. The TLP Pro 1535T natively decodes H.264 streams, so it can show a live video preview from an IP camera or streaming encoder directly on the panel.
How does this compare to other TouchLink Pro panels?
The 1535T is the 15.6-inch tabletop model. For the same display in a wall mount form factor, see the TLP Pro 1535M wall mount touchpanel. Smaller 12-inch options include the TLP Pro 1225MG wall mount and TLP Pro 1225TG tabletop.
What warranty is included?
Extron provides a 3-year parts and labor warranty, with display and overlay components covered for 1 year.
