Cisco Webex PTZ 4K Camera

Product Overview

The Cisco Webex PTZ 4K Camera (CS-CAM-PTZ4K=) is a motorised pan-tilt-zoom camera with 20x optical zoom, built for rooms where the distance from camera to presenter is beyond what a fixed camera bar can frame. It pairs with the Cisco Codec EQ, Codec Pro and Codec Plus, and is the PTZ option in the Room Kit EQ PTZ 4K bundle. Video goes to the codec over HDMI 2.0, while control runs as Visca over IP on the camera's own LAN port. Mounting hardware and, where PoE+ is unavailable, a local power supply are ordered separately.

Product Description

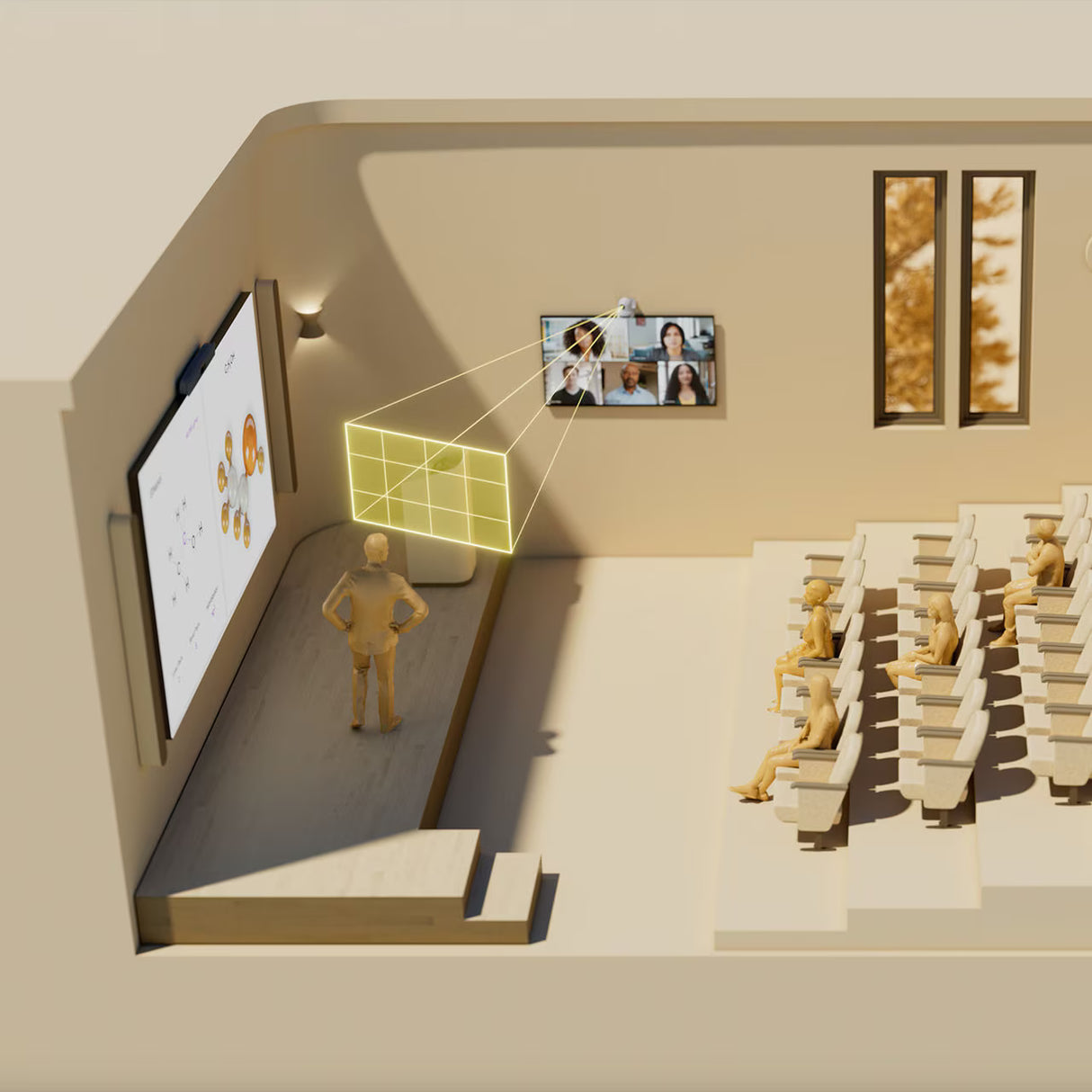

The specification that decides whether this camera belongs in a room is optical reach, and it is the one number worth arguing about before anything else is priced. A fixed camera bar at the display handles a twenty-foot boardroom table well. Put the same bar at the front of a lecture theatre and a face in the back row arrives at the far end as a handful of pixels, because the wide lens has already spent its resolution on the walls. Twenty times optical zoom is real magnification through glass, and it holds detail in a way the 12x digital stage inside the 240x total figure cannot. Specify against the actual distance from the camera position to the furthest seat that has to be readable, not against the room's square footage.

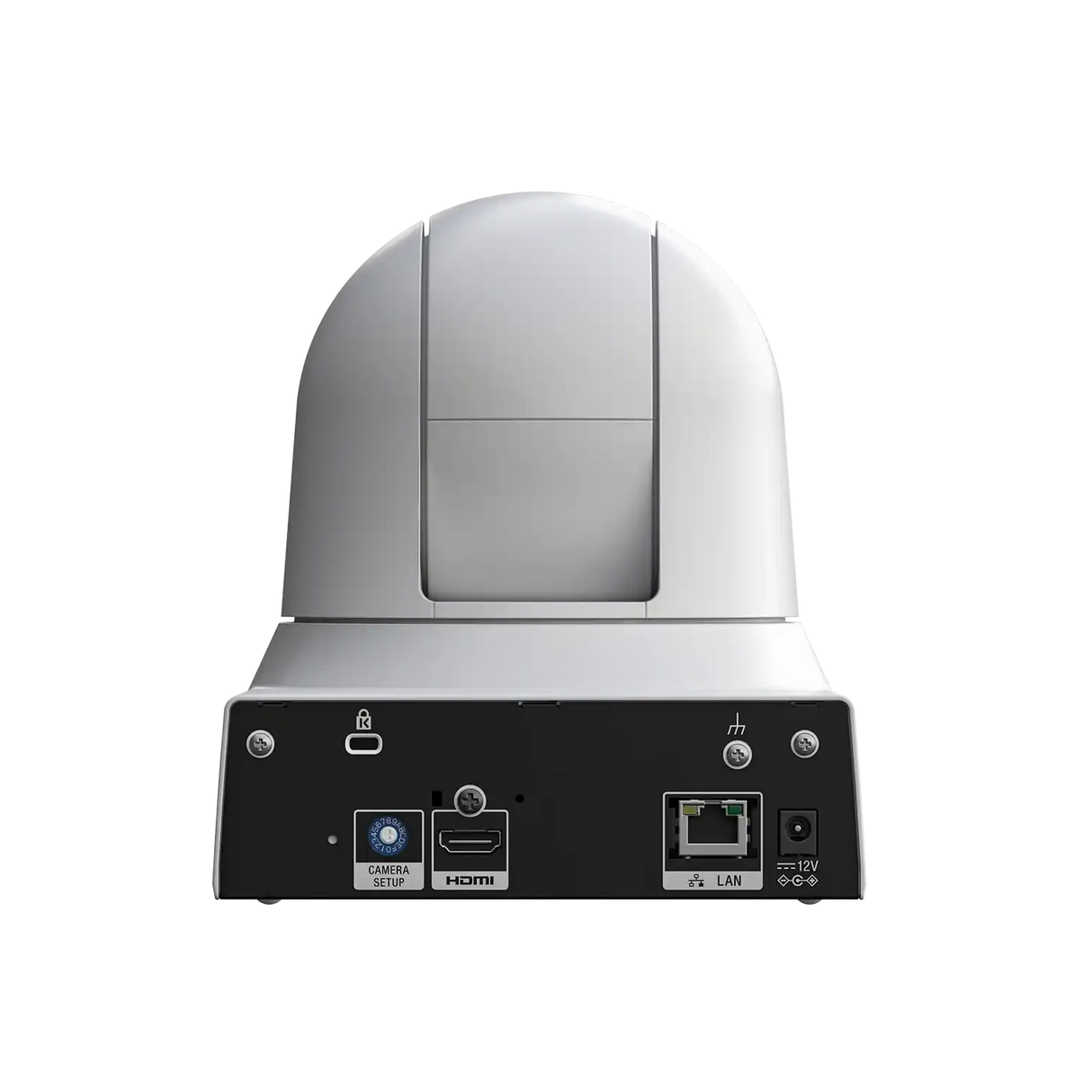

Two runs have to reach the camera position, and estimators regularly budget only one. Video leaves on HDMI 2.0 to a codec input. Control leaves on a separate Cat 6 run to the camera's LAN port, carrying Visca over IP, and that port is 10/100 rather than gigabit because it is a control and power path and not a video path. Power comes over that same network run as PoE+ (IEEE 802.3at), or from a local outlet and a PSU-12VDC-40W2= 12V/3A supply where the switch port cannot deliver 802.3at. The camera weighs 3.75 lb (1.7 kg) and ships without a mount, so a CS-PTZ4K-BRKT or a CS-PTZ4K-CLNGMNT belongs on the same bill of materials.

Commissioning is where the camera earns or loses the room. PresenterTrack, the behaviour most training and lecture spaces actually buy this camera for, needs a Codec EQ or Codec Pro behind it and a presenter zone defined during setup, so allow programming time rather than treating it as a default. Manual presets are worth setting at the same visit, since pan runs at 1.1 to 300 degrees per second and tilt at 1.1 to 126 degrees per second, which is fast enough that an unrehearsed recall reads as a lurch on camera. With a pan range of plus or minus 170 degrees and tilt from -20 to +90 degrees, a single well-chosen position can cover both a stage and an audience without a second camera.

Key Features

• 20x Optical Zoom, 240x Total — Twenty times optical plus twelve times digital is the specification that decides whether a face at the back of a lecture theatre is readable at the far end.
• Wide Mechanical Range — Pan of plus or minus 170 degrees and tilt from -20 to +90 degrees let one camera position cover a stage and an audience.
• 4K Capture — The camera outputs 3840 x 2160 at 30 fps, or 1920 x 1080 at 60 fps where motion matters more than resolution.
• PresenterTrack — With a Codec EQ or Codec Pro, AI head detection follows an active presenter inside a zone defined at commissioning.
• Visca over IP Control — Control travels over the camera's LAN port rather than a serial run, which simplifies long cable pulls.
• PoE+ or Local Power — The camera runs on IEEE 802.3at PoE+, or on 12V/3A from the PSU-12VDC-40W2= supply where no PoE+ port is available.
• Fast, Quiet Movement — Pan runs at 1.1 to 300 degrees per second and tilt at 1.1 to 126 degrees per second.
• Broad Codec Support — The camera pairs with the Cisco Codec EQ, Codec Pro and Codec Plus.

Typical Applications

• Auditoriums and lecture theatres where the presenter is well beyond camera-bar range
• Training rooms using PresenterTrack to follow an instructor
• Houses of worship with long stage-to-camera distances
• Large boardrooms needing a second camera for a podium or whiteboard
• Government and enterprise all-hands spaces covering a stage and audience from one position

Technical Specifications

Frequently Asked Questions

What is the difference between the PTZ 4K and the Room Vision PTZ?

Reach. The PTZ 4K gives 20x optical zoom inside a 240x total range. The Room Vision PTZ, used in the Room Kit Pro G2 bundles, gives 12x optical inside a 60x total range with production-grade movement. Choose the PTZ 4K when the room is deep and you need optical reach; choose Room Vision PTZ when smooth on-camera movement matters more. Both cameras sit in our Cisco video conferencing range.

Which bundles include this camera?

It is the camera in the Room Kit EQ PTZ 4K (CS-KIT-EQ-4K-K9) and, historically, in the Room Kit Plus PTZ 4K and Room Kit Pro PTZ 4K bundles. Cisco set end-of-sale on the Room Kit Plus PTZ 4K on 20 July 2025, so the current bundle is the Room Kit EQ PTZ 4K.

Can it run on PoE?

Yes, PoE+ to IEEE 802.3at. A local 12V/3A supply is the alternative where a PoE+ port is not available at the camera position.

Does it need a mounting bracket?

Yes, unless the camera is being set on a flat, stable surface. For wall positions the part is CS-PTZ4K-BRKT; for suspended ceiling positions it is CS-PTZ4K-CLNGMNT. The two are not interchangeable, so confirm the mounting position before ordering.

What accessories go on the order alongside the camera?

A mount, and a power supply if PoE+ is not available. The wall bracket is CS-PTZ4K-BRKT, the ceiling mount is CS-PTZ4K-CLNGMNT and the local 12V supply is PSU-12VDC-40W2=. All three are stocked and ordered as separate lines.

How is the camera controlled?

Visca over IP on the camera's LAN port, with video carried separately over HDMI 2.0. There is no serial control run to pull, but the Cat 6 control run is a second cable that has to be budgeted alongside the HDMI run.

Is SmartNet available?

Yes. Cisco SMARTnet coverage is available through Creation Networks.
