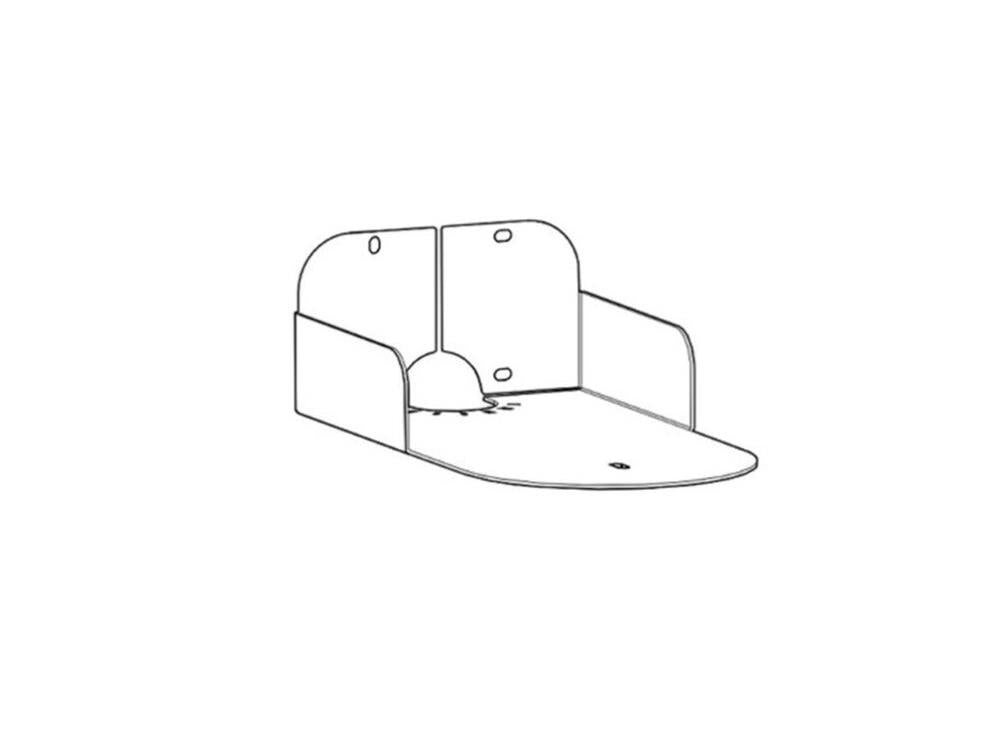

Cisco Bracket for mounting of PTZ 4K camera

Product Overview

CS-PTZ4K-BRKT is the Cisco mounting bracket for the Cisco Webex PTZ 4K Camera (CS-CAM-PTZ4K=), specified whenever the camera has to be fixed to a wall rather than set loose on a credenza. It picks up the camera's own mounting points and carries its 3.75 lb (1.7 kg) mass, so the motorised head can drive through its full pan and tilt range without the mount moving with it. Cisco's ordering table names this part the Webex PTZ 4K Camera Wall Mount Bracket. It is ordered separately, because the camera ships without a mount — including when that camera arrives inside the Room Kit EQ PTZ 4K bundle.

Product Description

A PTZ camera is the one device in a room that moves under its own power, which is why the mount matters more here than it does behind a fixed camera bar. Every pan and tilt command puts a small torque into whatever the camera is standing on. Set a 3.75 lb motorised head on a credenza or a display shelf and the picture shows it: a slow settle at the end of each preset recall, and framing that drifts a little every time somebody leans on the furniture. Fixing the camera to structure removes that variable during installation rather than after the first complaint from the far end.

For an estimator, the bracket is one line of four. The camera needs an HDMI 2.0 run back to the codec for video and a Cat 6 run to its LAN port for Visca over IP control, and both terminate at the mount position, so the mount location has to be settled before the cable pull is priced. Power is the item most often missed: the camera takes PoE+ (IEEE 802.3at) over that same network run, and where the switch port cannot supply PoE+, the alternative is a local outlet at the mount plus a PSU-12VDC-40W2= 12V/3A supply. On drywall, allow for blocking or a backer plate behind the bracket rather than relying on hollow-wall anchors.

CS-PTZ4K-BRKT is the wall bracket. Cisco publishes a separate ceiling mount for this camera, CS-PTZ4K-CLNGMNT, and the two parts are not interchangeable. Where the camera is being suspended below the ceiling plane rather than fixed to a wall, order the ceiling bracket instead, and confirm the intended position against the drawing before the order goes in, since a wrong bracket means a second trip to site. Both brackets are stocked alongside the rest of our Cisco video conferencing range.

Key Features

• Made for the PTZ 4K Camera — The bracket matches the mounting points and the 3.75 lb (1.7 kg) mass of the Cisco Webex PTZ 4K Camera (CS-CAM-PTZ4K=).
• Fixed Structural Mounting — Attaching the camera to structure stops the pan and tilt motors from moving the mount instead of the head.
• Wall Mount Position — Cisco's ordering table names this part the Webex PTZ 4K Camera Wall Mount Bracket; the ceiling position uses a separate part, CS-PTZ4K-CLNGMNT.
• Genuine Cisco Accessory — This is the Cisco part rather than a third-party adapter plate, which matters where the specification calls for manufacturer hardware throughout.
• Ordered Separately — The PTZ 4K camera ships without a mount, so the bracket has to appear as its own line on the bill of materials.

Typical Applications

• Training rooms with the PTZ 4K wall-mounted at the front of the room
• Lecture theatres and auditoriums needing the camera off the furniture and onto structure
• Large conference rooms where the camera needs a fixed wall position looking down the table
• Multi-purpose rooms where the furniture layout changes but the camera position should not
• Government and higher education spaces specifying fixed, non-portable AV mounting

Technical Specifications

Frequently Asked Questions

Is a mounting bracket required for every PTZ 4K deployment?

A bracket is required whenever the camera is not placed directly on a flat, stable surface. For display-top placement without a bracket, confirm the top surface is level and rigid enough to hold a 3.75 lb motorised camera. For wall and ceiling installations a bracket is not optional.

Does the camera include a bracket?

No. The Cisco Webex PTZ 4K Camera ships without a mount, so the bracket is a separate line item on the order.

Can this bracket be used for a ceiling position?

No. CS-PTZ4K-BRKT is the wall bracket, and CS-PTZ4K-CLNGMNT is the ceiling bracket. Cisco lists them as two separate parts and they are not interchangeable. Order the one that matches the mounting position on the drawing.

What has to reach the camera at the bracket position?

An HDMI 2.0 run to the codec for video, and a Cat 6 run to the camera's LAN port for Visca over IP control. Power comes over that same network run as PoE+ (IEEE 802.3at), or from a local 12V/3A supply (PSU-12VDC-40W2=) where a PoE+ port is not available at the mount.

Is SmartNet available?

Yes. Cisco SMARTnet coverage is available through Creation Networks.
