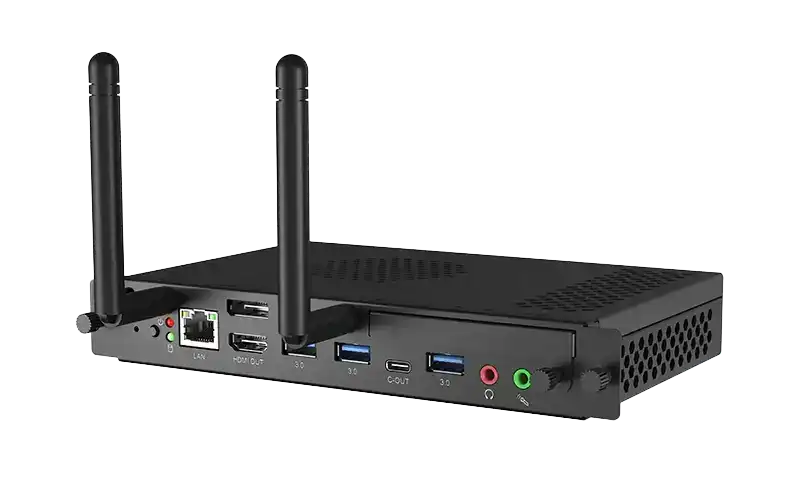

Avocor AVC-OPSi7-G12 – Intel i7 Gen 12 OPS PC, 5K Support

The Avocor AVC-OPSi7-G12 is a 12th Generation Intel Core i7 OPS slot-in PC built to give Avocor interactive displays — including the 5K 21:9 L Series 105" — a current-generation Windows compute engine hidden inside the display chassis.

Product Overview

This 12th Gen i7 OPS PC module installs into the Open Pluggable Specification slot on compatible Avocor displays and was crafted as the companion compute for the Avocor L Series 105 21:9 ultrawide. The Intel Core i7-1260P combines high-performance and power-efficient cores across 12 cores and 16 threads, while integrated Intel Iris Xe graphics drives both 4K (16:9) and 5K (21:9) Avocor panels. For AV integrators specifying an OPS slot-in computer for conference room displays, the AVC-OPSi7-G12 delivers Windows 11 Pro support, 16GB of DDR4-3200 memory, and NVMe storage in a module that weighs just 0.6kg. It is the current-generation choice in Avocor's interactive display PC module lineup.

Product Description

The AVC-OPSi7-G12 pairs the i7-1260P (2.10GHz base, 4.70GHz max turbo, 18MB cache) with 16GB of DDR4-3200 SODIMM memory, upgradable to 32GB for heavier multitasking workloads. A 256GB M.2 2280 NVMe SSD provides fast boot and application performance, and Intel Iris Xe graphics with DirectX 12.1 and OpenGL 4.6 support delivers sharp visuals for whiteboarding, UC clients, and content playback. Connectivity covers the full meeting room stack: four USB 3.0 Type-A ports, a USB 3.2 Type-C port, HDMI 2.0 output, gigabit RJ45 LAN, 3.5mm line out and mic in, plus Intel dual-band AX200 Wi-Fi (2.4/5.8GHz) and Bluetooth. The module connects through the standard JAE 80-pin OPS interface and supports TPM 2.0 for hardware-backed security — important for enterprise and government deployments. The supported operating system is Windows 11 Pro OEM 64-bit (OS not included), so IT teams can image the unit to their own standard. Maximum output reaches 4096 x 2160 @ 60Hz via HDMI and up to 7680 x 4320 @ 60Hz via DisplayPort over the OPS interface, which is what enables full native 5K resolution on the L Series 105" ultrawide.

Key Features

• 12th Gen Intel Core i7-1260P — Twelve cores and 16 threads at up to 4.70GHz max turbo handle demanding collaboration, UC, and content workloads.
• 5K and 4K Display Support — Intel Iris Xe graphics drives Avocor 4K 16:9 displays and the 5K 21:9 L Series at full native resolution.
• 16GB DDR4-3200, Upgradable to 32GB — Dual-SODIMM memory keeps multiple meeting applications responsive and can be expanded for heavier workloads.
• 256GB NVMe SSD — The M.2 2280 NVMe drive delivers fast boot times and quick read/write performance for files and applications.
• Windows 11 Pro Support — The module supports Windows 11 Pro OEM 64-bit (OS not included), allowing IT to deploy a managed corporate image.
• Full Meeting Room Connectivity — Four USB-A 3.0 ports, USB-C 3.2, HDMI 2.0 out, gigabit RJ45, and 3.5mm audio connect cameras, mics, and peripherals.
• Dual-Band Wi-Fi and TPM 2.0 — Intel AX200 wireless at 2.4/5.8GHz plus TPM 2.0 support provide flexible networking with hardware security.
• Standard OPS Integration — The JAE 80-pin OPS connector lets the 0.6kg module install inside the display with no external PC or cabling.

Typical Applications

• Conference rooms pairing the L Series 105" 21:9 ultrawide with Windows-based collaboration
• Boardrooms requiring current-generation compute hidden inside the display
• All-hands rooms and commercial meeting spaces running UC and presentation software
• Training rooms with shared Avocor interactive touch displays
• Government spaces requiring TPM 2.0 hardware security on room compute

Technical Specifications

Frequently Asked Questions

Which Avocor displays work with the AVC-OPSi7-G12?

It installs in OPS-slot-equipped Avocor displays including the L Series 105" 21:9 touchscreen, H Series, and E Series models. Verify the OPS slot on your display model or contact Creation Networks for confirmation.

Does it support the L Series 5K 21:9 resolution?

Yes. Intel Iris Xe graphics supports Avocor 4K (16:9) and 5K (21:9) displays, with output up to 7680 x 4320 @ 60Hz via DisplayPort over the OPS interface — the AVC-OPSi7-G12 was designed as the companion compute for the L Series 105 21:9.

Is Windows included?

No. The module supports Windows 11 Pro OEM 64-bit, but the operating system is not included. Most enterprise IT teams deploy their own licensed corporate image, which also simplifies domain management and patching.

How difficult is installation in an AV integration?

Installation is a slot-in operation: the module inserts into the display's OPS bay via the JAE 80-pin connector with no external power or video cabling. The display can remain wall-mounted during installation and future service.

Can the RAM be upgraded?

Yes, the 16GB (2 x 8GB SODIMM) DDR4-3200 configuration is upgradable to 32GB. Per Avocor, the upgrade is not available through Avocor, so it is performed by your integrator or IT team.

How does the G12 compare to the Gen 10 OPS module?

The G12 adds a 12-core hybrid-architecture CPU, NVMe storage, Iris Xe graphics, 5K output, Wi-Fi 6-class wireless, and TPM 2.0. The AVC-OPSi7-G10 Gen 10 OPS PC remains a value option for 4K displays. See all compatible hardware in the Avocor collection.
