System Includes
(1) IR T1 small area infrared transmitter
(1) TFP 055 power supply
(1) WCA 055 6′ 3.5 mm male-to-male, stereo audio cable
(1) WCA 106 – 6′ USB micro cable (USB 2.0 to USB micro)
(1) WCA 124 – adapter cable (3.5mm F to RCA)
Features
- Commercial-quality design
- High-efficiency LEDs[nbsp]display power status and audio input

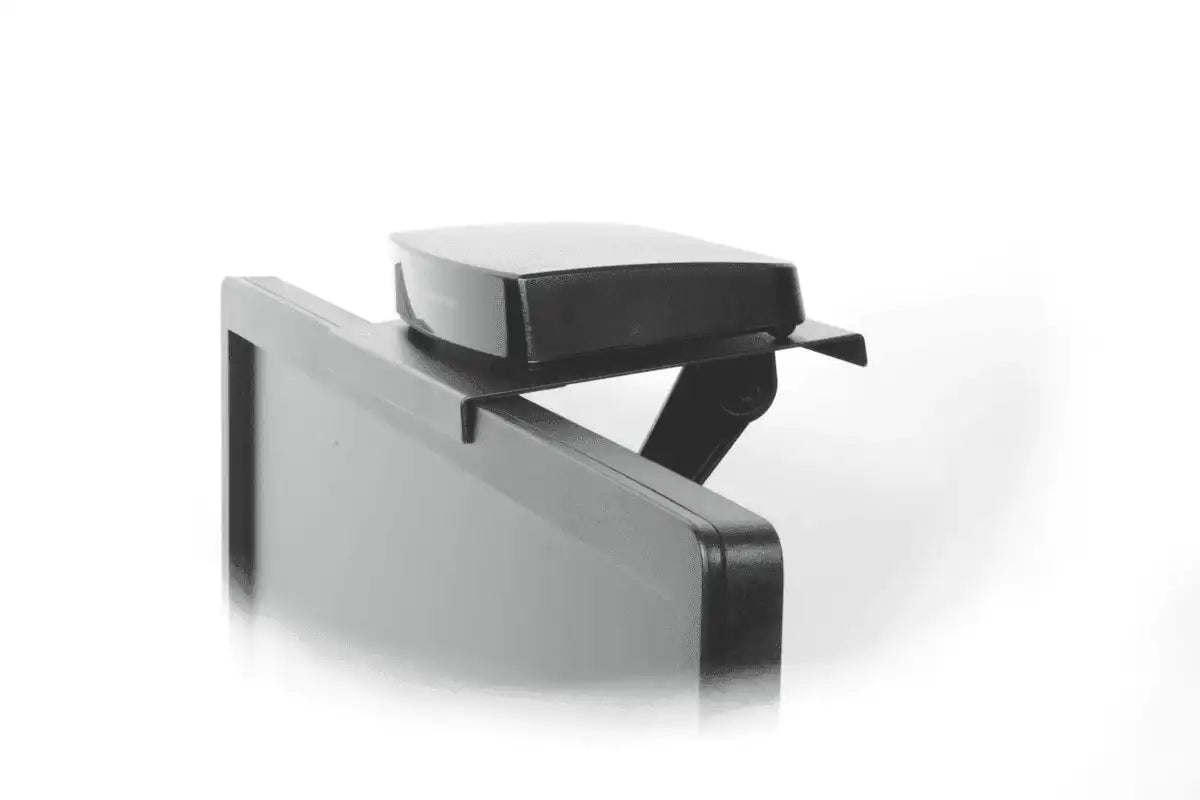

- Tripod mount or optional flat panel[nbsp]TV[nbsp]mounting bracket
- Power with[nbsp]A/C[nbsp]power supply or USB (from TV)
- Plug-and-play install with 3.5MM audio input 1- or 2-channel operation (2.3 and 2.8)
Specifications
IR T1
|
Dimensions: |
Width: 5.65”(14.4 cm), Depth: 3.65”(9.3 cm), Height: 1.15”(2.9 cm) |
|
Weight: |
8.3 oz (235 g) |
|
Color: |
Black |
|
Power Supply: |
TFP 055 – 100-240VAC 50/60Hz Input; 5VDC, 1A USB Output, Universal Supply with international adapters Other USB Power Supply (must be at least 5VDC, 0.2A) |
|
Power Cable: |
USB to micro USB cable |
|

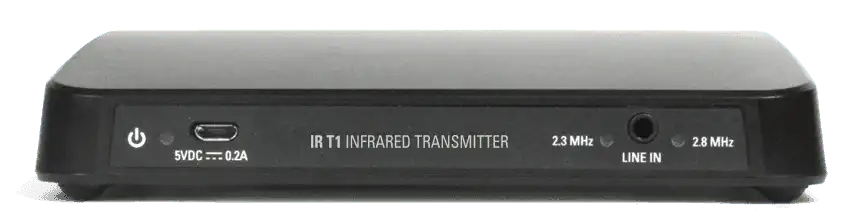

DC Power Input: |
Micro USB connector, 5VDC, 0.2A |
|
Power Indicator: |
Green LED |
|
Sleep/Power Save Mode: |
Shuts off carrier when no audio present for 12 minutes |
|
Modulation: |
FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis |
|
Carrier Frequencies: |
2.3MHz (Ch 1) and 2.8MHz (Ch 2) Default at power on = carriers off. Carriers are automatically enabled upon presence of audio. |
|
Coverage Area: |
1,300 sq. ft (120 sq. m.) with the WIR RX22-4 |
|
Audio Inputs: |
3.5mm stereo line level input jack, Ch 1 connected to tip, Ch 2 connected to ring, GND connected to sleeve |
|
Audio Indicators: |
One Yellow LED per channel, lights up and stays on steady with minimum audio level. |
|
Signal-to-Noise Ratio: |
70 dB at onset of limiting |
|
Frequency Response: |
100 – 12,000 Hz |
|
Operating Requirements: |
32°-122°F (0-50°C) |
|
Mounting Kit: |
Optional: STD 008 TV Top Shelf Mounting Kit Optional: BKT 024 Omnidirectional mount for wall or ceiling mounting |
|
Compatible Receivers: |
WIR RX22-4, IR RX20 |
|
Warranty: |
2 years |
|
Approvals/Regulatory Compliance: |
CE, RCM, FCC, Industry Canada, PSE, CUL, WEEE, RoHS, CB Scheme |
Warranty
2 Years
