Visionary Solutions E5200 – 4K60 4:4:4 AV over IP Encoder

Product Overview

The Visionary Solutions PacketAV E5200 is a 4K60 4:4:4 AV over IP matrix encoder that distributes visually lossless video with sub-frame latency over standard 1GbE networks with PoE+. Built for commercial AV integration, it converts any HDMI or USB-C source into a routable network stream for conference room presentation, video wall sourcing, and enterprise-wide AV distribution. Native AES67 audio is included, with full Dante/AES67 capability available through a separately purchased PacketAV module, and three local inputs with HDMI loop-through let the encoder double as an in-room presentation switcher. Pair it with the matching D5200 decoder for end-to-end distribution.

Product Description

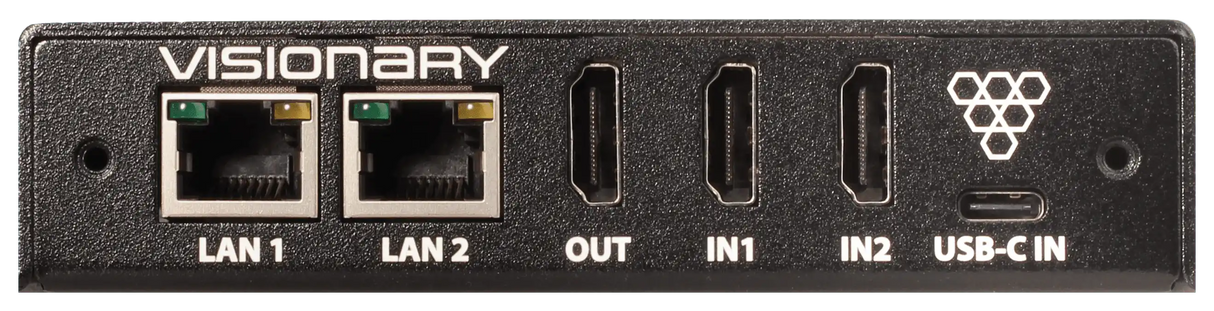

The E5200 encodes sources up to 4K60 with full 4:4:4 chroma sampling using Visionary's JPEG2000-based, dynamically optimized compression codec, which analyzes source content to preserve fine computer-generated graphics and full-motion video at adjustable bitrates from 50 to 800 Mbps. Sub-frame latency of approximately 2 ms at 1080p60 and 4K60 4:4:4 supports live IMAG, KVM-over-IP, and interactive presentation work. Two HDMI inputs and one USB-C input (DisplayPort Alt Mode) feed an internal switcher with HDMI loop-through, with selection by auto-switching, control system, or the embedded web UI — a practical layout for boardroom and multi-purpose room AV design where a local confidence display is needed.

A single PoE+ network drop carries video, audio, USB, and control, with VLAN tagging available to separate AV traffic on a corporate network. The Ethernet expansion port (PSE) passes network connectivity and PoE through to downstream LAN devices or daisy-chained endpoints. Native AES67 audio output (up to 2 channels) ships standard, and the optional Dante/AES67 hardware module adds up to 4 channels of Dante networked audio embedding and de-embedding at 24-bit/48 kHz. Independent routing lets integrators matrix video, audio, USB, IR, and RS-232 separately, and a full-motion MJPEG substream provides preview feeds without affecting the primary stream. Enterprise security — AES-256 stream encryption, 802.1x authentication, HTTPS API, and SSH — plus TAA compliance make the E5200 appropriate for government space and corporate standards. Control integration runs through Vision Lite software and third-party drivers for Crestron, Q-SYS, Symetrix, and RTI, and rack-mount kits support high-density head-end installation.

Key Features

• 4K60 4:4:4 over 1GbE — Encodes full-chroma UHD video for standard Gigabit networks without fiber or 10G switching.
• Sub-Frame Latency — Approximately 2 ms at 1080p60 and 4K60 4:4:4 keeps live camera and presenter feeds synchronized.
• Three-Input Local Switcher — Two HDMI inputs plus USB-C with HDMI loop-through support auto-switching or control-system selection.
• Native AES67 Audio — Interoperates with AES67-compliant audio networks out of the box, up to 2 channels.
• Upgradeable to Dante/AES67 — A separately purchased PacketAV module adds Dante networked audio up to 4 channels.
• USB-C Source Input — Connects laptops and BYOD devices supporting DisplayPort Alt Mode directly without adapters.
• Single PoE+ Network Drop — One CAT5e/6 cable carries video, audio, USB, control, and power for clean commercial installation.
• Ethernet Expansion Port with PoE Pass-Through — Networks and powers downstream devices or daisy-chained endpoints.
• Enterprise Security — AES-256 encryption, 802.1x, HTTPS API, and SSH meet corporate and government IT policies.
• KVM, RS-232, IR, CEC, and GPIO over IP — Extends peripheral and device control to any endpoint on the network.

Typical Applications

• Conference room
• Boardroom
• Training room
• Auditorium
• House of worship
• Government space
• Commercial meeting space
• All-hands room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Which decoder pairs with the E5200?
The D5200 decoder is the direct companion, and the E5200 also interoperates with other Visionary 5-Series decoders such as the DuetD-5 and D5100.

Does the E5200 include Dante audio?
Native AES67 support is built in. Full Dante/AES67 capability is added with a separately purchased PacketAV Dante/AES67 hardware module. If you need Dante out of the box, consider the DuetE-5 encoder.

Do I need a 10-Gigabit network for 4K60 4:4:4?
No. The 5-Series codec delivers 4K60 4:4:4 over standard 1-Gigabit Ethernet using IGMP-capable Gigabit switches and CAT5e/6 cabling.

Will every laptop work with the USB-C input?
Source devices must support DisplayPort Alt Mode for USB Type-C or Thunderbolt. Most modern business laptops qualify, but verify your fleet before deployment.

How is the encoder powered?
Via PoE on the main LAN port (standard PoE, 15 W or lower). Supplying PoE+ enables PoE pass-through to devices on the Ethernet expansion port.

Can it integrate with my control system?
Yes. Vision Lite control software is included, with third-party drivers for Crestron, Q-SYS, Symetrix, and RTI, and an API for qualified system integrators.
