Visionary Solutions PacketAV D5200 4K60 4:4:4 UHD IP POE+ Matrix Decoder, AES67/Dante

4K60 4:4:4 Video Support

    Experience ultra-high-definition video with 4K resolution at 60 frames per second and full 4:4:4 color sampling for unparalleled image quality, suitable for professional applications where every detail matters.

Isochronous USB 2.0 over IP

    Enables real-time data transfer for USB devices, such as webcams and microphones, over the network. This feature simplifies the deployment of video conferencing solutions and offers greater flexibility in AV system design. By leveraging the AV over IP infrastructure, it allows seamless integration and extension of USB peripherals.

Native AES67 Audio Support

    Seamlessly integrates with AES67 audio networks, enabling high-quality, low-latency audio transmission over IP. Ensures full interoperability with other AES67-compliant devices for professional audio applications.

USB-C Connectivity

Encoder: USB-C Input

    Connect easily and share media from your Mac, Laptop, Tablet, Mobile, and Other USB-C enabled devices
    Note: Not all devices will be compatible; Source devices must support DisplayPort Alt Mode for USB Type-C or Thunderbolt.

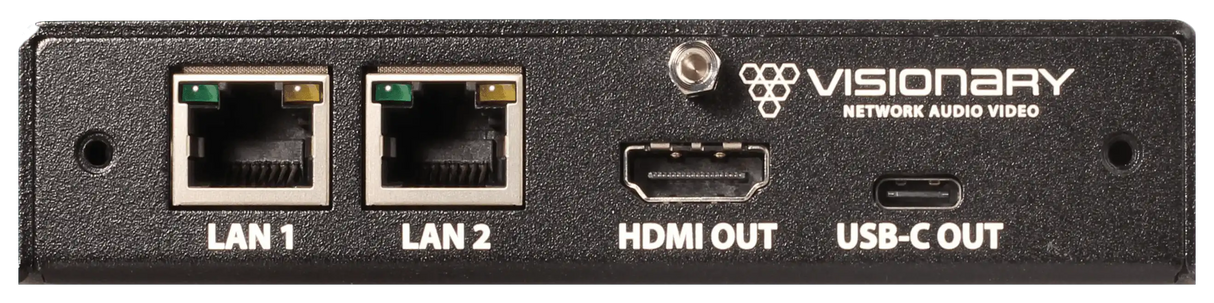

Decoder: USB-C Output

    Enables soft-codec integration via driverless USB 2.0 connection to a PC for web conferencing applications
    such as Zoom, Skype, Cisco WebEx, and Microsoft Teams
    Capture, record, and stream meetings, presentations, conference cameras, and security footage directly to your PC
    Dynamically switch and view decoder output on your PC for recording, editing, videoconferencing, and streaming applications
    Use the PC streaming software of your choice and live broadcast your signal to any online video platform
    Bridge Dante®/AES67* audio into soft-codec via USB-C
    Eliminate distance limitations with USB cables and extension – access right where you need it, close to every device that needs it
    USB Video Class (UVC) – compliant, a video capture standard that’s compatible with Mac OSX, Windows®, Linux® and Android operating systems
    Output Resolutions up to 4K30

Multiple selectable local input sources w/ HDMI loop-through (Encoder)

    2 x HDMI® and 1 x USB-C input and 1 x HDMI output
    Switching between the three inputs can be performed automatically using auto-switching (input detect) mode, programmatically via a control system, or through a web browser
    HDMI loop-through: display any of the three locally connected sources

Seamless Fast Switching

    Tearing free, no black screen, no frame lock

Dynamic OSD text overlay capabilities

    The ability to overlay dynamic or fixed text on screen enables displaying of alerts, announcements, special instructions, clocks / timers, schedules, and other messaging

Mass Configuration

    Auto Discover all endpoints on the network, export to .CSV file (all configurable parameters included), make changes offline, upload .CSV file through embedded web page of encoder/decoder and push configuration to the network
    No external software required – mass configuration capabilities built into the endpoint embedded webpage UI

LLDP Support

    Link Layer Discovery Protocol (LLDP) is a protocol used by network devices for advertising their identity, capabilities, and neighbors on a local area network based on IEEE 802 technology
    Allows for dynamic control of endpoints based on automatic discovery of physical location

QoS Support

    Quality of Service (QoS) is an advanced feature that prioritizes network traffic resulting in performance improvement for critical network traffic

Control

    Vision Lite Control Software
    3rd Party Control Drivers [Crestron, QSC, Symetrix, RTI, etc.]
    *API providing access to the full range of features on the encoders and decoders offered to qualified System Integrators

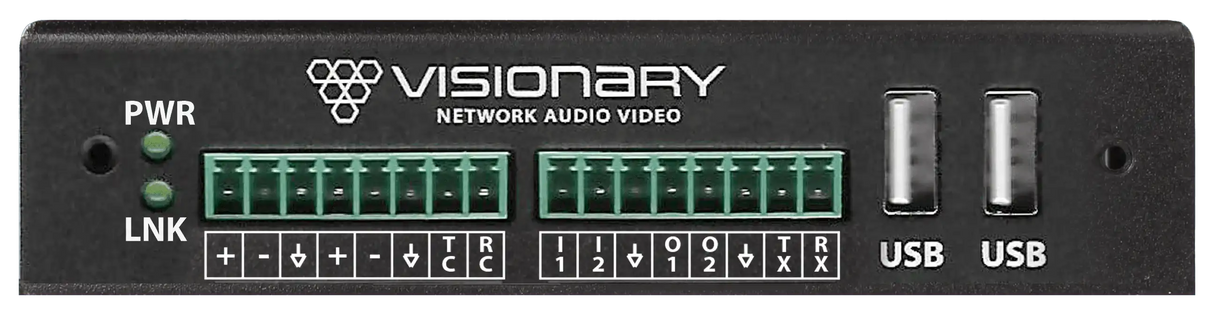

GPIO – 2×2 I/O User Configurable

    Control third party devices from any endpoint on the network

Single Main Gigabit LAN Port for 4K60 4:4:4 Video, Dante®/AES67*, Control, and Powered Device (PD)

    A single Ethernet port for Video over IP and Dante®/ AES67* audio embedding and de-embedding, with VLAN tagging capability to separate Audio & Video network traffic as needed

Full Motion MJPEG Substream

    Maximize bandwidth efficiency and enhance video quality with a full motion MJPEG substream, delivering smooth, high-quality video feeds for preview or monitoring purposes without impacting the primary 4K60 4:4:4
    video stream.

Dynamically Optimized (Adaptive) bit-rate compression CODEC w/ built-in AI

    Visionary’s highly efficient video compression codec is a modified full frame encoding that dynamically optimizes for fine lines (computer generated graphics) or motion video by using sophisticated AI to analyze the input source content. Actively matching the level of compression to a scene by leveraging periods of low motion video content reduces the stream’s size and enhances performance – enabling, without compromising image quality, Visually Lossless transmission of computer generated graphics or full-motion video sources.
    Adjustable Video Bitrate: (50 – 200 Mbps or Auto [800Mbps max])

Enterprise Level Security –AES Encryption, 802.1x, HTTPS, SSH

Enterprise applications demand a secure Network AV solution

    AES Stream Encryption – The Advanced Encryption Standard, or AES, is a worldwide standard and was adopted as the standard encryption algorithm by the U.S. government for encrypting classified information
    HTTPS Secure API – Using secure SSL/TLS communications HTTPS provides integrity that a client is communicating with the real API and receiving back authentic data. It also ensures privacy for applications and users using the API
    802.1x Authentication for Network access control – 802.1X provides a secure authentication mechanism for any device trying to access a network
    SSH Network Protocol – SSH is a network protocol used to remotely access and manage a device through command line communications. The key difference between Telnet (used by other AV over IP manufacturers) and SSH is that SSH uses encryption, which means that all data transmitted over a network is secure

Power connected devices with PoE pass-through

    Encoders and Decoders only require standard PoE power (15w or lower), however, when PoE+ is supplied to the Main LAN port you can pass-through PoE power to devices connected to the Ethernet Expansion Port

USB 2.0 over IP (KVM), RS-232 over IP, IR over IP, and CEC over IP

    Control practically any remotely located device using USB devices and interfaces
    Also supports KVM over IP
    Control any device with an RS-232 interface
    HDMI CEC signal extension over IP
    Seamlessly control infrared devices

KVM Multi Display Roaming

    Switch keyboard and mouse control automatically and seamlessly between PC’s by moving the cursor across the boundaries of a display and ‘roaming’ to adjacently mapped displays.

Built in Video Wall Functions

    A Single platform to support distributed displays and Video Walls; without separate expensive video wall processors and controllers
    Enhanced Video Wall functionality – supports video rotation 180/270 degrees
    Easily create video walls using normal commodity displays
    Built-in video wall processor that allows you to build up to a 16×16 video wall

Auto Video Scaler

    No need to worry about configuring the source resolution
    4K in/1080P out, 1080P in/4K out

Independent Routing

    Independently route all signals with the ability to separately matrix video, audio (including Dante®/AES67* ), USB, IR, and serial (RS-232)

Ethernet Expansion Port – Power Sourcing

    This port enables network connectivity for control and IP traffic pass-through to remote LAN devices (ex. displays, projectors, control touch-panels).
    The port can also be used to daisy-chain multiple endpoints for easy video wall creation or extend distances to displays

HDMI 2.0 and HDCP 2.2, 2.3 Compliant
