Visionary Solutions DuetE-WP-H – 4K UHD over IP Wallplate Encoder, HDMI

Product Overview

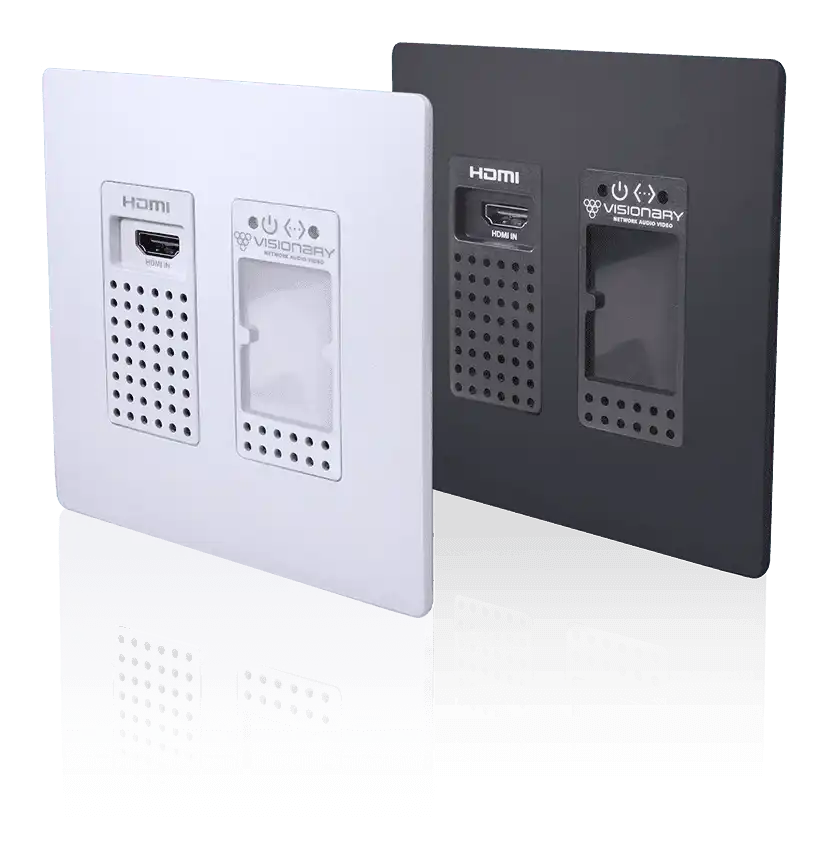

The Visionary Solutions DuetE-WP-H is an HDMI-only 4K UHD over IP wallplate encoder that converges video distribution and Dante/AES67 audio networking on a single Gigabit Ethernet port. Designed for commercial AV integration where a clean in-wall connection point is required, this AV over IP wall plate encoder simplifies conference room and classroom installations by encoding any HDMI source directly onto the network. It is a practical alternative to traditional matrix switcher infrastructure for scalable 4K video distribution over IP.

Product Description

Part of Visionary's PacketAV Duet family, the DuetE-WP-H streamlines installation by removing the USB-C input and focusing on the most common requirement: a wall-mounted HDMI connection for presentation sources. Video over IP and Dante/AES67 audio embedding and de-embedding travel over one Ethernet port, with VLAN tagging available to separate audio and video traffic on managed networks. A rear-panel Euroblock terminal provides a stereo balanced audio line output, sourced from Dante or de-embedded from HDMI, which can feed a local power amplifier or DSP in the associated audio zone. The encoder is HDMI 2.0 and HDCP 2.2 compliant and uses Visionary's dynamically optimized adaptive bit-rate codec with built-in AI, delivering visually lossless transmission of both computer graphics and full-motion video at adjustable bitrates from 50 to 200 Mbps (or Auto up to 800 Mbps). Enterprise security is addressed with AES stream encryption, 802.1x network authentication, HTTPS secure API, and SSH management. Mass configuration tools built into the embedded web UI let integrators auto-discover endpoints, export settings to CSV, and push configuration changes network-wide without external software. LLDP support enables dynamic control of endpoints based on automatic discovery of physical location, and QoS support prioritizes AV traffic on converged networks. Tearing-free fast switching with no black screen makes source changes clean in live meeting environments. Control options include Vision Lite software and third-party drivers for Crestron, Q-SYS, Symetrix, RTI, and other platforms. Pair it with Visionary Duet decoders such as the DuetD-5 for a complete end-to-end AV over IP system.

Key Features

• Single Gigabit LAN Port — Carries 4K UHD video over IP, Dante/AES67 audio, and control on one network connection with VLAN tagging.
• HDMI-Only Input — Simplifies wall box installation for spaces that need one dependable HDMI presentation connection.
• Balanced Audio Line Output — Rear-panel Euroblock delivers stereo balanced audio from Dante or de-embedded HDMI to feed amplifiers or DSPs.
• Adaptive AI-Driven Codec — Dynamically optimizes compression for graphics or motion video, with bitrate adjustable from 50–200 Mbps or Auto up to 800 Mbps.
• Enterprise-Grade Security — AES stream encryption, 802.1x authentication, HTTPS secure API, and SSH protect AV traffic on corporate networks.
• Mass Configuration via Web UI — Auto-discovers endpoints and pushes CSV-based configuration network-wide with no external software.
• Fast, Clean Switching — Switches sources with no tearing, no black screen, and no frame lock.
• LLDP and QoS Support — Enables location-aware endpoint control and prioritizes critical AV traffic on converged networks.
• Broad Control Compatibility — Works with Vision Lite software and third-party drivers for Crestron, Q-SYS, Symetrix, and RTI.
• HDMI 2.0 / HDCP 2.2 Compliant — Handles protected commercial content from modern HDMI sources.

Typical Applications

• Conference room
• Boardroom
• Training room
• Commercial meeting space
• Multi-purpose room
• House of worship
• Government space

Technical Specifications

Frequently Asked Questions

What is the difference between the DuetE-WP-H and the DuetE5-WP-H?
The DuetE-WP-H is the original Duet wallplate encoder; the DuetE5-WP-H is the newer 5 Series version with 4K60 4:4:4 support. Both are HDMI-only wallplate encoders with Dante/AES67 audio.

Which decoders does this encoder work with?
It is designed for Visionary's PacketAV Duet ecosystem; the DuetD-5 decoder is a common pairing for display-side termination.

Can it feed a local amplifier directly?
Yes. The rear-panel balanced stereo line output can feed an audio power amplifier or DSP in the room's audio zone, sourced from Dante or audio de-embedded from HDMI.

How do I configure a large deployment efficiently?
Use the built-in mass configuration tools: auto-discover all endpoints, export every configurable parameter to CSV, edit offline, and push the configuration back through the embedded web page — no external software needed.

Is it compatible with our control system?
Third-party drivers are available for Crestron, Q-SYS, Symetrix, RTI, and others, and qualified integrators can access the full API.

Is the system secure enough for enterprise and government networks?
Yes. It supports AES stream encryption, 802.1x network access control, HTTPS secure API, and SSH management rather than unencrypted Telnet.
