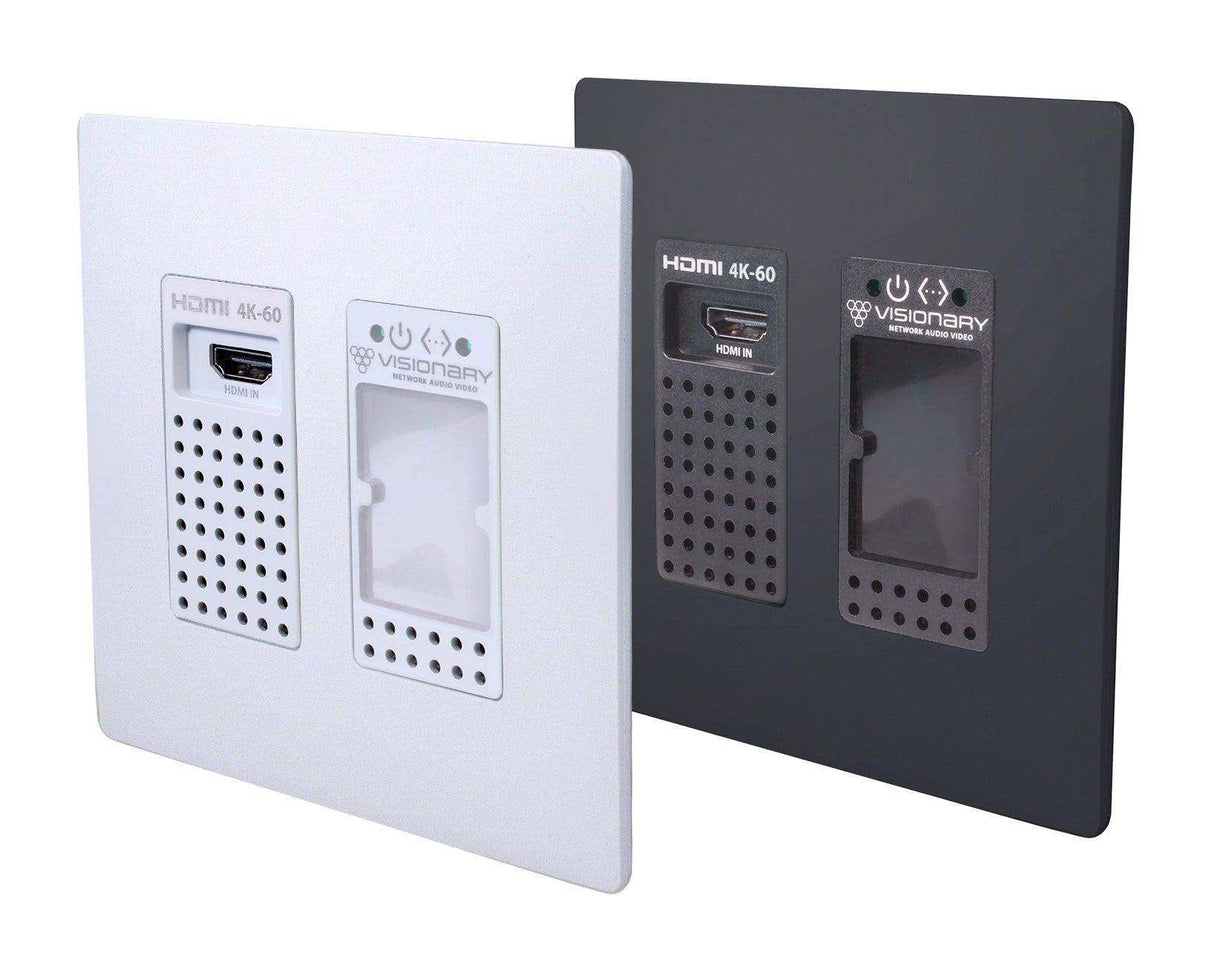

Visionary Solutions PacketAV DuetE5-WP-H Wall Plate Encoder Faceplate, HDMI Only

Availability: Call for Availability
Visionary Solutions SKU: DuetE5-WP-H-BLACK
No reviews

Color: Black

Description

Visionary Solutions presents the next generation DuetE5-WP-H 4K60 4:4:4 Wallplate AV over IP Encoder, building upon the revolutionary PacketAV® Duet Wallplate Encoder that has transformed networked AV. Experience true convergence with a single platform that supports Dante®/AES67 and Video over IP in an elegant wallplate form-factor.

The DuetE5-WP-H delivers exceptional 4K60 4:4:4 video and Dante®/AES67 audio over a single Gigabit Ethernet port, offering superior performance and streamlined installation.

The next-generation DuetE5-WP-H features an HDMI-only input, providing a straightforward solution for hassle-free installations
in various applications.

The DuetE5-WP-H is designed for easy mounting in walls, tabletops, lecterns, or floor boxes using a standard 2-gang US or UK back box, offering flexibility for diverse installation requirements.

With support for standard Power over Ethernet (PoE) and Ethernet connectivity, the DuetE5-WP-H requires only a single category cable for a neat and efficient installation.

Visionary’s PackeTV® and PacketAV® products, including the DuetE5-WP-H, can be deployed on any industry-standard IP network. They can operate on existing enterprise IP networks or separate parallel networks (private networks) without intermingling video traffic with data or voice, ensuring ease of installation and optimal performance.

Upgrade your networked AV experience with the DuetE5-WP-H 4K60 4:4:4 Wallplate AV over IP Encoder from Visionary Solutions. Combining state-of-the-art technology with a sleek design, the DuetE5-WP-H is the perfect choice for professionals seeking a streamlined, high-performance AV over IP solution.


4K60 4:4:4 Video Support

    Experience ultra-high-definition video with 4K resolution at 60 frames per second and full 4:4:4 color sampling for unparalleled image quality, suitable for professional applications where every detail matters.

Mass Configuration

    Auto Discover all endpoints on the network, export to .CSV file (all configurable parameters included), make changes offline, upload .CSV file through embedded web page of encoder/decoder and push configuration to the network
    No external software required – mass configuration capabilities built into the endpoint embedded webpage UI

Dynamically Optimized (Adaptive) bit-rate compression CODEC w/ built-in AI

    Visionary’s highly efficient video compression codec is a modified full frame encoding that dynamically optimizes for fine lines (computer generated graphics) or motion video by using sophisticated AI to analyze the input source content. Actively matching the level of compression to a scene by leveraging periods of low motion video content reduces the stream’s size and enhances performance – enabling, without compromising image quality, Visually Lossless transmission of computer generated graphics or full-motion video sources.
    Adjustable Video Bitrate: (50 – 200 Mbps or Auto [800Mbps max])

LLDP Support

    Link Layer Discovery Protocol (LLDP) is a protocol used by network devices for advertising their identity, capabilities, and neighbors on a local area network based on IEEE 802 technology
    Allows for dynamic control of endpoints based on automatic discovery of physical location

QoS Support

    Quality of Service (QoS) is an advanced feature that prioritizes network traffic resulting in performance improvement for critical network traffic

Independent Routing

    Independently route all signals with the ability to separately matrix video & Bluetooth audio (including Dante®/AES67)

HDMI 2.0 and HDCP 2.2, 2.3 Compliant
One Gigabit LAN Port for 4K60 4:4:4 Video, Dante®/AES67, and Control

    A single Ethernet port for Video over IP and Dante®/AES67 audio embedding and de-embedding, with VLAN tagging capability to separate Audio & Video network traffic as needed

Full Motion MJPEG Substream

    Maximize bandwidth efficiency and enhance video quality with a full motion MJPEG substream, delivering smooth, high-quality video feeds for preview or monitoring purposes without impacting the primary 4K60 4:4:4 video stream.

Seamless Fast Switching

    Tearing free, no black screen, no frame lock

Enterprise Level Security –AES Encryption, 802.1x, HTTPS, SSH

Enterprise applications demand a secure Network

    AES Stream Encryption – The Advanced Encryption Standard, or AES, is a worldwide standard and was adopted as the standard encryption algorithm by the U.S. government for encrypting classified information
    HTTPS Secure API – Using secure SSL/TLS communications HTTPS provides integrity that a client is communicating with the real API and receiving back authentic data. It also ensures privacy for applications and users using the API
    802.1x Authentication for Network access control – 802.1X provides a secure authentication mechanism for any device trying to access a network
    SSH Network Protocol – SSH is a network protocol used to remotely access and manage a device through command line communications. The key difference between Telnet (used by other AV over IP manufacturers) and SSH is that SSH uses encryption, which means that all data transmitted over a network is secure

Control

    Vision Lite Control Software
    3rd Party Control Drivers [Crestron, QSC, Symetrix, RTI, etc.]
    *API providing access to the full range of features on the encoders and decoders offered to qualified System Integrators



Encoding/Decoding

Video Codec

JPEG2000 based visually lossless video compression algorithm

Audio Codec

LPCM, Dante® / AES67

Bit Rates

50 to 800 Mbps

Latency

Ultra-Low Latency Sub-Frame (visually lossless video)

~2ms @ 1080p60 & 4K60 4:4:4

~4ms @ 1080p30 & 4K30

Streaming Protocols

IP, UDP, TCP, ICMP, IGMP

Copy Protection

HDCP 2.2, 2.3 AES-256 Encryption

Video

Maximum Resolutions

High Dynamic Range (HDR)
4K60 4:4:4 HDR 8 bit
4K30 4:4:4 HDR 12 bit
1080p60 4:4:4 HDR 12 bit
1080p30 4:4:4 HDR 12 bit
Supports HDR10, HDR10+, HLG, Dolby Vision

Input Signal Types

1x HDMI capable of receiving source input video formats up to 4K60 4:4:4

Audio

Input Signal Types

HDMI Audio, Dante®/AES67 Network Audio (up to 4 channels)

• 1 digital input de-embedded from HDMI

• 1 Dante®/AES67 digital audio input (up to 4 channels)

Output Signal Types

HDMI Digital Audio (NLPCM pass-through), Dante®/AES67 Network Audio

• 1 digital audio output via HDMI
• 1 Dante®/AES67 digital audio output (up to 2 channels)

Digital Formats

Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, DTS:X, LPCM up to 8 channels.

Analog Formats

Stereo 2-channel

Analog-To-Digital Conversion

24-bit 48 kHz

Digital-To-Analog Conversion

24-bit 48 kHz

Dante™/AES67

24-bit 48 kHz

Analog Output Volume Adjustment

-80 to +20 dB






Communication & Control of External Devices

HDMI

HDCP 2.2, 2.3, EDID

Connectors

LAN

8-pin RJ-45 connector, female; 100BASE-TX / 1000BASE-T

Ethernet port / PD port

POE (IEEE 802.3af)

HDMI INPUT

(1) HDMI Type A connector, female; HDMI digital video/audio input

Power

Power Consumption

12 W typical

Environmental

Cooling

Convection / no fan ( no moving parts )

Temperature

32° to 104° F (0° to 40° C)

Humidity

10% to 90% RH (non-condensing)

Heat Dissipation

25 BTU/hr

Acoustic Noise

0 dBA

Form Factor

Dimensions

Height: 4.07 in. (103.4 mm)

Width: 3.61 in. (91.8 mm)

Depth: 2.25 in. (57.2 mm)

Weight

1.0 lb (0.45 kg)

Compliance

CE, FCC, C-tick, RoHS, WEEE
