Visionary Solutions DuetD-5 – 4K60 4:4:4 AV over IP Decoder, Dante/AES67

Product Overview

The Visionary Solutions DuetD-5 is a 4K60 4:4:4 AV over IP decoder that converges Dante/AES67 audio and video over IP on a single Gigabit Ethernet port with PoE+ power. Built for commercial AV integration in corporate, education, medical, and government environments, this PacketAV 5 Series decoder pairs sub-frame, visually lossless video with USB-C soft codec integration, KVM over IP, and built-in video wall processing. It is the display-side workhorse for scalable 4K video distribution over IP and digital signage deployments.

Product Description

The DuetD-5 builds on the widely deployed Duet-2 platform, decoding 4K60 4:4:4 streams with approximately 2 ms latency and scaling output up or down (4K in/1080p out, 1080p in/4K out) so source resolution never becomes an installation problem. Its HDMI output drives the room display while a USB-C output enables driverless soft codec integration with a PC for Zoom, Microsoft Teams, Cisco Webex, and similar platforms — including UVC-compliant capture for recording and streaming, and bridging of Dante/AES67 audio into the soft codec. Two USB Type-A host ports support keyboards, mice, and other peripherals for full KVM over IP, with multi-display roaming that moves keyboard and mouse control between PCs as the cursor crosses display boundaries. The built-in video wall processor supports walls up to 16x16 with 180/270-degree rotation, eliminating separate video wall controllers for lobby and signage installations. Dante/AES67 audio embedding and de-embedding, a balanced stereo analog output on Euroblock, GPIO, RS-232 over IP, IR over IP, and CEC over IP round out room-level integration. The Ethernet expansion port (PSE) passes network connectivity and PoE power through to displays, touch panels, or daisy-chained endpoints when the main LAN port is fed PoE+ (IEEE 802.3at). Dynamic OSD text overlay supports alerts, schedules, and messaging on any display. Enterprise security includes AES-256 stream encryption, 802.1x, HTTPS secure API, and SSH. Pair the DuetD-5 with 5 Series encoders such as the DuetE5-WP-C wallplate encoder or the DuetE5-WP-H to complete the system.

Key Features

• 4K60 4:4:4 Decoding with HDR — Outputs full-chroma UHD video with HDR10, HDR10+, HLG, and Dolby Vision support, scaled up to 4K60 4:4:4 over HDMI.
• Sub-Frame Latency (~2 ms) — Visually lossless, real-time performance for live presentation, conferencing, and interactive content.
• Dante/AES67 Audio Networking — Embeds and de-embeds networked audio (up to 4 channels) at 24-bit 48 kHz alongside video on one Gigabit port.
• USB-C Soft Codec Output — Driverless, UVC-compliant USB-C connection to a PC for Zoom, Teams, and Webex, with Dante/AES67 audio bridging and capture up to 4K30.
• KVM over IP with Multi-Display Roaming — Two USB-A host ports extend keyboard and mouse control that roams automatically between mapped displays.
• Built-In 16x16 Video Wall Processor — Creates video walls with 180/270-degree rotation using commodity displays, no external processor required.
• PoE+ with PoE Pass-Through — Powered by PoE+ (IEEE 802.3at) on the main LAN; the expansion PSE port passes PoE to downstream devices.
• Auto Video Scaler — Handles 4K in/1080p out and 1080p in/4K out automatically, simplifying mixed-resolution deployments.

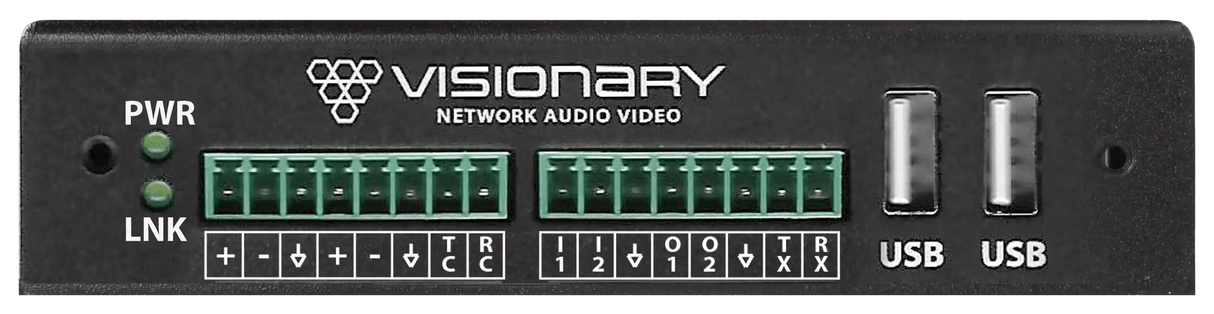

• Balanced Analog Audio Output — Euroblock stereo balanced output feeds room amplifiers or DSPs directly.
• Full Control Extension — RS-232 over IP, IR over IP, CEC over IP, and 2x2 user-configurable GPIO control practically any room device.
• Dynamic OSD Text Overlay — Displays alerts, announcements, clocks, and schedules over live video for signage and emergency messaging.
• Enterprise Security — AES-256 stream encryption, 802.1x, HTTPS secure API, and SSH for corporate and government networks.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• Commercial meeting space
• Multi-purpose room
• All-hands room
• Auditorium
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

Which encoders work with the DuetD-5?
Any Visionary 5 Series encoder, including the DuetE5-WP-C (HDMI + USB-C wallplate) and the DuetE5-WP-H (HDMI-only wallplate).

Do I need PoE+ or is standard PoE enough?
The decoder itself runs on standard PoE (15 W or lower, 12 W typical). PoE+ (IEEE 802.3at) on the main LAN port is only required when you want to pass PoE power through the Ethernet expansion port to a downstream device.

Can it connect directly to a conferencing PC?
Yes. The USB-C output provides a driverless, UVC-compliant connection to a PC for Zoom, Teams, Webex, recording, and streaming, with output resolutions up to 4K30 and Dante/AES67 audio bridging into the soft codec.

Can it build a video wall without a separate processor?
Yes. The built-in video wall processor supports walls up to 16x16 with 180/270-degree rotation using standard commercial displays.

How does it integrate with room control?
RS-232 over IP, IR over IP, CEC over IP, and configurable GPIO control displays and third-party devices, and drivers are available for Crestron, Q-SYS, Symetrix, RTI, and other control platforms.

Can the Ethernet expansion port feed my display?

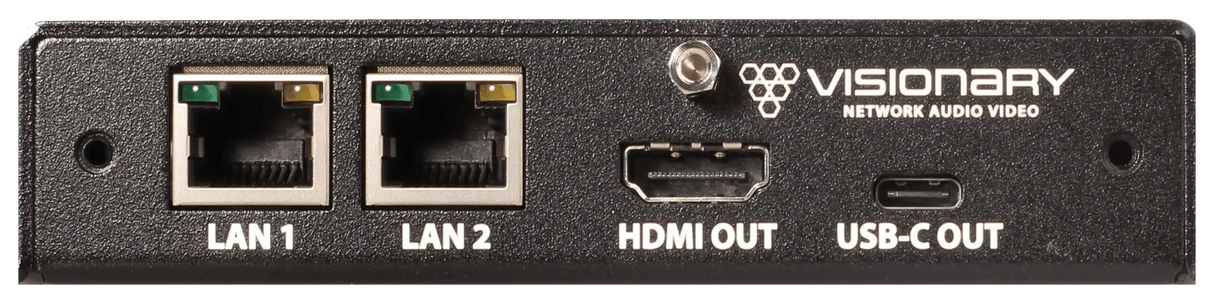

Yes. The LAN 2 PSE port passes network connectivity — and PoE power when LAN 1 is fed PoE+ — to displays, projectors, touch panels, or daisy-chained endpoints.

Is it secure enough for enterprise deployment?
Yes. AES-256 stream encryption, 802.1x network authentication, HTTPS secure API, and SSH management support corporate and government network requirements.
