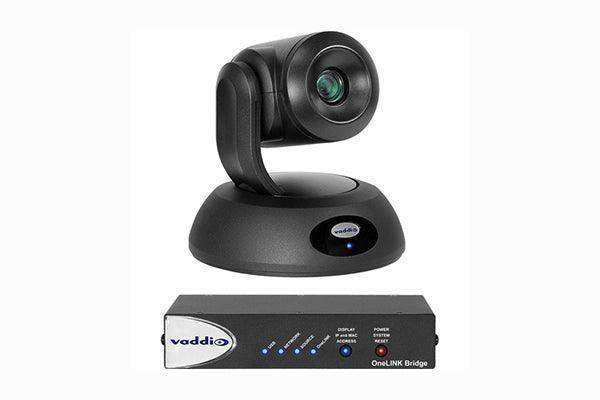

Vaddio RoboSHOT 12E HDBT - 12x OneLINK Bridge PTZ Camera System (Black)

Product Overview

The Vaddio RoboSHOT 12E HDBT OneLINK Bridge PTZ Camera System (999-99600-200) is a commercial-grade HDBaseT conference camera designed for conference rooms, training rooms, and classrooms where wide-angle coverage is the priority. Delivering 12x optical zoom and simultaneous 3G-SDI, HDMI, USB 3.0, and IP H.264 streaming via the OneLINK Bridge, this Vaddio Elite Series system integrates with both soft-codec and broadcast AV workflows. Available in black to match darker room aesthetics and AV cabinetry. Power, video, and control travel over a single Cat-5e cable up to 230 ft (70m).

Product Description

The RoboSHOT 12E HDBT uses a 1/2.5-type Exmor R CMOS sensor to capture 1080p/60 video with a horizontal field of view from 70.2° (wide) to 4.1° (tele). The 12x optical zoom and wide starting field of view make it well-suited for conference rooms and training spaces where participants are within 20–40 feet of the camera and complete room coverage is essential.

The OneLINK Bridge converts the camera's HDBaseT signal to simultaneous 3G-SDI, HDMI, USB 3.0, and IP H.264 streaming outputs. The USB 3.0 connection provides plug-and-play UVC integration with Microsoft Teams, Zoom, Webex, and other UC platforms. The 3G-SDI output supports broadcast recording and signal routing. A configurable audio matrix with AEC is built into the OneLINK Bridge for clean conference audio without a separate DSP in standard deployments.

A single Cat-5e cable (up to 230 ft / 70m) or Cat-6 cable (up to 328 ft / 100m) carries power, video, and control from camera to interface. Remote IP management enables full web-based configuration. RS-232 and IP control support Crestron, AMX, Extron, and Biamp integrations. For the white version, see the RoboSHOT 12E HDBT OneLINK Bridge System (White).

Key Features

• 12x Optical Zoom - Horizontal field of view from 70.2° (wide) to 4.1° (tele); ideal for conference rooms and training spaces needing wide-angle PTZ coverage.
• 1/2.5-Type Exmor R CMOS Sensor - Delivers clean 1080p/60 imaging in standard commercial environments.
• Simultaneous 3G-SDI, HDMI, USB 3.0, and IP H.264 Outputs - All outputs active via the OneLINK Bridge for broadcast, display, conferencing, and streaming in a single deployment.
• Single-Cable HDBaseT Extension - Power, video, and control over one Cat-5e cable up to 230 ft (70m), or Cat-6 up to 328 ft (100m).
• Configurable Audio Matrix with AEC - Built-in acoustic echo cancellation for clear two-way audio without a separate DSP in most conference deployments.
• Remote IP Management - Full web-based configuration and camera control from any networked device.
• Pan ±160°, Tilt +90° to -30° - Wide pan range for thorough room coverage from any standard mount position.
• 1080p/60 Maximum Resolution - Supports 1080p/60, 1080p/30, 1080i/60, and 720p/60.
• PoE+ Camera Power - Camera powered through the OneLINK Bridge via the HDBaseT cable; no AC outlet required at the camera location.
• Black Finish - Low-profile black housing for installations requiring a discrete or dark-colored camera.

Typical Applications

• Conference rooms and boardrooms
• Training rooms and classrooms
• Houses of worship with smaller sanctuaries
• Government and institutional meeting spaces
• All-hands and multi-purpose rooms
• Commercial meeting spaces with USB conferencing and SDI recording

Technical Specifications

Frequently Asked Questions

What is included in the 999-99600-200 system?
The system includes the RoboSHOT 12E HDBT PTZ camera (black), OneLINK Bridge interface, Cat-5e cable, power supply, IR remote, and quick-start guide.

When should I choose the 12E over the 30E?
The 12E is designed for conference rooms and training spaces where participants are relatively close to the camera and wide-angle coverage matters more than extreme telephoto reach. For large auditoriums and houses of worship with long camera-to-subject distances, the RoboSHOT 30E HDBT OneLINK Bridge System (Black) is recommended.

What control systems is the RoboSHOT 12E compatible with?
The camera supports IP, RS-232, and IR control, integrating with Crestron, AMX, Extron, Biamp, and other room automation platforms using standard serial or IP commands.

How far can the camera be installed from the OneLINK Bridge?
Up to 230 ft (70m) via Cat-5e, or up to 328 ft (100m) via Cat-6. Power, video, and control all travel over a single cable run.

Which conferencing platforms does the USB 3.0 output support?
The USB 3.0 output presents as a standard UVC device, compatible with Microsoft Teams, Zoom, Webex, Google Meet, and any UC platform supporting USB cameras.

Is the 3G-SDI output available simultaneously with HDMI and USB?
Yes. The OneLINK Bridge provides 3G-SDI, HDMI, USB 3.0, and IP H.264 streaming simultaneously, allowing the camera to feed multiple systems at once.

What warranty does this product carry?
Vaddio cameras carry a 3-year limited warranty on parts and labor. Contact Creation Networks for support and RMA coordination.
