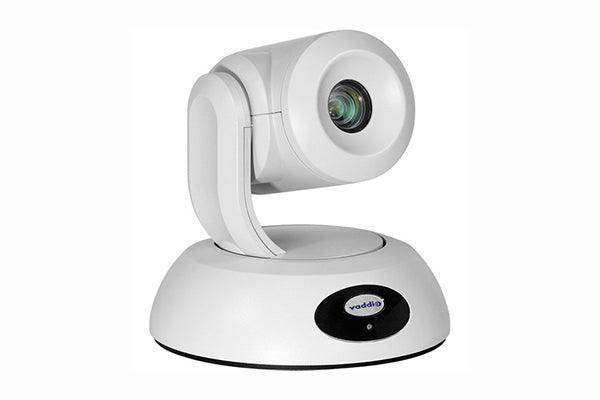

Vaddio RoboSHOT 12E HDBT - 12x OneLINK Bridge PTZ Camera System (White)

Product Overview

The Vaddio RoboSHOT 12E HDBT OneLINK Bridge PTZ Camera System (999-99600-200W) is a commercial-grade HDBaseT conference camera designed for conference rooms, training rooms, and classrooms where a wide field of view is the primary requirement. Delivering 12x optical zoom and simultaneous 3G-SDI, HDMI, USB 3.0, and IP H.264 streaming via the OneLINK Bridge, this Vaddio Elite Series PTZ camera system integrates cleanly with both soft-codec platforms and broadcast AV workflows. Power, video, and control travel over a single Cat-5e cable up to 230 ft (70m), simplifying permanent AV installation.

Product Description

The RoboSHOT 12E HDBT uses a 1/2.5-type Exmor R CMOS sensor to capture sharp 1080p/60 video with a horizontal field of view from 70.2° (wide) to 4.1° (tele). The 12x optical zoom and wide starting FOV make it ideal for conference rooms and training spaces where participants sit close to the camera and the room needs complete coverage without excessive optical reach.

The OneLINK Bridge converts the camera's HDBaseT output to simultaneous 3G-SDI, HDMI, USB 3.0, and IP H.264 streams. The 3G-SDI output supports broadcast recording and SDI signal routing. USB 3.0 provides direct UVC integration with conferencing platforms. A configurable audio matrix with AEC is built in for clean two-way audio without requiring a separate DSP in most standard deployments.

A single Cat-5e cable (up to 230 ft / 70m) or Cat-6 cable (up to 328 ft / 100m) carries all signals between camera and interface. Remote IP management supports full configuration from any networked device. RS-232 and IP control enable integration with Crestron, AMX, Extron, and Biamp systems. For the 30x zoom version, see the RoboSHOT 30E HDBT OneLINK Bridge System.

Key Features

• 12x Optical Zoom - Horizontal field of view from 70.2° (wide) to 4.1° (tele); optimized for conference rooms and training spaces requiring wide-angle coverage.
• 1/2.5-Type Exmor R CMOS Sensor - Delivers clean 1080p/60 imaging in standard commercial lighting.
• Simultaneous 3G-SDI, HDMI, USB 3.0, and IP H.264 Outputs - All active via the OneLINK Bridge for broadcast, display, conferencing, and streaming from a single camera system.
• Single-Cable HDBaseT Extension - Power, video, and control over one Cat-5e cable up to 230 ft (70m), or Cat-6 up to 328 ft (100m).
• Configurable Audio Matrix with AEC - Built-in acoustic echo cancellation for clear two-way conferencing audio without a standalone DSP.
• Remote IP Management - Web-based camera configuration and control from any networked device.
• Pan ±160°, Tilt +90° to -30° - Wide pan coverage for rooms with side-wall or ceiling mount positions.
• 1080p/60 Maximum Resolution - Supports 1080p/60, 1080p/30, 1080i/60, and 720p/60.
• PoE+ (IEEE 802.3at) Camera Power - Camera receives power through the OneLINK Bridge via the HDBaseT cable; no local AC outlet required.
• Vaddio Elite Series - Commercial-grade build for permanent AV installation in enterprise and institutional environments.

Typical Applications

• Conference rooms and boardrooms
• Training rooms and classrooms
• Huddle rooms requiring wide-angle PTZ coverage
• Houses of worship with smaller sanctuaries
• Government and institutional meeting spaces
• All-hands and multi-purpose rooms
• Commercial meeting spaces with USB conferencing requirements

Technical Specifications

Frequently Asked Questions

What is included in the 999-99600-200W system?
The system includes the RoboSHOT 12E HDBT PTZ camera, OneLINK Bridge interface, Cat-5e cable, power supply, IR remote, and quick-start guide.

When should I choose the 12E over the 30E?
Choose the RoboSHOT 12E for conference rooms and training spaces where participants are closer to the camera and a wide field of view matters more than extreme telephoto reach. The 30E is better suited for large auditoriums and houses of worship where the camera may be 50+ feet from subjects. See the RoboSHOT 30E HDBT OneLINK Bridge System for comparison.

What control systems is the RoboSHOT 12E compatible with?
The camera supports IP (web interface), RS-232, and IR control, integrating with Crestron, AMX, Extron, Biamp, and other room automation systems.

How far can the camera be from the OneLINK Bridge?
Up to 230 ft (70m) using Cat-5e, or up to 328 ft (100m) using Cat-6. Power, video, and control travel over a single cable.

Which UC platforms does the USB 3.0 output support?
The USB 3.0 output presents as a standard UVC device, making it compatible with Microsoft Teams, Zoom, Webex, Google Meet, and any UC platform supporting USB cameras.

Can I use the 3G-SDI and USB 3.0 outputs simultaneously?
Yes. The OneLINK Bridge provides 3G-SDI, HDMI, USB 3.0, and IP H.264 streaming simultaneously, allowing the camera to feed a recorder, a display, a conferencing PC, and a streaming system at the same time.

What warranty does this product carry?
Vaddio cameras carry a 3-year limited warranty on parts and labor. Contact Creation Networks for support and RMA assistance.
