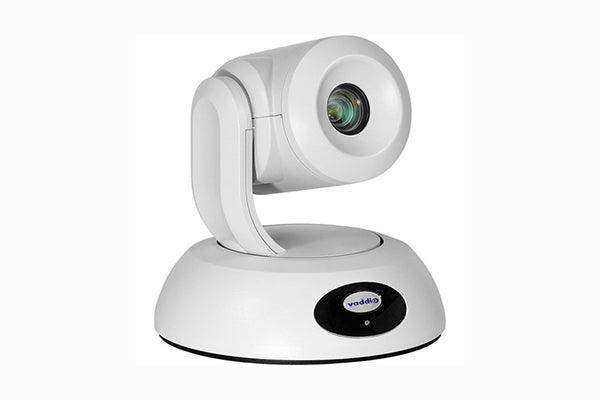

Vaddio RoboSHOT 30E HDBT OneLINK HDMI - 30x PTZ Camera System for Large Rooms (White)

Product Overview

The Vaddio RoboSHOT 30E HDBT OneLINK HDMI System is a 30x optical zoom PTZ camera designed for large conference rooms, lecture halls, auditoriums, and houses of worship. The RoboSHOT 30E HDBT camera connects to the OneLINK HDMI receiver via a single Cat-5e or Cat-6 cable up to 328 ft, extending power, video, and control without additional cable runs. Simultaneous HDMI and IP H.264 streaming outputs make it suitable for integration with dedicated video codecs and IP streaming workflows in commercial AV deployments.

Product Description

The RoboSHOT 30E HDBT is part of Vaddio's Elite Series and is built around a 1/2.5-type Exmor R CMOS sensor with 2.14 megapixels of effective resolution. The 30x optical zoom covers a 65° horizontal field of view on the wide end and narrows to 2.3° at full telephoto — enabling tight framing of presenters or subjects at distances of 40–70 ft common in auditoriums and large meeting spaces. The camera's low-light performance is rated at 0.1 Lux (F1.6, 50IRE, 1/30 sec), making it well-suited for rooms with variable or lower ambient lighting.

The OneLINK HDMI receiver bridges the HDBaseT signal from the camera to an HDMI output, allowing direct connection to dedicated video conferencing codecs from Cisco, Polycom, and similar manufacturers. IP streaming is available simultaneously, supporting recording and distribution workflows. Power, video, and RS-232 control all travel over a single Cat-5e cable (up to 230 ft) or Cat-6 (up to 328 ft), minimizing cable runs in permanent installations. The camera is remote-managed via a built-in web server, Telnet, and RS-232, and integrates with commercial AV control systems. For larger format solutions, see the full Vaddio lineup at Creation Networks.

Silent BLDC direct-drive motors provide smooth, quiet pan and tilt movement across a ±160° pan and +90°/–30° tilt range with 100 programmable presets and Tri-Sync motion for coordinated positioning.

Key Features

• 30x Optical Zoom - 65° horizontal field of view (wide) to 2.3° (tele); engineered for large meeting rooms, auditoriums, and houses of worship where long-distance framing is required.
• Exceptional Low-Light Performance - 0.1 Lux minimum illumination (F1.6, 50IRE, 1/30 sec), suitable for rooms with reduced or variable lighting.
• 1/2.5-Type Exmor R CMOS Sensor - 2.14 megapixel effective resolution with up to 1080p/60 output for HD video quality.
• Single-Cable HDBaseT Extension - Power, video, and control over one Cat-5e cable up to 230 ft (70m) or one Cat-6 cable up to 328 ft (100m); no separate power run to the camera.
• Simultaneous HDMI and IP H.264 Streaming - HDMI output from the OneLINK HDMI receiver for codec connection, plus concurrent IP streaming for recording or distribution.
• Silent BLDC Direct-Drive Motors - Smooth, quiet pan/tilt with ±160° pan and +90°/–30° tilt range; 100 programmable preset positions with Tri-Sync motion.
• Remote IP Management - Built-in web server, Telnet, RS-232, and IR remote control; supports integration with Crestron, Extron, and AMX control systems.
• Invertible for Ceiling Mount - Supports overhead installation with automatic image flip.

Typical Applications

• Boardroom
• Large conference rooms
• Auditoriums
• House of worship
• Lecture halls
• Government meeting spaces
• All-hands rooms
• Broadcast studios

Technical Specifications

Frequently Asked Questions

What is the OneLINK HDMI receiver and what does it do?
The OneLINK HDMI receiver accepts the HDBaseT signal from the RoboSHOT 30E HDBT camera over a single Cat-5e/6 cable and outputs HDMI for connection to a video conferencing codec (Cisco, Polycom, etc.) or display. It also handles camera power and RS-232 control over the same cable.

Is this system compatible with Cisco and Polycom video conferencing systems?
Yes. The HDMI output from the OneLINK HDMI receiver connects directly to Cisco and Polycom codec inputs. Vaddio also offers dedicated codec kits (e.g., Cisco Codec Kit, Polycom Codec Kit) for tighter integration.

How far can the camera be installed from the receiver?
Cat-5e supports up to 230 ft (70m); Cat-6 supports up to 328 ft (100m) between camera and receiver. No additional power infrastructure is needed at the camera end.

Can this camera be used for livestreaming?
Yes. The camera provides simultaneous IP H.264 streaming alongside the HDMI output, enabling parallel recording or distribution to streaming platforms.

Is this camera compatible with third-party AV control systems?
Yes. RS-232, Telnet, and a built-in web server allow integration with Crestron, Extron, AMX, and other commercial control platforms.

What is the warranty?
Vaddio products carry a standard 3-year warranty. Contact Creation Networks for support and warranty registration.

Is a black version available?
Yes. Part number 999-99630-100 (black) is available at creationnetworks.net.
