Symetrix 80-0222 xIO XLR 1x1, Black, US
Product Overview

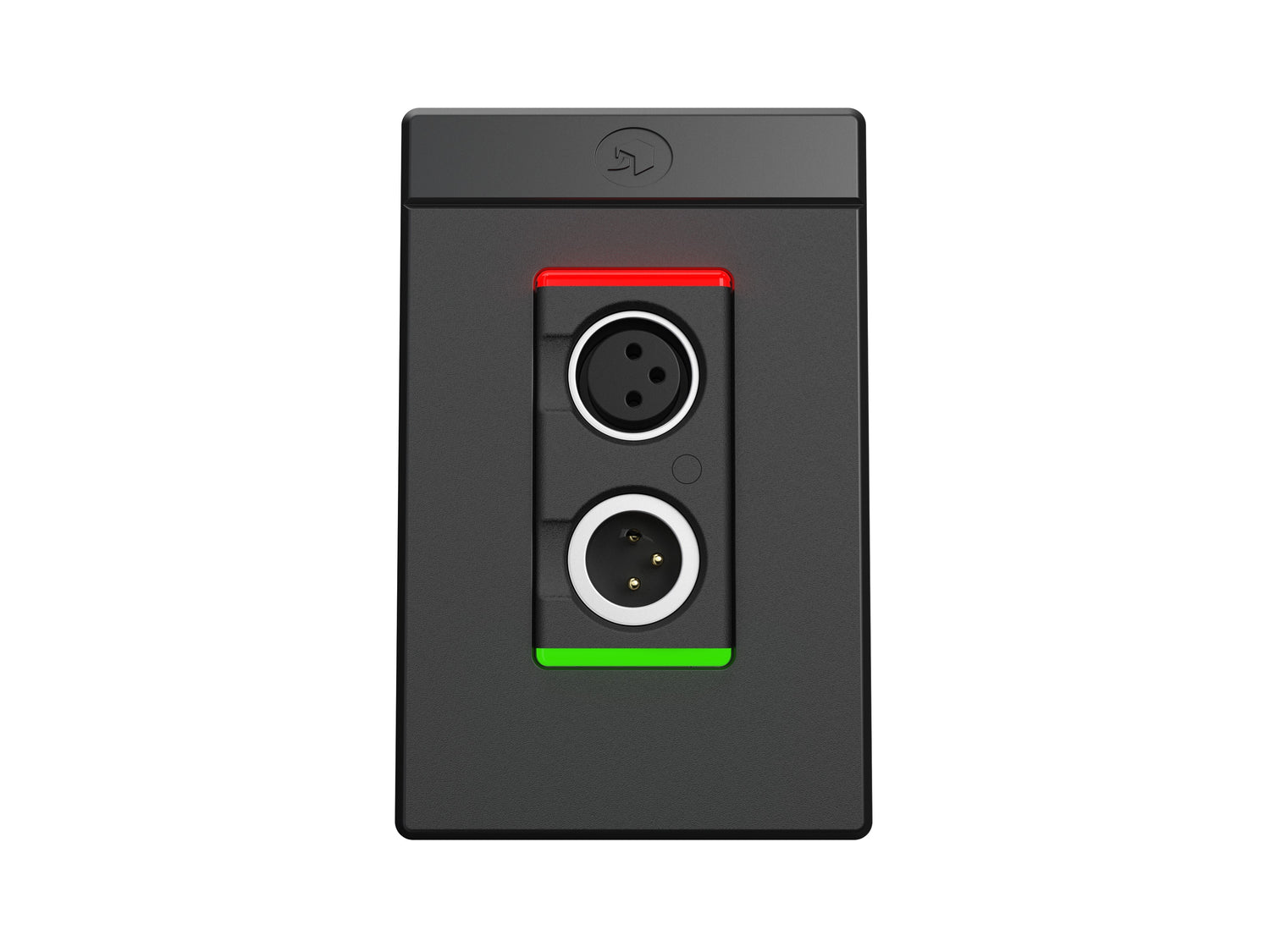

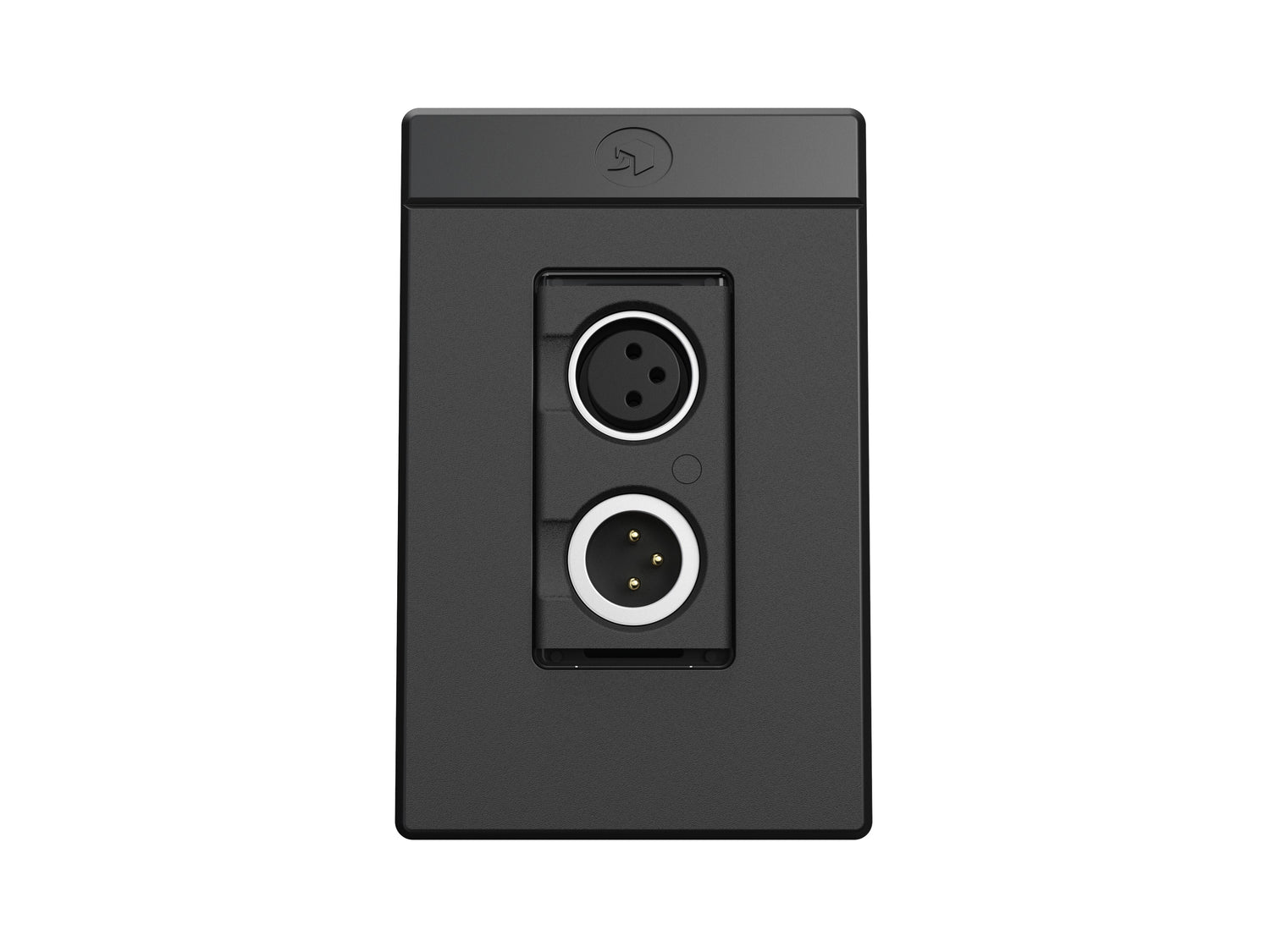

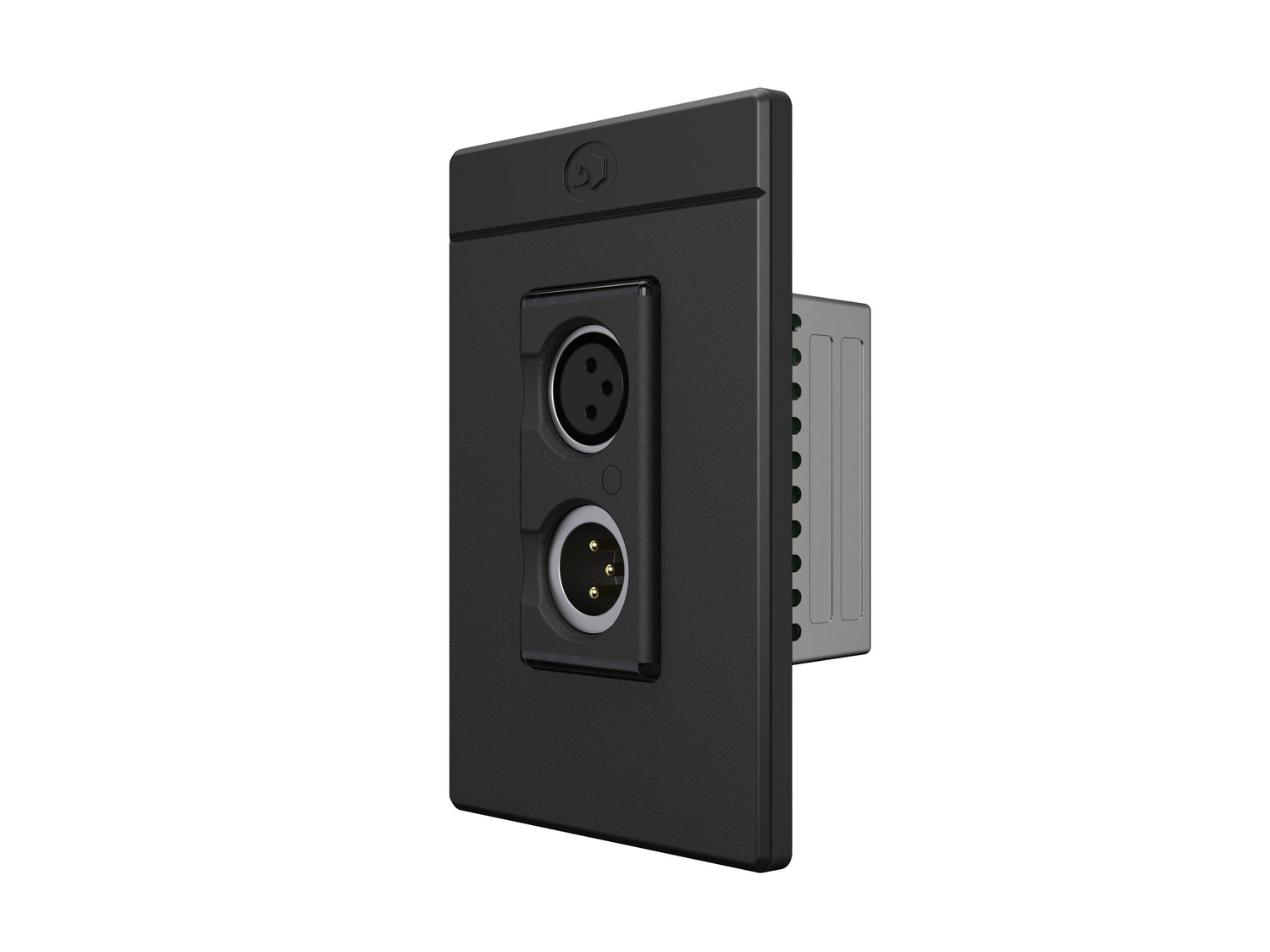

The Symetrix 80-0222 xIO XLR 1x1 is a Decora-style Dante wall plate endpoint in black, designed for US single-gang electrical boxes. It provides one balanced XLR microphone/line input and one balanced XLR output on a wall plate, converting the analog connections to and from Dante network audio. Powered over Ethernet via IEEE 802.3af PoE, it connects to the Symetrix DSP and Dante network over a single Cat cable. Audio conversion runs at 24-bit with support for 48 kHz and 96 kHz, with 1 ms minimum Dante latency.
Product Description

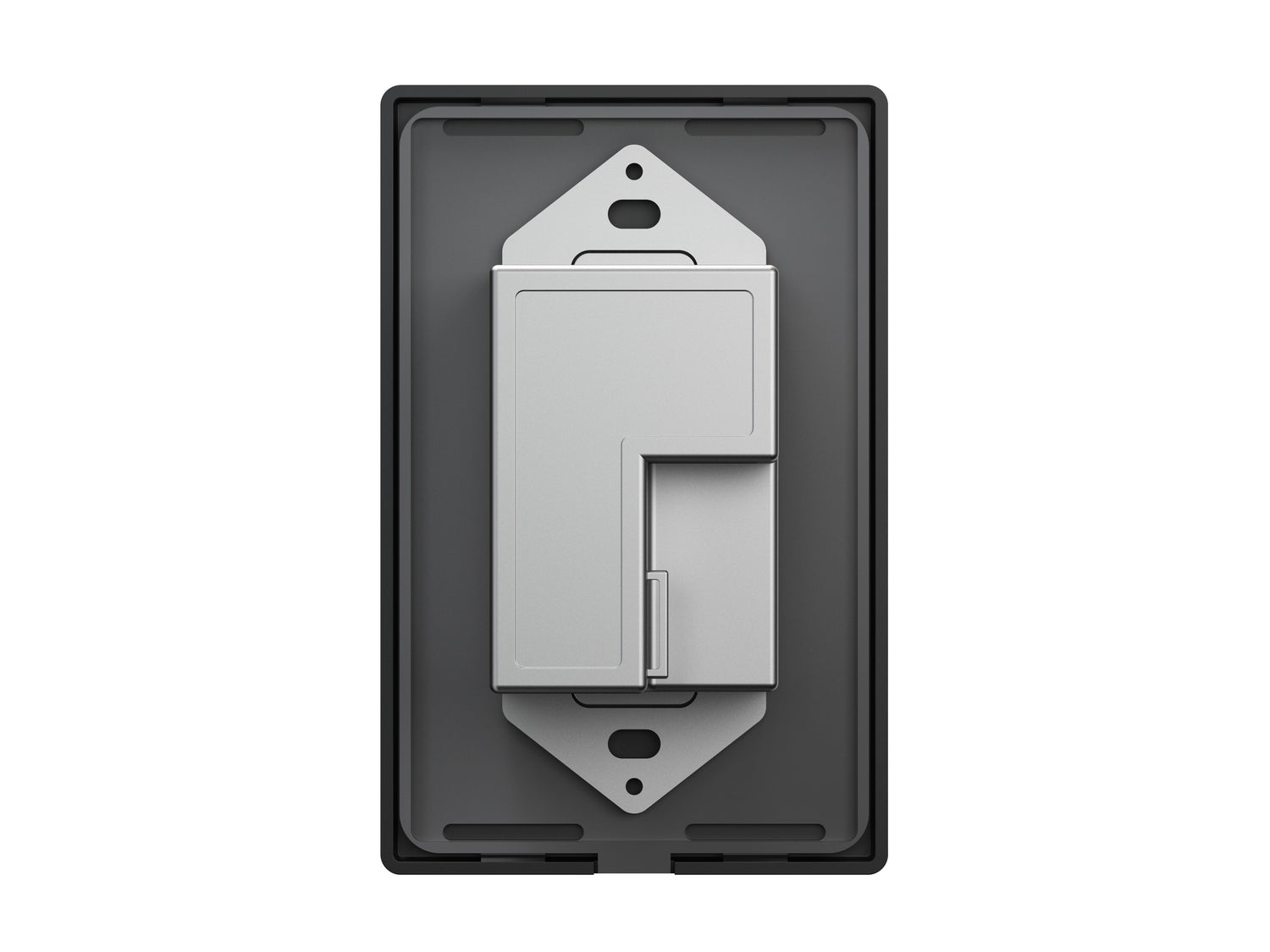

The xIO XLR 1x1 Black US is the black-finish variant of the 80-0210 white, providing identical electrical specifications and Dante I/O in a black Decora finish for installations where dark fixtures are specified. It installs in a standard US single-gang electrical box and is fully configured in Symetrix Composer within the DSP site file. The die-cast zinc chassis and commercial-grade construction suit permanent installation in conference rooms, boardrooms, and multi-purpose spaces. Compliant with CE, UKCA, EAC, FCC Part 15, and RoHS. Also available in Euro gang box format in black (80-0226).
Key Features
- 1 XLR Input + 1 XLR Output — Balanced mic/line input and line output on one wall plate.
- Dante + AES67 — Standard Dante network audio; interoperates with third-party Dante devices.
- PoE Powered — IEEE 802.3af; no separate power supply at the wall plate.
- 48 and 96 kHz Support — High-resolution audio at wall plate level.
- US Single-Gang, Black — Decora-style for standard US electrical boxes; black finish.
- Die-Cast Zinc Chassis — Commercial-grade for permanent installation.
- Composer Programmable — Fully configured in Symetrix Composer.
Typical Applications
- Conference rooms and boardrooms with black fixture specifications
- Multi-purpose rooms with distributed XLR wall connections in black finish
- Training rooms with lectern mic/speaker connections over Dante
- Government spaces specifying black wall plate fixtures
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0222 |
| Analog Inputs | 1 balanced XLR mic/line |
| Analog Outputs | 1 balanced XLR line |
| Dante Channels | 1 transmit + 1 receive |
| AES67 | Supported |
| Sample Rates | 48 kHz, 96 kHz |
| Min Dante Latency | 1 ms |
| Power | PoE IEEE 802.3af |
| Network | 10/100 Mbps RJ45 |
| Form Factor | US single-gang Decora, black |
| Chassis | Die-cast zinc |
| Compliance | CE, UKCA, EAC, FCC Part 15, RoHS |
