Symetrix 80-0214 xIO XLR 1x1, White, Euro

Product Overview

The Symetrix 80-0214 xIO XLR 1x1 is a Dante wall plate endpoint providing one balanced XLR microphone/line input and one balanced XLR output in a Euro gang box form factor. Engineered for commercial AV installations at podiums, lecterns, conference tables, and presentation walls in European and international markets, this XLR Dante wall plate converts balanced analog audio to and from the Dante network directly at the source. The device integrates natively with Symetrix Radius NX, Prism, EDGE, and Server D100 DSP platforms through Symetrix Composer. Available in a white finish for installations where light-colored faceplates are specified.

Product Description

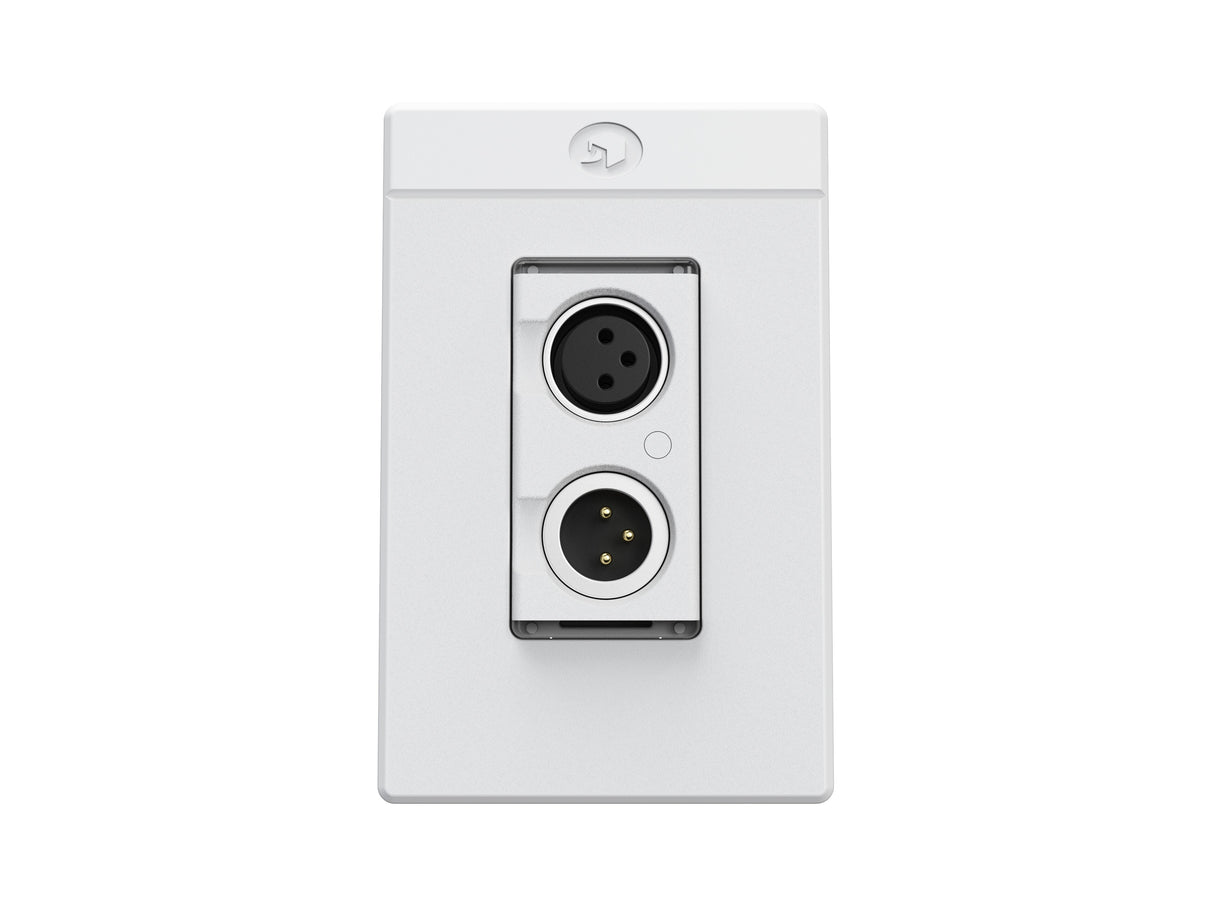

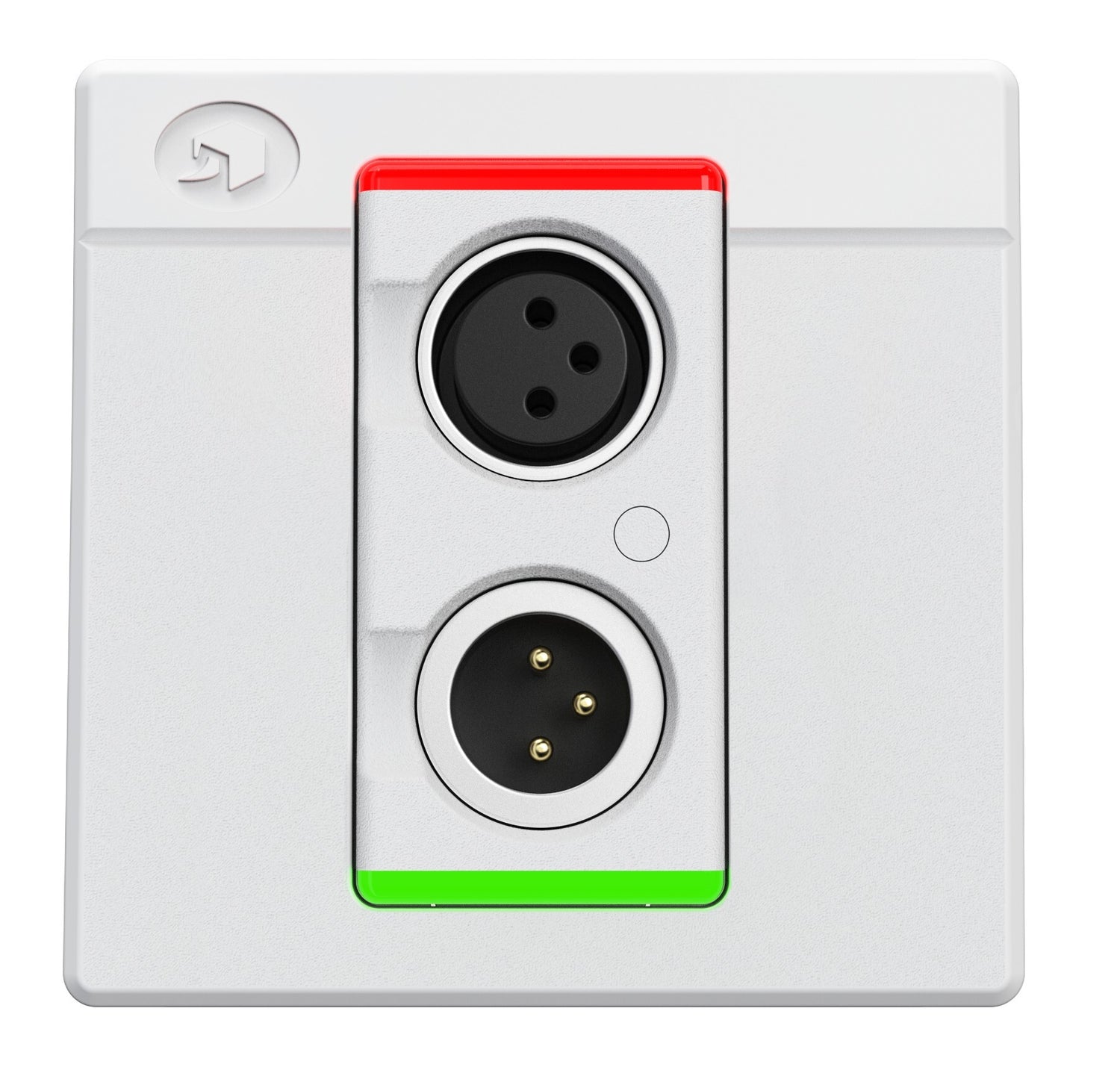

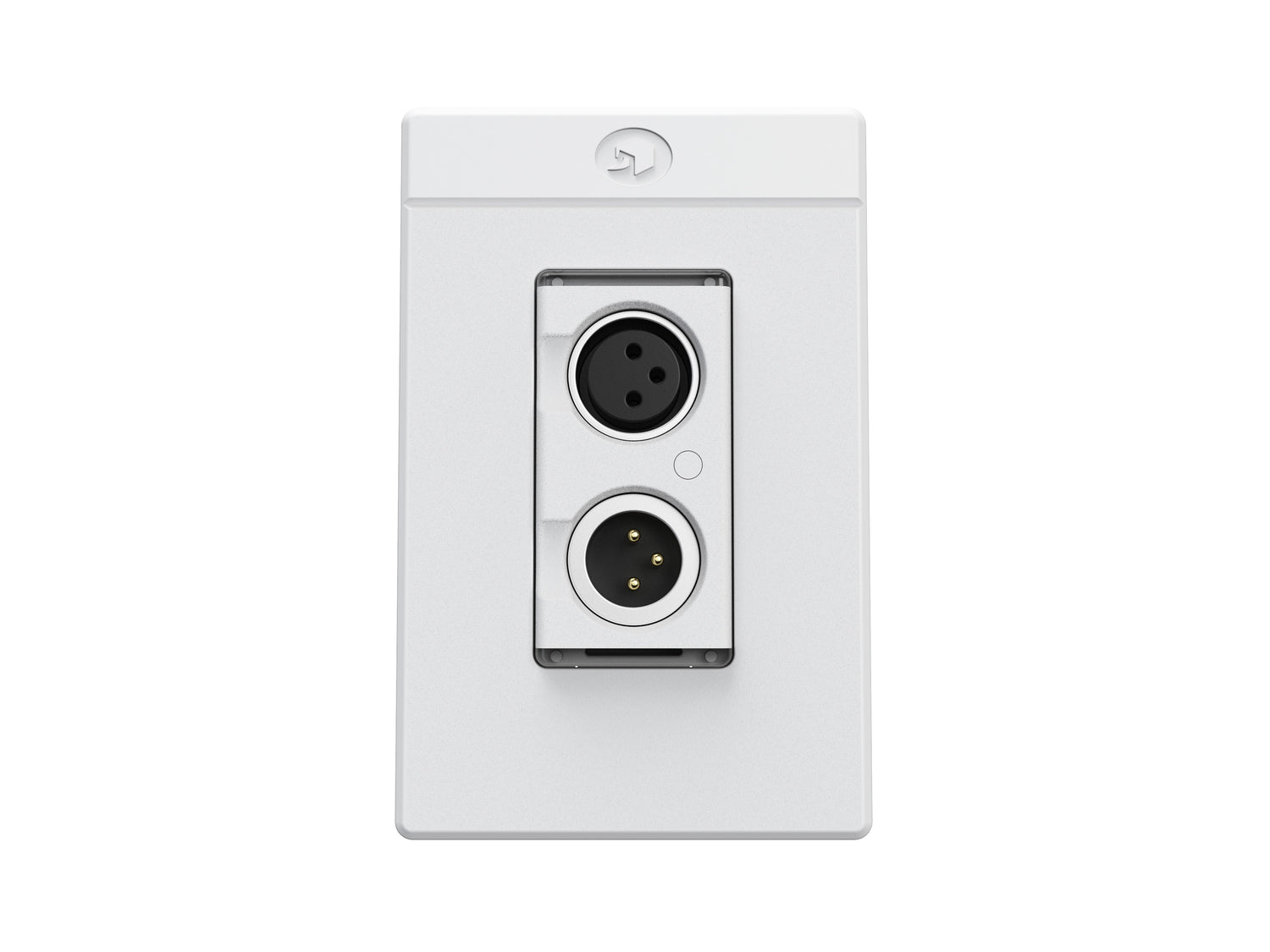

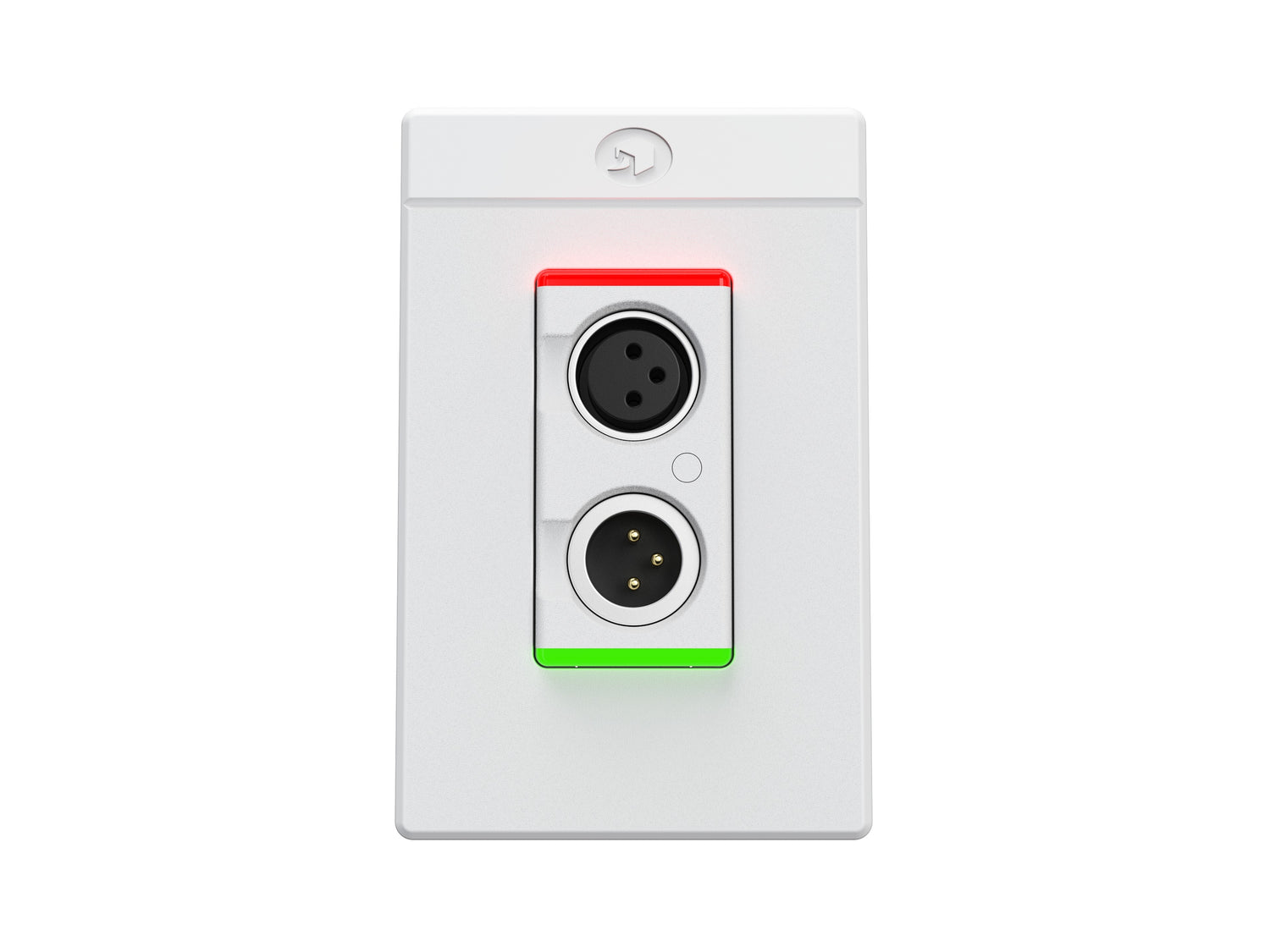

The xIO XLR 1x1 (Euro) installs in a standard European gang box and presents a clean white faceplate with male and female XLR connectors. A microphone or line-level source connects to the XLR input, and the signal is converted to a Dante audio stream for network distribution to the room's DSP. The XLR output allows a local speaker, amplifier, or monitor to receive audio from the Dante network at the wall location. Routing and gain are configured in Symetrix Composer alongside the rest of the DSP signal chain. The wall plate eliminates long analog cable runs from podium or table to rack, replacing them with a single Cat cable to the nearest network switch. W-Series wall controllers can be ganged for local volume and source control. The xIO XLR 1x1 Euro is the appropriate choice for installations in regions where Euro gang box back boxes are standard.

Key Features

• 1 XLR Balanced Input — Accepts microphone or line-level signals from a standard XLR source, converting the analog signal to a Dante network audio stream.
• 1 XLR Balanced Output — Delivers audio from the Dante network to a local speaker, amplifier, or monitor via a standard XLR connection at the wall.
• Dante Network Integration — Both input and output operate as Dante endpoints for flexible routing across the IP network.
• Eliminates Analog Cable Runs — A single Cat cable to the network switch replaces long balanced analog runs from podium to rack.
• Euro Gang Box Form Factor — Designed for European and international standard gang box back boxes, matching local AV wall plate conventions.
• Symetrix Composer Integration — Configured within Composer for gain staging, routing, and DSP processing on Radius NX, Prism, EDGE, and Server D100.
• W-Series Wall Controller Support — Compatible with Symetrix W1–W4 wall controllers for local room volume and mute control.
• White Finish — Coordinates with white wall plates and light-finish AV furniture in European commercial installations.

Typical Applications

• European podium or lectern microphone input in a conference room or auditorium
• Boardroom presentation wall XLR audio endpoint (Euro markets)
• House of worship podium audio connection point
• Government meeting room microphone wall plate
• Training room microphone/monitor wall point in Euro-standard buildings

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Q: What is the difference between the US and Euro versions of the xIO XLR 1x1?

A: The 80-0214 (White Euro) is designed for European standard gang box back boxes, while the 80-0210 (White US) fits standard US single-gang electrical boxes. The audio functionality and Dante integration are identical.

Q: Does the XLR input support phantom power for condenser microphones?

A: Phantom power support should be verified in the Symetrix xIO XLR 1x1 technical documentation. Contact Creation Networks or Symetrix for confirmation.

Q: Which DSP platforms are compatible?

A: The xIO XLR 1x1 Euro is compatible with Symetrix Radius NX, Prism, EDGE, and Server D100, configured via Symetrix Composer.

Q: Can this wall plate be used with non-Symetrix Dante devices?

A: As a standard Dante endpoint it can coexist with other Dante devices on the network, but full control integration is optimized for Symetrix platforms.

Q: What is the warranty on this product?

A: Symetrix products are covered by a standard manufacturer warranty. Contact Creation Networks or Symetrix for current warranty terms.
