Symetrix 80-0211 xIO XLR 2x2, White, US
Product Overview

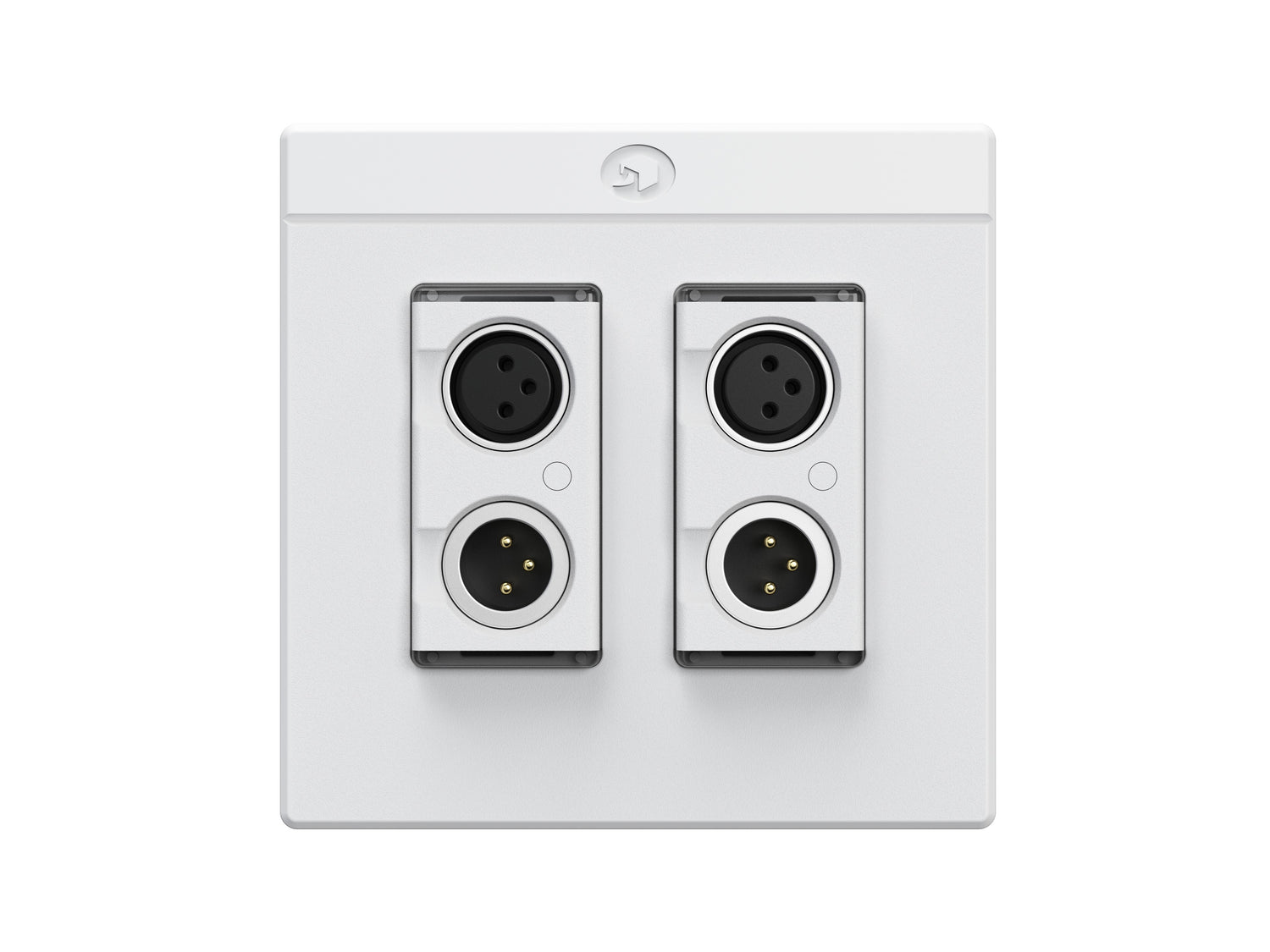

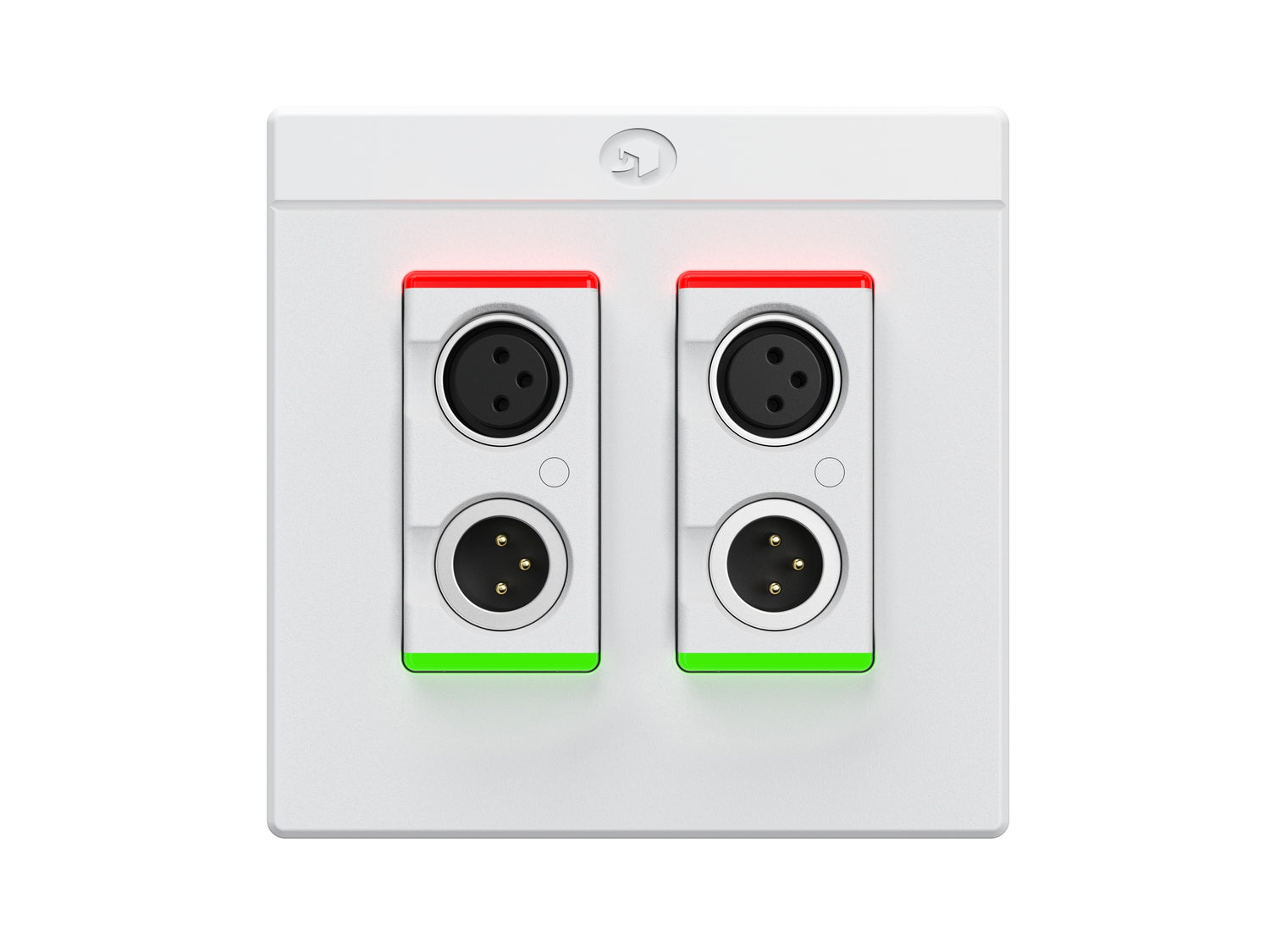

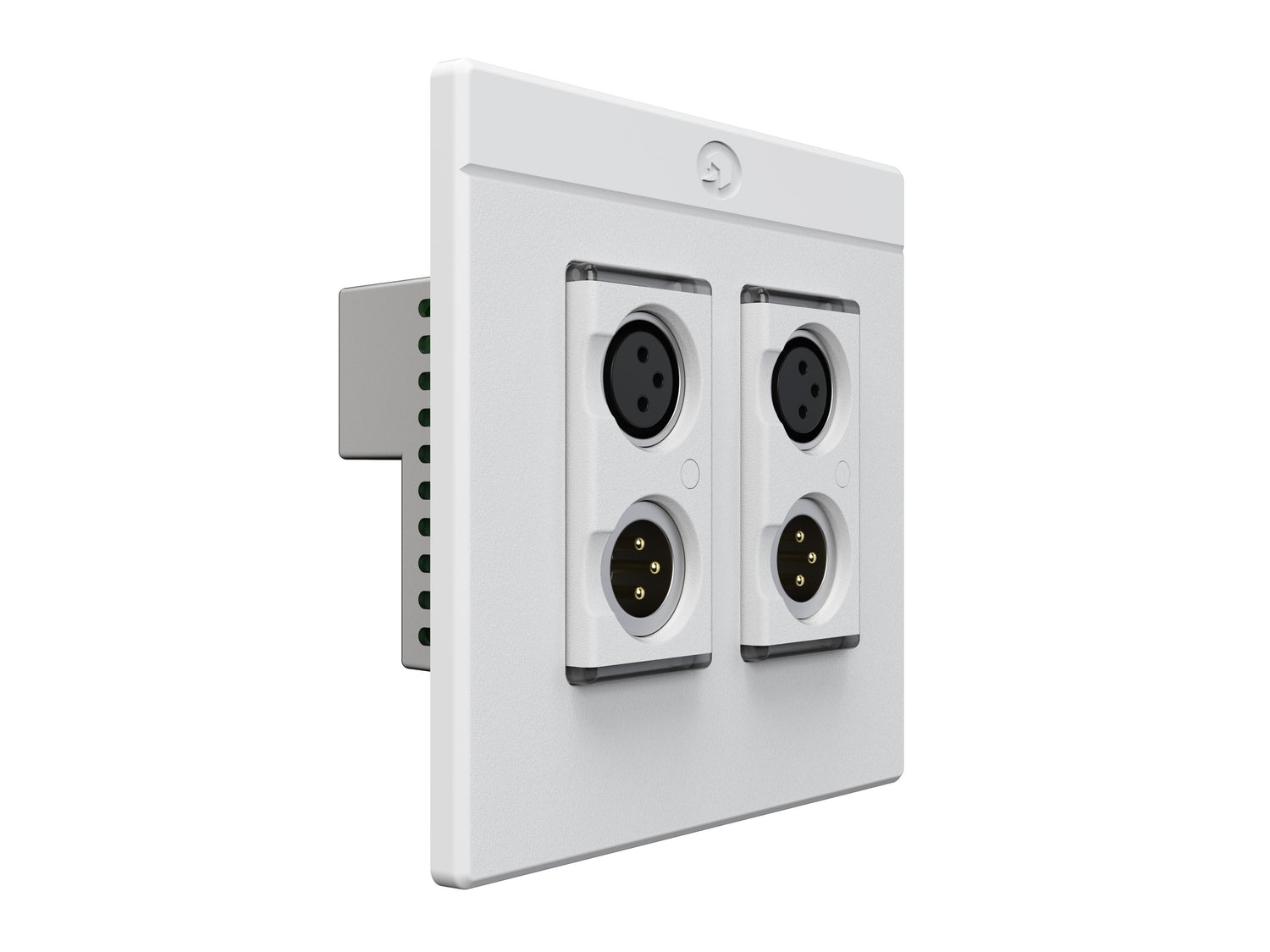

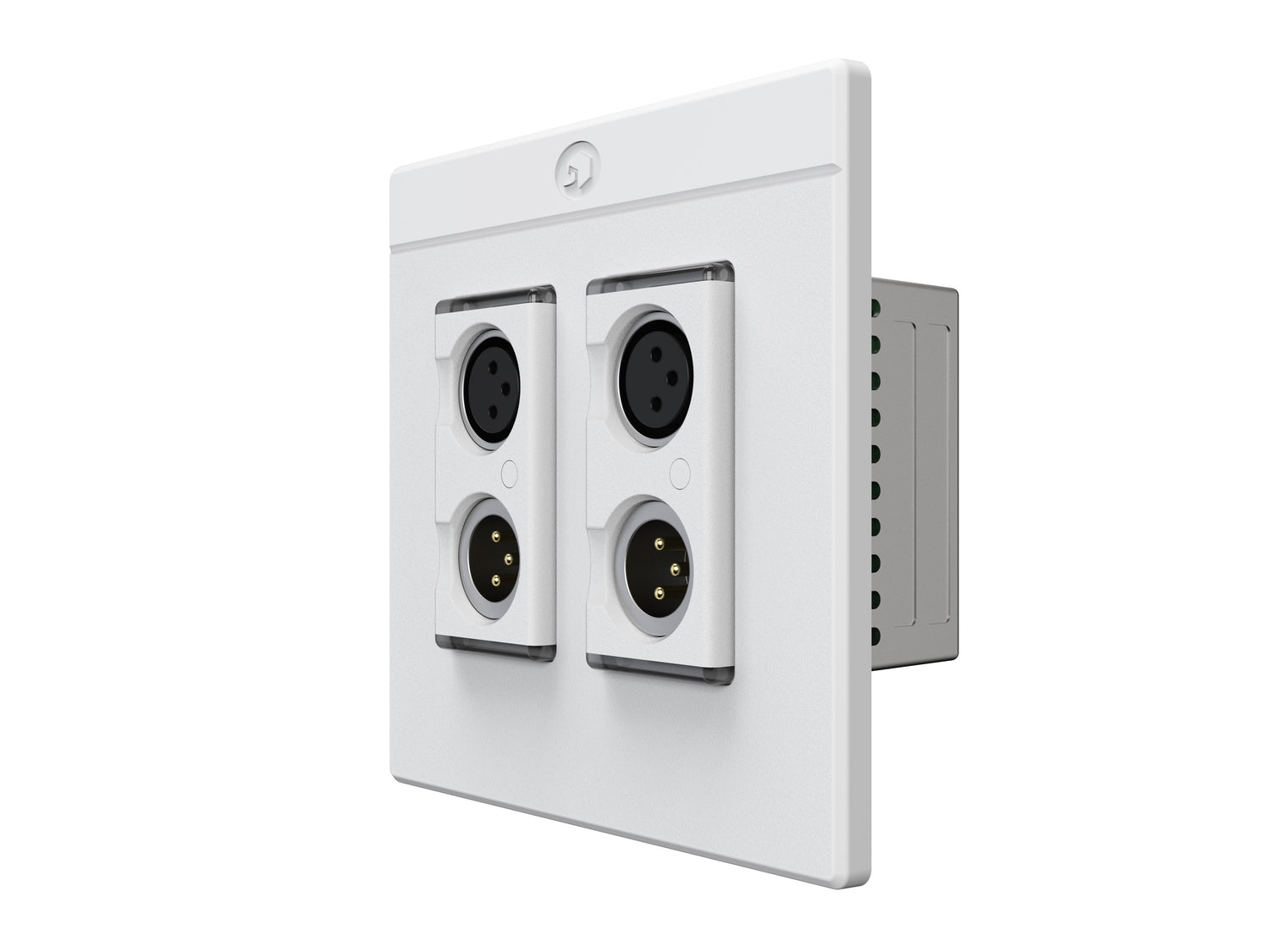

The Symetrix 80-0211 xIO XLR 2x2 is a Decora-style Dante wall plate endpoint in white for US single-gang boxes, providing two balanced XLR inputs and two balanced XLR outputs in a single wall plate. It converts four analog connections (2 in, 2 out) to and from Dante network audio, powered over Ethernet via IEEE 802.3af PoE. It is suited to rooms requiring two microphone or line inputs and two local speaker or line outputs at the wall connection point, all carried over a single Cat cable to the Dante network.
Product Description
The xIO XLR 2x2 doubles the I/O of the xIO XLR 1x1 in the same US single-gang Decora form factor. With two XLR inputs and two XLR outputs, it suits installations with stereo mic pairs, two-zone local speaker feeds, or dual-source connection points at the wall. Audio conversion is 24-bit at 48 kHz and 96 kHz with 1 ms minimum Dante latency. The die-cast zinc chassis is built for permanent commercial installation. Configured in Symetrix Composer within the DSP site file. Compliant with CE, UKCA, EAC, FCC Part 15, and RoHS. Also available in black (80-0223).
Key Features
- 2 XLR Inputs + 2 XLR Outputs — Balanced mic/line inputs and balanced line outputs on one wall plate.
- Dante + AES67 — 2 transmit + 2 receive Dante channels; PoE IEEE 802.3af.
- 48 and 96 kHz — High-resolution audio conversion at wall plate level.
- US Single-Gang, White — Decora-style for standard US electrical boxes.
- Die-Cast Zinc Chassis — Commercial-grade permanent installation.
- Composer Programmable — Configured in Symetrix Composer.
Typical Applications
- Conference rooms with two-microphone connection and two-zone local output at the wall
- Boardrooms and training rooms with stereo source inputs and dual speaker feeds
- Distributed AV connection points with dual-channel I/O requirements
Technical Specifications
| Specification | Value |
|---|---|
| SKU | 80-0211 |
| Analog Inputs | 2 balanced XLR mic/line |
| Analog Outputs | 2 balanced XLR line |
| Dante Channels | 2 transmit + 2 receive |
| AES67 | Supported |
| Sample Rates | 48 kHz, 96 kHz |
| Min Dante Latency | 1 ms |
| Power | PoE IEEE 802.3af |
| Form Factor | US single-gang Decora, white |
| Chassis | Die-cast zinc |
| Compliance | CE, UKCA, EAC, FCC Part 15, RoHS |
