Symetrix 80-0223 xIO XLR 2x2, Black, US

Product Overview

The Symetrix 80-0223 xIO XLR 2x2 is a Decora-style Dante wall plate endpoint providing two balanced XLR inputs and two balanced XLR outputs in a US single-gang form factor. Designed for podiums, stage positions, presentation walls, and any commercial installation requiring both microphone input and local monitor or speaker output at a single wall location, this bidirectional XLR Dante wall plate eliminates multiple analog cable runs from the source point to the equipment rack. The xIO XLR 2x2 integrates natively with Symetrix Radius NX, Prism, EDGE, and Server D100 DSP platforms through Symetrix Composer. Available in black finish.

Product Description

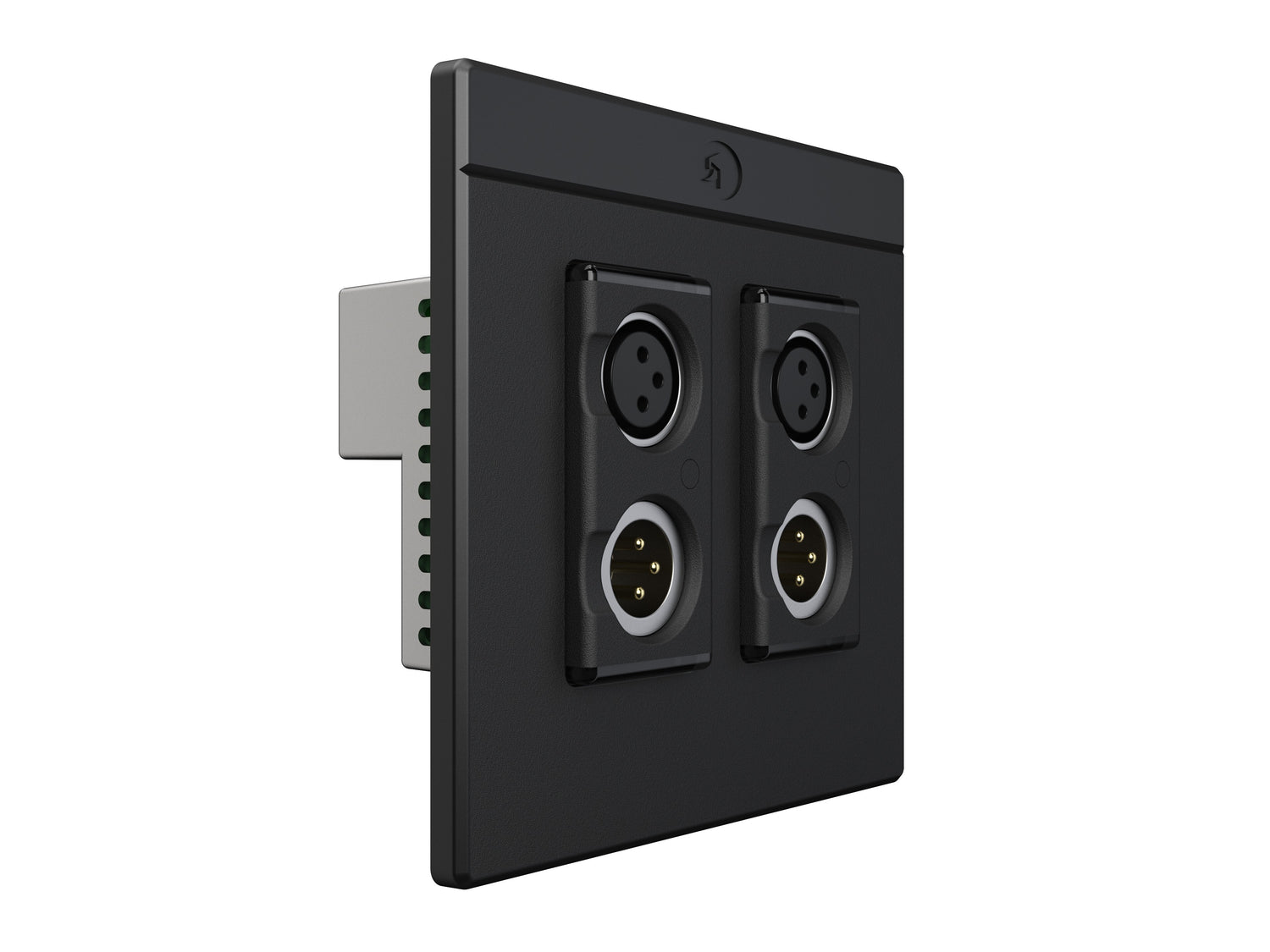

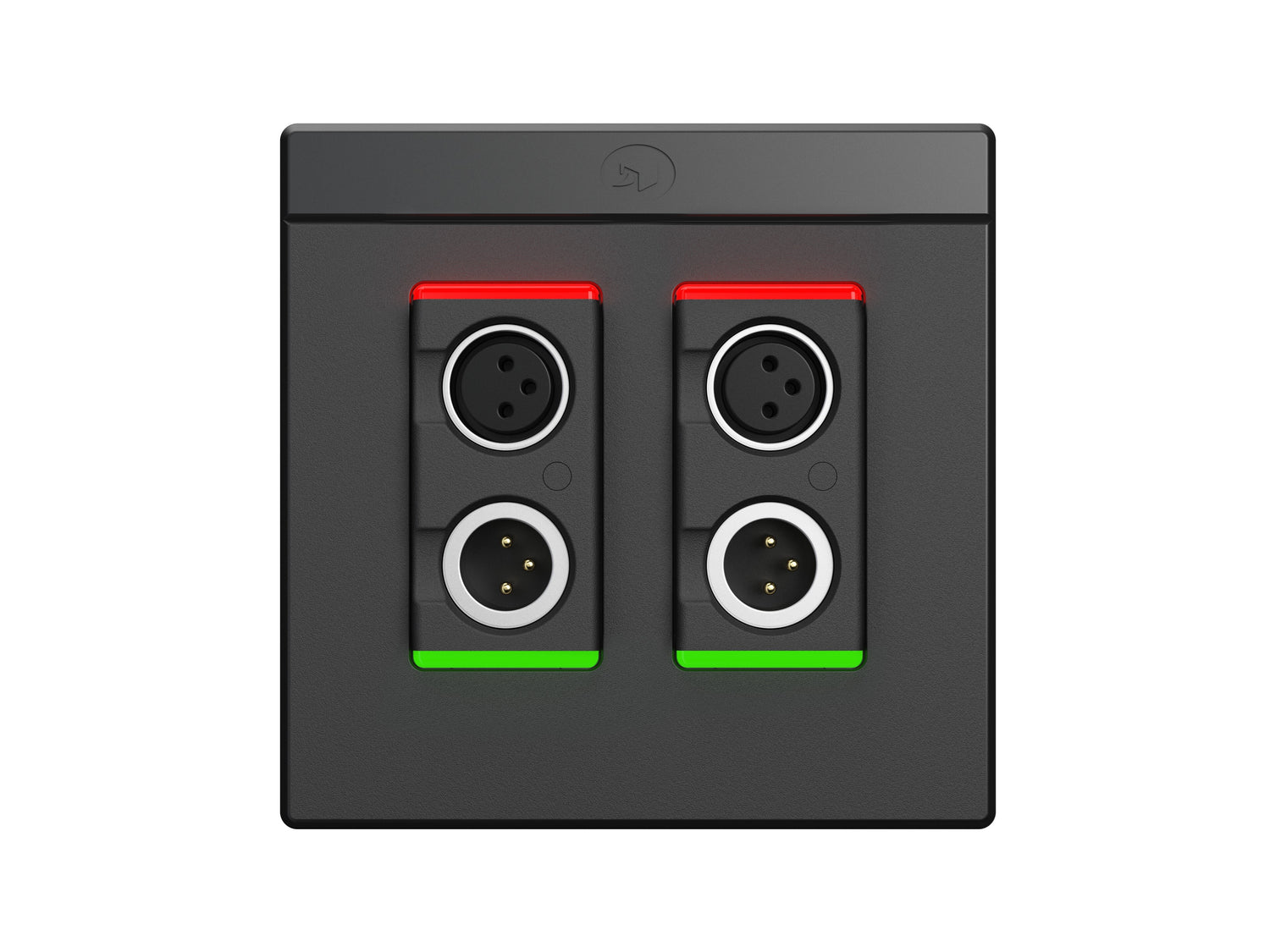

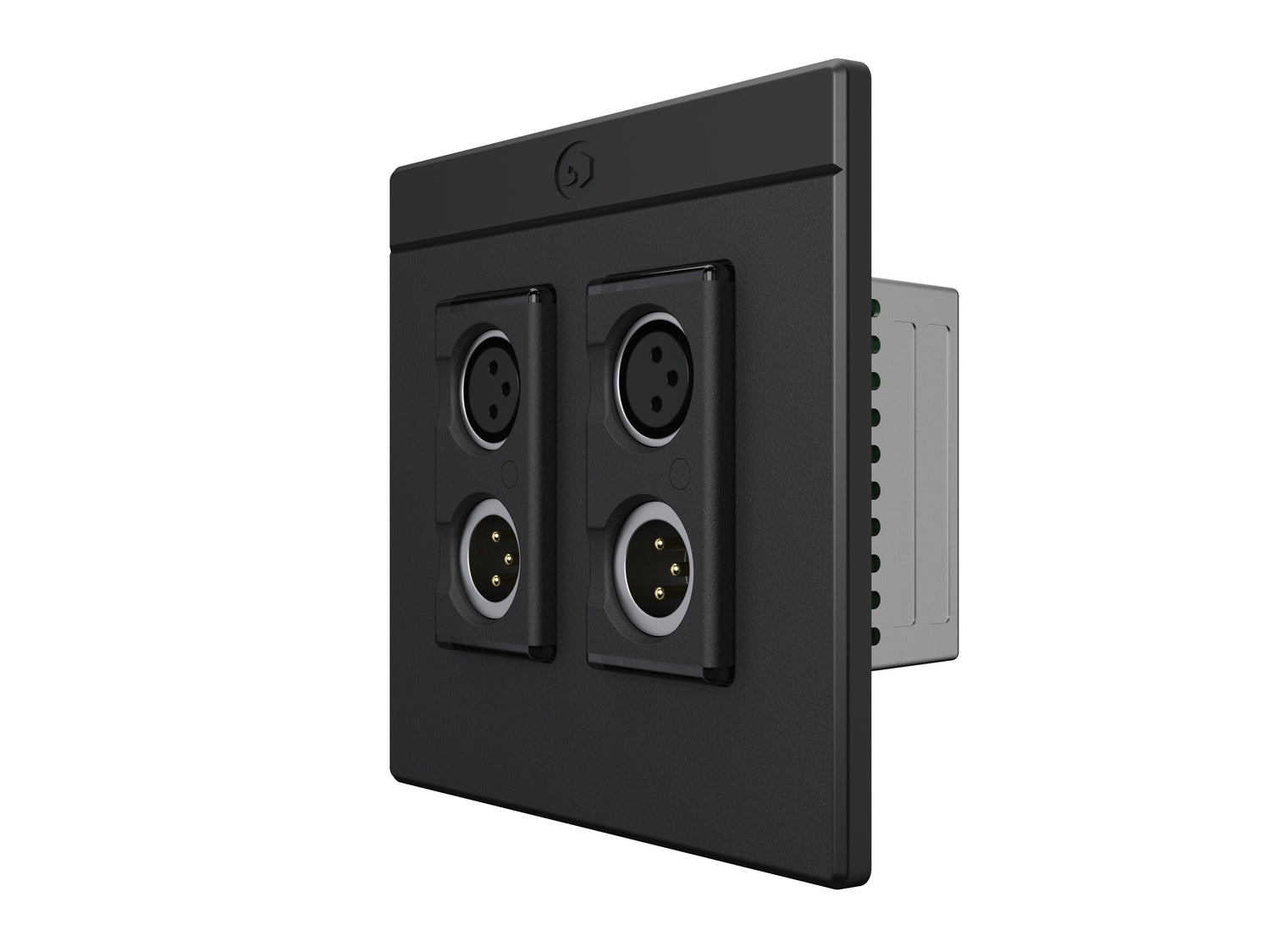

The xIO XLR 2x2 mounts in a standard US single-gang electrical back box and presents a black Decora faceplate with two female XLR input connectors and two male XLR output connectors. Microphones, instruments, or line-level sources connect to the inputs and are converted to Dante audio streams for delivery to the room's DSP over a single Cat cable. Simultaneously, audio from the DSP is delivered to the XLR outputs for connection to local powered speakers, amplifiers, or monitors at the wall position. This makes the xIO XLR 2x2 the most capable of the xIO wall plate family for a stage or podium position that must handle both microphone capture and local audio return. All four channels are configured independently within Symetrix Composer. W-Series wall controllers (W1–W4) can provide local room-level volume and mute control.

Key Features

• 2 XLR Balanced Inputs — Accepts two simultaneous microphone or line-level sources, converting both to independent Dante network audio streams.
• 2 XLR Balanced Outputs — Delivers two audio channels from the Dante network to local speakers, amplifiers, or monitors via balanced XLR at the wall location.
• Bidirectional Dante Integration — All four channels (2 in, 2 out) operate as Dante endpoints, enabling simultaneous capture and local audio return at a single wall plate.
• Eliminates Multiple Analog Runs — A single Cat cable to the network switch replaces four separate balanced analog cable runs from source to rack.
• Decora Single-Gang US Form Factor — Installs in a standard US single-gang back box with a professional wall plate appearance.
• Symetrix Composer Integration — All four channels independently configurable in Composer on Radius NX, Prism, EDGE, and Server D100.
• W-Series Wall Controller Support — Compatible with Symetrix W1–W4 wall controllers for local room volume and mute control.
• Stage and Podium Ready — Suited for any position requiring both microphone input and confidence monitor or speaker output at the same wall location.
• Black Finish — Coordinates with dark Decora wall plates and black-finish AV furniture.

Typical Applications

• Podium or lectern with microphone input and monitor output
• Stage or dais position requiring both mic capture and IFB/monitor return
• Boardroom presentation wall with dual mic input and speaker output
• House of worship chancel or chancel rail audio wall plate
• Auditorium stage side wall audio connection point
• Conference room two-mic input with local audio output

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Q: What is the difference between the xIO XLR 2x2 and the xIn XLR 2?

A: The xIO XLR 2x2 provides two inputs and two outputs — bidirectional audio at the wall. The xIn XLR 2 is input-only. Choose the 2x2 when a local audio output is also needed at the wall location.

Q: Does the XLR input support phantom power?

A: Verify in Symetrix documentation. Contact Creation Networks or Symetrix for confirmation.

Q: Which DSP platforms are compatible?

A: Compatible with Symetrix Radius NX, Prism, EDGE, and Server D100, configured via Symetrix Composer.

Q: Can all four channels be routed independently?

A: Yes. Each channel is an independent Dante endpoint in Composer for fully independent routing and processing.

Q: What is the warranty?

A: Symetrix products are covered by a standard manufacturer warranty. Contact Creation Networks or Symetrix for current terms.
