Symetrix 80-0106 xIO 4x4

Product Overview

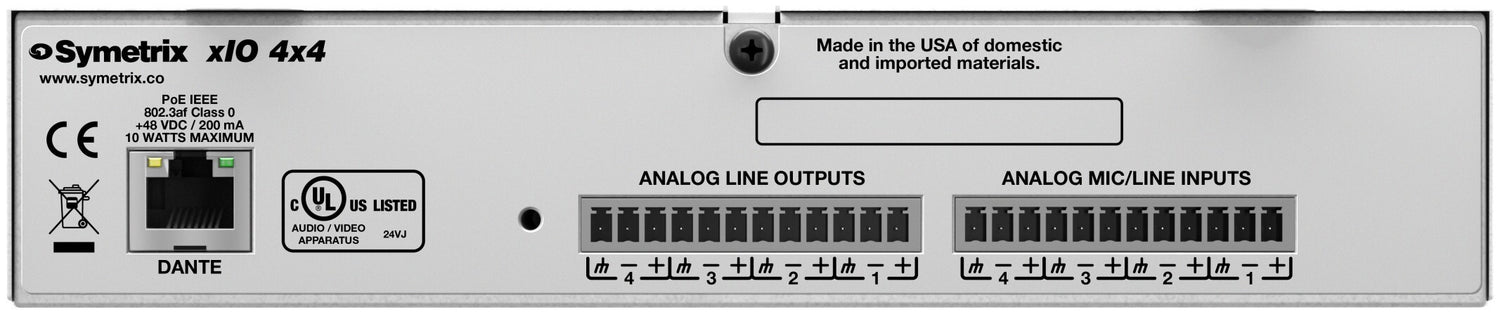

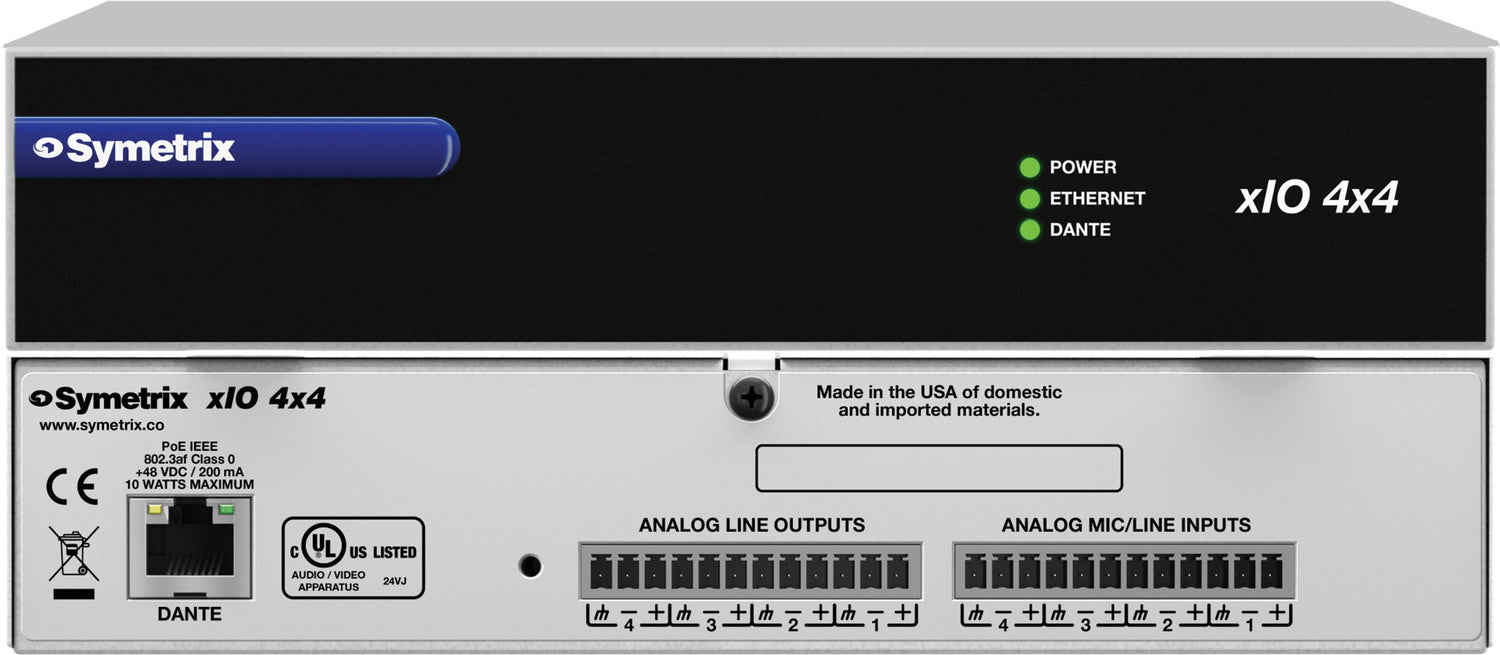

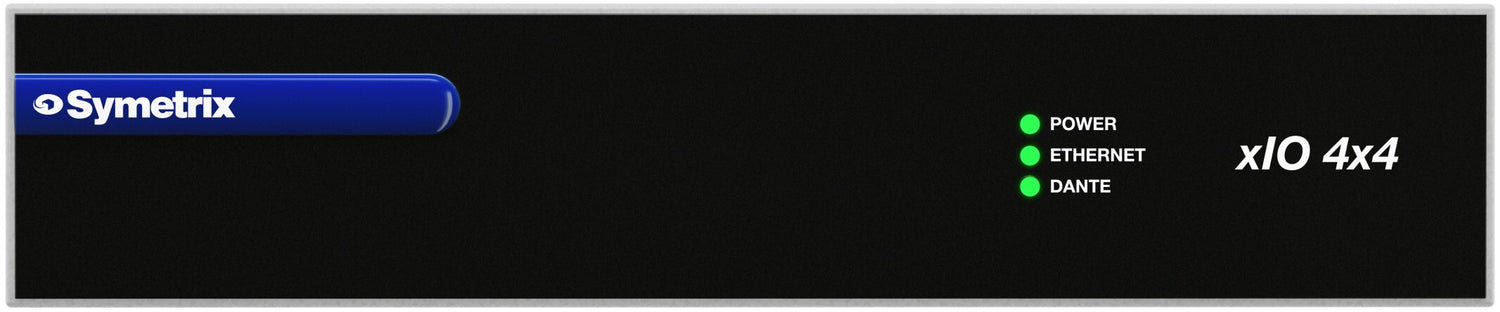

The Symetrix 80-0106 xIO 4x4 is a half-rack, rack-mountable 4-input, 4-output Dante I/O endpoint that provides bidirectional conversion between 4 balanced analog inputs and 4 balanced analog outputs and the Dante network in a single compact unit. It combines the functionality of the xIn 4 and xOut 4 into one chassis, making it the efficient choice for distributed AV locations where both analog inputs and analog outputs are required at the same point in the system.

Product Description

In a distributed AVoIP architecture, the xIO 4x4 serves as a remote I/O node — accepting analog microphones or line sources and delivering processed audio to local amplifiers or speakers, all routed over Dante to and from a central Symetrix DSP. A typical deployment places xIO 4x4 units at conference room connection points, lecterns, or equipment closets, with the central EDGE Dante, Radius NX, or Server D100 handling all signal processing. All routing and signal assignment is configured in Symetrix Composer within the overall site file. The half-rack chassis mounts in a standard equipment rack with the optional 1U Rack Tray (80-0107) or surface-mounted with the 1/2U Surface Mount Bracket (80-0108).

Key Features

• 4 Balanced Analog Inputs — Mic/line inputs for remote source connections.
• 4 Balanced Analog Outputs — Line-level outputs for local amplifiers or analog devices.
• Bidirectional Dante — Sends and receives Dante channels simultaneously on the same unit.
• Half-Rack Form Factor — Compact combined I/O node; reduces the number of endpoint units needed at each location.
• Composer Programmable — All routing managed in the Symetrix DSP site file.
• AES67 Compatible — Interoperates with non-Symetrix Dante devices.

Typical Applications

• Conference rooms requiring both local mic inputs and speaker zone outputs at a remote rack
• Distributed AV nodes combining input and output conversion at each location
• Stage boxes with both input (from mics) and output (to monitors) at the same point
• Classrooms and training rooms with full-duplex remote I/O over Dante
• Houses of worship with distributed input/output nodes connected via Ethernet

Technical Specifications

Frequently Asked Questions

What is the difference between the xIO 4x4 and buying separate xIn 4 and xOut 4 units?

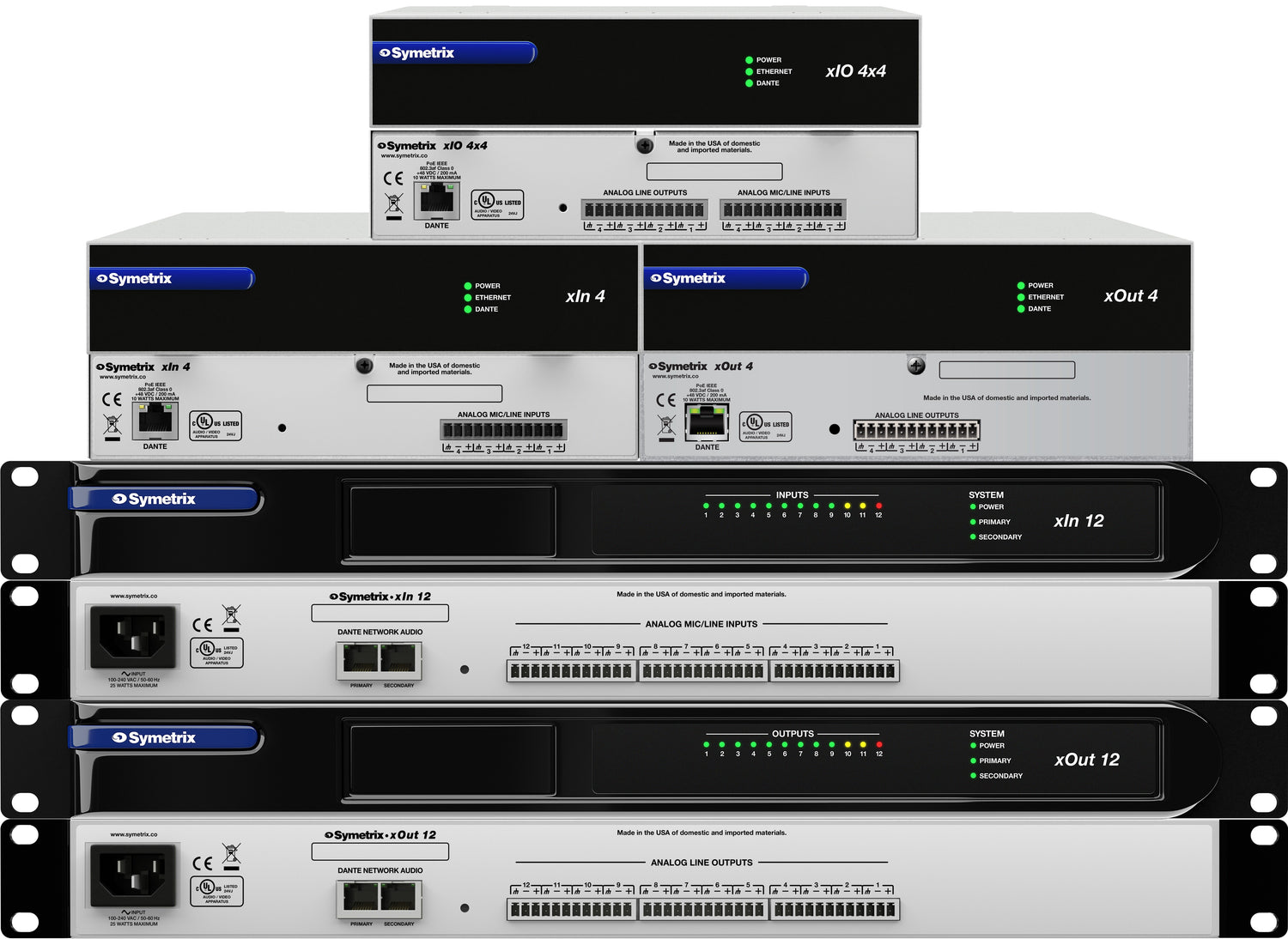

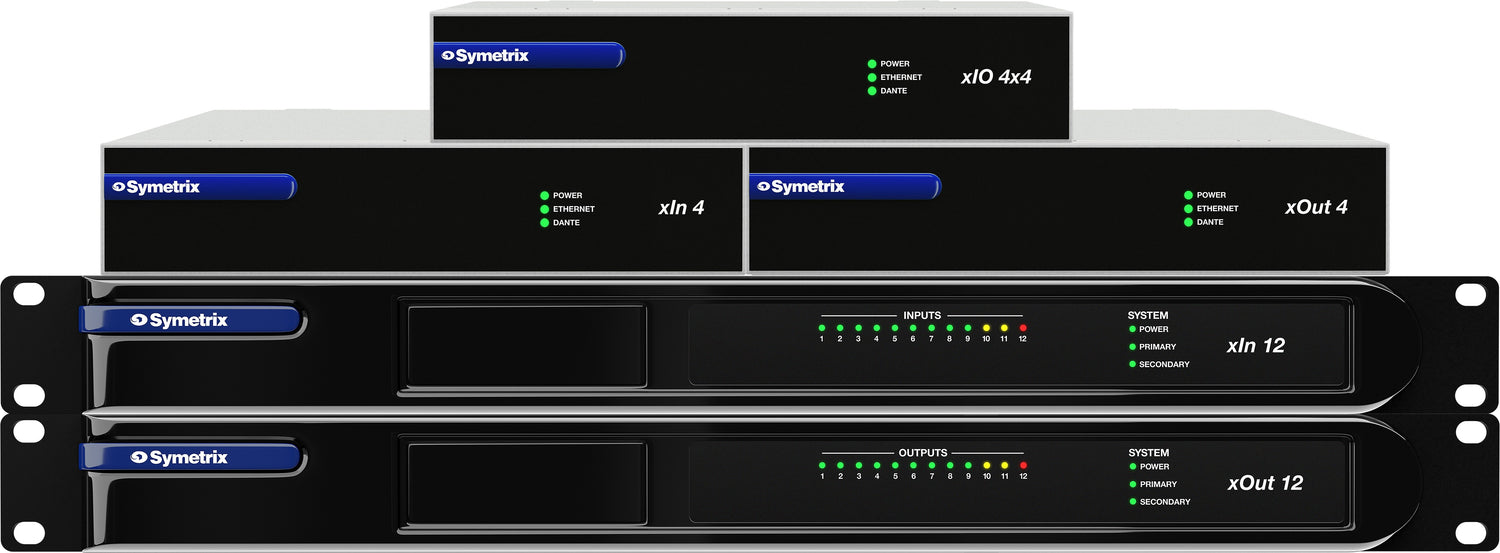

The xIO 4x4 (80-0106) combines 4 analog inputs and 4 analog outputs in a single half-rack unit. Separate xIn 4 (80-0110) and xOut 4 (80-0112) units provide the same channel count but in two separate chassis. The xIO 4x4 is more space- and cost-efficient when both input and output are needed at the same location.
