Shure MXA901W-R – Microflex Advance Conferencing Ceiling Array Microphone (White)

Product Overview

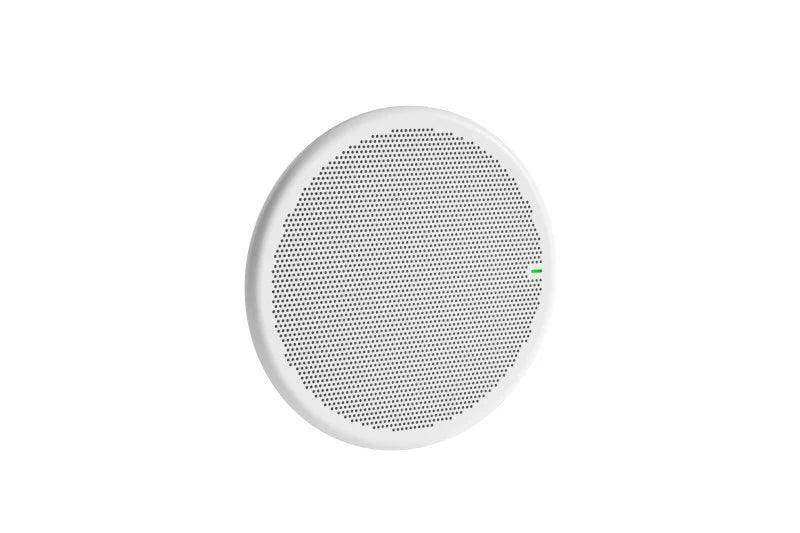

The Shure MXA901W-R is a Dante-networked conferencing ceiling array microphone in a 13.5-inch round white form factor, engineered for commercial AV deployments in boardrooms, conference rooms, government chambers, and enterprise meeting spaces where ceiling aesthetics and audio performance must both be addressed. Using Shure's Microflex Advance array technology with onboard IntelliMix DSP, the MXA901W-R delivers Acoustic Echo Cancellation, Noise Reduction, Automatic Mixing, and Automatic Gain Control locally without requiring a standalone external DSP processor in many room configurations. Single Zone Automatic Coverage captures every talker within a 20 × 20 ft (6 × 6 m) area with no lobe-steering configuration required out of the box, while Steerable Coverage mode provides up to 8 independently configurable lobes for advanced room tuning via Shure Designer software.

Product Description

The MXA901W-R connects to AV infrastructure via a single Ethernet cable carrying Dante audio, PoE power (Class 0, 10.1 W max), and control data — eliminating dedicated microphone cable runs and simplifying installation in new construction and retrofit commercial AV projects. Its 100 Hz–20 kHz frequency response is optimized for conferencing speech reproduction, and the next-generation array architecture provides improved low-frequency directionality and more natural voice capture compared to prior-generation ceiling solutions. The round 13.5-inch form factor fits standard ceiling tiles and flush-mount enclosures, and the white painted finish coordinates with most commercial ceiling environments. The MXA901W-R is certified for Microsoft Teams Rooms and Zoom Rooms, making it a qualified component in enterprise UC room standardization programs. For an all-in-one ceiling solution that adds an integrated loudspeaker, see the Shure MXA902W-S-60CM at Creation Networks. For the same microphone in black or aluminum finish, see the MXA901B-R and MXA901AL-R.

Key Features

• Single Zone Automatic Coverage (6 × 6 m) — Covers a 20 × 20 ft area without manual lobe configuration, with zone size adjustable down to 10 × 10 ft via Designer software for smaller rooms.
• Steerable Coverage Mode (Up to 8 Lobes) — Enables independent configuration of up to 8 directional lobes for precision coverage tuning in complex room geometries or multi-zone applications.
• Onboard IntelliMix DSP — Integrated AEC, Noise Reduction, Automatic Mixing, and AGC process audio locally, reducing or eliminating the need for an external DSP unit in many commercial conference room deployments.
• Single-Cable Dante Installation — One Ethernet cable delivers Dante audio, PoE power, and control, simplifying ceiling infrastructure and reducing cabling cost in commercial AV installations.
• Microsoft Teams and Zoom Rooms Certified — Qualified for inclusion in enterprise UC standardization programs using MTR and Zoom Rooms deployments.
• 100 Hz–20 kHz Frequency Response — Optimized for natural speech reproduction in conferencing applications, with next-generation array architecture for enhanced directional pickup.
• Round 13.5-Inch Form Factor — Low-profile white ceiling design suitable for standard commercial ceiling installations with on-ceiling, in-ceiling, and suspended mounting options.
• Shure Designer Software Integration — Full remote configuration, monitoring, and management via Shure Designer, supporting enterprise AV system management at scale.

Typical Applications

• Corporate boardroom and executive conference room ceiling microphone
• Government chamber and municipal meeting space AV systems
• Enterprise multi-room UC standardization deployments
• All-hands room and large conference room ceiling audio
• Training room and multi-purpose space AV integration
• Commercial meeting space Microsoft Teams Rooms and Zoom Rooms installations

Technical Specifications

Frequently Asked Questions

Does the MXA901 require an external DSP or audio processor?

For many single-room conference deployments, no. The onboard IntelliMix DSP handles AEC, Noise Reduction, Automatic Mixing, and AGC locally. For complex multi-room managed environments, AEC reference injection from a UC platform, or installations requiring USB audio output, pairing with a Shure IntelliMix P300 or ANIUSB-MATRIX adds those capabilities.

How does Single Zone Automatic Coverage differ from Steerable Coverage?

Single Zone Automatic Coverage is a zero-configuration mode that captures all talkers within the adjustable coverage zone (up to 20 × 20 ft) automatically. Steerable Coverage mode provides manual control of up to 8 independent directional lobes, allowing AV integrators to precisely define pickup zones, exclude noise sources, or tailor coverage for asymmetric room layouts.

How is the MXA901 configured and managed?

Configuration and ongoing management are performed via Shure Designer software, available as a free download from Shure. Designer provides remote parameter control, room setup wizards, firmware updates, and system monitoring across networked MXA901 devices in multi-room enterprise deployments.

What is the difference between the MXA901 and the MXA902?

The MXA901W-R is a microphone-only ceiling array. The MXA902 adds an integrated 2.5-inch loudspeaker and is available in square form factors (2 ft and 60 cm) designed to fit standard ceiling tile grids. Choose the MXA901 when ceiling speakers are already installed or planned separately; choose the MXA902 for a true all-in-one installation.

What mounting options are available for the MXA901W-R?

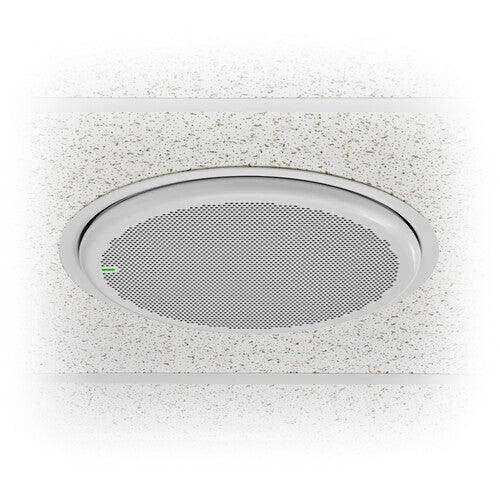

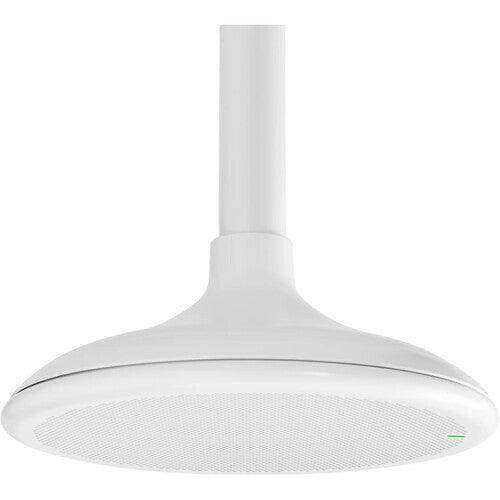

Shure offers on-ceiling surface-mount, in-ceiling flush-mount, and suspended (wire rope or pole) mounting options for the MXA901. The appropriate mounting option depends on ceiling construction type and room architectural requirements. Consult the MXA901-R User Guide or contact Creation Networks for project-specific mounting recommendations.
