Shure MXA901B-R – Microflex Advance Conferencing Ceiling Array Microphone (Black)

Product Overview

The Shure MXA901B-R is a Dante-networked conferencing ceiling array microphone in a 13.5-inch round black form factor, engineered for commercial AV deployments in boardrooms, conference rooms, government chambers, and enterprise meeting spaces with dark or contrasting ceiling finishes. Sharing its full specification with the MXA901W-R, the black variant delivers the same Microflex Advance array technology, onboard IntelliMix DSP, and Single Zone Automatic Coverage in a finish that coordinates with black ceiling tiles and modern commercial interior aesthetics. A single PoE Ethernet cable delivers Dante audio, power, and control, and the unit is certified for Microsoft Teams Rooms and Zoom Rooms enterprise deployments.

Product Description

The MXA901B-R is built around Shure's Microflex Advance array architecture, providing Single Zone Automatic Coverage over a 20 × 20 ft (6 × 6 m) area with zero lobe-configuration required for standard deployments, plus Steerable Coverage mode with up to 8 independent lobes for advanced room tuning. Onboard IntelliMix DSP processes AEC, Noise Reduction, Automatic Mixing, and AGC locally, reducing or eliminating the need for a standalone external DSP unit in many conference room configurations. The 100 Hz–20 kHz frequency response and next-generation array architecture deliver natural speech reproduction for conferencing applications. Remote management via Shure Designer software enables centralized deployment, configuration, firmware management, and monitoring across multi-room enterprise AV installations. For the same microphone in white, see the MXA901W-R; in aluminum, the MXA901AL-R. For an all-in-one ceiling solution with integrated loudspeaker, see the Shure MXA902.

Key Features

• Single Zone Automatic Coverage (6 × 6 m) — Covers a 20 × 20 ft area without manual lobe configuration; zone size adjustable via Designer software.
• Steerable Coverage Mode (Up to 8 Lobes) — Independent configuration of up to 8 directional lobes for precision tuning in complex or asymmetric room geometries.
• Onboard IntelliMix DSP — Integrated AEC, Noise Reduction, Automatic Mixing, and AGC reduce external DSP requirements in standard conference room installations.
• Single-Cable Dante Installation — One Ethernet cable delivers Dante audio, PoE power, and device control, simplifying ceiling infrastructure.
• Microsoft Teams and Zoom Rooms Certified — Qualified for enterprise UC standardization programs using MTR and Zoom Rooms deployments.
• 100 Hz–20 kHz Frequency Response — Optimized for conferencing speech with next-generation array architecture for enhanced low-frequency directional pickup.

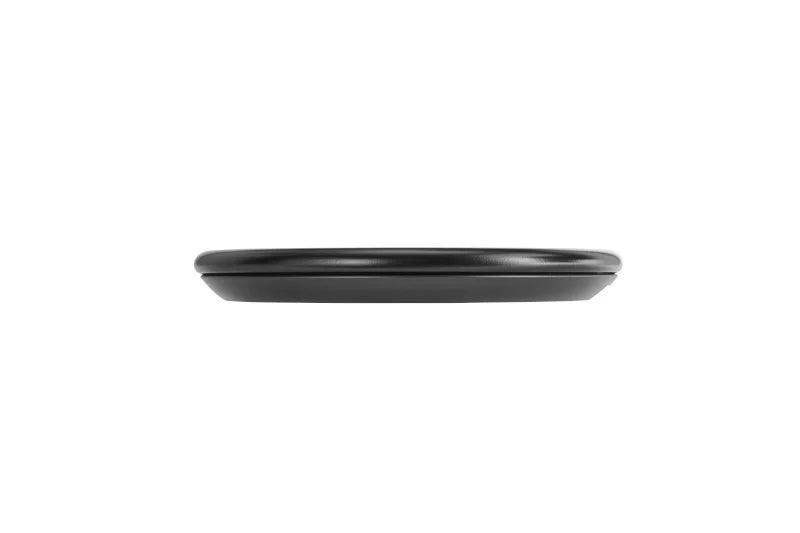

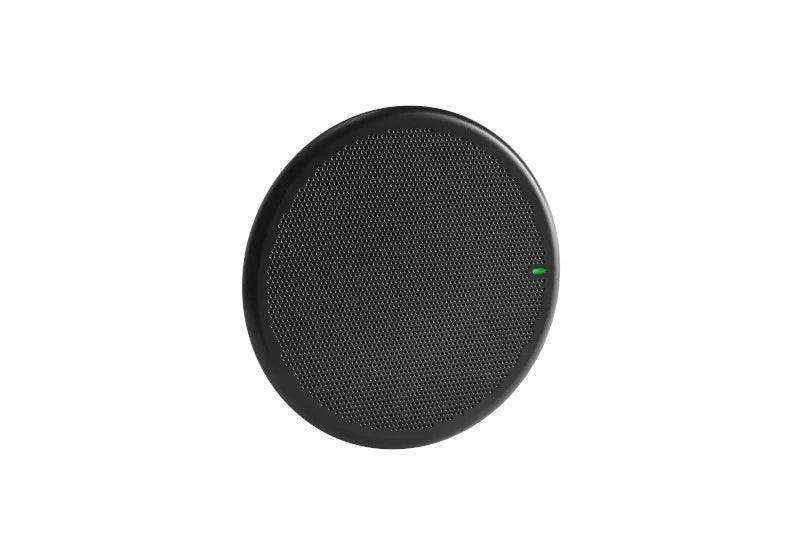

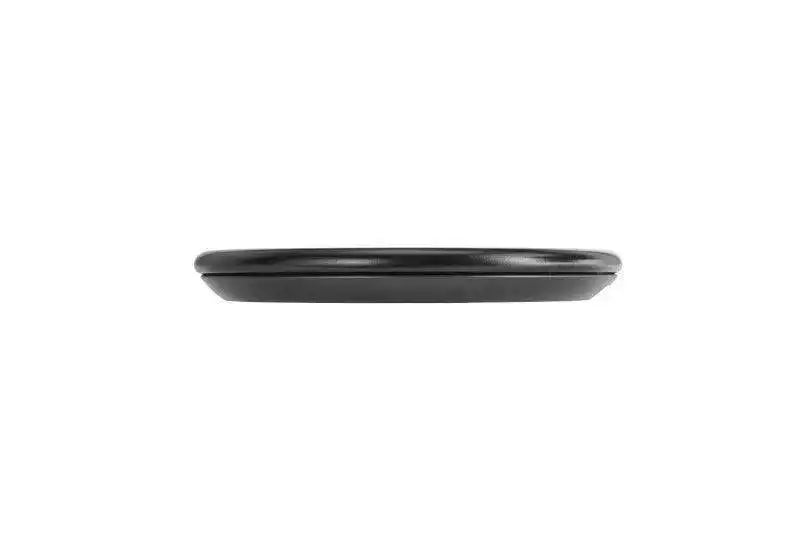

• Black Round 13.5-Inch Form Factor — Coordinates with black ceiling tiles and dark commercial ceiling environments where white microphones would contrast unacceptably.
• Shure Designer Software Integration — Full remote configuration, monitoring, and firmware management across enterprise deployments.

Typical Applications

• Corporate boardroom and executive conference room with black ceiling finish
• Government chamber and municipal meeting space AV systems
• Enterprise multi-room UC standardization deployments
• All-hands room and large conference room ceiling audio
• Training room and multi-purpose space AV integration
• Commercial meeting space Microsoft Teams Rooms and Zoom Rooms installations

Technical Specifications

Frequently Asked Questions

Is the MXA901B-R functionally identical to the MXA901W-R?

Yes. The MXA901B-R and MXA901W-R share the same audio specifications, DSP capabilities, Dante networking, and mounting options. The only difference is the finish color — black versus white — chosen to match the ceiling environment.

Does the MXA901B-R require an external DSP or audio processor?

For many standard conference room deployments, no. The onboard IntelliMix DSP handles AEC, Noise Reduction, Automatic Mixing, and AGC locally. For more complex multi-room configurations, AEC reference injection requirements, or USB audio output needs, pairing with a Shure IntelliMix P300 or ANIUSB-MATRIX adds those capabilities.

How is the MXA901B-R managed remotely?

The MXA901B-R is configured and managed via Shure Designer software, available as a free download. Designer provides device setup, coverage zone configuration, firmware updates, and system health monitoring for enterprise AV deployments at scale.

What mounting options are available?

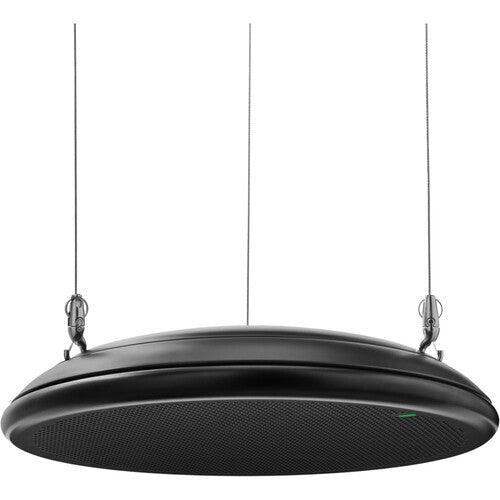

Shure supports on-ceiling surface mount, in-ceiling flush mount, and suspended (wire rope or pole) mounting configurations for the MXA901-R series. Mounting hardware options are available from Shure and through Creation Networks based on the ceiling type and project requirements.
