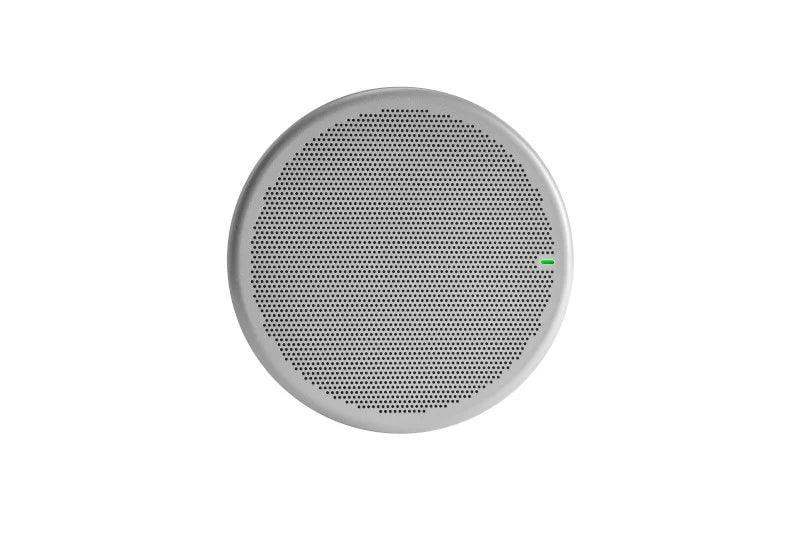

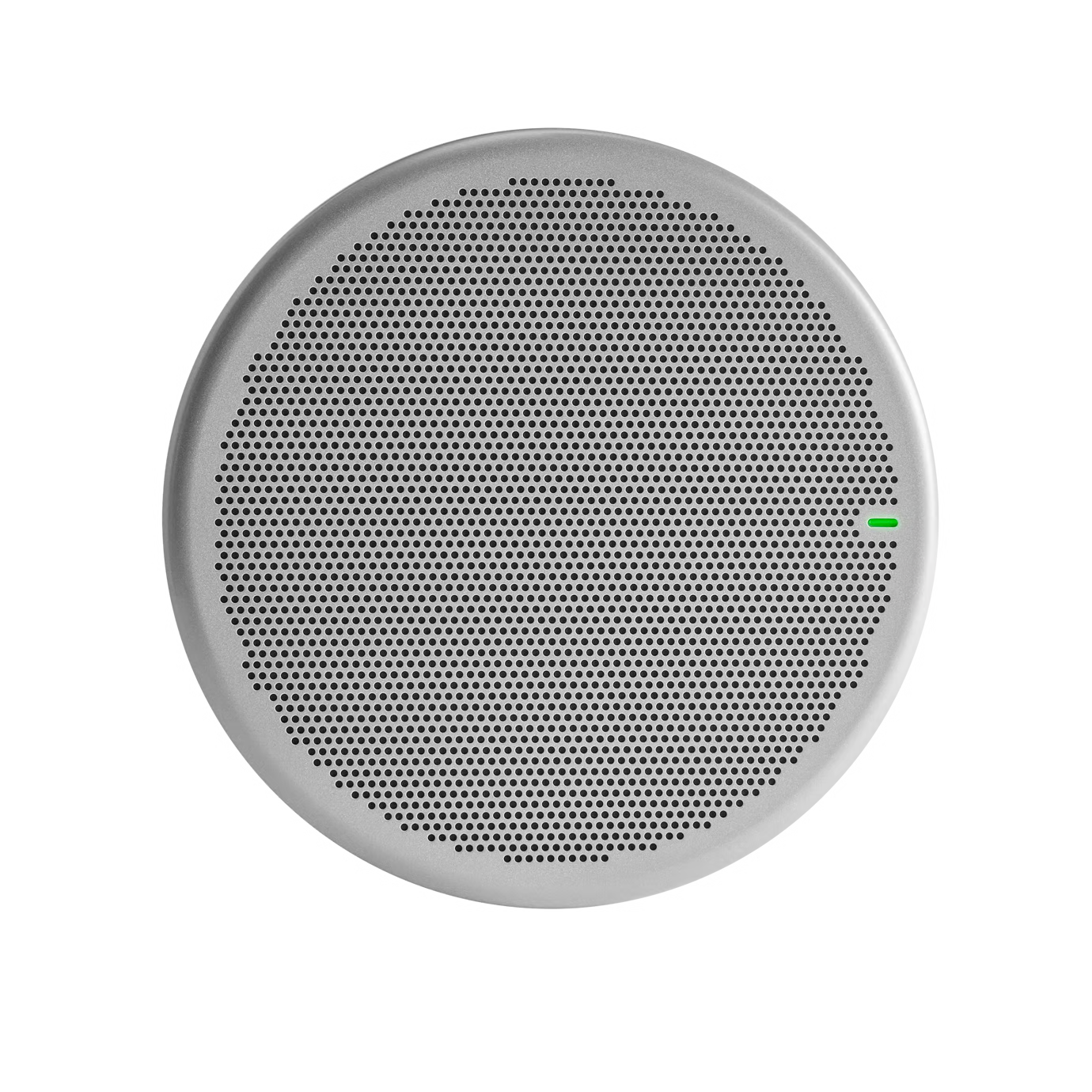

Shure MXA901AL-R – Microflex Advance Conferencing Ceiling Array Microphone (Aluminum)

Product Overview

The Shure MXA901AL-R is a Dante-networked conferencing ceiling array microphone in a 13.5-inch round aluminum finish, designed for commercial AV installations in high-end boardrooms, government facilities, and premium commercial meeting spaces where a metallic ceiling aesthetic is specified. The aluminum finish integrates naturally with brushed metal ceiling systems, exposed structural elements, and contemporary commercial interiors where standard white or black ceiling microphones would visually conflict. Functionally identical to the MXA901W-R and MXA901B-R, it delivers the same Microflex Advance array technology, onboard IntelliMix DSP with AEC and Noise Reduction, Single Zone Automatic Coverage, Steerable Coverage with up to 8 lobes, and single-cable Dante installation.

Product Description

The MXA901AL-R brings full Microflex Advance conferencing audio performance to architectural environments requiring a metallic ceiling finish. Its Single Zone Automatic Coverage captures every talker within a 20 × 20 ft (6 × 6 m) zone without manual lobe setup, while Steerable Coverage mode enables AV integrators to configure up to 8 independent directional lobes for complex or irregularly shaped meeting spaces. Onboard IntelliMix DSP processes AEC, Noise Reduction, Automatic Mixing, and AGC locally, reducing or eliminating the need for an external DSP processor in standard conference room configurations. Dante audio networking over a single PoE Ethernet connection simplifies ceiling infrastructure across new construction and retrofit commercial AV projects. The unit is certified for Microsoft Teams Rooms and Zoom Rooms, qualifying it for enterprise UC room standardization programs. For the same microphone in white or black, see the MXA901W-R and MXA901B-R at Creation Networks.

Key Features

• Aluminum Ceiling Finish — Metallic finish coordinates with exposed ceiling systems, brushed metal tile grids, and premium commercial interior specifications where white or black finishes are not appropriate.
• Single Zone Automatic Coverage (6 × 6 m) — Covers a 20 × 20 ft area automatically; zone size adjustable down to 10 × 10 ft via Shure Designer software.
• Steerable Coverage Mode (Up to 8 Lobes) — Independent lobe configuration for precision coverage control in complex room layouts.
• Onboard IntelliMix DSP — AEC, Noise Reduction, Automatic Mixing, and AGC processed locally, simplifying the AV signal chain in conference room installations.
• Dante Networking with PoE — Single Ethernet cable carries audio, power, and control, minimizing ceiling cable infrastructure.
• Microsoft Teams and Zoom Rooms Certified — Qualified for enterprise UC room standardization deployments.
• 100 Hz–20 kHz Frequency Response — Speech-optimized conferencing audio with next-generation array architecture for natural, directional voice pickup.
• Shure Designer Software Integration — Centralized remote management, configuration, and monitoring across multi-room enterprise AV installations.

Typical Applications

• Premium boardroom and executive suite ceiling microphone with metallic interior finishes
• Government facility and chamber AV systems with architectural ceiling specifications
• Enterprise conference room deployments with exposed or metallic ceiling systems
• Commercial meeting space UC integration requiring non-standard ceiling finish options
• High-end commercial AV installation where ceiling aesthetics are specified by design

Technical Specifications

Frequently Asked Questions

Is the aluminum finish the same audio performance as the white and black variants?

Yes. The MXA901AL-R is functionally identical to the MXA901W-R and MXA901B-R in all audio, networking, and DSP specifications. The aluminum finish is purely an aesthetic option for specific ceiling environments.

Does the MXA901AL-R work with existing Shure IntelliMix P300 installations?

Yes. The MXA901AL-R outputs Dante audio and is fully compatible with the Shure IntelliMix P300 audio conferencing processor for deployments requiring external AEC reference injection, USB audio bridging, or additional DSP processing beyond the device’s onboard capabilities.

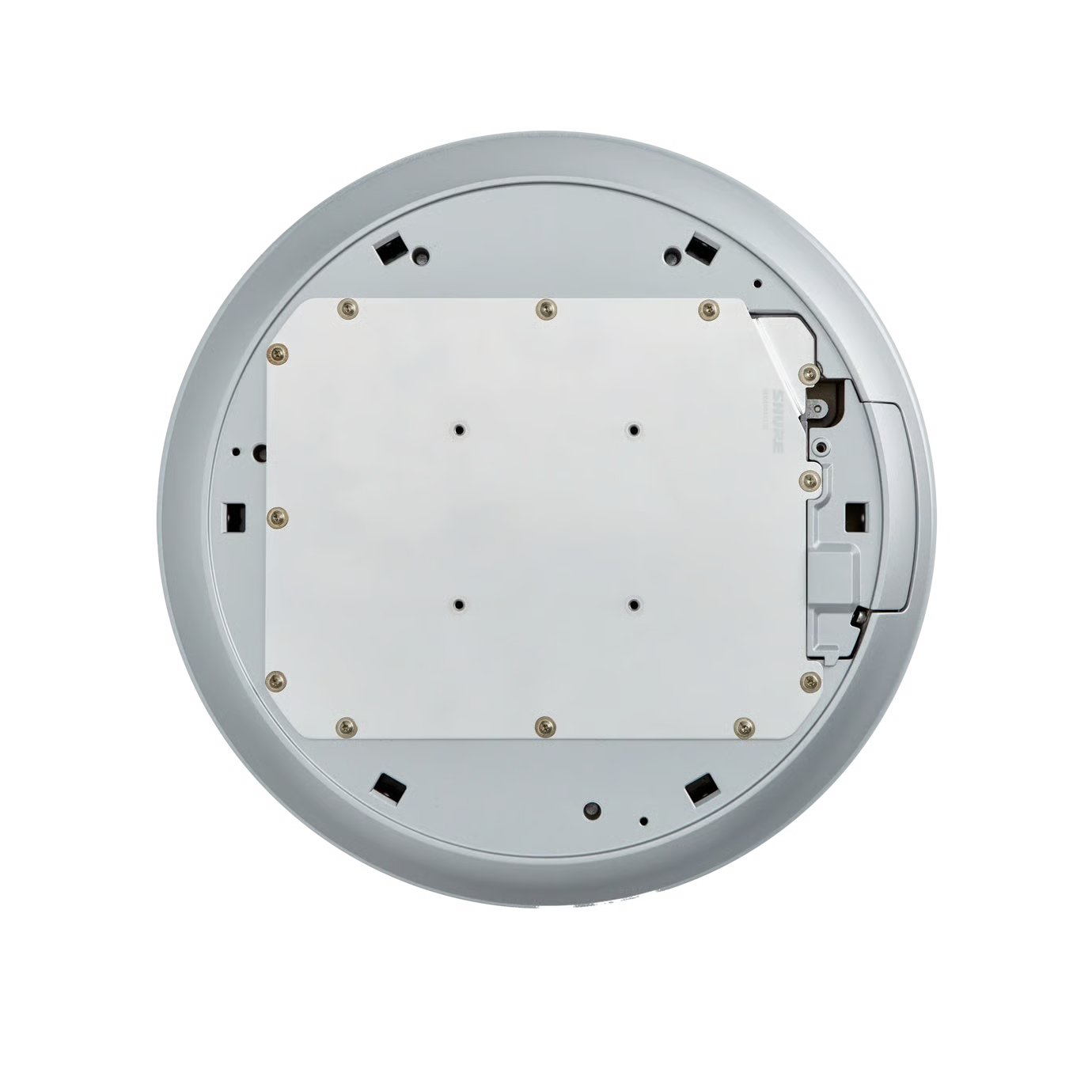

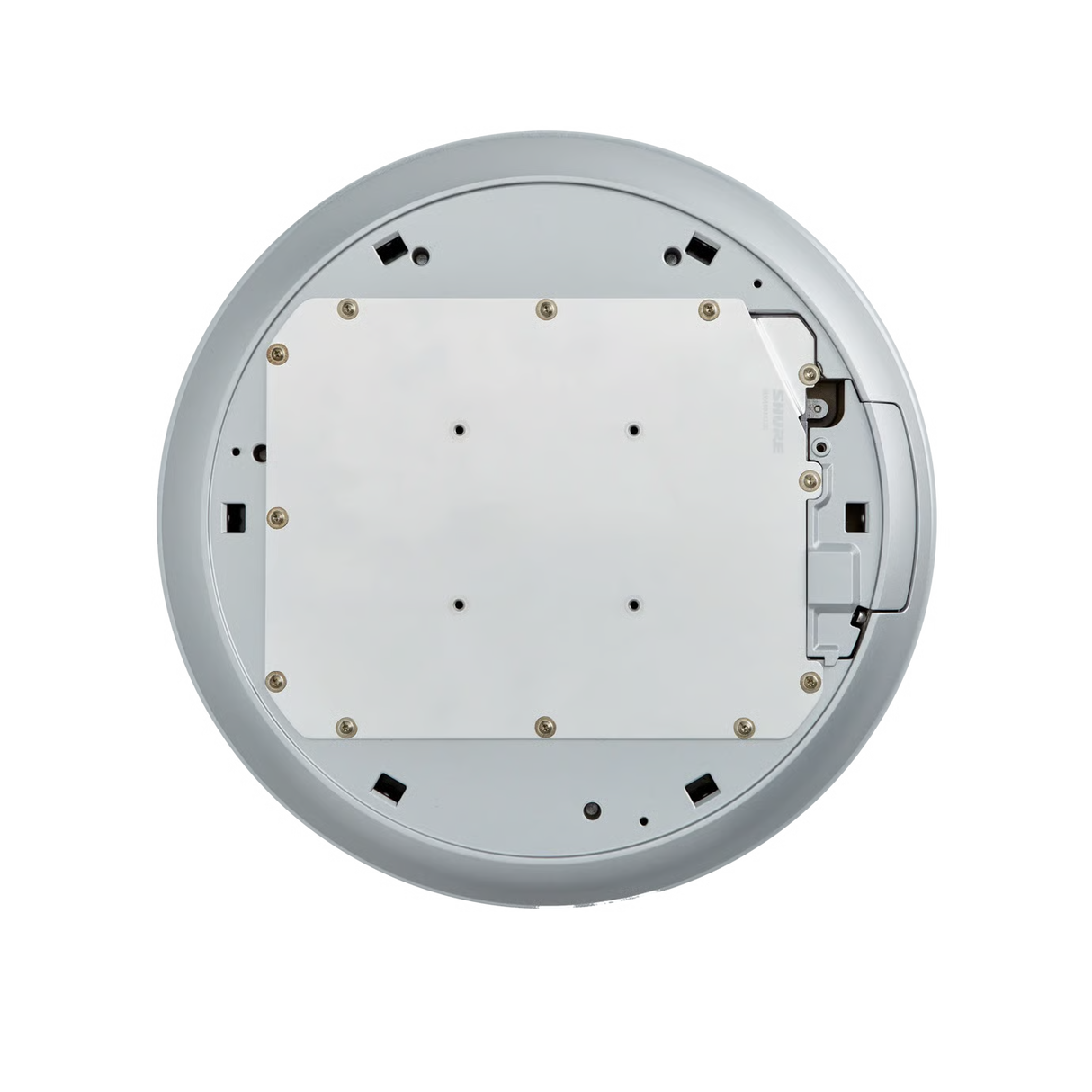

What ceiling mounting options are available for the MXA901AL-R?

Shure provides on-ceiling surface mount, in-ceiling flush mount, and suspended (wire rope or pole) mounting options for the MXA901-R series. Selection depends on ceiling construction type and project specifications. Contact Creation Networks for project-specific mounting recommendations.
