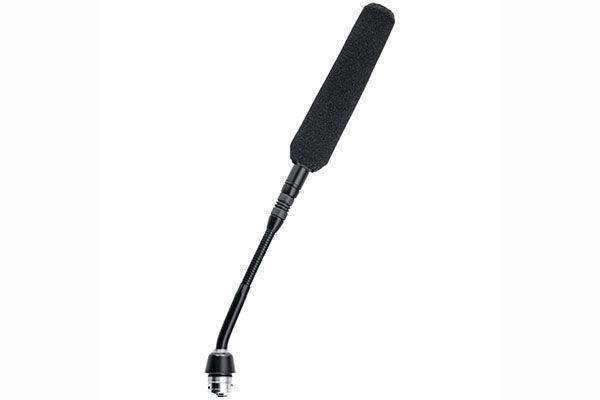

Shure MX405LP/MS – 5" Mini-Shotgun Gooseneck Microphone
Product Overview
The Shure MX405LP/MS mini-shotgun gooseneck microphone is a 5-inch low-profile condenser designed for one-talker-per-mic speech capture in conference rooms, lecterns, and houses of worship. Its tightly focused lobar pattern delivers high gain-before-feedback and strong rejection of room noise, making it well suited to commercial AV installations. The "LP" version ships without a preamp for direct integration with Microflex and ULX-D systems.
Product Description
The MX405LP/MS combines an interchangeable mini-shotgun cartridge with a 12.7 cm (5 in) gooseneck and a bottom bi-color LED status indicator. The narrow lobar pickup isolates a single talker, which improves intelligibility in reverberant rooms and high-channel-count systems. For permanent installation, this conference room microphone mounts through a table or lectern via the Shure MX400SMP surface-mount preamp (sold separately) and integrates with automatic mixers for gated, logic-controlled operation. CommShield RF filtering protects against mobile and wireless interference, while a switchable 150 Hz low-cut filter reduces HVAC rumble. The snap-fit windscreen adds 30 dB of pop protection for close lectern use.
Key Features
- Mini-Shotgun Lobar Pattern — The narrow pickup isolates one talker and maximizes gain-before-feedback in reverberant spaces.
- Low-Profile 5" Gooseneck — The compact 12.7 cm gooseneck keeps sightlines clear on lecterns and conference tables.
- Bottom Bi-Color LED — The indicator shows active (green) and muted (red) states for clear talker feedback.
- CommShield RF Protection — Integrated RF filtering guards audio from cellphone and wireless interference.
- Switchable Low-Cut Filter — A 150 Hz filter attenuates room rumble and HVAC noise for cleaner speech.
- Interchangeable Cartridge — The polar pattern can be changed without replacing the gooseneck, simplifying maintenance.
- Preamp-Free Integration — The LP version connects directly to Microflex Wireless and ULX-D bases or the MX400SMP preamp.
Typical Applications
- Conference room
- Boardroom
- House of worship
- Auditorium
- Government space
- Multi-purpose room
Technical Specifications
| Transducer Type | Electret condenser |
| Polar Pattern | Mini-shotgun (lobar) |
| Frequency Response | 50–17,000 Hz |
| Sensitivity (@1 kHz, open circuit) | −33 dBV/Pa (22 mV) |
| Maximum SPL (1 kHz, 1% THD, 1 kΩ) | 121 dB |
| Self Noise (A-weighted) | 26 dB SPL |
| Signal-to-Noise Ratio | 68 dB |
| Output Impedance | 170 Ω |
| Output Configuration | Active balanced |
| Dynamic Range | 93 dB |
| Gooseneck Length | 12.7 cm (5 in) |
| Weight | 54 g (0.119 lb) |
| Power Requirements | 48–52 V DC phantom, 8.0 mA |
| Low-Cut Filter | 6 dB/octave below 150 Hz (switchable) |
Frequently Asked Questions
Does the MX405LP/MS include a preamp?
No. The LP version connects directly to Shure Microflex Wireless and ULX-D bases, or to the MX400SMP surface-mount preamp (sold separately) for hardwired installations.
What automatic mixers and DSPs is it compatible with?
The microphone provides an active-balanced output and logic LED control compatible with Shure automatic mixers and most third-party DSP and mixer platforms. Note that LED logic requires a device with internal pull-up resistor logic.
How is it mounted for a permanent installation?
Use the MX400SMP surface-mount preamp to mount it through a conference table or lectern, or the MX400DP desktop base for a moveable option with a configurable mute button.
When should I choose mini-shotgun over cardioid?
Choose the mini-shotgun pattern when you need one microphone per talker with maximum rejection of surrounding noise, such as at a lectern or in a reverberant auditorium.
What warranty and support are available?
The microphone is covered by Shure's standard limited warranty. Contact Creation Networks for current warranty terms and integration support.
Compare the Shure MX405LP/C cardioid version or the preamp-equipped Shure MX405R/MS with surface-mount preamp.
