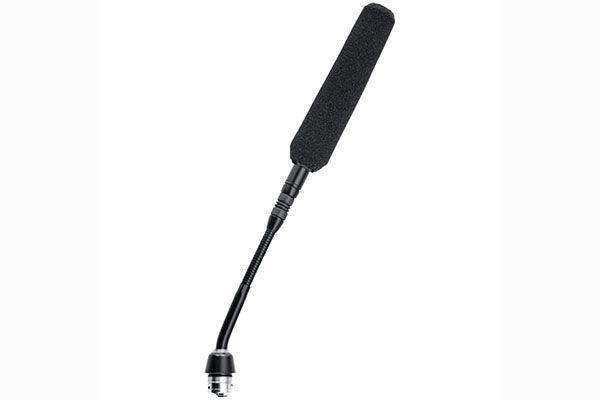

Shure MX405R/MS – 5" Mini-Shotgun Gooseneck Microphone

Product Overview

The Shure MX405R/MS mini-shotgun gooseneck microphone is a 5-inch condenser supplied with the MX400SMP surface-mount preamp and a top red LED ring. Its focused lobar pattern delivers one-talker-per-mic clarity for boardrooms, lecterns, and houses of worship, with high gain-before-feedback for commercial AV installations. The included surface-mount preamp makes it a complete hardwired solution.

Product Description

The MX405R/MS combines an interchangeable mini-shotgun cartridge with a 12.7 cm (5 in) gooseneck, a top red light ring, and the MX400SMP surface-mount preamp for permanent table or lectern mounting. The narrow lobar pickup isolates a single talker, improving intelligibility in reverberant rooms and high-channel-count conference systems. The preamp integrates with automatic mixers and DSPs for gated, logic-controlled operation, and the LED ring signals talk and mute status. CommShield RF filtering protects against mobile and wireless interference, while a switchable 150 Hz low-cut filter reduces HVAC rumble. A snap-fit windscreen adds 30 dB of pop protection for close lectern work.

Key Features

• Mini-Shotgun Lobar Pattern — The narrow pickup isolates one talker and maximizes gain-before-feedback in reverberant rooms.
• Included MX400SMP Preamp — The surface-mount preamp ships with the microphone for a complete hardwired installation.
• Top Red LED Ring — The light ring provides a clear, visible talk-and-mute status indication.
• CommShield RF Protection — Integrated RF filtering guards audio from cellphone and wireless interference.
• Switchable Low-Cut Filter — A 150 Hz filter attenuates room rumble and HVAC noise for cleaner speech.
• Logic-Ready Integration — The preamp connects to automatic mixers and DSPs for gated mixing and LED logic control.
• Interchangeable Cartridge — The polar pattern can be changed without replacing the gooseneck, simplifying maintenance.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Auditorium
• Government space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Does the MX405R/MS include a preamp?
Yes. It ships with the MX400SMP surface-mount preamp, so it is ready for a hardwired table or lectern installation out of the box.

What mixers and DSPs is it compatible with?
The preamp provides an active-balanced output and logic LED control compatible with Shure automatic mixers and most third-party DSP and mixer platforms. LED logic requires a device with internal pull-up resistor logic.

How does the LED ring behave?
On the R model, the top red light ring indicates microphone status and can be driven by an automatic mixer's gate output for talk-and-mute feedback.

When should I choose mini-shotgun over cardioid or supercardioid?
Choose mini-shotgun when you need one microphone per talker with the tightest rejection of surrounding noise, such as lecterns or reverberant auditoriums.

What warranty and support are available?
The microphone is covered by Shure's standard limited warranty. Contact Creation Networks for current warranty terms and integration support.

Prefer a version without the preamp? See the Shure MX405LP/MS (no preamp), or specify your own cartridge with the Shure MX405R/N no-capsule version with preamp.
