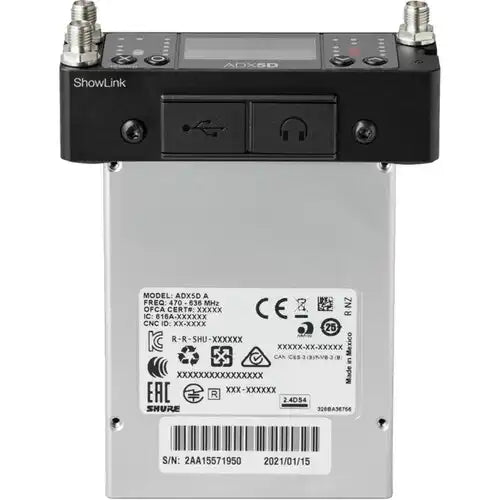

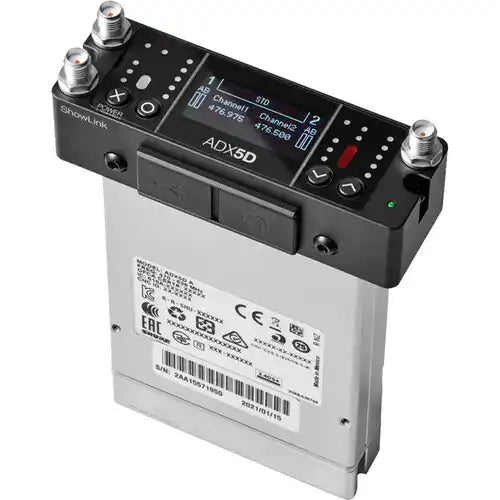

Shure ADX5DUS-A – Dual-Channel Slot-Mount Wireless Receiver

Product Overview

The Shure ADX5DUS-A dual-channel wireless receiver is Shure's Axient Digital slot-mount wireless receiver, built for AV integrators and production teams who need broadcast-grade RF performance in a compact, portable form. Operating in the 470-636 MHz band, it supports dual-channel wireless microphone receiver installation for camera-slot, multi-coupler, or standalone use in film, sports, and commercial AV wireless microphone system deployment. Wide tuning bandwidth and true digital diversity reception make it a dependable choice for broadcast studios, auditoriums, and large commercial spaces running multiple simultaneous wireless channels. It is fully compatible with Shure's ADX2 and AD2 handheld and bodypack transmitter line, including the Nexadyne-equipped ADX2/N8 series.

Product Description

The ADX5DUS-A brings Axient Digital's RF architecture into a portable, slot-in receiver format, giving system designers the same spectral efficiency the touring industry has standardized on, now scaled down for camera-mount and portable rack use. Each of the two channels offers true digital diversity reception, reducing the risk of dropouts as talent or presenters move through a room or across a stage. High-Density (HD) mode packs more usable wireless channels into a congested RF environment, a practical necessity for broadcast studios and auditoriums running many simultaneous handheld and bodypack transmitters alongside IEM systems and other RF devices.

ShowLink Direct Mode gives operators remote control of compatible Axient Digital transmitters — gain, mute, and RF power — without external control hardware, streamlining setup for a commercial AV wireless microphone system deployment with a small crew. Low latency keeps audio tightly synced to picture for broadcast and on-camera work. The interface includes a high-resolution OLED display, removable SMA antennas for flexible placement, a 3.5 mm auxiliary audio output for monitoring or line-level input, USB-C for firmware updates, and channel-quality metering for fast RF scanning during setup. The receiver mounts into camera slots, multi-couplers, or standalone backplates with a battery sled or external power distribution, and its aluminum housing is built for repeated field use. This receiver pairs directly with any of Shure's ADX2 handheld transmitters, including the Nexadyne 8/C and Nexadyne 8/S capsule variants, provided frequency bands are matched.

Key Features

• Dual-Channel Slot-Mount Design — Two independent receiver channels in a compact, portable form factor.
• Wide Tuning Range (470-636 MHz) — Flexible frequency planning to avoid interference in congested RF environments.
• True Digital Diversity Reception — Strong dropout resistance and extended usable range per channel.
• High-Density (HD) Mode — Increases the number of wireless channels that can operate in a crowded RF spectrum.
• ShowLink Direct Mode — Remote control of compatible transmitters without additional external control hardware.
• Low Latency — Keeps audio tightly synced with picture for broadcast and on-camera production.

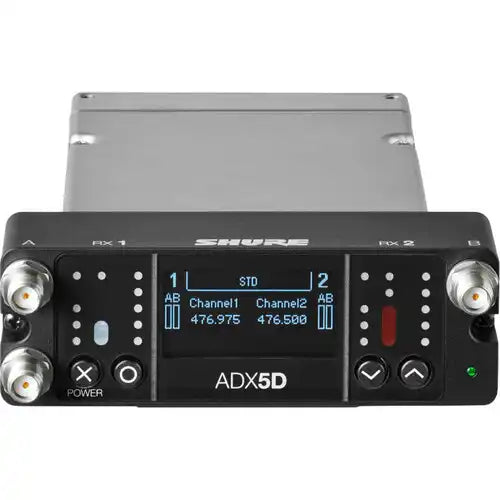

• High-Resolution OLED Display — Clear visibility into RF link health, channel status, and settings.

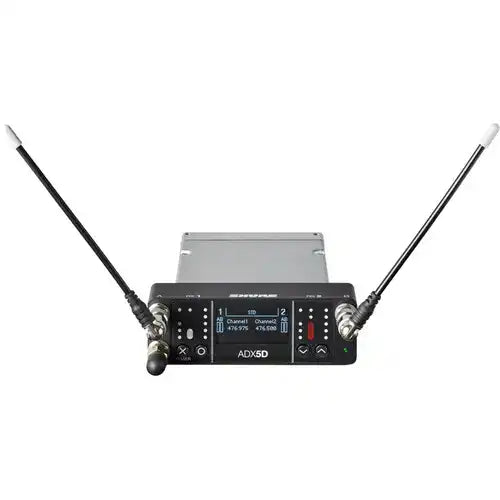

• Removable SMA Antennas — Flexible antenna placement for optimized reception.
• Multiple Mounting Options — Compatible with camera slots, multi-couplers, and backplate accessories.

Typical Applications

• Broadcast studio
• Auditorium
• Commercial meeting space
• All-hands room
• Training room
• Government space

Technical Specifications

Frequently Asked Questions

Which transmitters is the ADX5DUS-A compatible with?
It is compatible with Shure's Axient Digital and AD-series handheld and bodypack transmitters, including the ADX2/N8CB, ADX2/N8CN, ADX2/N8SB, and ADX2/N8SN, provided the transmitter and receiver share a matching frequency band.

How is this different from a rack-mount Axient Digital receiver?
The ADX5DUS-A is a portable, slot-in design intended for camera mounts, multi-couplers, and field bags, rather than fixed rack installation — it trades rack-mount channel density for portability and mobile production flexibility.

Does installation require an RF coordination plan?
For larger commercial AV wireless microphone system deployments running multiple channels, frequency coordination software is recommended, particularly when combined with High-Density mode and ShowLink Direct Mode.

What mounting accessories are available?
The receiver supports camera cold-shoe mounts, DB15, DB25, and TA3 backplates, and battery sleds for standalone field use, allowing it to integrate into a range of production and installed AV setups.

What is the warranty on this receiver?
The ADX5DUS-A carries Shure's standard manufacturer warranty for professional wireless products. Contact Creation Networks for warranty registration and service support specific to your order.

Can this receiver be used in a fixed installed AV system rather than mobile production?
Yes. While designed for portability, the ADX5DUS-A's slot-mount and backplate options allow it to be integrated into equipment racks or AV closets for auditoriums, training rooms, and other fixed commercial AV deployments.

Is technical support available for AV integrators?
Creation Networks provides pre-sale system design support and can help confirm frequency band compatibility between this receiver and your chosen transmitters before you order.
