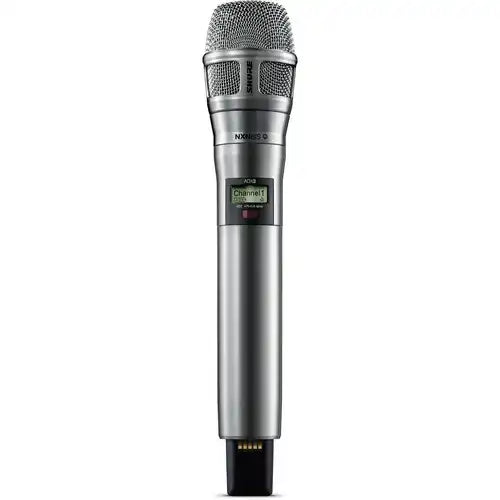

Shure ADX2/N8SN – Nexadyne Supercardioid Handheld Transmitter, Nickel

Product Overview

The Shure ADX2/N8SN Axient Digital handheld transmitter pairs the Nexadyne 8/S supercardioid capsule, in a nickel finish, with Shure's Axient Digital wireless platform for commercial AV wireless microphone deployment where tight off-axis rejection is a priority. Revonic dual-engine transducer technology gives this Nexadyne 8/S supercardioid wireless microphone the clarity and feedback control needed on louder stages and in rooms with close monitor placement. The nickel finish is functionally identical to the black variant and is often selected to match existing broadcast studio wireless handheld microphone hardware or house preference. It integrates directly into an existing Axient Digital wireless handheld microphone system alongside compatible receivers.

Product Description

The ADX2/N8SN runs on the same Axient Digital wireless microphone system architecture used across Shure's professional handheld line, letting AV integrators standardize hardware and workflow across a facility. The Nexadyne 8/S supercardioid capsule narrows the pickup pattern relative to a cardioid design, rejecting more off-axis sound from monitors, adjacent mics, and room reflections — a real advantage in venues running higher stage volume or with in-ceiling speakers positioned close to the presenter or performer.

Wide tuning bandwidth gives system designers flexibility to coordinate this transmitter's frequency against in-ear monitors, other wireless mics in the system, and RF from nearby broadcast or building infrastructure. ShowLink remote control lets a technician adjust gain, mute, RF power, and frequency from a control position, and automatic interference avoidance actively steers around RF conflicts mid-event. Standard and High-Density transmission modes allow the same hardware to serve either a single-mic install prioritizing maximum coverage or a dense multi-channel commercial AV wireless microphone deployment prioritizing channel count. The SB920A rechargeable lithium-ion battery provides up to 9 hours of runtime in single-carrier mode, with external charging contacts for fast dock-based recharging between productions. The nickel-finish aluminum housing is moisture-resistant, with lockable controls and a backlit LCD that keeps channel, battery, and RF status visible at a glance.

Key Features

• Nexadyne 8/S Supercardioid Capsule, Nickel Finish — Revonic dual-engine transducer design with tighter off-axis rejection than cardioid capsules.
• Axient Digital Wireless Platform — Wide tuning bandwidth and AES-256 encrypted transmission for RF-congested commercial AV deployments.
• ShowLink Remote Control — Remote adjustment of gain, mute, RF power, and frequency, with automatic interference avoidance.
• Standard and High-Density Transmission Modes — Balance maximum coverage against maximum channel count based on venue RF density.
• SB920A Rechargeable Battery — Up to 9 hours of single-carrier runtime with external dock-charging contacts.
• Selectable RF Output Power (2/10/40 mW) — Match output to venue size and regulatory limits.
• Moisture-Resistant Aluminum Housing — Nickel finish, lockable controls, backlit LCD for daily commercial use.

Typical Applications

• House of worship
• Broadcast studio
• Auditorium
• Commercial meeting space
• All-hands room
• Training room

Technical Specifications

Frequently Asked Questions

Is the ADX2/N8SN compatible with existing Axient Digital receivers?
Yes. The ADX2/N8SN works with Shure Axient Digital receivers, including the ADX5DUS-A dual-channel slot-mount receiver. Confirm matching frequency bands before ordering.

What is the difference between the N8SN and N8SB versions?
Both use the identical Nexadyne 8/S supercardioid capsule and Revonic transducer technology. The N8SN ships in a nickel finish; the N8SB ships in a black finish. RF and audio performance are the same across both.

How does this compare to the cardioid capsule option?
The supercardioid Nexadyne 8/S used here has a tighter pickup angle and stronger off-axis rejection than the cardioid Nexadyne 8/C on the ADX2/N8CN, making it preferable for louder stages and tighter monitor placement.

Does this transmitter require an RF coordination plan?
Single-channel installs need minimal coordination. Multi-channel commercial AV systems benefit from frequency coordination software, especially when paired with a ShowLink access point for centralized control.

What charging accessories are compatible with the SB920A battery?
The SB920A works with Shure's networked and rack-mount charging systems built for Axient Digital and ADX2 transmitters, supporting multi-unit charging in racks or touring cases.

What warranty applies to this transmitter?
The ADX2/N8SN carries Shure's standard manufacturer warranty for professional wireless products. Contact Creation Networks for warranty registration and service support.

Can this transmitter run in a dense, multi-channel commercial AV system?
Yes. High-Density transmission mode increases usable channel count for systems running many simultaneous handheld and bodypack transmitters, common in broadcast studios and auditoriums.

Does Creation Networks provide system design support for integrators?
Yes. We can confirm frequency band compatibility and receiver pairing before you order.
