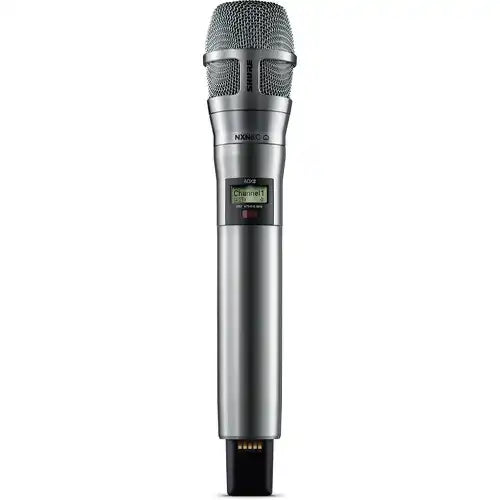

Shure ADX2/N8CN – Nexadyne Cardioid Handheld Transmitter, Nickel

Product Overview

The Shure ADX2/N8CN Axient Digital handheld transmitter combines the Nexadyne 8/C cardioid capsule in a nickel finish with Shure's Axient Digital wireless platform, built for commercial AV wireless microphone integration where a broadcast studio wireless vocal microphone needs to match existing nickel-finish hardware. The Revonic dual-engine transducer inside the capsule delivers clean vocal detail and strong off-axis rejection, well suited to broadcast, house of worship, and large-room presentation work. This nickel-finish variant is functionally identical to its black counterpart, giving integrators a cosmetic option without any change in RF or audio performance. It slots directly into an existing Axient Digital wireless handheld microphone system without additional configuration.

Product Description

The ADX2/N8CN is built on the same Axient Digital wireless microphone system architecture used across Shure's professional handheld line, giving AV integrators a consistent platform to standardize on across a facility. The Nexadyne 8/C cardioid capsule uses two precisely calibrated transducers working in tandem, a design that reduces the corrective EQ typically needed on single-diaphragm dynamic capsules while maintaining tight cardioid rejection at the sides and rear of the mic. That rejection matters in rooms where floor monitors, in-ceiling speakers, or nearby broadcast microphones create feedback risk.

Wide tuning bandwidth gives system designers flexibility when coordinating frequencies against in-ear monitors, other wireless mics, and RF noise from nearby broadcast trucks or building infrastructure. ShowLink remote control allows gain, mute, RF power, and frequency to be adjusted from a control position without physically handling the transmitter, and automatic interference avoidance actively steers around RF conflicts during a live broadcast or service. Standard and High-Density transmission modes let the same hardware flex between maximum-coverage single-mic setups and dense multi-channel broadcast studio wireless vocal microphone deployments. The SB920A rechargeable lithium-ion battery provides up to 9 hours of runtime per charge, and external charging contacts support fast dock-based turnaround between productions. The nickel-finish aluminum housing is moisture-resistant, with lockable controls and a backlit LCD that keeps channel, battery, and RF status visible at a glance.

Key Features

• Nexadyne 8/C Cardioid Capsule, Nickel Finish — Revonic dual-engine transducer design for natural vocal tone and strong off-axis rejection.
• Axient Digital Wireless Platform — Wide tuning bandwidth and AES-256 encrypted transmission for RF-congested commercial AV integration.
• ShowLink Remote Control — Remote adjustment of gain, mute, RF power, and frequency, with automatic interference avoidance.
• Standard and High-Density Transmission Modes — Balance maximum coverage against maximum channel count as venue RF density demands.
• SB920A Rechargeable Battery — Up to 9 hours of single-carrier runtime with external dock-charging contacts.
• Selectable RF Output Power (2/10/40 mW) — Adapt output to venue size and regulatory limits.
• Moisture-Resistant Aluminum Housing — Nickel finish, lockable controls, backlit LCD for daily commercial use.

Typical Applications

• House of worship
• Broadcast studio
• Auditorium
• Commercial meeting space
• All-hands room
• Training room

Technical Specifications

Frequently Asked Questions

Is the ADX2/N8CN compatible with existing Axient Digital receivers?
Yes. The ADX2/N8CN works with Shure Axient Digital receivers, including the ADX5DUS-A dual-channel slot-mount receiver. Confirm matching frequency bands before ordering.

What is the difference between the N8CN and N8CB versions?
Both use the identical Nexadyne 8/C cardioid capsule and Revonic transducer technology. The N8CN ships in a nickel finish; the N8CB ships in a black finish. There is no difference in RF or audio performance between the two.

How does this compare to the supercardioid capsule option?
The cardioid Nexadyne 8/C used here has a broader pickup angle than the supercardioid Nexadyne 8/S found on the ADX2/N8SN, which offers tighter off-axis rejection for louder, more feedback-prone stages.

Does this transmitter require RF coordination software for installation?
Single-channel installs typically need minimal coordination. Multi-channel commercial AV systems benefit from frequency coordination software, especially when paired with a ShowLink access point for centralized control.

What charging equipment works with the SB920A battery?
The SB920A is compatible with Shure's networked and rack-mount charging systems built for Axient Digital and ADX2 transmitters, supporting multi-unit charging in racks or touring cases.

What warranty coverage applies?
The ADX2/N8CN carries Shure's standard manufacturer warranty for professional wireless products. Contact Creation Networks for warranty registration and service support.

Can multiple ADX2/N8CN units run simultaneously in one venue?
Yes. High-Density transmission mode increases usable channel count for systems running many simultaneous handheld and bodypack transmitters, common in broadcast studios and auditoriums.

Does Creation Networks offer system design support for AV integrators?
Yes. We can help confirm frequency band compatibility and receiver pairing before you place an order.
