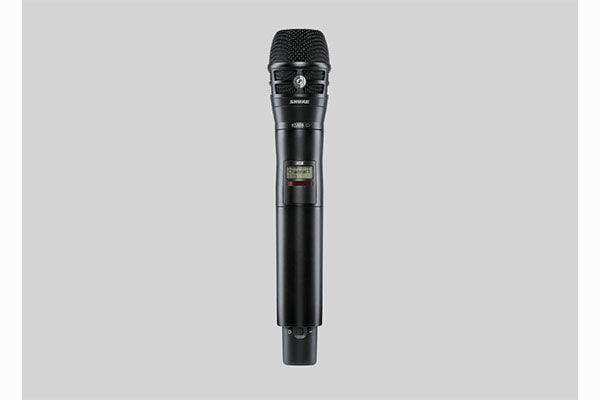

Shure AD2/K9B Handheld Wireless Microphone Transmitter (Black)

The AD2/KSM9B comes equipped with a dual-diaphragm KSM9 condenser capsule that captures sonic nuances with superior detail delivering precise vocal reproduction for high-end live performances. The KSM9 capsule offers two switchable polar patterns to provide FOH engineers with more choices in dealing with varying environments or the microphone techniques of different performers. The cardioid pattern offers solid gain before feedback, with minimal off-axis coloration, for a warm, full sound. The supercardioid pattern offers increased sound isolation and gain before feedback; an ideal choice for applications where there are high levels of ambient noise, or where multiple instruments or vocalists are close together.

• For Axient Digital Systems
• KSM9 Condenser Cardioid/Supercardioid
• Automatic Gain Adjustment
• 2/10/35mW RF Output Power
• Mute Mode, Backlit LCD
• Secure AES-256 Encryption
• Networked Intelligent Charging
• Interchangeable Capsule Design
• 9 Hours with SB900A Rechargeable Battery

Data Sheet

Wireless Technology	Digital UHF
RF Frequency Band	417 to 616 MHz
RF Bandwidth	146 MHz
Frequency Step Size	25 kHz
Max Operating Range	328.1' / 100 m (Line of Sight)
Latency	2 to 2.9 ms (Selectable)
Encryption	AES 256
Modulation	Proprietary

Transmitter

Transmitter Type	Handheld
RF Output Power	2 / 10 / 35 mW
Audio I/O	None
Muting	Mute Switch
Audio Input Level	145 dB
Gain Range	-12 to +21 dB (3 dB Steps)
Sync Method	IR
Antenna	1 x Internal Single-Band Helical (Handheld)
Power Requirements	Battery
Battery Type	2 x AA (Included) 1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life	Med.: 8 Hours (Alkaline) Med.: 9 Hours (Lithium Shure SB900A)
Display & Indicators	1 x LCD (Battery Status, Channel, Group, Signal Strength)
Housing	Aluminum
Operating Temperature	0 to 122°F / -17 to 50°C
Storage Temperature	-20 to 165°F / -28 to 73°C
Dimensions	2 x 10.1" / 51 x 256 mm
Weight	12 oz / 340 g (without Batteries)

Microphone

Microphone Type	Handheld Capsule
Sound Field	Mono
Capsule	Electret Condenser
Polar Pattern	Cardioid, Supercardioid
Frequency Range	50 Hz to 20 kHz
Maximum SPL	152 dB SPL
Sensitivity	-51 dBV/Pa at 1 kHz
