Shure AD2/K9HSN – Axient Digital Handheld Wireless Transmitter with KSM9HS, Nickel

Product Overview

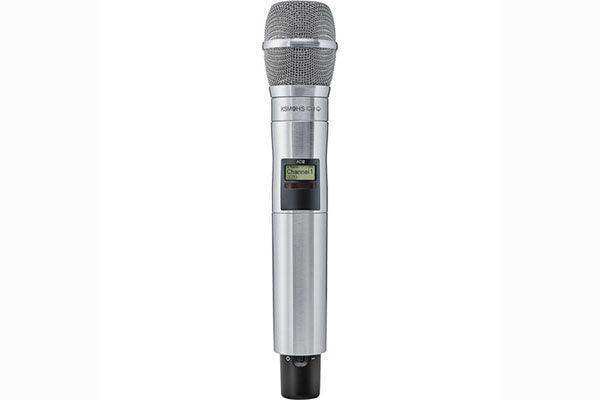

The Shure AD2/K9HSN is an Axient Digital handheld wireless microphone transmitter featuring the KSM9HS condenser capsule in a nickel metal body. Built for professional live sound, broadcast, and commercial AV deployments requiring the highest RF performance and audio quality, the AD2 Axient Digital wireless transmitter delivers wide tuning up to 184 MHz, High Density mode, and AES 256 encryption. Paired with an Axient Digital receiver, it provides the transparency and RF resilience required for critical applications in competitive RF environments.

Product Description

The KSM9HS capsule on the AD2/K9HSN is optimized for demanding vocal applications where the KSM9HS's focused polar pattern delivers enhanced feedback rejection in high-SPL stage environments—making it well-suited for live performance, large auditoriums, and broadcast applications. The all-metal nickel body is constructed for durability in touring and fixed-installation commercial AV use. Two transmission modes—Standard for maximum coverage and High Density for maximum channel count—give system designers flexibility for large venues or multi-channel corporate events. Rechargeable Shure lithium-ion batteries with dockable charging eliminate battery management complexity in multi-channel deployments. For the compatible two-channel Axient Digital receiver, see the Shure AD4DUS Two-Channel Digital Wireless Receiver. Also available in black finish with KSM9 capsule: Shure AD2/K9B.

Key Features

• KSM9HS Condenser Capsule — Delivers focused polar response optimized for high-gain-before-feedback in live performance and auditorium environments, capturing vocal nuance with high SPL handling.
• Wide Tuning (up to 184 MHz) — Broad tuning range supports frequency coordination across congested RF spectrums for maximum deployment flexibility.
• High Density Mode — Enables maximum simultaneous channel count in a given frequency band for large-scale wireless installations in venues, conferences, and broadcast facilities.
• AES 256 Encryption — Secures wireless audio for government, corporate, and sensitive commercial AV applications.
• All-Metal Construction, Nickel Finish — Durable nickel-finish chassis provides a premium look while withstanding daily use in high-demand commercial environments.
• Rechargeable Power with Dockable Charging — Compatible with Shure SB900B/SB900C lithium-ion batteries and SBRC/SBC220 docking chargers for efficient battery management in multi-channel deployments.
• Standard and High Density Transmission Modes — Standard mode optimizes coverage and performance; High Density mode maximizes simultaneous channel count for large-scale installations.
• Axient Digital Ecosystem Integration — Compatible with Axient Digital receivers and Wireless Workbench 6 for centralized system management.

Typical Applications

• House of worship
• Broadcast studio
• Auditorium
• Multi-purpose room
• Commercial meeting space
• All-hands room

Technical Specifications

Frequently Asked Questions

What is the difference between the KSM9 and KSM9HS capsules?
The KSM9 (used in the AD2/K9B) is a dual-diaphragm condenser with switchable cardioid and supercardioid polar patterns. The KSM9HS (used in this AD2/K9HSN) offers a focused polar response optimized for higher feedback rejection, suited for louder stage environments and larger auditoriums.

What receivers are compatible with the AD2/K9HSN?
The AD2/K9HSN is compatible with all Axient Digital receivers—including the AD4DUS dual-channel and AD4Q quad-channel receivers—in the matching frequency band (G57 for this variant).

Can the capsule be swapped on the AD2/K9HSN?
Yes. The AD2 accepts RPW series wireless replacement cartridges, allowing the capsule to be changed without replacing the transmitter body. Note that capsule availability varies by finish (nickel vs. black) for some cartridge models.

Does the AD2/K9HSN work with Wireless Workbench 6?
Yes. When paired with a networked Axient Digital receiver, the AD2/K9HSN can be monitored via WWB6 for RF level, battery status, and gain control.

What charging solutions are compatible?
The AD2/K9HSN is compatible with Shure's SB900B and SB900C lithium-ion batteries, and the SBC200, SBC220, SBC800, and SBRC charging solutions for streamlined battery management in multi-channel deployments.
