RGB Spectrum Zio2 S5024 – 2-Channel 4K AV-over-IP Encoder

Product Overview

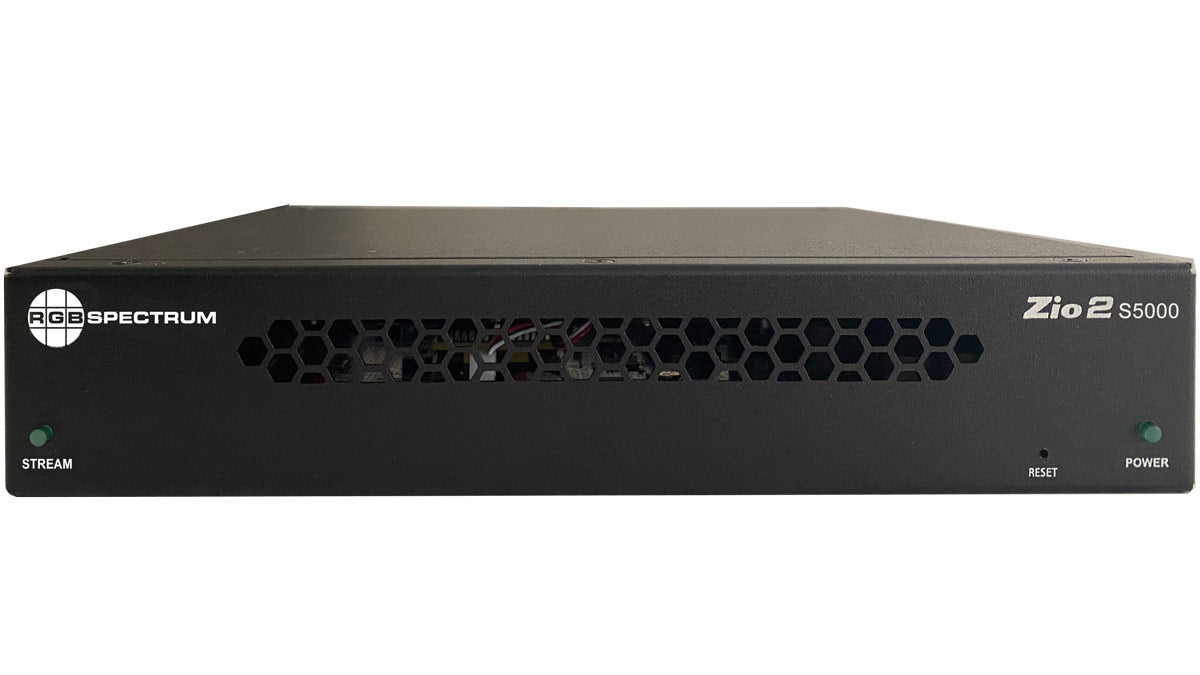

The RGB Spectrum Zio2 S5024 is a two-channel AV-over-IP encoder endpoint that captures two HDMI 2.0 sources at up to 4096 x 2160 @ 60 Hz and publishes multiple IP streams from one enclosure. It is the 4K member of the Zio S5000 series encoder line, specified where control rooms, command centers and broadcast facilities need full-resolution capture from a source-dense position. A local HDMI 2.0 monitor output confirms what the unit is capturing. PoE++ compliance and a 12 VDC, 65 W rating give two options for powering the endpoint in a rack.

Product Description

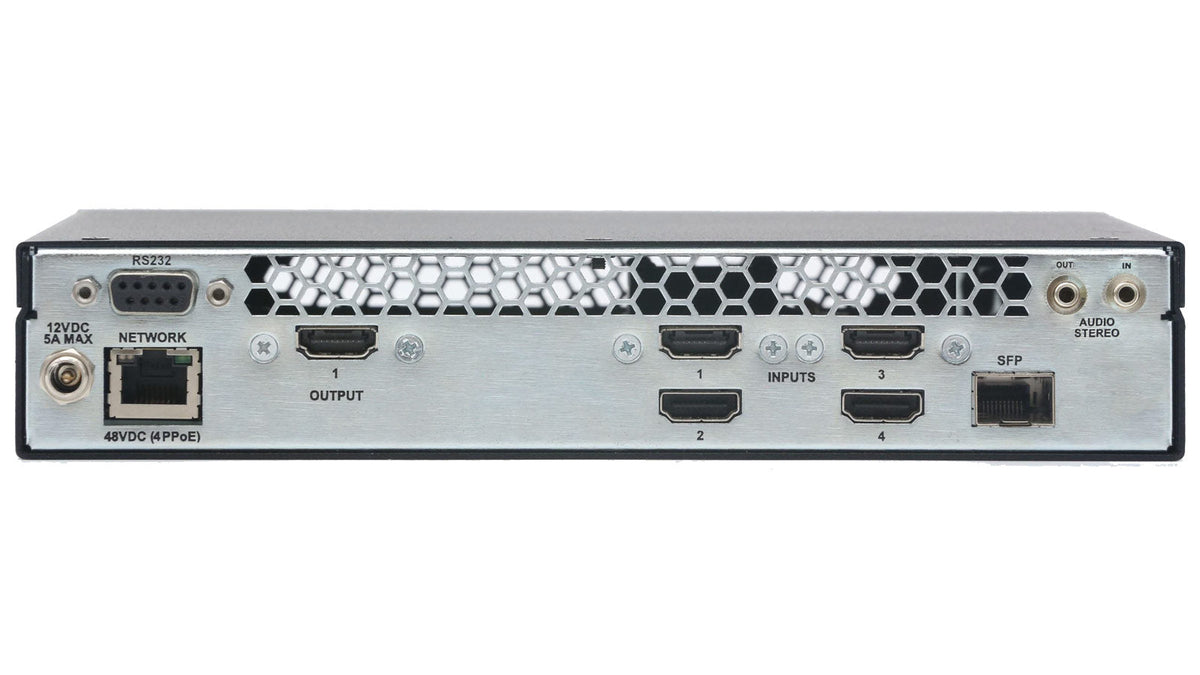

The S5024 encodes two 4K channels to H.264 or H.265 and publishes them over RTSP with multicast transport, which lets one enclosure feed several decode positions across a commercial network. Consolidating two 4K encode channels into a 1.62 x 8.64 x 7.67 inch chassis reduces both device count and switch port count against two single-channel encoders. Network connection is one RJ-45 gigabit port, with an SFP position published for future use.

Audio arrives embedded in HDMI or on the analog input and is carried embedded in the outgoing IP video stream, so program audio follows the picture without a parallel audio path. The published RS232 connector is for internal use only, and device control is intended to run over the network. Operators and integrators work through a browser-based HTML5 application on Windows, macOS, iOS and Android, with UMP available for programmatic control from a wider platform. On the decode side, the Zio D2114 decoder endpoint is the matching 4K unit, and the Zio D2112 decoder endpoint remains suitable for 2K decode positions on the same network. Where channel count matters more than resolution, the Zio2 S5042 encoder provides four channels at up to 1920 x 1200, and the S5022 model is the two-channel 2K variant. For rack installation, specify the 920 12293 rack shelf kit supplied for Zio 2 and QV/SV IPX units.

Key Features

• Two 4K Encode Channels — Published input is 2x HDMI 2.0 channels at up to 4096 x 2160 @ 60 Hz, so two high-resolution sources are captured from one enclosure.
• Multiple Stream Output — The S5000 series is published as supporting multiple streams, allowing one unit to serve several independent decode destinations.
• Local HDMI Monitor Output — A 1x HDMI 2.0 output gives on-site confirmation of the captured sources during commissioning and troubleshooting.
• H.264 and H.265 Compression — Two codec options let the design trade stream bandwidth against image quality on the deployed network.
• PoE++ or 12 VDC Power — The unit is published as PoE++ compliant and rated 12 VDC, 65 W, giving flexibility in how the rack position is powered.
• Embedded Stream Audio — Audio taken from HDMI or the analog input is carried embedded in the IP video stream, keeping audio and video aligned.
• UMP Integration — Alongside browser-based HTML5 control, UMP support allows the encoder to be driven programmatically from a control platform.
• Gigabit With SFP Position — One RJ-45 GigE port carries streams today, and an SFP position is published for future use as the network changes.

Typical Applications

• Control Room — Two 4K operator or sensor sources are published from a single rack position without loss of detail.
• Command Center — Multiple 4K streams from one encoder reach operator consoles and wall displays at the same time.
• Operations Center — A consolidated encode point simplifies the head-end where high-resolution sources run continuously.
• Broadcast Studio — 4K program and preview feeds are distributed over the facility network instead of additional baseband runs.
• Government Space — UMP control allows the encoder to be operated from an existing command and control platform.
• Auditorium — Stage and presentation sources are captured in 4K and decoded at front-of-house, overflow and lobby displays.

Technical Specifications

The values below are published by RGB Spectrum for the Zio S5000 Series Encoder product line; the connector and resolution rows are printed for the S5024 model. RGB Spectrum publishes no weight figure for the S5000 series.

Specifications published by RGB Spectrum.

Frequently Asked Questions

How does the S5024 differ from the S5022?
Resolution. RGB Spectrum publishes the S5024 input and output at up to 4096 x 2160 @ 60 Hz, while the Zio2 S5022 is published at up to 1920 x 1200 @ 60 Hz. Both provide 2x HDMI 2.0 input channels.

Which decoder should be specified with it?
The Zio D2114 decoder endpoint matches 4K decode positions. The Zio D2112 decoder endpoint covers positions that only require 2K input.

How many channels can I get in one enclosure?
The S5024 provides two 4K channels. If channel density matters more than resolution, the Zio2 S5042 encoder provides four channels at up to 1920 x 1200 @ 60 Hz.

What are the power options?
Published figures are 12 VDC, 65 W and PoE++ compliance, so the endpoint can be fed from a PoE++ switch port or a local DC supply. Confirm the shipped accessory with Creation Networks.

How is it mounted in a rack?
Use the 920 12293 rack shelf kit for Zio 2 and QV/SV IPX units. Zio 2100 series endpoints use the Zio RAK 6RU rackmount shelf instead.

What network should I plan for?
Control network is published as Ethernet TCP/IP 10/100/1000/1000BaseT, with streams delivered by RTSP multicast. A managed gigabit switch with IGMP handling is the normal choice for multi-decoder distribution.

What warranty and support apply?
The RGB Spectrum manufacturer warranty applies to this part number. Creation Networks supports specification, configuration review and procurement, and can route warranty and technical support requests to RGB Spectrum.
