RGB Spectrum Zio2 S5022 – 2-Channel 2K AV-over-IP Encoder

Product Overview

The RGB Spectrum Zio2 S5022 is a two-channel AV-over-IP encoder endpoint that captures two HDMI 2.0 sources and publishes multiple IP streams from a single enclosure. It is specified for control rooms, command centers and operations centers where a rack or console position feeds several sources onto the network. RGB Spectrum publishes S5022 input and output resolution as up to 1920 x 1200 @ 60 Hz, with an HDMI 2.0 monitor output on the same unit. PoE++ support and a 12 VDC, 65 W supply give the integrator two power options for equipment room installation.

Product Description

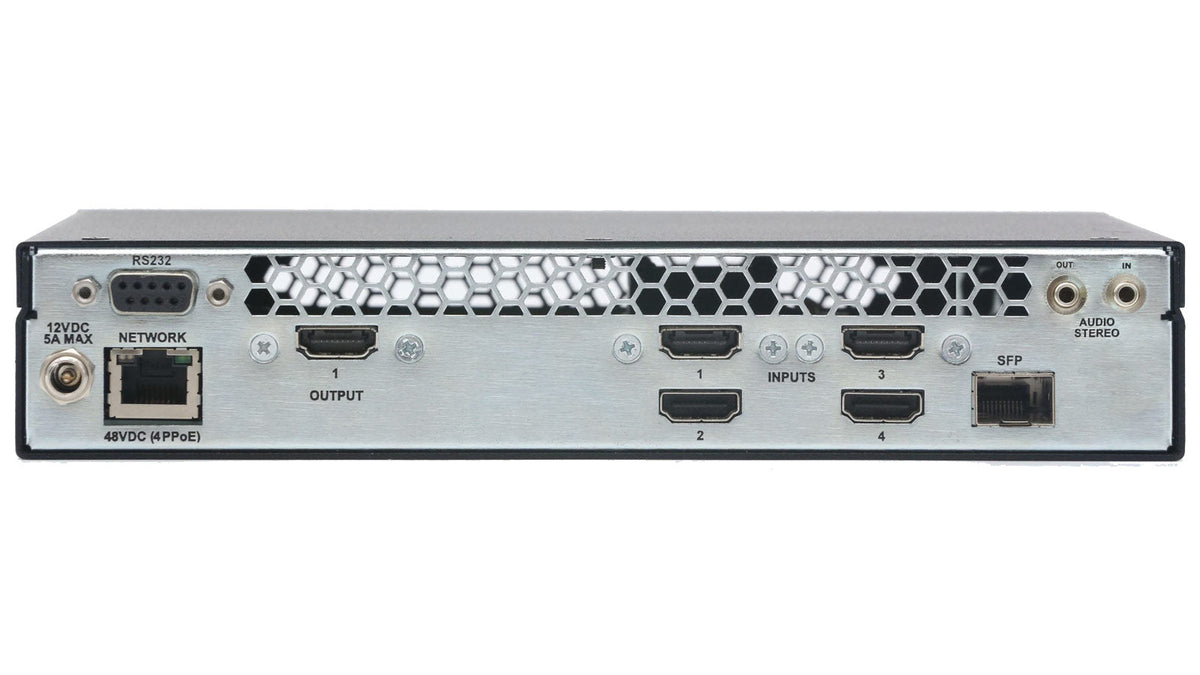

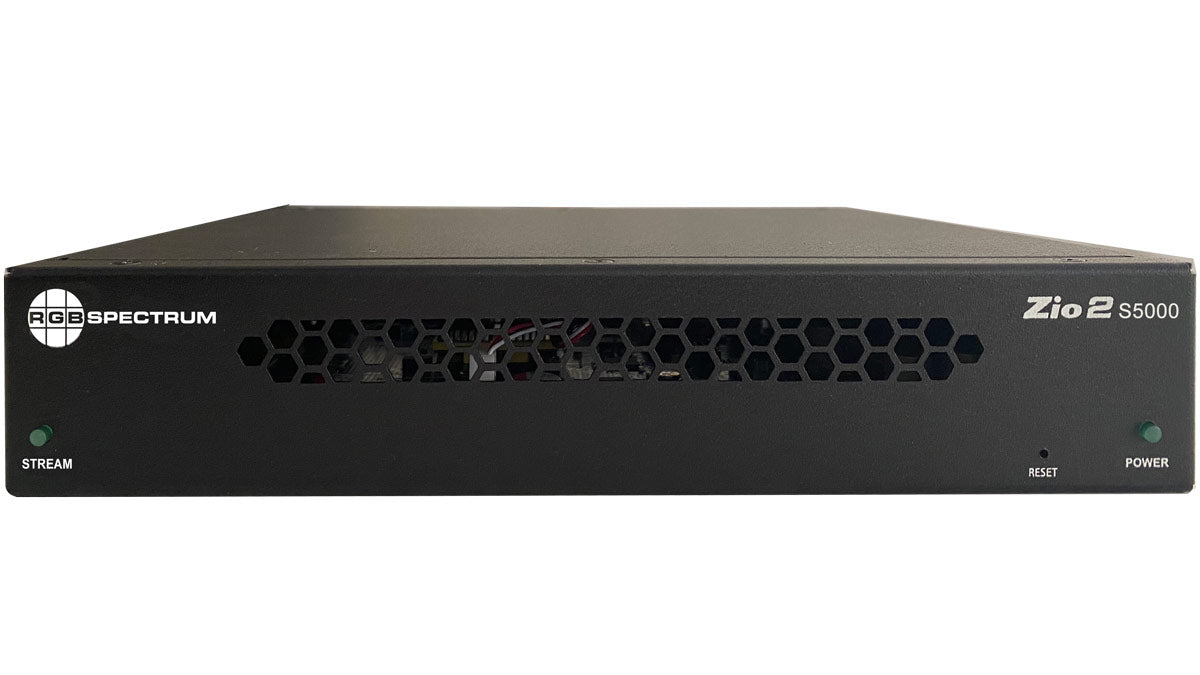

The S5022 consolidates two encode channels into one 1.62 x 8.64 x 7.67 inch chassis, which reduces endpoint count and switch port count compared with two single-channel encoders. Streams are published as H.264 or H.265 over RTSP with multicast transport, and RGB Spectrum publishes the streaming capability as multiple streams rather than a single output. Network connection is a 1x RJ-45 gigabit port with an SFP position published for future use, so the rear panel accommodates a copper deployment today.

An HDMI 2.0 output provides local confirmation of what the unit is capturing, and an RS232 connector is published for internal use only. Audio can arrive embedded in HDMI or on the analog input, and is carried embedded in the outgoing IP video stream. Control is available through a browser-based HTML5 application across Windows, macOS, iOS and Android, and through UMP for programmatic integration with a wider control system. On the decode side, the Zio D2112 decoder endpoint matches the S5022 output resolution, while the Zio D2114 decoder endpoint suits display positions that need a 4K decode path. Where a location needs four channels rather than two, the Zio2 S5042 encoder extends the same platform, and the S5024 model covers 4K capture on two channels. For rack installation, specify the 920 12293 rack shelf kit, which is supplied for Zio 2 and QV/SV IPX units. That combination makes the S5022 a practical head-end building block for multichannel AV-over-IP capture.

Key Features

• Two HDMI Encode Channels — RGB Spectrum publishes 2x HDMI 2.0 input channels for the S5022, so one enclosure replaces two single-channel encoder endpoints.
• Multiple Simultaneous Streams — The S5000 series is published as supporting multiple streams, letting a single unit serve several independent decode destinations.
• 1920 x 1200 Capture — Published input and output resolution is up to 1920 x 1200 @ 60 Hz, which covers the 16:10 workstation sources common in operational environments.
• Local HDMI Monitor Output — A 1x HDMI 2.0 output allows on-site confirmation of the captured sources during commissioning and fault-finding.
• PoE++ or Local DC Power — The unit is published as PoE++ compliant and rated 12 VDC, 65 W, giving the integrator a choice of power delivery in the rack.
• H.264 and H.265 Compression — Two codec options let the design balance stream bandwidth against image quality on the deployed network.
• UMP and Browser Control — Browser-based HTML5 control plus UMP support allows both manual operation and programmatic integration with a control system.
• Gigabit Plus SFP Position — A 1x RJ-45 GigE port carries the streams today, with an SFP position published for future use as the network evolves.

Typical Applications

• Control Room — Two operator or sensor sources are published from one rack position, keeping endpoint count and cabling down.
• Command Center — Multiple streams from a single encoder feed operator consoles and wall displays at the same time.
• Operations Center — Consolidating encode channels simplifies the head-end where several fixed sources are captured continuously.
• Broadcast Studio — Program and preview feeds can be encoded together and distributed over the facility network.
• Government Space — UMP integration allows the encoder to be driven from an existing command and control platform.
• Training Room — Instructor and document-camera sources are captured from one enclosure and decoded at student positions.

Technical Specifications

The values below are published by RGB Spectrum for the Zio S5000 Series Encoder product line; the connector and resolution rows are printed for the S5022 model. RGB Spectrum publishes no weight figure for the S5000 series.

Specifications published by RGB Spectrum.

Frequently Asked Questions

How many sources can the S5022 encode?
RGB Spectrum publishes 2x HDMI 2.0 input channels for the S5022 and S5024. For four channels, specify the Zio2 S5042 encoder.

What resolution does the S5022 support?
Published input and output resolution for the S5022 is up to 1920 x 1200 @ 60 Hz. For 4K capture on two channels, specify the Zio2 S5024 encoder.

Which decoders receive its streams?
The Zio D2112 decoder endpoint matches the published output resolution. The Zio D2114 decoder endpoint is used where the display position needs a 4K decode path.

How is the unit powered in a rack?
The S5000 series is published as PoE++ compliant and rated 12 VDC, 65 W. Either a PoE++ switch port or the local DC supply can be used; confirm the shipped accessory with Creation Networks.

How is the encoder rack-mounted?
Specify the 920 12293 rack shelf kit, supplied for Zio 2 and QV/SV IPX units. Zio 2100 series endpoints use the separate Zio RAK 6RU rackmount shelf instead.

Can the encoder be driven from a control system?
Yes. Control is published as browser-based HTML5 for Windows, macOS, iOS and Android, plus UMP, which allows programmatic integration alongside manual operation.

Is the RS232 port available for third-party control?
No. RGB Spectrum publishes the 1x RS232 connector as internal use only, so device control should be planned around the network interface and UMP.

What warranty and support apply?
The RGB Spectrum manufacturer warranty applies to this part number. Creation Networks supports specification, configuration review and procurement, and can route warranty and technical support requests to RGB Spectrum.
