QSC Q-SYS RoomSuite Modular System Medium Room Bundle with Shure MXA902 Integrated Ceiling Array

What is the QSC Q-SYS RoomSuite Medium Room Bundle with Shure MXA902 Integrated Ceiling Array?

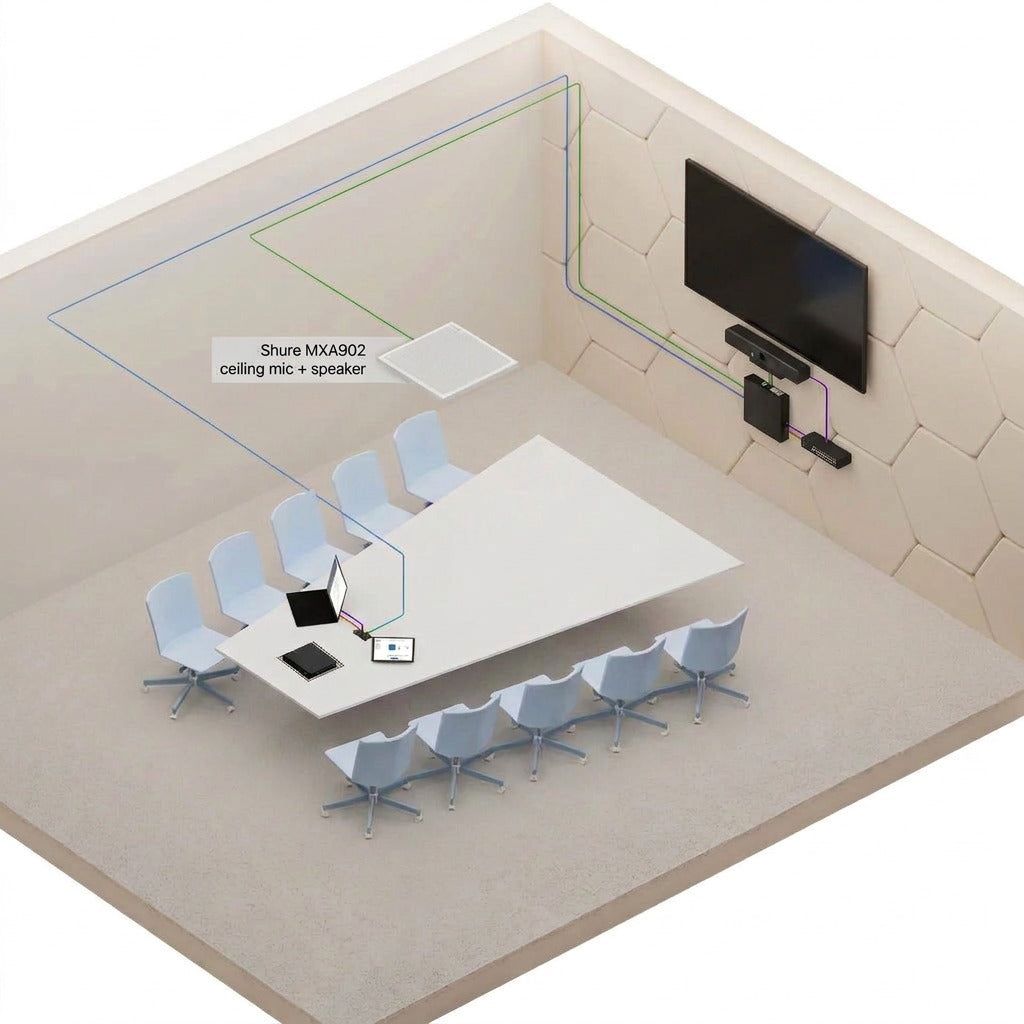

The QSC Q-SYS RoomSuite Medium Room Bundle with Shure MXA902 Integrated Ceiling Array is a Q-SYS conference room kit for medium meeting spaces built around a Shure MXA902 ceiling array, which combines microphone and loudspeaker in one ceiling device. It pairs the RMP-100 processor and QIO-VEN4 expander with the MXA902, an NC-110 ePTZ camera, and a 7-inch touch screen. One integrated ceiling device keeps install time and ceiling work to a minimum.

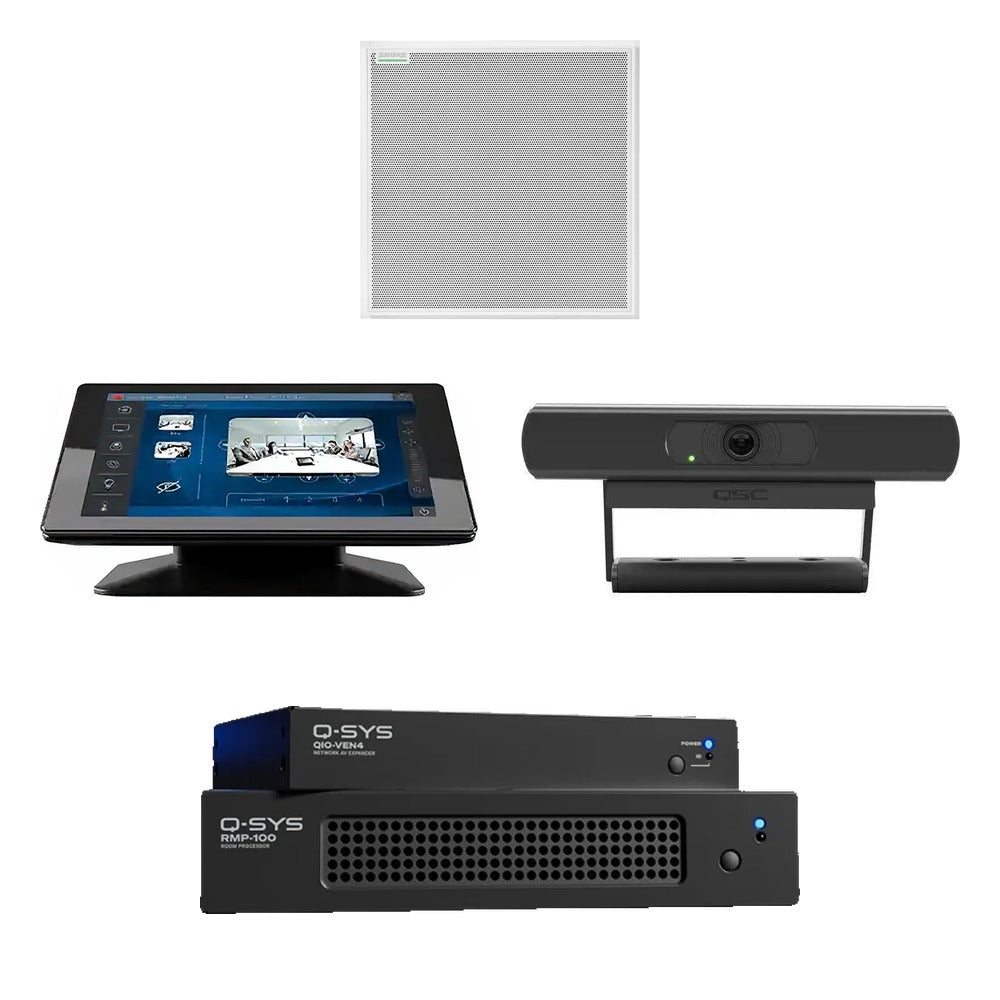

What is included in the bundle?

• (1) Q-SYS RoomSuite Modular System Base Bundle (RS-MOD-BB)

• Shure MXA902W ceiling array microphone and loudspeaker (1)

• QSC NC-110 network ePTZ camera (1)

• QSC TSC-70-G3 7-inch touch screen controller (1)

• PoE+ network switch (1)

• Creation Networks Reflect remote monitoring, 1-year service (1)

How does the Q-SYS RoomSuite Modular System work?

RoomSuite consolidates traditional conference room AV hardware into a single RMP-100 processor that handles audio processing, network connectivity for Q-SYS peripherals, video distribution, and UC platform bridging. Additional devices connect through the QIO-VEN4 expander, typically mounted under the table for BYOM laptop connections and peripheral expansion. Setup requires no Q-SYS Designer programming. Everything is configured in a web browser: devices are discovered automatically, audio is tuned through built-in Room System Optimization, and a user interface is generated based on the detected peripherals. Once a room is configured, its settings can be saved as a preset and deployed to other rooms through Q-SYS Reflect.

What does the RoomSuite Manager web interface do?

RoomSuite Manager runs on the RMP-100 and handles day-to-day room management, monitoring, and basic configuration. IT administrators, facility managers, and support staff use it to:

• View room and device status at a glance.

• Perform basic configuration and troubleshooting.

• Manage occupancy, device assignments, and network settings.

• Access logs and simple diagnostics.

Is Q-SYS Reflect required?

No. RoomSuite runs fully on its own. Device discovery, room management, optimization, and daily operation are all handled in RoomSuite Manager. Q-SYS Reflect is an optional cloud service recommended for organizations that want fleet-wide monitoring, preset deployment, or centralized firmware management. RoomSuite fits alongside the rest of the QSC Q-SYS lineup if you want to expand later.
