Shure MXA902W-S-60CM – Integrated Ceiling Array Microphone and Loudspeaker

Product Overview

The Shure MXA902W-S-60CM is an all-in-one Dante-networked ceiling device that integrates a Microflex Advance array microphone, a 2.5-inch wide-dispersion loudspeaker, and onboard IntelliMix DSP into a single 60 cm square white ceiling tile. Designed for commercial AV integrators deploying conference room audio with minimal infrastructure, the MXA902 eliminates the need for separate ceiling microphones, ceiling speakers, and external DSP processors. A single PoE+ Ethernet cable delivers power, audio over Dante/AES67, and control, dramatically reducing cabling and rack space requirements in conference room, boardroom, and collaborative workspace installations. Single Zone Automatic Coverage technology adapts microphone pickup to cover a 6 × 6 m (20 × 20 ft) area without manual lobe steering configuration.

Product Description

The MXA902W-S-60CM is engineered for modern commercial meeting spaces where ceiling aesthetics, installation speed, and audio performance must all be satisfied simultaneously. Its square 60 cm form factor fits standard commercial ceiling tile grids, and the paintable white finish allows the unit to blend seamlessly into any ceiling environment. The integrated IntelliMix DSP processes audio locally, providing Acoustic Echo Cancellation, Noise Reduction, Automatic Mixing, Automatic Gain Control, and EQ without requiring a dedicated external DSP unit in the signal chain — a significant advantage for standardized room deployments across enterprise campuses, government facilities, and higher education environments. The 2.5-inch wide-dispersion loudspeaker delivers speech-optimized playback at up to 86 dB SPL at 1 m, sufficient for far-end audio and UC platform audio in small to medium conference rooms. Dante/AES67 networking enables integration into enterprise AV-over-IP architectures including Shure IntelliMix P300 and third-party DSP platforms. For ceiling microphone-only deployments, see the Shure MXA901W-R Ceiling Microphone at Creation Networks.

Key Features

• All-in-One Ceiling Device — Combines array microphone, loudspeaker, and IntelliMix DSP in one ceiling-mounted unit, reducing installation complexity and rack infrastructure requirements for commercial AV deployments.
• Single PoE+ Cable Installation — Power, Dante/AES67 audio, and control signals all travel over one Ethernet cable, simplifying AV infrastructure in new construction and retrofit installations.
• Single Zone Automatic Coverage (6 × 6 m) — Onboard beamforming adapts microphone pickup to cover a 20 × 20 ft area automatically, without manual lobe configuration or follow-me steering setup.
• IntelliMix Onboard DSP — Integrated Acoustic Echo Cancellation, Noise Reduction, Automatic Mixing, AGC, and EQ process audio locally, eliminating the need for external DSP in many room configurations.
• Integrated 2.5-Inch Wide-Dispersion Loudspeaker — Provides speech-optimized ceiling audio playback at up to 86 dB SPL at 1 m for UC platform audio and far-end speech without a separate ceiling speaker installation.
• Dante/AES67 Audio Networking — Integrates directly into AV-over-IP infrastructure for multi-room enterprise deployments, compatible with Dante-enabled DSPs, processors, and recording systems.

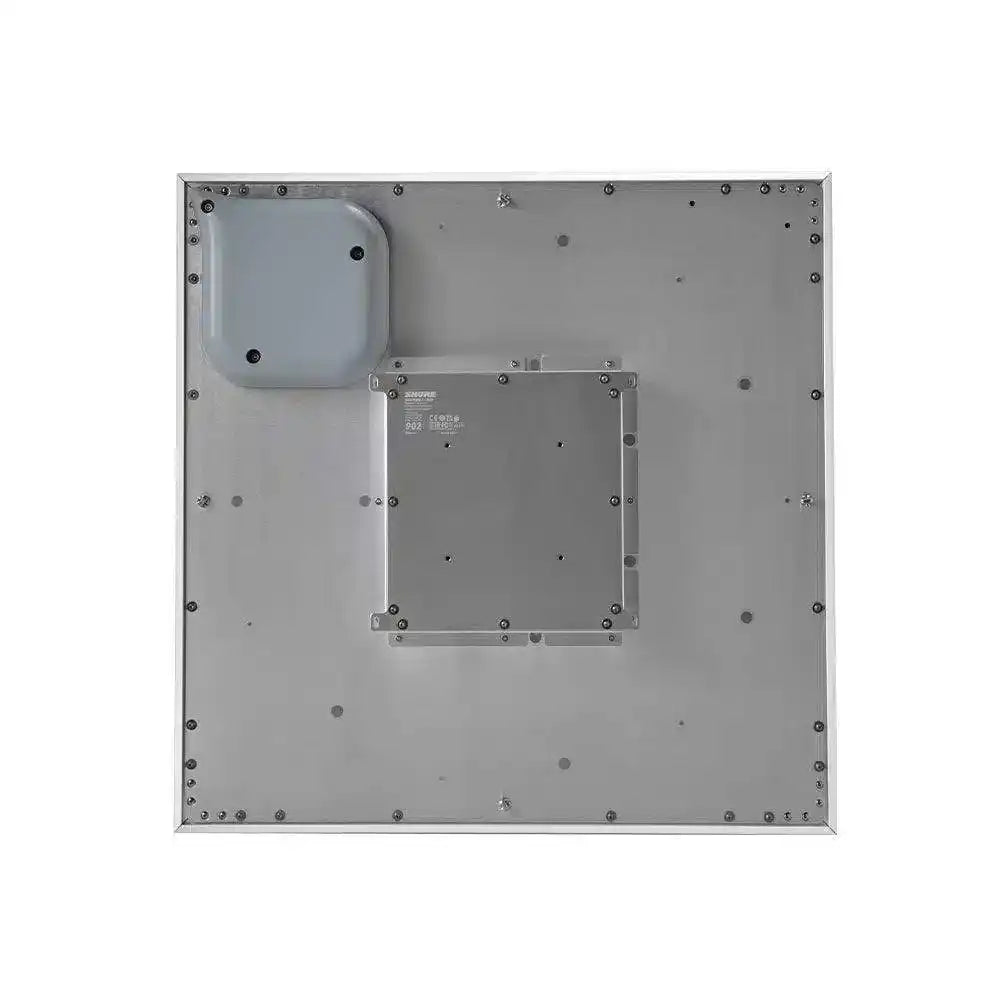

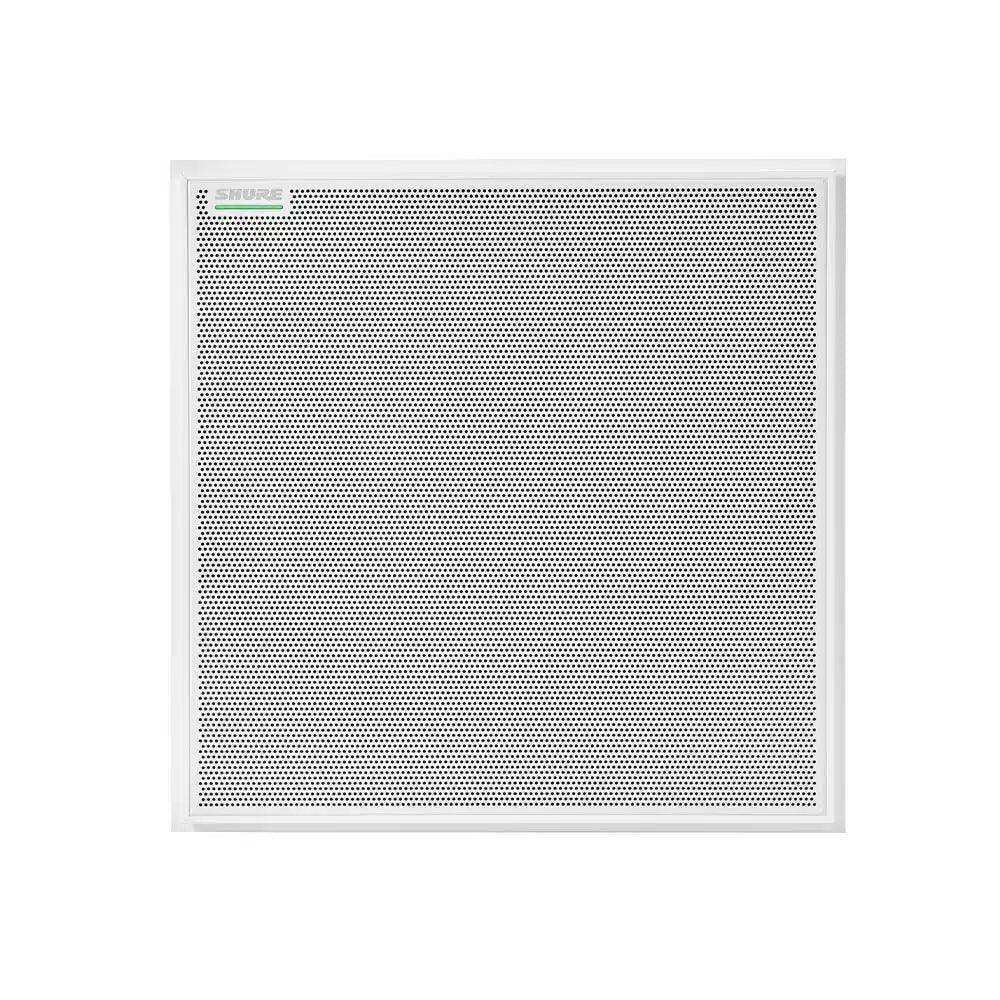

• Square 60 cm Form Factor — Designed to fit standard commercial ceiling tile grids with a paintable white finish for architectural integration in any meeting space aesthetic.
• Microflex Advance Array Architecture — Next-generation microphone array design provides enhanced low-frequency directionality and natural speech quality compared to prior-generation ceiling arrays.

Typical Applications

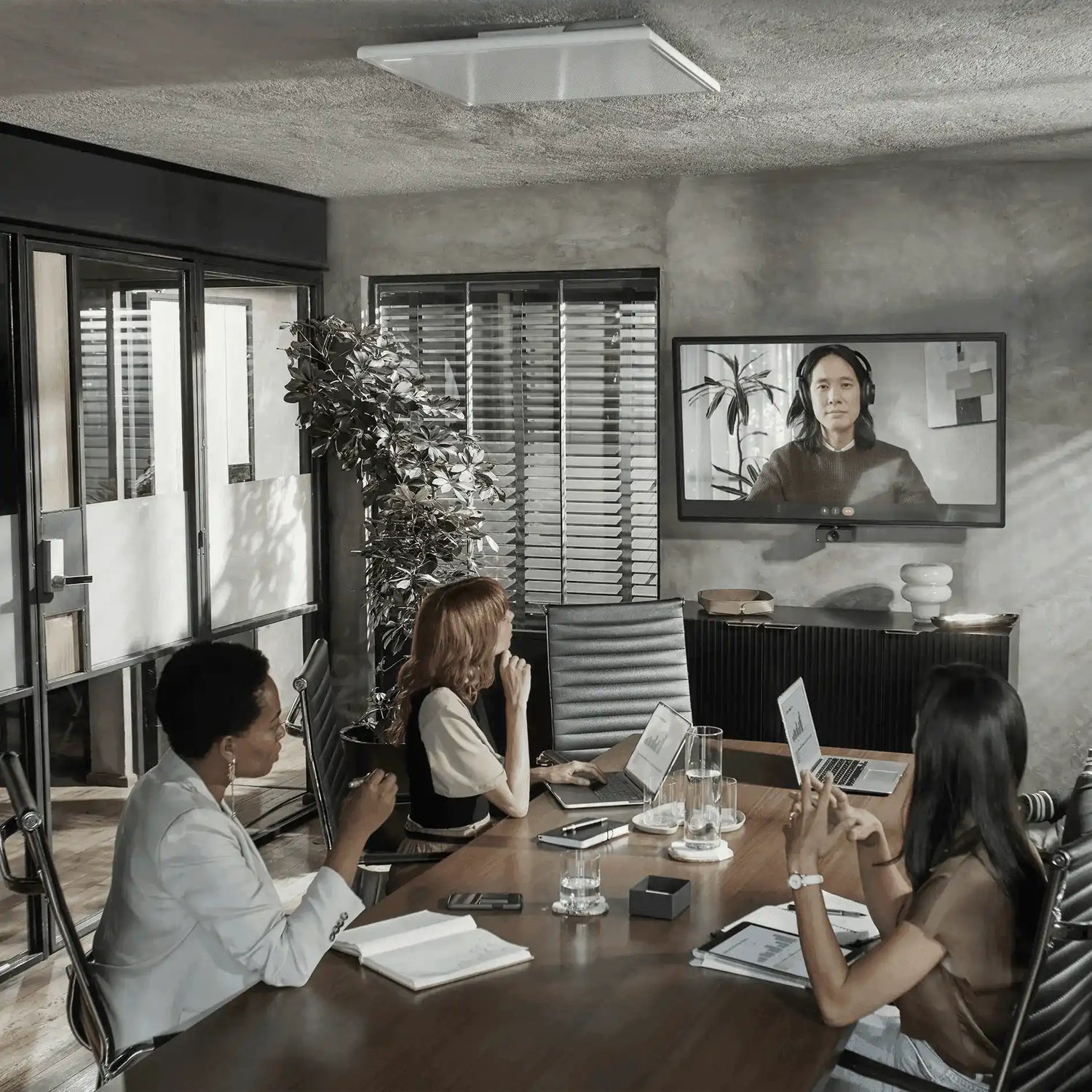

• Conference room and boardroom all-in-one audio installation
• Huddle room and small meeting space single-device deployment
• Enterprise multi-room standardized AV rollout
• Government facility conferencing audio infrastructure
• Higher education collaborative space AV integration
• Commercial meeting space retrofit without additional rack DSP

Technical Specifications

Frequently Asked Questions

What UC platforms and video conferencing systems is the MXA902 compatible with?

The MXA902 connects to UC platforms via its Dante/AES67 output to a compatible DSP or interface, or via USB when paired with a Shure ANIUSB-MATRIX. It is platform-agnostic and has been deployed with Microsoft Teams Rooms, Zoom Rooms, Cisco WebEx, and other enterprise UC platforms. Consult your AV system designer for specific signal chain configurations.

Does the MXA902 require an external DSP or audio processor?

For many single-room deployments, no. The onboard IntelliMix DSP handles Acoustic Echo Cancellation, Noise Reduction, Automatic Mixing, AGC, and EQ locally. For multi-room managed environments or installations requiring AEC reference signal injection from a specific platform, a Shure IntelliMix P300 or compatible Dante DSP may be added.

What ceiling grid does the 60 cm model fit?

The MXA902W-S-60CM is designed for standard 600 × 600 mm (approximately 24-inch) commercial ceiling tile grids common in European and international commercial construction standards. For US 2-foot grid installations, Shure offers a 2 ft square variant.

How many MXA902 units are needed per room?

One MXA902 covers approximately 6 × 6 m (20 × 20 ft) with Single Zone Automatic Coverage. Rooms larger than this coverage footprint may require multiple units networked together via Dante, with coverage zones coordinated through Shure Designer software.

What is the warranty on the MXA902?

Shure provides a two-year limited warranty on the MXA902. Extended support and replacement options are available through Creation Networks. Contact us for commercial project warranty and service agreements.
