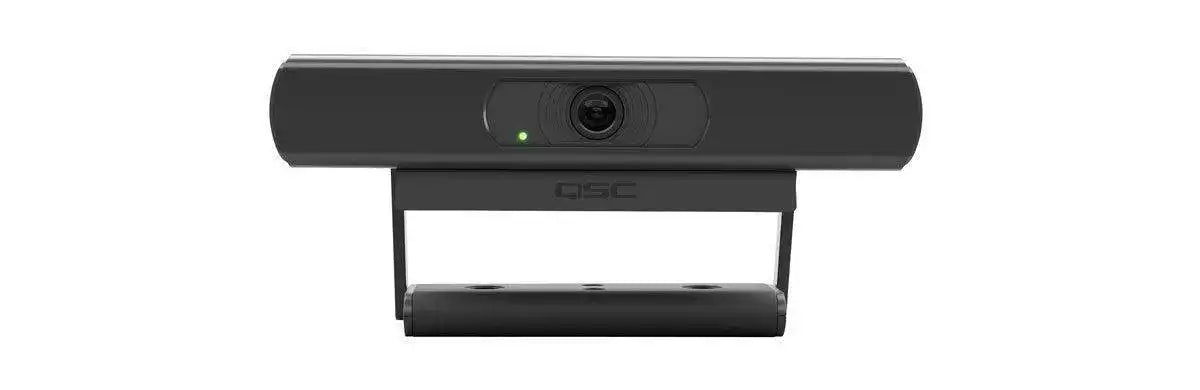

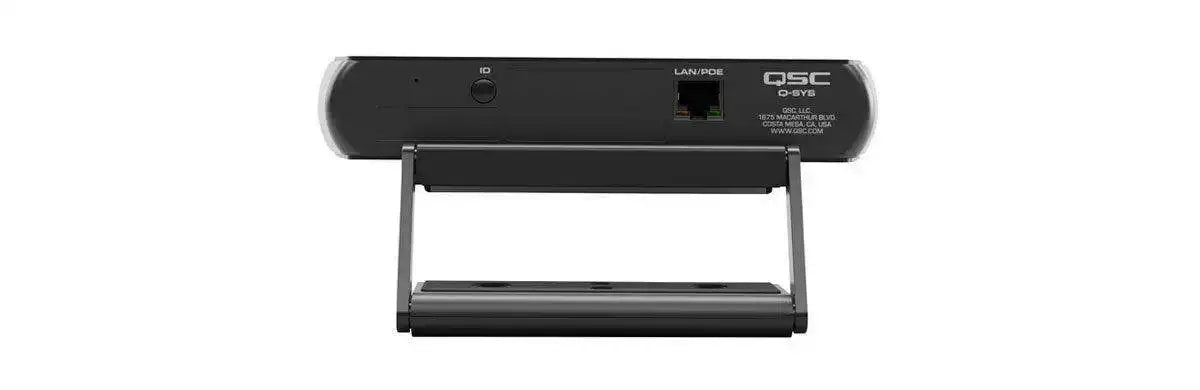

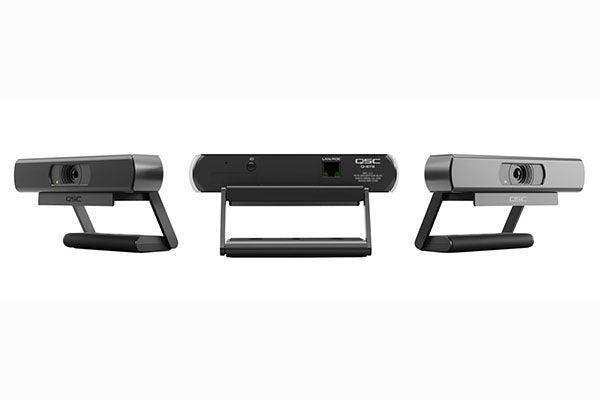

QSC Q-SYS network ePTZ camera - NC-110

No reviews


The Q-SYS NC Series NC-110 is a fixed-lens, ePTZ conference cameras that deliver high-quality video feeds natively to the Q-SYS Platform. The NC-110 is a fixed-lens, ePTZ camera that features a 110° horizontal field-of-view for smaller and wider rooms. Joined by traditional PTZ models in the line, the entire NC Series offers simple and scalable video solutions for any size meeting space.

Driven by the Q-SYS OS, the NC Series integrate seamlessly into any Q-SYS system, allowing for easy camera feed routing anywhere on the network without the need for complicated programming or video matrix hardware. These camera video feeds are delivered via any Q-SYS AV bridging peripheral to most modern video conferencing applications, including Microsoft Teams, Zoom, Google Meet and Cisco Webex.

  • Fixed-lens, electronic pan, tilt, zoom (ePTZ) with 110° horizontal field of view
  • Distribute video via the Q-LAN network anywhere it is needed
  • Power over Ethernet (PoE)
  • Complete camera imaging controls, including white balance, focus and exposure
  • User-configurable resolution and quality for IP streams (up to 1080p), providing greater flexibility for a wide variety of use cases
  • Image Rotation control to allow for inverted mounting
  • Built-in mounting hardware
  • Includes lens cover for privacy
  • Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager

Seamless camera reframing: The NC-110 offers motorless, electronic pan, tilt, zoom (aka ePTZ), allowing a user to digitally zoom into an image or field-of-view and move it around the frame. This allows for different location presets that can easily be recalled without participants seeing any camera movement.

The 110° horizontal field-of-view makes it ideal for wide rooms with relatively short distance between the lens and furthest participant. It also features a 4K image sensor outputting a 1080p IP stream, allowing a user to zoom in 2x digitally while maintaining native resolution.

Network simplicity, USB delivery: NC Series solves the cable length limitations of traditional cameras solutions by enlisting a single network cable for video, power and control data transport into Q-SYS, and then employs USB technology to deliver the video to its intended PC/compute device. This greatly simplifies system design and deployment by eliminating the need for costly, unreliable USB cabling.  Furthermore, NC Series goes beyond the traditional 1-to-1 limitation found in most USB cameras by allowing for a “many-to-any” scenario that allows users to integrate as many NC Series cameras as needed in their Q-SYS system design and take advantage of network-based realtime camera switching.

Universal Compatibility: The feeds from NC Series cameras, along with Q-SYS room audio, can be delivered to the conferencing application of your choice. With this functionality, Q-SYS can scale the meeting experience for Zoom, Microsoft Teams, Google Meet, Cisco Webex and more into rooms of any size or configuration to ensure a great experience parity for both in-room and remote meeting participants.

Designed for Q-SYS: NC Series collaboration cameras are native to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future.  At its foundation, the Q-SYS OS serves as the software foundation that manages your NC Series cameras along with a multitude of other native Q-SYS Products in the platform.  Additionally, its modern IT architecture and development tools of the Q-SYS Platform enables an entire Ecosystem of third-party devices developed by approved Q-SYS Partners, as well as a worldwide community of Q-SYS developers.

Specifications NC-110
Description Fixed-lens network ePTZ camera with 110° horizontal field-of-view
Image Sensor 1/2.8” Low Noise CMOS
Lens characteristics (wide to tele) Fixed focus lens, 8x max zoom (2x lossless), f=1.86 mm
Sensor Scanning Mode Progressive
Horizontal Rotation Range Supports electronic pan, tilt, zoom
Vertical Rotation Range Supports electronic pan, tilt, zoom
Ceiling Mountable Image rotation for ceiling mounting, ceiling mount bracket accessory available
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30 s to 1/1000 s
White Balance Auto, indoor, outdoor, one-push, manual, specified color temperature
IP Stream Resolutions (Preview Window) H.264 @ 360p, 270p or 180p
DC Power Input No DC power input
Power Over Ethernet (PoE) PoE Class 2 (Type 1)
Size 7.6 x 1.3 x 1.7 inch (194 x 34 x 42 mm), without bracket
Net Weight 0.9 lbs (0.4 kg)
