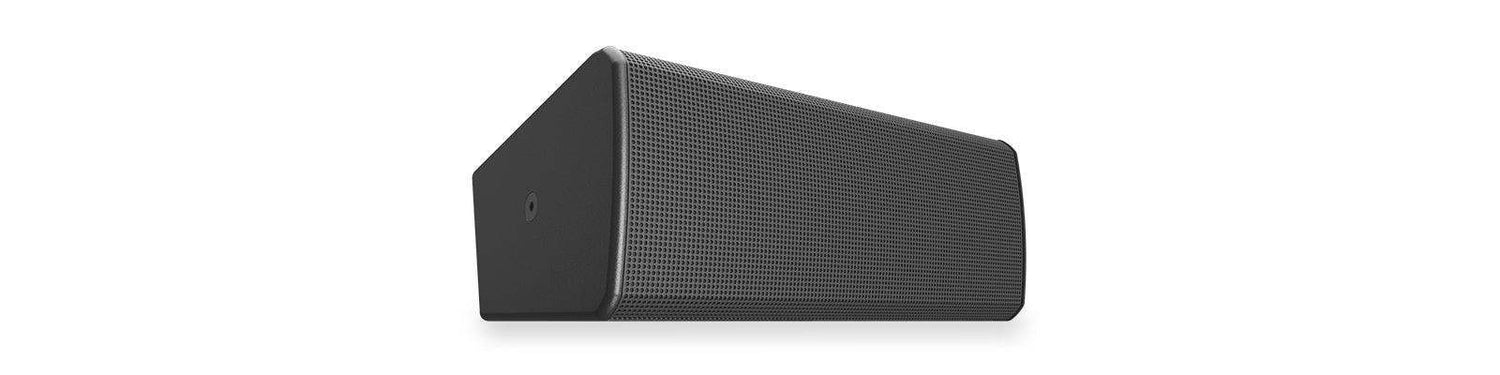

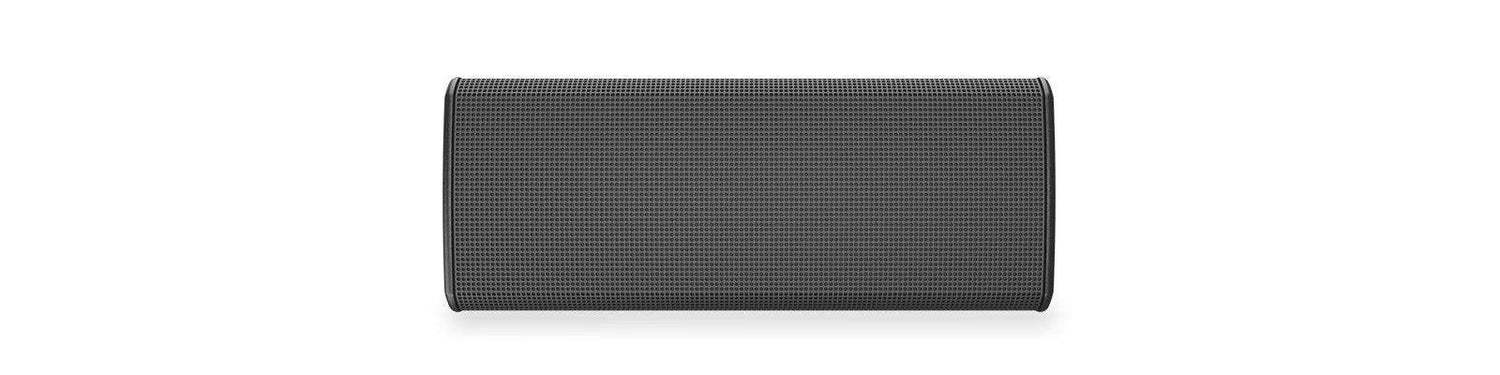

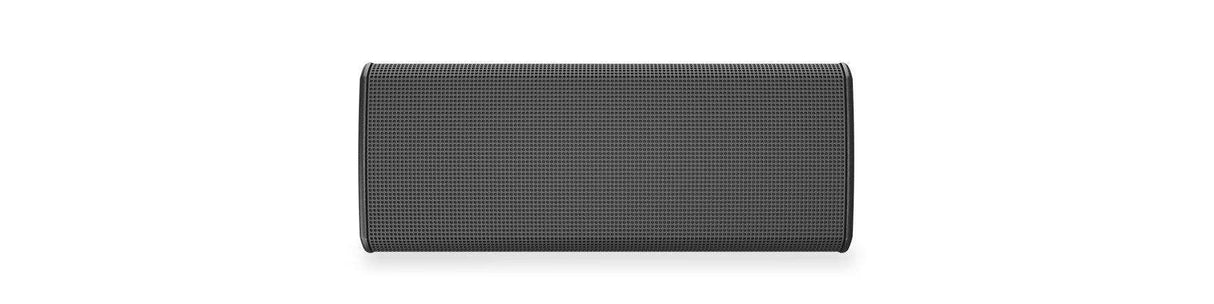

QSC PL-DC24 – Dual 4-Inch 2-Way Passive Point-Source Installation Loudspeaker
QSC PL-DC24 – Dual 4-Inch 2-Way Passive Point-Source Installation Loudspeaker is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
QSC PL-DC24 – Dual 4-Inch 2-Way Passive Point-Source Installation L...
Product Overview
The QSC PL-DC24 is a dual 4-inch two-way passive point-source loudspeaker with directivity control, part of QSC's PL Series of installation loudspeakers. Its horizontally oriented, V-shaped dual-4-inch transducer layout and HF compression driver produce a fixed 110° x 50° coverage pattern, making it ideal as a near-field fill, delay, or under-balcony loudspeaker. Engineered for the Q-SYS ecosystem, the PL-DC24 is driven by CX-Q Series network amplifiers for custom voicings, protection, and telemetry. Its weatherized IP54 plywood enclosure supports indoor and protected outdoor installations.
Product Description
The PL-DC24 packs controlled directivity into a compact, low-profile cabinet that fits architecturally sensitive spaces where a larger box would be impractical. The fixed 110° x 50° horn delivers predictable coverage for stage fills, delays, and lost-coverage areas under balconies, while the asymmetrical 15° cabinet profile aids aiming. Multiple rigging points (rear, top/bottom M8, and side yoke attachment) support flexible placement, and the optional PL-DC24-YM yoke mount or PL-DC24-FM flush mount adapt it to walls and ceilings. The passive design presents an 8-ohm load. For higher output in a single-box format, consider the QSC PL-DC8 point-source loudspeaker.
Key Features
- Dual 4-inch LF transducers and HF compression driver — Compact two-way design delivers clear vocal reproduction and balanced low end for fill and auxiliary roles.
- Fixed 110° x 50° coverage — V-shaped transducer layout provides controlled directivity for predictable, even coverage.
- Weatherized IP54 plywood enclosure — Exterior plywood with polyurea paint, treated grille, and sealed input cup for indoor or protected outdoor use.
- Flexible mounting — Rear, top/bottom M8, and side yoke rigging points; compatible with the PL-DC24-YM yoke mount and PL-DC24-FM flush mount.
- Q-SYS platform integration — Driven by CX-Q Series amplifiers for Intrinsic Correction™ voicings, protection, and telemetry.
Typical Applications
- Auditoriums
- House of worship
- Conference rooms
- Multi-purpose rooms
Technical Specifications
| Configuration | Two-way passive point-source loudspeaker, bass reflex |
| LF transducers | 2x 4 in (101.6 mm), 1.3 in voice coil, neodymium |
| HF driver | Compression driver, 0.7 in exit, 1 in voice coil |
| Coverage (H x V) | 110° x 50° (fixed) |
| Frequency range (-10 dB) | 89 Hz – 20 kHz |
| Crossover | 2 kHz |
| Sensitivity | 97.5 dB |
| Max SPL (continuous / peak) | 111 dB / 123 dB |
| Power rating | 120 W continuous, 240 W rated @ 8 Ω |
| Nominal impedance | 8 Ω |

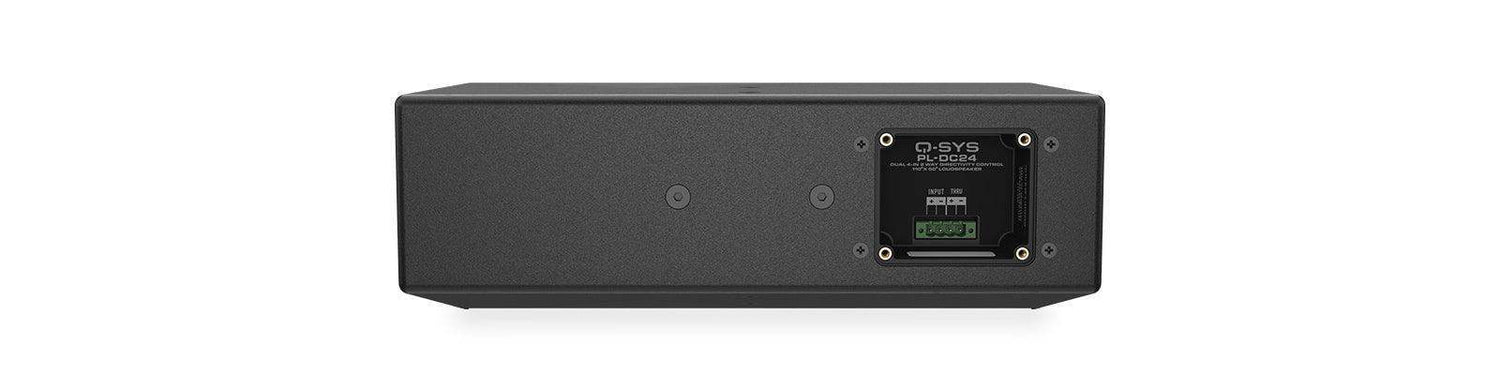

| Connectors | 1x locking Euroblock (4-pole) |
| Enclosure | Exterior plywood, IP54, Black (RAL 9011) |
| Dimensions (H x W x D) | 5.4 x 13.6 x 7.2 in (136 x 346 x 182 mm) |
| Weight | 8.7 lb (3.9 kg) |
| Recommended amplifiers | Q-SYS CX-Q 8K4 / 4K4 / 2K4 |
Frequently Asked Questions
Is the PL-DC24 powered or passive? It is passive and requires external amplification. QSC recommends CX-Q Series network amplifiers (up to four per channel on the CX-Q 8K4, three on the 4K4, two on the 2K4).
What is it best used for? Its compact footprint and fixed 110° x 50° pattern make it ideal for fills, delays, and under-balcony coverage in entertainment, corporate, education, and hospitality spaces.
How does it mount? It includes rear, top/bottom M8, and side rigging points and works with the PL-DC24-YM yoke mount and PL-DC24-FM flush mount for wall or ceiling installation.
Can it be installed outdoors? The IP54-rated plywood enclosure with polyurea paint and sealed input cup is suitable for protected outdoor locations.
What warranty applies? Coverage follows QSC's published warranty terms. For warranty registration or support, contact Creation Networks or refer to QSC's warranty documentation.
