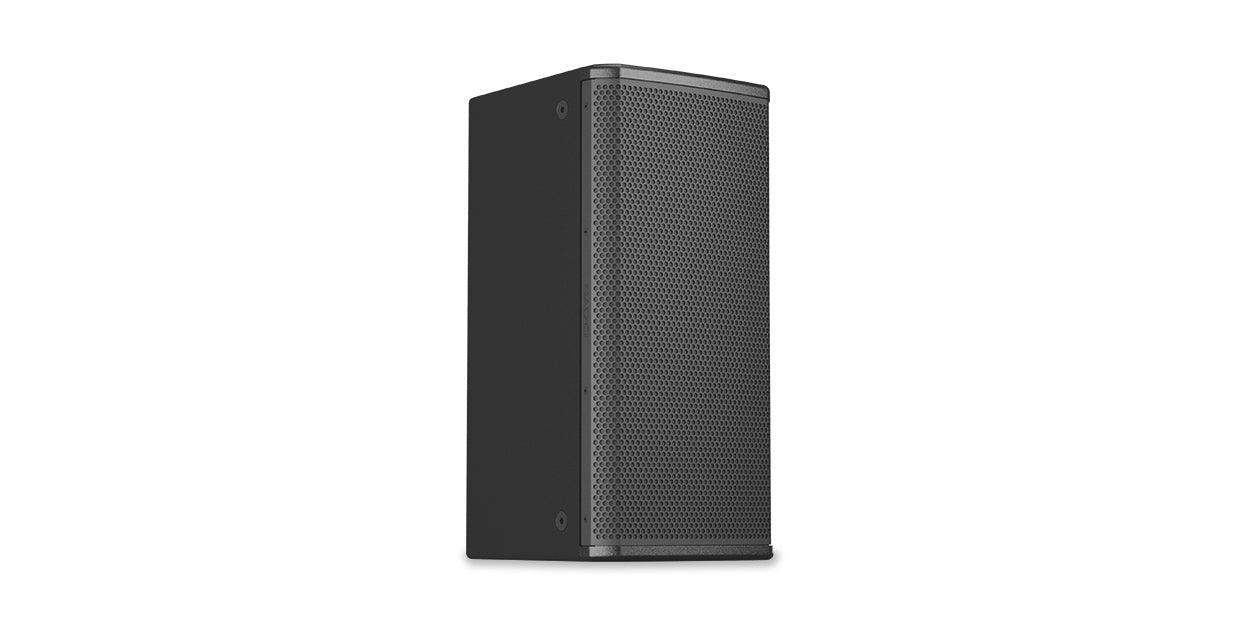

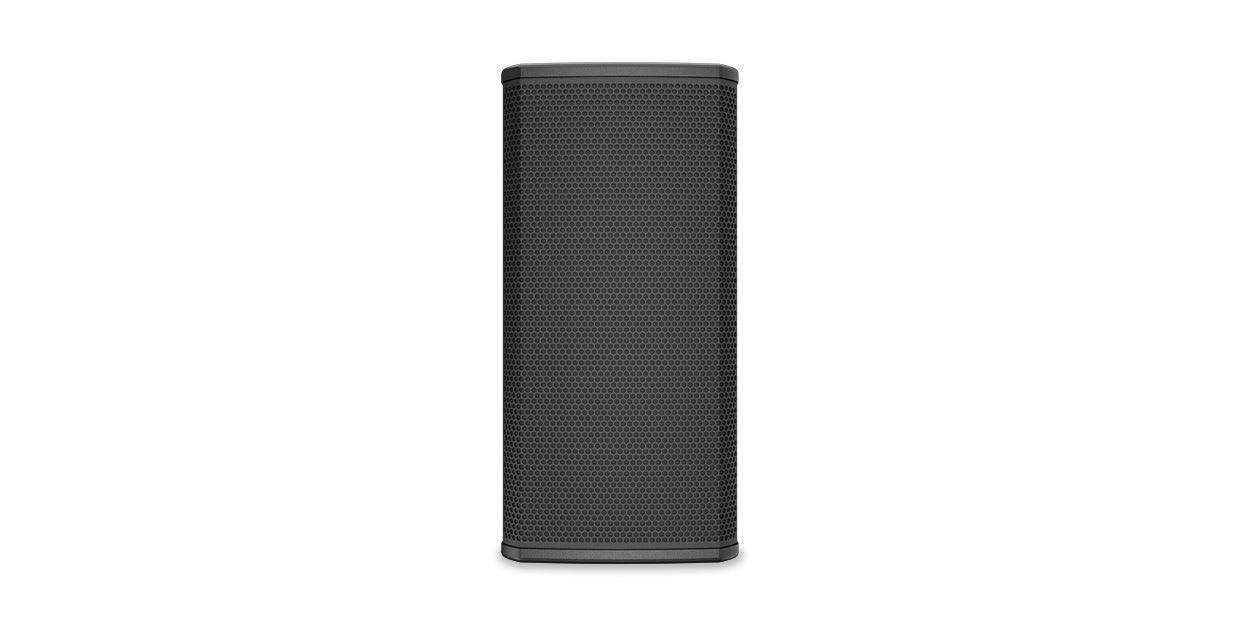

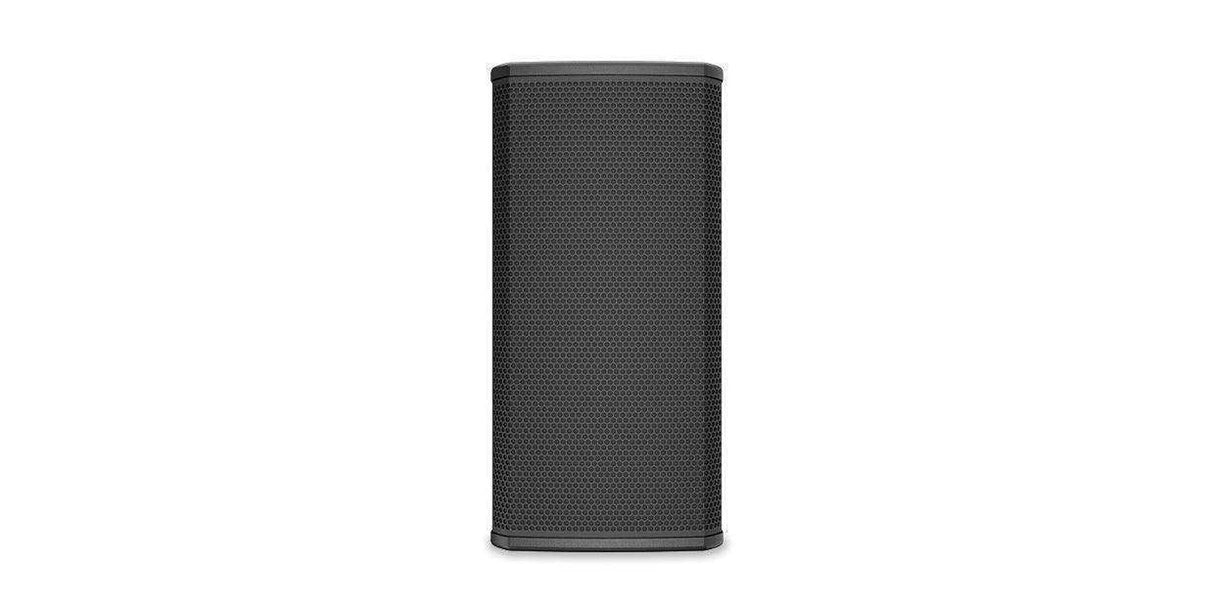

QSC PL-DC8 – 8-Inch 2-Way Passive Installation Loudspeaker with Directivity Control

Product Overview

The QSC PL-DC8 is an 8-inch two-way passive point-source loudspeaker with directivity control from QSC's PL Series of installation loudspeakers. Its reconfigurable, rotatable half-horn assemblies let integrators select symmetrical 120° x 50° or 90° x 50° patterns, or an asymmetrical 105° x 50° pattern, for precise control over where sound lands. Built for the Q-SYS ecosystem, the PL-DC8 is driven by CX-Q Series network amplifiers for custom voicings, protection, and telemetry. Its weatherized IP54 plywood enclosure supports indoor and protected outdoor installations as a front-of-house, delay, or distributed loudspeaker.

Product Description

The PL-DC8 pairs an 8-inch LF driver and HF compression driver in a trapezoidal bass-reflex cabinet with an 11° box angle for array building. Its standout feature is the field-reconfigurable horn: installers can rotate and mix the half-horn sections to tailor symmetrical or asymmetrical coverage to the room, reducing reflections and overspill. Top and bottom M10 points plus M6 hole patterns support a range of mounting positions, and the optional PL-DC8-YM yoke mount adds wall and structure mounting. The passive design presents an 8-ohm load. For full-range systems, add low-frequency support and compare the larger-format QSC PL-DC12 point-source loudspeaker.

Key Features

• 8-inch LF driver and HF compression driver — Two-way bass-reflex design delivers full-range clarity for small to medium venues.
• Reconfigurable, rotatable horn — Selectable 120° x 50° or 90° x 50° symmetrical and 105° x 50° asymmetrical coverage for room-specific aiming.
• Weatherized IP54 plywood enclosure — Exterior plywood with polyurea paint, treated grille, and sealed input cup for indoor or protected outdoor use.
• Flexible rigging — Top/bottom M10 points and M6 hole patterns; compatible with the PL-DC8-YM yoke mount and M10 KIT.
• Passive or bi-amp operation — 1.6 kHz passive crossover or 1.5 kHz bi-amp configuration.
• Q-SYS platform integration — CX-Q Series amplifiers add Intrinsic Correction™ voicings, protection, and telemetry.

Typical Applications

• Auditoriums
• House of worship
• Conference rooms
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

Is the PL-DC8 powered or passive? It is passive and requires external amplification. QSC recommends CX-Q Series network amplifiers (up to four per channel on the CX-Q 8K4, two on the 4K4, one on the 2K4).

Can I change its coverage pattern? Yes. The rotatable, reconfigurable half-horn assemblies allow symmetrical 120° x 50° or 90° x 50° and asymmetrical 105° x 50° coverage to match the room.

How does it mount? Top and bottom M10 points and M6 hole patterns support multiple positions, and the PL-DC8-YM yoke mount adds wall or structure mounting.

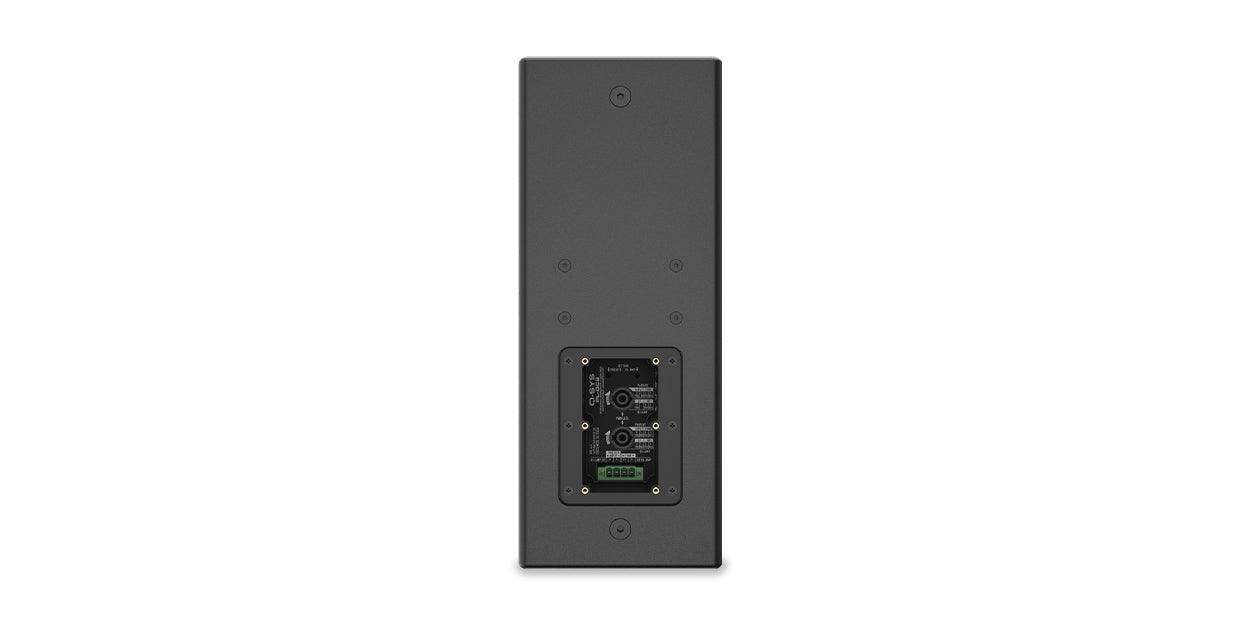

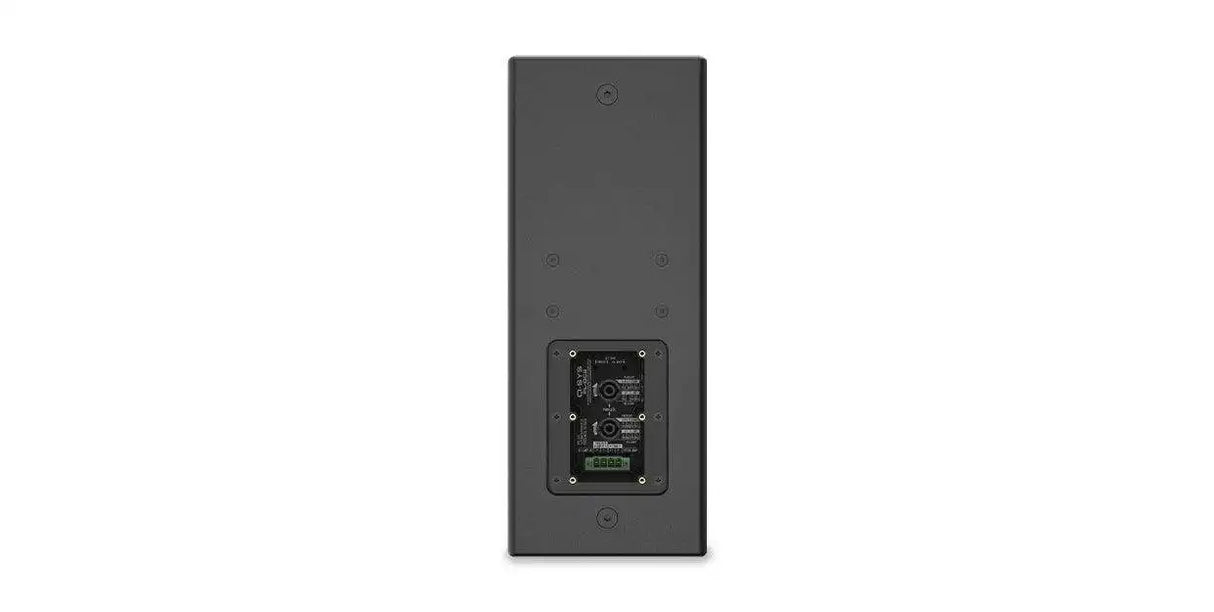

Is it suitable for outdoor use? The IP54-rated plywood enclosure with polyurea paint and sealed input cup is suitable for protected outdoor locations.

What warranty applies? Coverage follows QSC's published warranty terms. For warranty registration or support, contact Creation Networks or refer to QSC's warranty documentation.
