QSC SC-414 – Tri/Quad-Amp 4-Way 1x15-Inch Cinema Screen Channel Loudspeaker

Product Overview

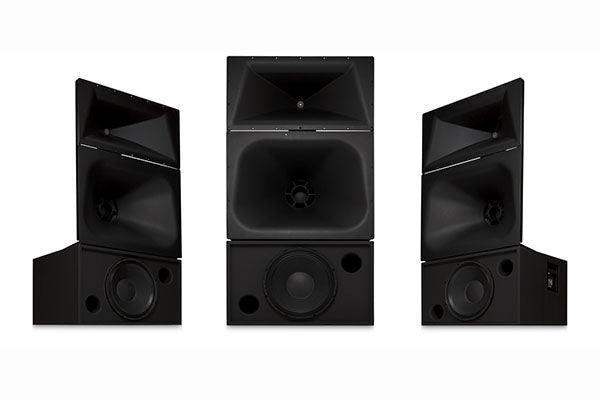

The QSC SC-414 is a high-power four-way, tri- or quad-amplified single-15-inch screen channel loudspeaker from the DCS Digital Cinema Series for professional motion-picture playback. It pairs the pre-assembled MHV-1090 mid/high/very-high system with the LF-4115 low-frequency enclosure.

Engineered for clarity and dynamic range with a coaxial neodymium HF/VHF driver, the SC-414 is THX-approved and built for premium cinema auditoriums.

Product Description

The SC-414 is designed for fast installation: the MHV-1090 components come pre-assembled, and three bolts secure them to the top of the LF-4115 enclosure. Its coaxial neodymium high-frequency/very-high-frequency compression driver delivers a marked improvement in dynamic response, clarity, and transparency.

The annular high-frequency diaphragm covers 1800 to 7000 Hz with a smooth, linear response, and its large ±0.8 mm diaphragm excursion yields high output and increased power handling. The very-high-frequency driver covers 7000 to 22,000 Hz, eliminating the dome break-up of conventional drivers that can cause harsh, metallic sound.

The heavily braced MDF LF-4115 enclosure and low-distortion waveguides provide articulate dialogue, and a shallow 20-inch depth facilitates installation. THX-approved and RoHS compliant, the SC-414 integrates with QSC cinema subwoofers, surrounds, amplifiers, and processors.

Key Features

• Four-way tri/quad-amplified system — Operates in selectable tri- or quad-amplified configurations for maximum control and headroom.
• Coaxial neodymium HF/VHF driver — Delivers a dramatic improvement in dynamic response, clarity, and transparency over conventional designs.
• Low-mass annular HF diaphragm — Covers 1800 to 7000 Hz with smooth, linear response and a large ±0.8 mm excursion for high output and power handling.
• Dedicated VHF driver — Covers 7000 to 22,000 Hz, eliminating the dome break-up that causes harsh, metallic sound in conventional drivers.
• Pre-assembled MHV-1090 — Components arrive pre-assembled and secure to the LF-4115 with three bolts to reduce field assembly time.
• Heavily braced LF-4115 enclosure — An MDF, heavily braced single-15-inch enclosure provides solid low-frequency output.
• THX approved and RoHS compliant — Meets THX approval for professional cinema and is RoHS compliant.

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What makes the SC-414 a four-way system?
It separates low, mid/high, high, and very-high frequencies, using a coaxial neodymium HF/VHF compression driver where the annular HF section covers 1800–7000 Hz and the VHF section covers 7000–22,000 Hz.

How does the coaxial HF/VHF driver improve sound?
It provides improved dynamic response, clarity, and transparency, and the dedicated VHF section eliminates the dome break-up that can make conventional drivers sound harsh or metallic.

Is field assembly difficult?
No. The MHV-1090 components arrive pre-assembled and attach to the LF-4115 enclosure with just three bolts to reduce installation time.

What warranty and support come with this loudspeaker?
QSC installed loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
