Q-SYS Signature Microsoft Teams Room – Spatial Audio Bundle - Audio only (no display) is backordered and will ship as soon as it is back in stock.
What is the Q-SYS Signature Microsoft Teams Room Spatial Audio Bundle?
It is a Q-SYS audio, processing and video-distribution package for a Signature Microsoft Teams Room, with an optional ViewSonic 21:9 ultrawide display. A Q-SYS Core 8 Flex runs certified-for-Teams echo cancellation and noise reduction, a Sennheiser TeamConnect Ceiling 2 picks up every talker, and column loudspeakers beside the display let far-end voices come from the direction of the person on screen. Installation is not included and is quoted per site.
How does the Q-SYS Signature Spatial Audio Bundle work?

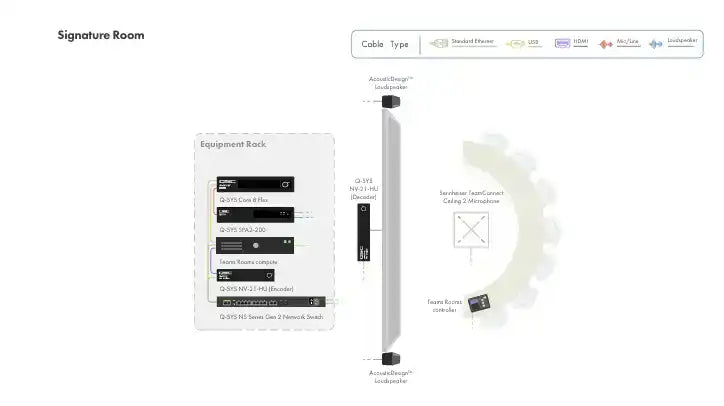

The Q-SYS Core 8 Flex handles audio DSP, routing and room control and connects to the Teams Rooms PC over a single USB link. The Sennheiser TeamConnect Ceiling 2 beamforming microphone covers the table from above. Two AcousticDesign AD-S802T column loudspeakers mount on either side of the display, powered by a Q-SYS SPA2-200 amplifier, and Q-SYS Designer pans far-end audio between them so voices follow the on-screen talker.
Two Q-SYS NV-21-HU endpoints distribute HDMI and USB video over the network, and a Netgear AV Line M4250 PoE+ switch connects the system. Choose the audio-only package for rooms that already have a display, or add the ViewSonic CDE92UW or ViewSonic CDE105UW 5K 21:9 ultrawide with a Chief ultrawide wall mount for the Teams Front Row layout. The Teams Rooms PC, console and camera are specified separately.
What are the key features of the Q-SYS Signature Spatial Audio Bundle?
- Spatial far-end audio — Column loudspeakers on each side of the screen place remote voices where the talker appears.
- Certified AEC and noise reduction — The Core 8 Flex runs the Q-SYS certified Teams sample design.
- Ceiling beamforming microphone — The TeamConnect Ceiling 2 tracks talkers and keeps the table clear.
- Single USB connection — One cable carries audio and video between the Core and the Teams Rooms PC.
- Optional 21:9 display — ViewSonic 92-inch or 105-inch 5K ultrawide for Front Row.
Where is the Q-SYS Signature Spatial Audio Bundle typically used?
- Boardroom
- Conference room
- Commercial meeting space
Technical Specifications
| Qty | Component |
|---|---|
| 1 | Q-SYS Core 8 Flex processor |
| 1 | Netgear GSM4230PX-100NAS (M4250) PoE+ network switch |
| 1 | Sennheiser TeamConnect Ceiling 2 microphone |
| 2 | QSC AD-S802T column surface-mount loudspeaker |
| 1 | QSC SPA2-200 amplifier |
| 2 | Q-SYS NV-21-HU network video endpoint |
| Option | ViewSonic CDE92UW 92-inch or CDE105UW 105-inch 5K 21:9 ultrawide, with Chief KITXWXSM1U ultrawide wall mount |
| Not included | Teams Rooms PC and console, camera, installation |
Frequently Asked Questions
Is installation included?
No. The bundle is hardware only. Installation and Q-SYS programming are quoted per site.
Does it include a camera or Teams Rooms PC?
No. The bundle covers audio, processing, video distribution and an optional display. We specify the Teams Rooms PC, console and camera to suit the room.
How does spatial audio work?
Q-SYS Designer routes far-end audio between the left and right column loudspeakers so a remote voice comes from the side of the screen where that person appears.
Which display should I choose?
The 92-inch suits small to medium Signature rooms; the 105-inch suits medium rooms and longer tables.
Can it be expanded?
Yes. The Core 8 Flex supports more microphones, loudspeakers and Q-SYS cameras. See the full Q-SYS catalog.
