Poly Studio X52 – All-In-One Video Bar with TC10 for Medium Rooms

Product Overview

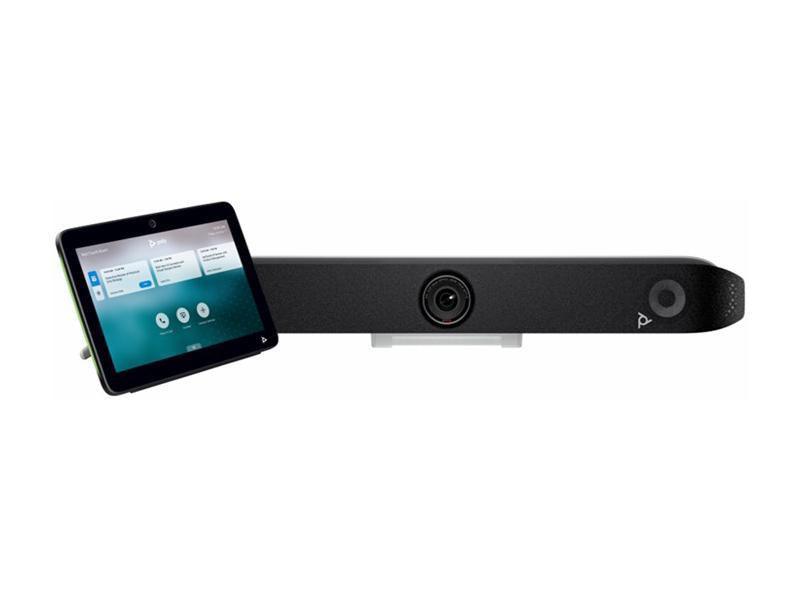

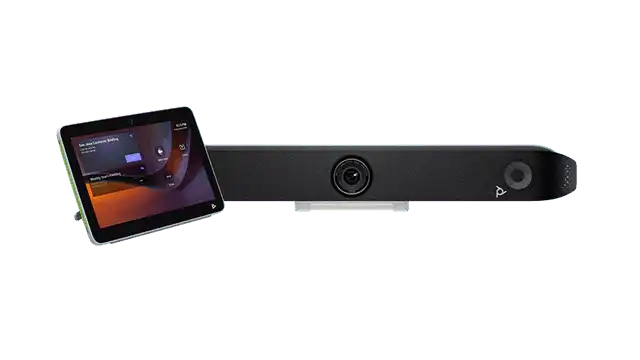

The Poly Studio X52 with TC10 kit (part number 8D8L1AA#ABA) pairs the all-in-one 4K video bar with a 10.1-inch Poly TC10 touch controller as a single medium conference room system. The controller is what turns the bar into a room people actually use on schedule: the day's calendar sits on the table, and joining is one touch rather than a hunt for a meeting ID. Ordering the kit puts the bar and the controller on one part number, one purchase order line, and one warranty start date instead of two separate orders that have to arrive together for an installer to finish the room. For rooms that already have a controller or do not need one, the standard Poly Studio X52 video bar is sold on its own.

Product Description

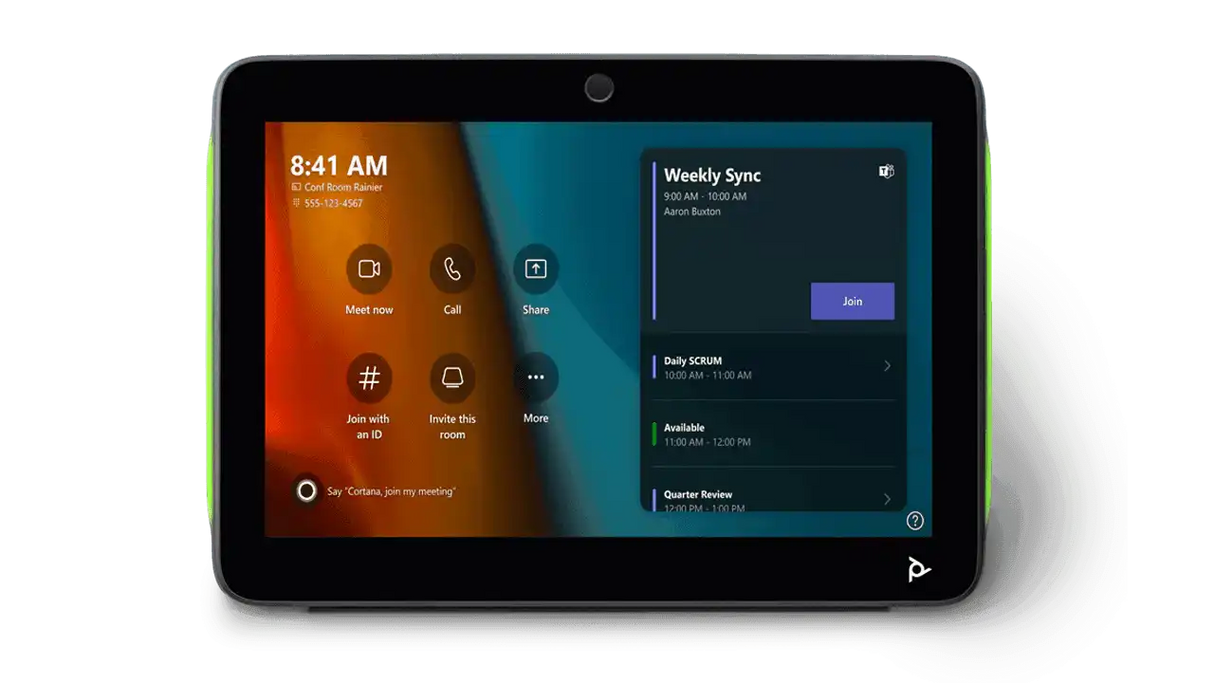

The TC10 is a 10.1-inch WXGA IPS touchscreen powered over a single PoE cable to IEEE 802.3at class 0, so the table position needs one Cat6 run and no local power supply. It ships with both a table stand and a wall mount kit, which means the same controller can sit on the table in one room and mount outside the door as a scheduling panel in the next — useful when a facilities team is standardizing a floor rather than fitting out one space. Certified for Microsoft Teams and Zoom, it displays room availability, shows the upcoming agenda, and starts a scheduled meeting without anyone touching a laptop, which is the behavior that actually reduces the first-five-minutes support calls in a busy building.

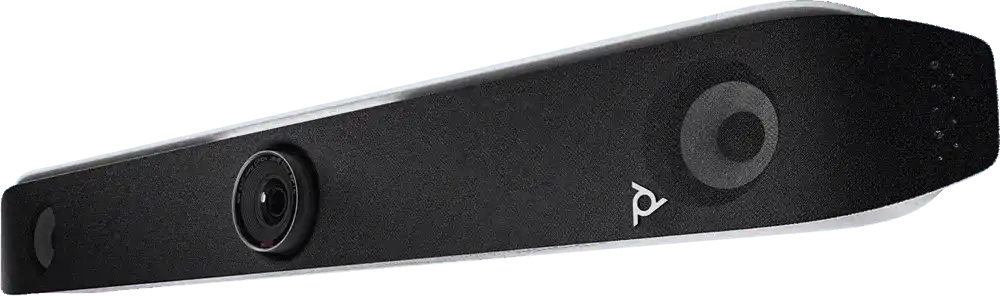

The bar itself is the medium-room X52 platform: a 20MP camera at 30 fps across a 110° diagonal field of view with 5x digital zoom, DirectorAI people, group, and speaker framing, and a DirectorAI perimeter that keeps the tracking zone inside the room. Audio uses two MEMS microphones and two second-order microphones with pickup to roughly 20 feet, backed by NoiseBlockAI and Acoustic Fence, driving stereo speakers rated 20 W RMS. Connectivity covers one HDMI 2.0 input, two HDMI 2.0 outputs for dual-display rooms, USB Type-C and two USB Type-A ports, a line input, a 10/100/1G RJ-45 with IPv4 and IPv6, plus Wi-Fi 6 and Bluetooth 5.0. Buying the bundle costs less than ordering the Poly TC10 touch controller and the bar as separate line items at current Creation Networks pricing, and it removes the partial-shipment problem on an install schedule. Longer tables should add a Poly Studio table microphone, and wall-mounted displays use the Poly Studio X52/V52 VESA mount.

Key Features

• Bar and Controller on One Part Number — Kit 8D8L1AA#ABA ships the X52 and the TC10 together, so a room arrives complete on one purchase order line rather than two shipments an installer has to wait on.
• One-Touch Join — The TC10 shows the room calendar and starts the scheduled meeting with a single tap, which removes the meeting-ID hunt at the top of every call.
• Scheduled Meeting Start and Room Scheduling — The controller displays availability and the upcoming agenda, and the wall mount kit lets the same panel serve as a door-side scheduling display.
• Single-Cable PoE Controller — The TC10 draws power and data over one Cat6 run to IEEE 802.3at class 0, so the table position needs no local power supply or floor box transformer.
• 20MP 4K Camera — Captures 30 fps video across a 110° diagonal field of view so a full medium conference table is covered from one bar.
• DirectorAI Smart Framing — People, group, and speaker framing follow the conversation automatically, so no one has to drive the camera from the controller.
• Four-Microphone Array with NoiseBlockAI — Two MEMS and two second-order microphones reach roughly 20 feet while Acoustic Fence keeps sound from outside the room off the call.
• Dual HDMI 2.0 Output — Drives two displays so far-end participants and shared content occupy separate screens.
• Native Teams, Zoom, and Google Meet — Both the bar and the controller are certified for the major platforms, so the kit runs as a room system with no PC in the equipment list.
• Consistent Room Standard — Deploying the same bar-plus-controller kit across a floor gives users one interface in every room and gives IT one configuration to manage in Poly cloud management.

Typical Applications

• Conference room
• Boardroom
• Training room
• Multi-purpose room
• Commercial meeting space
• All-hands room
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

What does the kit save compared with buying the bar and controller separately?
At current Creation Networks pricing the kit costs less than the Studio X52 and the TC10 ordered as individual line items, and it consolidates them onto one part number with one warranty start date. The practical saving is usually scheduling: both components ship together, so an installer is not holding a finished room open waiting on a controller.

How does one-touch join actually work?

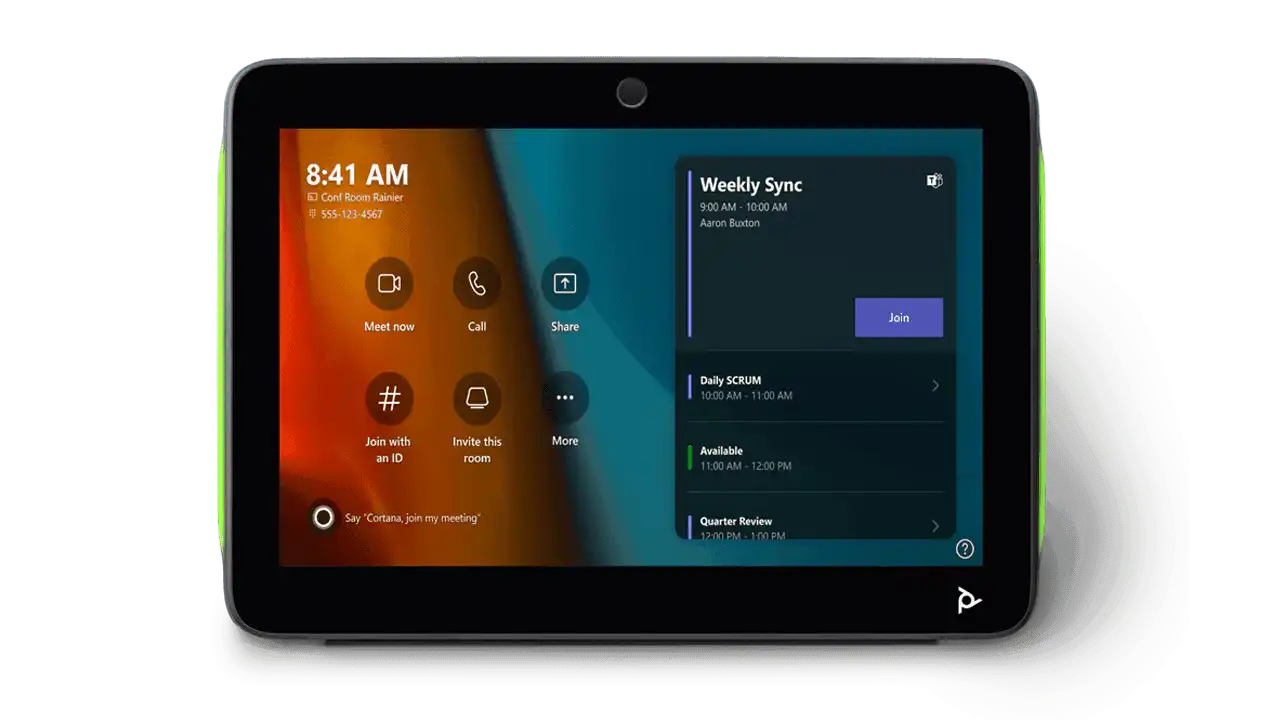

The room resource calendar populates the TC10, which lists the day's meetings on the table display. Tapping the meeting starts it on the X52 with no meeting ID, PIN, or laptop involved, and the same screen handles mute, volume, camera, and content control during the call.

What cabling does the TC10 need at the table?
One Cat6 run to a PoE switch port supporting IEEE 802.3at class 0. Power and data share that cable, so there is no separate supply in the floor box or table grommet, which keeps the table clean and simplifies the millwork detail.

Can the TC10 be mounted outside the room as a scheduling panel?
Yes. A wall mount kit and a table stand are both included, so the same controller can be deployed on the table for in-room control or by the door for room availability and scheduling, depending on how the space is used.

Which platforms does the kit support?
The Studio X52 is certified for Microsoft Teams, Zoom, and Google Meet and runs them natively; the TC10 is certified for Microsoft Teams and Zoom. One kit can therefore serve an organization that has not standardized on a single collaboration platform.

Does the room still need a PC?
No. The kit runs as a self-contained room system. A room PC can be connected over USB Type-C or HDMI if a specific desktop client is required, and the bar will act as a USB camera and audio peripheral in that mode.

How is the bar mounted in a medium room?

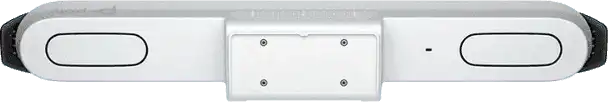

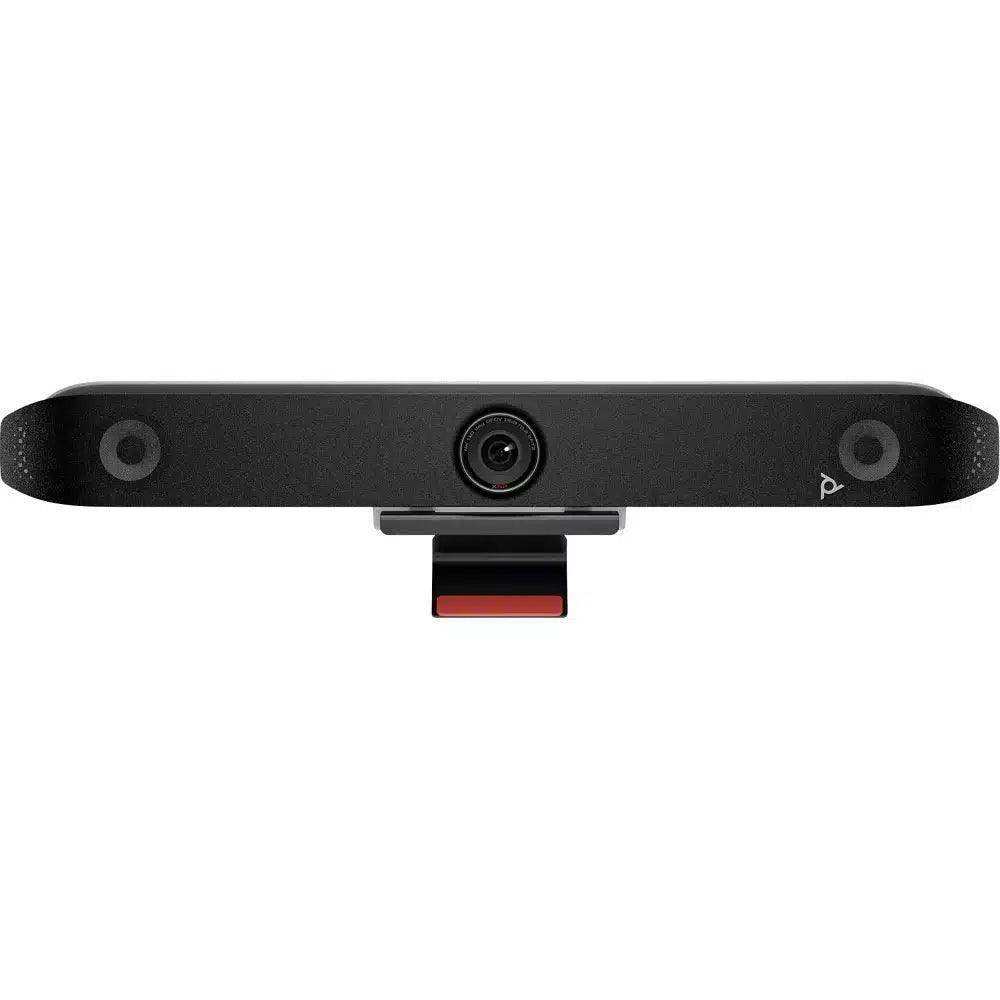

A monitor clamp ships in the box for display-top mounting. Wall and VESA installations use the Poly Studio X52/V52 VESA mount, and rooms with existing Studio X50 mounting hardware can reuse it with the X52 adapter bracket.

What warranty and support come with the kit?
Both components carry the Poly standard one-year limited warranty. Poly+ service agreements with advance hardware replacement and technical support are available separately; contact Creation Networks for the coverage tier appropriate to a multi-room rollout.
