Poly Studio X52 – All-In-One 4K Video Bar for Medium Rooms

Product Overview

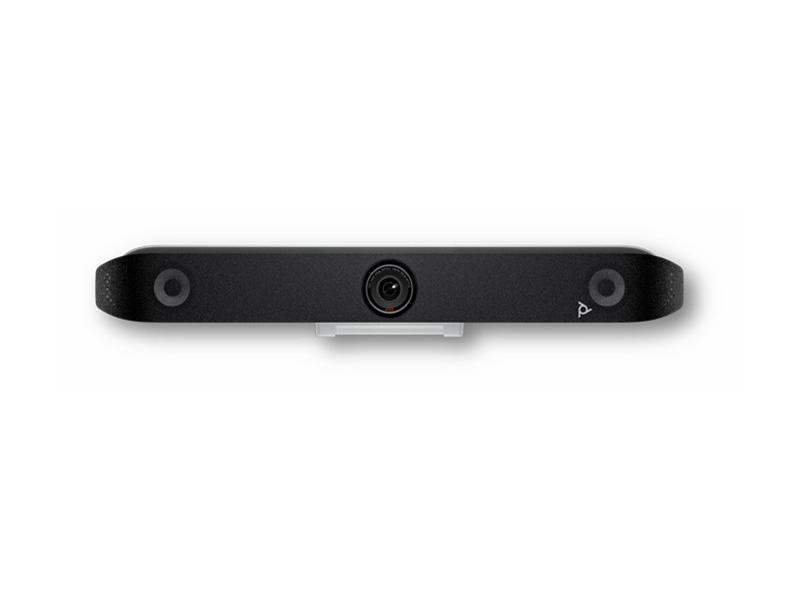

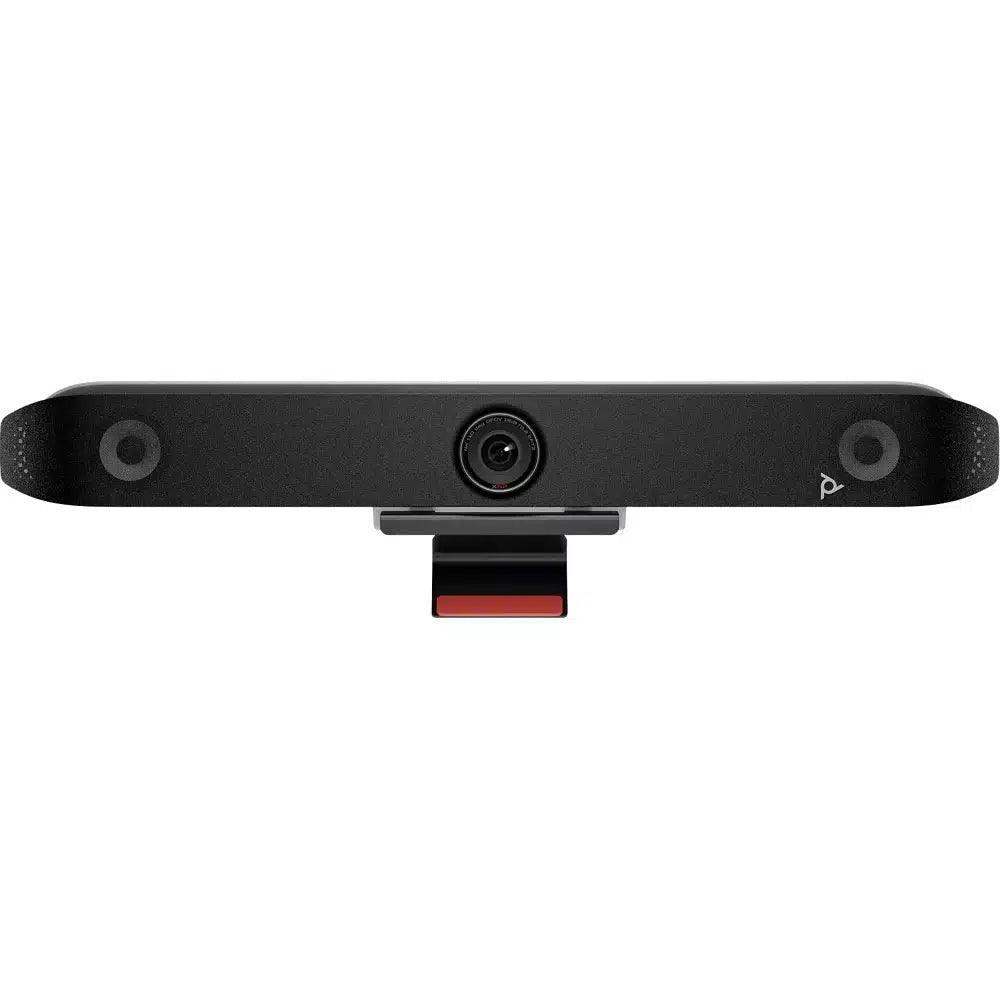

The Poly Studio X52 video bar is an all-in-one 4K video bar for medium conference rooms, combining a 20MP camera, stereo speakers, and a built-in microphone array in a single display-mounted unit. Certified for Microsoft Teams, Zoom, and Google Meet, it runs cloud video apps natively so a room PC is optional rather than required. Poly DirectorAI framing tracks the active speaker and reframes the group automatically, keeping remote participants engaged without an operator. For integrators standardizing medium rooms across a campus, the X52 reduces a full rack of components to one bar, one power feed, and one network drop.

Product Description

HP Poly designed the Studio X52 for mid-sized rooms of roughly 20 ft. by 15 ft., where a huddle-room bar runs out of coverage but a modular codec system is more infrastructure than the space needs. The 20MP camera captures 30 fps video across a 110° diagonal field of view with 5x digital zoom, and DirectorAI smart camera technology handles people framing, group framing, and speaker framing so the shot follows the conversation. A DirectorAI perimeter setting lets an integrator exclude glass walls and corridors from the tracking zone, which matters in open-plan offices and government spaces where background movement is constant.

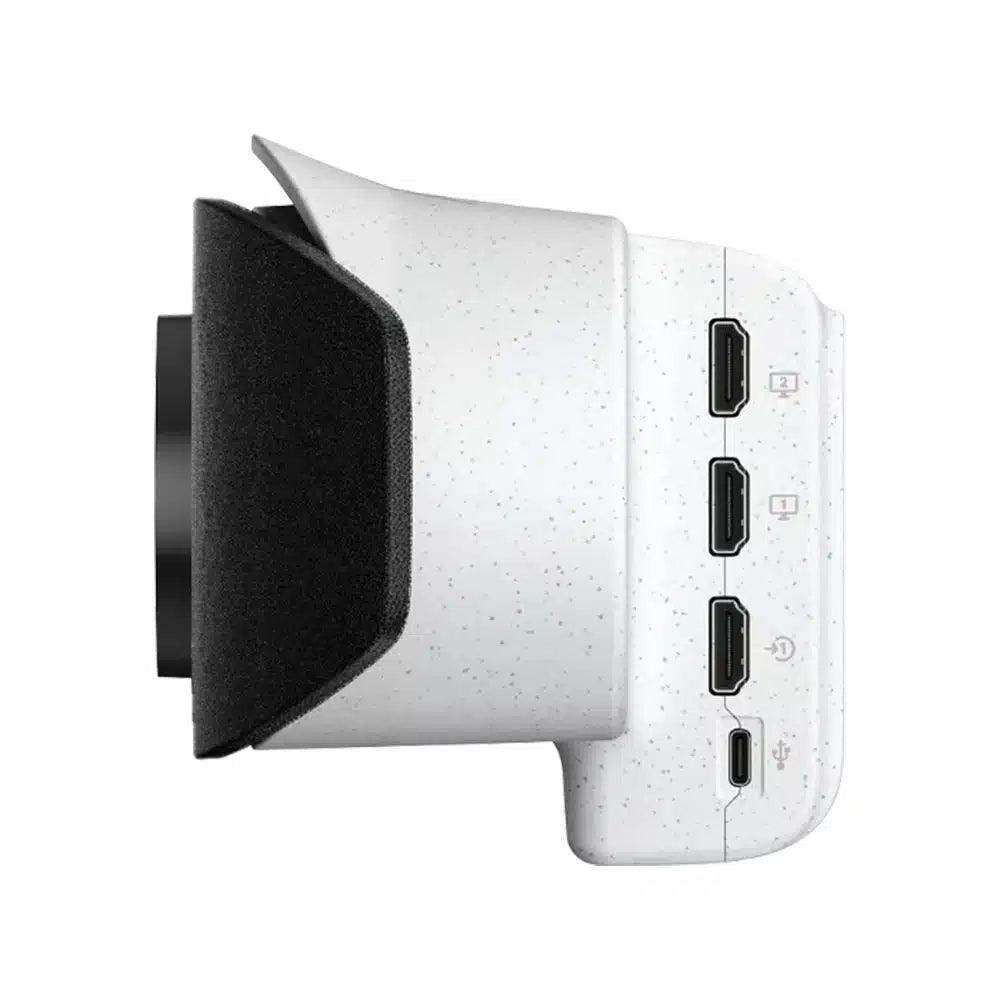

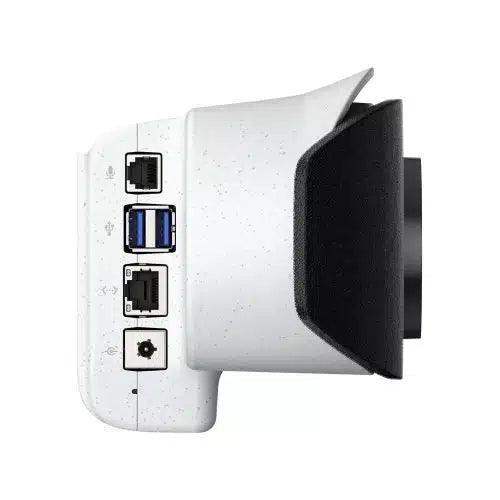

Audio uses two MEMS microphones and two second-order microphones with Poly NoiseBlockAI and Acoustic Fence, which suppress keyboard noise and voices from outside the room rather than simply gating the channel. Connectivity is built for commercial deployment: one HDMI 2.0 input, two HDMI 2.0 outputs for dual-display rooms, USB Type-C and two USB Type-A ports, a line input for an optional microphone, and a 10/100/1G RJ-45 with IPv4 and IPv6 support. Wi-Fi 6 (802.11a/b/g/n/ac/ax MIMO) and Bluetooth 5.0 are built in for rooms without a dedicated data drop. Add a Poly TC10 touch controller for one-touch join, or order the bundled Poly Studio X52 with TC10 kit if the room needs both. Larger tables benefit from a Poly Studio expansion table microphone, and display installs are handled with the Studio X52/V52 VESA mount. Each unit ships with a monitor clamp, HDMI cable, Ethernet cable, and AC power adapter, so a typical medium-room installation is a single mounting pass.

Key Features

• 20MP 4K Camera — Captures 30 fps video with a 110° diagonal field of view so everyone at a medium conference table is in frame.
• DirectorAI Smart Framing — People framing, group framing, and speaker framing follow the conversation without a camera operator.
• DirectorAI Perimeter — Defines a tracking boundary so glass walls and hallway traffic do not pull the camera off the meeting.
• Four-Microphone Array — Two MEMS and two second-order microphones with NoiseBlockAI and Acoustic Fence keep distracting sound out of the call.
• Stereo Speakers — Deliver intelligible far-end audio across the room without an external amplifier or DSP.
• Dual HDMI 2.0 Output — Drives two displays from one bar for content-plus-people layouts in medium rooms.
• Wi-Fi 6 and Bluetooth 5.0 — Support deployment in rooms where running a new network drop is impractical.
• Certified for Teams, Zoom, and Google Meet — Runs built-in cloud video apps, the Poly Video App, or a connected PC on the same hardware.
• Single-Unit Installation — Ships with monitor clamp, HDMI cable, Ethernet cable, and power adapter for a one-pass display mount.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Training room
• Multi-purpose room
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

Which video platforms is the Poly Studio X52 certified for?
The X52 is certified for Microsoft Teams, Zoom, and Google Meet. It can also connect to other cloud video services through built-in cloud video apps, the Poly Video App, or a directly connected room PC, which lets one hardware standard serve mixed-platform organizations.

Does the X52 need a separate touch controller?
A controller is not required, but most commercial deployments add a Poly TC8 or TC10 for one-touch join and in-room control. The bundled Studio X52 with TC10 kit ships both components together for rooms that need scheduled meeting join.

How is the X52 mounted and cabled in a conference room?

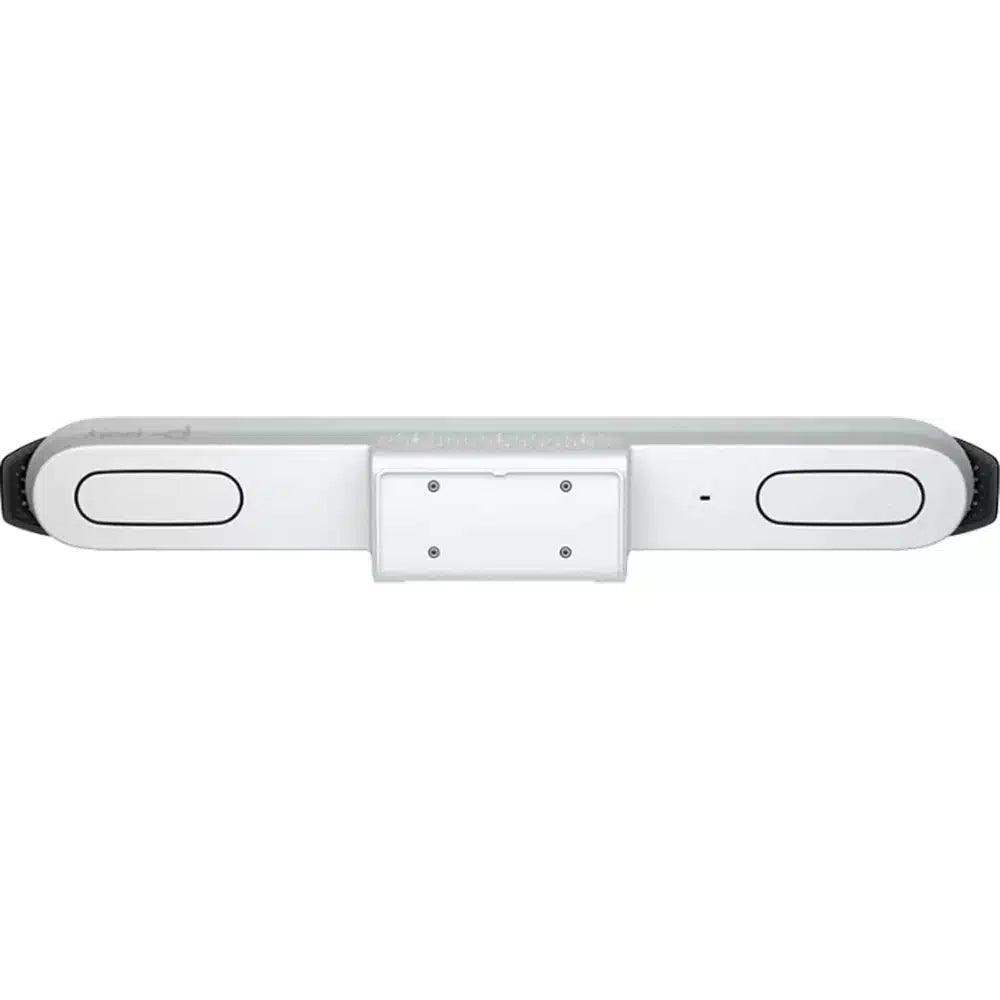

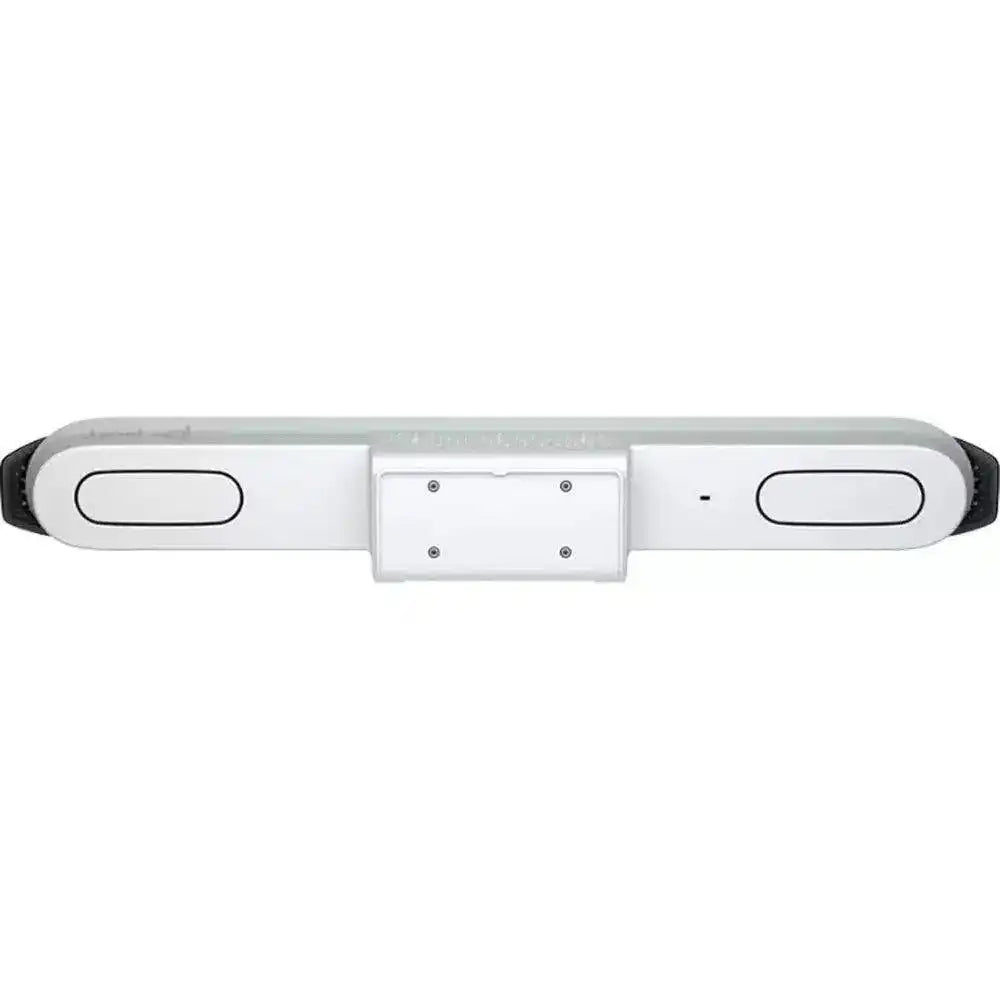

It ships with a monitor clamp for display-top mounting, plus HDMI, Ethernet, and power cables. VESA and wall mounting is handled with the Studio X52/V52 VESA mount or the X50 adapter bracket when reusing existing Studio X50 mounting hardware.

Can the X52 drive two displays?
Yes. Two HDMI 2.0 outputs support dual-display rooms, so far-end participants and shared content can occupy separate screens. One HDMI 2.0 input is available for local content or a connected room PC.

How does the X52 integrate with an existing AV system?
USB Type-C and Type-A connections allow the bar to act as a USB peripheral for a room PC, while the RJ-45 interface supports IPv4 and IPv6 network deployment and cloud management. A line input accepts an optional microphone for rooms that need additional pickup.

What is the audio coverage in a medium room?
The four-microphone array with NoiseBlockAI and Acoustic Fence is tuned for rooms around 20 ft. by 15 ft. For longer tables, a Poly Studio expansion table microphone extends pickup toward the far end of the room.

What warranty and support are included?
The unit carries the Poly standard one-year limited warranty. Poly+ service agreements are available separately for extended coverage, advance hardware replacement, and technical support; contact Creation Networks for the correct coverage tier for your deployment.
