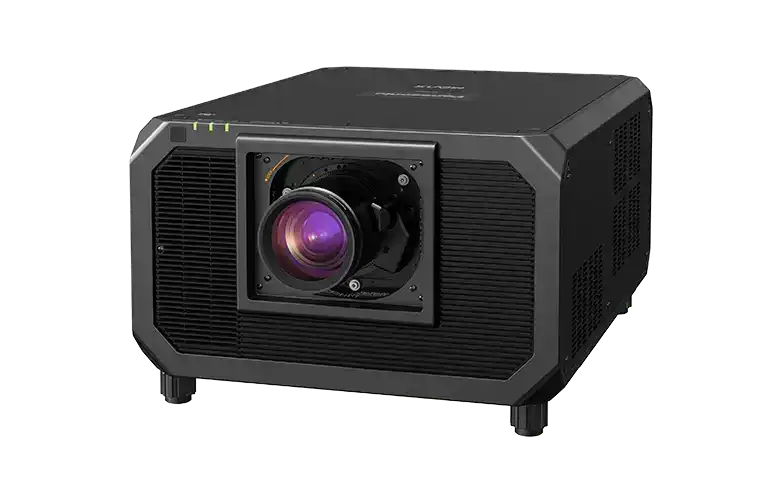

Panasonic PT-RQ45K 40,000lm 3-Chip DLP™ Projector
Panasonic PT-RQ45K 40,000lm 3-Chip DLP™ Projector is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Panasonic PT-RQ45K 40,000lm 3-Chip DLP™ Projector
Product Overview
The Panasonic PT-RQ45K is a 40,000-lumen 4K 3-chip DLP laser projector positioned as one of the smallest and lightest projectors in its output class. This large venue laser projector targets the most demanding fixed installations and high-end rental and staging, including projection mapping, where extreme brightness and 4K detail must come from a transportable chassis. Integrators specify the PT-RQ45K when a project needs near-50,000-lumen-class output but benefits from the compact RQ-series form factor and lens compatibility.
Product Description
The PT-RQ45K uses 3-chip DLP imaging with a multi-laser light source (two blue and one red laser module) to expand color-gamut reproduction and deliver vibrant 4K visuals, with support for 240 Hz frame rates for smooth, seamless blended content. Its compact design matches the RQ35K Series, so it reuses existing frames, flight cases, and optional lenses to streamline logistics and installation. A 5-inch color LCD monitor and broad connectivity simplify on-site setup, while UV-coated circuit boards, modular layouts, and proprietary cooling enhance reliability in harsh environments. Smart Projector Control with NFC enables mobile network configuration such as IP address setup, and preactivated Geometry Manager Pro upgrade kits streamline edge blending and mapping. The projector ships without a lens; pair it with a Panasonic ET-D3LE-series lens. Step up to the flagship PT-RQ50KU, or compare the same-chassis PT-RQ35KU and PT-RQ25KU.
Key Features
- 40,000 Lumens, 4K 3-Chip DLP — Extreme brightness with 4K detail for the largest screens and high-ambient-light venues.
- Multi-Laser Light Source — Two blue and one red laser module expand color-gamut reproduction for vibrant, accurate color.
- 240 Hz Frame Rate Support — High refresh handling for smooth motion and seamless multi-projector blending.
- Compact, RQ35K-Matched Body — Reuses existing frames, flight cases, and lenses for streamlined transport and installation.
- 5-Inch Color LCD Monitor — On-body status and control simplify setup and operation.
- UV-Coated, Modular Boards — Coated circuit boards and modular layout improve durability and serviceability in harsh environments.
- Smart Projector Control with NFC — Mobile network configuration speeds commissioning and service.
- Geometry Manager Pro Ready — Preactivated upgrade kits enable advanced geometry, edge blending, and mapping.
Typical Applications
- Auditorium — The largest auditoriums and arenas needing extreme-brightness 4K imagery.
- House of Worship — Large sanctuaries and multi-campus venues with oversized screens.
- Broadcast Studio — Large-format studio backdrops and virtual production sets.
- All-Hands Room — Flagship general-session spaces covered by a single high-output projector.
- Government Space — Large command, briefing, and simulation environments.
Technical Specifications
| Projector type | 3-Chip DLP laser projector |
|---|---|
| Light source | Multi-laser (two blue + one red laser module) |
| Brightness | 40,000 lumens |
| Resolution | 4K |
| Frame rate support | Up to 240 Hz |
| On-body monitor | 5-inch color LCD |
| Lens | Optional ET-D3LE-series lenses (no lens included); RQ35K-compatible |
| Control | Smart Projector Control with NFC; Geometry Manager Pro upgrade kits |
| Reliability | UV-coated circuit boards, modular layout, proprietary cooling |
Specifications sourced from Panasonic / vendor data. Exact resolution method (native vs. Quad Pixel Drive), contrast, power, dimensions, weight, and terminal list require manual review against the current Panasonic PT-RQ45K spec sheet.
Competitor Comparison
| Criterion | Panasonic PT-RQ45K | Barco UDX-4K40 | Christie Griffyn 4K35-RGB |
|---|---|---|---|
| Brightness | 40,000 lm in a compact RQ-series body. | Approx. 40,000 lm, larger chassis. | Approx. 35,000 lm RGB laser. |
| Imaging | 4K 3-chip DLP, multi-laser, 240 Hz support. | Native 4K UHD 3-chip DLP. | Native 4K RGB pure-laser. |
| Light source | Two blue + one red laser, expanded gamut. | Laser-phosphor. | Pure RGB laser, widest gamut, higher cost. |
| Form factor | Among the smallest/lightest in its output class; reuses RQ35K rigging. | Larger, heavier chassis. | Large RGB-laser chassis. |
| Operability | 5-inch LCD, NFC setup, Geo Pro kits. | Barco control ecosystem. | Christie control ecosystem. |
| Best fit | Extreme-brightness 4K where transport and rigging reuse matter. | Barco-standard rental fleets. | RGB color-critical premium work. |
Frequently Asked Questions
Does the PT-RQ45K include a lens? No. It is a no-lens model compatible with Panasonic ET-D3LE-series lenses, including those used on the RQ35K Series. Select the lens by throw ratio for your screen and position.
How does it simplify logistics versus larger 40,000-lumen projectors? Its body matches the RQ35K Series, so it reuses existing frames, flight cases, and lenses, reducing the cost and complexity of transport and installation.
How does it integrate into an AV system? It offers advanced connectivity with a 5-inch color LCD monitor for on-body control and Smart Projector Control with NFC for network setup. Confirm the full terminal complement against the Panasonic spec sheet for your signal plan.
Is it suitable for projection mapping? Yes. Multi-laser color, 240 Hz support, and Geometry Manager Pro upgrade kits make it well suited to seamless blending and mapping on large or curved surfaces.
What about warranty and support? The PT-RQ45K carries Panasonic's commercial projector warranty and ProVideo service support. Creation Networks can advise on warranty, lens selection, and integration.
