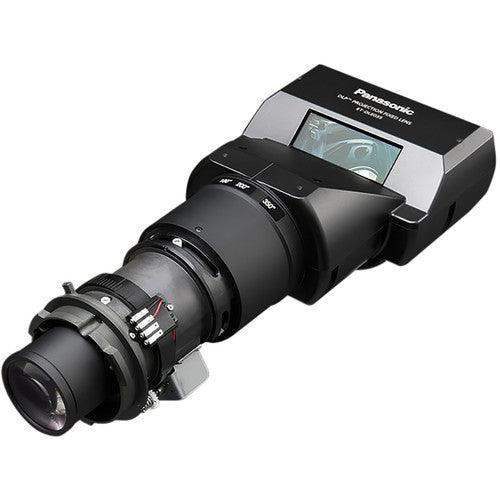

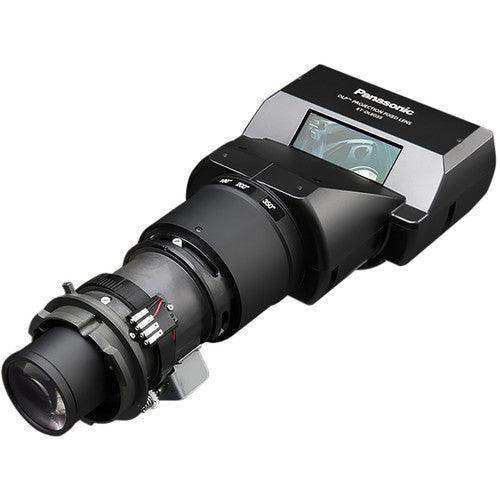

Panasonic ET-DLE035 0.38:1, fixed ultra short-throw lens (for use with compatible 1DLP projectors)

Product Overview

The Panasonic ET-DLE035 is a fixed ultra short-throw projector lens for compatible 1-chip DLP projectors. With a 0.38:1 throw ratio and a 5.3 mm focal length, it lets AV integrators mount the projector very close to the screen, minimizing shadowing and freeing floor space in tight installations. The lens ships with a protective cover and a lens shift gauge to support accurate setup.

Product Description

This commercial-grade ultra short-throw lens is engineered for Panasonic's compatible 1-chip DLP installation projectors and is not cross-compatible with other manufacturers' chassis. Its fixed 5.3 mm optical design and f/2.0 aperture produce a 0.38:1 throw (0.399:1 on WX-class models and 0.394:1 in 4:3), enabling large images from inches away — useful for interactive displays, lobby signage, and exhibits where the projector must sit near the surface. Confirmed compatibility includes the PT-RZ120, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620, PT-DZ870, PT-DW830, PT-DX100, PT-DZ780, PT-DW750, and PT-DX820. For longer throws on 1-chip DLP chassis, integrators can step to the ET-DLE060 (0.6–0.8:1) or ET-DLE105 (1.0–1.3:1); for a powered ultra short-throw option, see the ET-DLE020.

Key Features

• 0.38:1 Ultra Short Throw — Projects a large image from very close range, reducing presenter shadowing and saving floor space.
• Fixed 5.3 mm Optical Design — A dedicated fixed-focus lens engineered for consistent ultra short-throw performance.
• Broad 1-Chip DLP Compatibility — Works with a wide range of Panasonic RZ-, RW-, RX-, DZ-, DW-, and DX-series installation projectors.
• f/2.0 Aperture — Maintains light throughput at extreme short-throw distances.
• Setup Accessories Included — Ships with a protective lens cover and a lens shift gauge for accurate installation.

Typical Applications

• Multi-Purpose Room — Close mounting fills a screen where space behind the projector is limited.
• Commercial Meeting Space — Reduces shadowing for presenters working near the screen.
• Government Space — Compact ultra short-throw installation for briefing and command rooms.
• Auditorium — Near-surface projection for stage backdrops and edge-blended walls.

Technical Specifications

Specifications sourced from Panasonic / vendor data. Exact maximum image size by chassis and any firmware-dependent compatibility require manual review against the current Panasonic ET-DLE035 spec sheet.

Frequently Asked Questions

Which projectors is the ET-DLE035 compatible with?
It is a proprietary Panasonic lens for compatible 1-chip DLP projectors, including the PT-RZ120, RZ970, RW930, RX110, RZ870, RZ770, RW730, RZ660, RW620, DZ870, DW830, DX100, DZ780, DW750, and DX820. Verify your exact model before ordering.

Is the lens motorized?
No. The ET-DLE035 is a fixed-focus ultra short-throw lens. Lens shift, where supported, is handled by the host projector; the included shift gauge assists with alignment.

What throw ratio should I expect?
The nominal throw is 0.38:1 on 16:10 RZ-class chassis, 0.399:1 on WX-class models, and 0.394:1 in 4:3, so a large image can be produced from a very short distance.

What is included in the box?
The lens ships with a protective lens cover and a lens shift gauge to support accurate installation.

What warranty applies?
Warranty terms follow Panasonic's current accessory policy; confirm coverage with Creation Networks before purchase.
