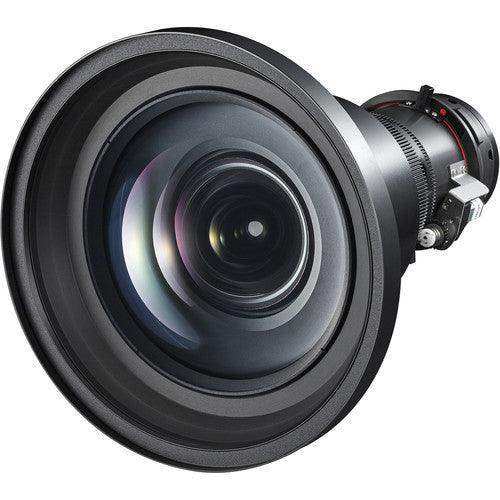

Panasonic ET-DLE060 0.6–0.8:1, zoom lens

Product Overview

The Panasonic ET-DLE060 is a short-throw projector zoom lens with a 0.6–0.8:1 throw ratio for compatible Panasonic PT-RZ, PT-RW, PT-RX, and PT-DZ/DW/DX installation projectors. This short-throw projector lens places a large image on screen from a short distance, ideal for tight conference rooms and commercial meeting spaces where the projector must sit close to the wall. By shortening throw distance, it reduces shadowing and presenter glare while preserving flexible mounting. The lens ships with a protective lens cover.

Product Description

The ET-DLE060 varies projection distance across a 9.16–12.1mm focal range at an f/1.85–2.34 aperture, delivering a 0.60–0.80:1 throw ratio on PT-RZ970/RZ770/RZ660 and PT-DZ870/DZ780 (16:10), 0.63–0.84:1 on PT-RW930/RW730/RW620 and PT-DW830/DW750 (16:10), and 0.62–0.83:1 on PT-RX110/DX100/DX820 (4:3). Its short throw is well matched to rooms with limited projector-to-screen depth, allowing a near-wall mount that keeps the light path clear of presenters. Confirm your projector model and target screen size against the throw ratio before ordering, since throw varies slightly by projector family. For other throw ranges on compatible projectors, compare the ET-DLE105, the longer-throw ET-DLE170, and the fixed ultra-short-throw ET-DLE035.

Key Features

• Short-Throw 0.6–0.8:1 Zoom — Projects a large image from a short distance for near-wall mounting in tight rooms.
• Broad Projector Compatibility — Fits Panasonic PT-RZ970/RZ770/RZ660, PT-RW930/RW730/RW620, PT-RX110, and PT-DZ870/DZ780/DW830/DW750/DX100/DX820 installation projectors.
• Variable Focal Length — 9.16–12.1mm focal range fine-tunes image size from a fixed mount.
• Wide Aperture — f/1.85–2.34 maintains brightness across the short-throw range.
• Protective Lens Cover Included — Ships with a cover to protect optics during transport and storage.

Typical Applications

• Conference room
• Commercial meeting space
• Multi-purpose room
• Government space
• House of worship

Technical Specifications

Specifications sourced from Panasonic / vendor data. Powered zoom/focus support and full current-model compatibility list require manual review against the current Panasonic ET-DLE060 spec sheet.

Frequently Asked Questions

Which projectors does the ET-DLE060 fit? It is compatible with Panasonic PT-RZ970, RZ770, RZ660, RW930, RW730, RW620, RX110, and PT-DZ870, DZ780, DW830, DW750, DX100, and DX820 projectors. Throw ratio varies slightly by family, so confirm against your specific model.

Why choose a short-throw lens? A 0.6–0.8:1 lens lets you mount the projector close to the screen, which reduces presenter shadowing and glare and suits rooms with limited depth.

Can it be installed in the field? Yes. These Panasonic installation projectors use interchangeable lenses, so the ET-DLE060 can be fitted at install or during a later change following Panasonic's lens procedure.

What warranty and support apply? The lens is covered under Panasonic's applicable accessory/Pro AV warranty; terms vary. Contact Creation Networks for current warranty details and compatibility confirmation for your projector model.
