Product Overview

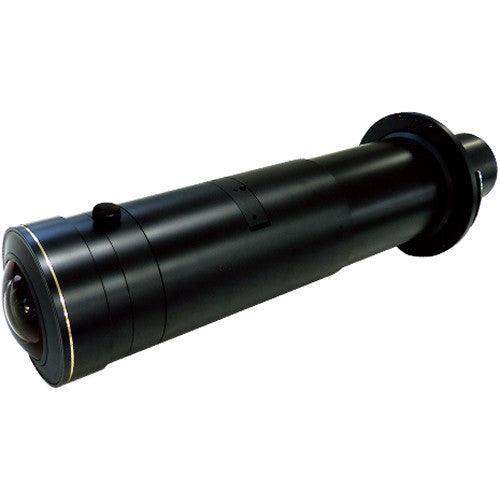

The Panasonic ET-D3LEF70 is a fisheye projector lens for 3-chip DLP projectors, engineered for 183-degree dome projection from a single projector. It supports display resolutions up to WQXGA 4K+ and wide lens shift, making it a specialized large-venue projection lens for dome screens and curved-surface installations. This 3DLP fisheye lens is compatible with Panasonic high-brightness 3-chip DLP projectors, excluding the PT-RQ50KU.
Product Description
The ET-D3LEF70 delivers angles of view up to 183 degrees, letting a single 3-chip DLP projector fill a dome surface that would otherwise require multiple projectors and edge blending. Surrounding focus correction holds sharpness across the curved field at short throw distances, while wide lens shift (vertical up to plus or minus 37% in WQXGA) repositions the image without moving the projector body. The lens is intended for permanent and rental/staging installations in immersive environments and integrates with Panasonic's installation 3DLP projector platform. For projects that need different coverage on the same projector family, the catalog also includes the ultra-short-throw ET-D75LE95 and the fixed-focus ET-D3LEW50. The lens pairs with compatible installation projectors such as the PT-RZ34KU.
Key Features
- 183-Degree Dome Projection — A single projector covers a hemispherical field without multi-projector blending.
- Resolution Up to WQXGA 4K+ — Maintains high display resolution on demanding immersive content.
- Wide Lens Shift — Vertical up to plus or minus 37% and horizontal up to plus or minus 17% in WQXGA for flexible placement.
- Surrounding Focus Correction — Holds focus across the curved surface at short throw distances.
- 3-Chip DLP Compatibility — Works with Panasonic high-brightness 3DLP installation projectors, excluding the PT-RQ50KU.
Typical Applications
- Auditorium immersive and dome projection
- Multi-purpose rooms with curved-surface displays
- House of worship feature installations
- Broadcast studio immersive backdrops
Technical Specifications
| Lens Type | Fisheye, fixed |
|---|---|
| Angle of View | Up to 183 degrees |
| Maximum Resolution | Up to WQXGA 4K+ |
| Aperture | f/2 to f/5 |
| Focal Length | f = 9 mm |
| Lens Shift (WQXGA) | Vertical plus or minus 37%, Horizontal plus or minus 17% |
| Lens Shift (WUXGA) | Vertical plus or minus 27%, Horizontal plus or minus 12% |
| Compatibility | Panasonic 3-chip DLP projectors; excludes PT-RQ50KU |
| Exterior Dimensions | 15.0 cm dia. x 52.9 cm L (5.9 in dia. x 20.8 in L) |
| Weight | 7.1 kg (15.7 lb) |
Specifications sourced from Panasonic / vendor data. Exact projector compatibility, supported resolutions per model, and achievable dome geometry require manual review against the current Panasonic ET-D3LEF70 spec sheet and the host projector's lens compatibility chart.
Frequently Asked Questions
Which projectors is the ET-D3LEF70 compatible with? It is designed for Panasonic 3-chip DLP installation projectors and explicitly excludes the PT-RQ50KU. Verify your specific model against Panasonic's lens compatibility chart.
Can one projector with this lens cover a full dome? The 183-degree field allows a single projector to fill a hemispherical dome, replacing multi-projector blended arrays in many installations.
How is the image positioned on the dome? Wide lens shift (up to plus or minus 37% vertical in WQXGA) and surrounding focus correction allow placement and edge sharpness without relocating the projector.
Is this lens suitable for flat-screen rooms? It is purpose-built for immersive curved and dome surfaces; standard flat-screen rooms are better served by zoom or fixed lenses in the same lens family.
What warranty applies? Coverage follows Panasonic's standard professional lens warranty; confirm current terms at the time of purchase.
