Panasonic ET-D3LEW50 0.7:1 Fixed focus lens (for use with all 3DLP projectors excluding the PT-RQ50KU)

Product Overview

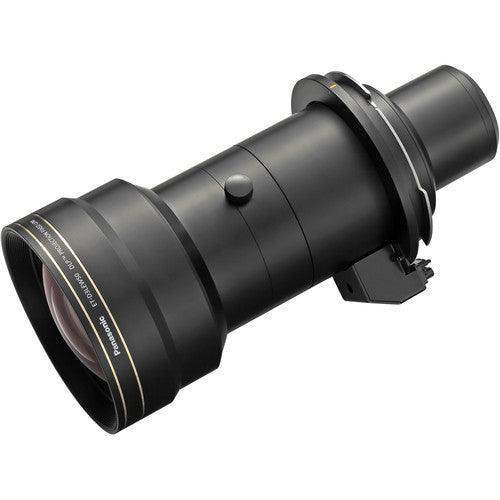

The Panasonic ET-D3LEW50 is a 14.8mm fixed short-throw lens with an approximate 0.7:1 throw ratio for select Panasonic 3-chip DLP projectors. Its wide angle and short throw make it well suited to rear projection and space-constrained large-venue installs such as auditoriums and houses of worship. The lens carries EEPROM memory for projector recognition and ships with a protective lens cover.

Product Description

Designed for fixed short-throw projection, the ET-D3LEW50 places a large image close to the screen, a common requirement in rear-projection cabinets and shallow projection booths. It is compatible with a range of Panasonic 3DLP projectors including the PT-RQ32K, PT-RZ31K, PT-RZ21K, PT-RZ12K, PT-DZ21K2, and related models, with throw ratios near 0.694:1 to 0.752:1 depending on the projector and aspect ratio. The EEPROM stores lens data so the projector can apply correct settings, and the included cover protects the optics in transit and storage. For installations needing different coverage, the store also carries the ET-D3LEW60 0.9-1.1:1 zoom lens and the ET-D3LES20 1.7-2.4:1 zoom lens. A compatible projector body is the PT-RZ34KU 3DLP laser projector.

Key Features

• 0.7:1 Fixed Short-Throw — Projects a large image from a short distance for rear projection and tight rooms.
• 14.8mm Fixed Focal Length — A wide-angle prime optic optimized for short-throw coverage.
• 3-Chip DLP Compatibility — Works with a defined list of Panasonic 3DLP projectors; verify the specific model before ordering.
• Rear-Projection Optimized — Well suited to enclosed rear-projection cabinets and fixed installations.
• EEPROM Memory — Stores lens data so the projector recognizes and configures the optic.
• Protective Lens Cover Included — Guards the optics during transport and storage.

Typical Applications

• Broadcast studio — Short-throw rear projection for set backdrops and virtual scenery.
• Auditorium — Large fixed images in venues with limited projection depth.
• House of worship — Rear-projection installs where the projector sits close behind the screen.
• Multi-purpose room — Fixed short-throw coverage for permanent large-format displays.

Technical Specifications

Specifications sourced from Panasonic / vendor data. The aperture value is listed inconsistently in vendor data (f/2.5 versus f/2-5) and, along with exact projector-by-projector lens shift range, requires manual review against the current Panasonic ET-D3LEW50 spec sheet. This lens is not compatible with the PT-RQ50KU.

Frequently Asked Questions

Which projectors is the ET-D3LEW50 compatible with? It fits a defined list of Panasonic 3DLP projectors including the PT-RQ32K, PT-RZ31K, PT-RZ21K, PT-RZ12K, and PT-DZ-series; it is not compatible with the PT-RQ50KU. Confirm your exact projector model before ordering.

Is this lens good for rear projection? Yes. Its short 0.7:1 throw and wide angle are well suited to rear-projection cabinets and shallow booths.

Does the projector recognize the lens automatically? The lens includes EEPROM memory that stores lens data so the projector can apply the correct configuration.

Is this a zoom lens? No. It is a fixed focal-length (14.8mm) lens; for variable coverage, consider Panasonic ET-D3 zoom lenses such as the ET-D3LEW60 or ET-D3LES20.

What warranty applies? Panasonic projection optics carry a manufacturer warranty; confirm the current term with Creation Networks before purchase.
