Panasonic AW-UE160 4K UHD HDMI/3G-SDI/IP Integrated 20x PTZ Camera
Product Overview
The Panasonic AW-UE160 is a flagship 4K PTZ camera built around a newly developed 1-inch 4K MOS sensor, the highest-sensitivity imager in Panasonic’s PTZ lineup. With 20x optical zoom, 12G-SDI, HDMI, fiber, and SMPTE ST 2110 IP outputs, it is designed for broadcast studios, houses of worship, and large auditoriums that need remote camera coverage with clean, low-light imaging. The 1-inch sensor and optical low-pass filter reduce moiré against LED walls, a common requirement in rental and staging and worship production.
Product Description
The AW-UE160 captures 4K up to 2160/59.94p with high sensitivity and low noise, and its high-speed frame rates (up to 119.88p in HD) support slow-motion replay for sports and live events. Output flexibility is a defining strength: simultaneous 12G-SDI and 3G-SDI, HDMI 2.0, SFP+ fiber, and ST 2110 IP let the camera fit SDI-based, HDMI, and IP production workflows without additional conversion. Audio inputs include two XLR channels with phantom power, and the camera integrates with Panasonic remote camera controllers and robotic systems for broadcast-style moves. For multi-camera control, pair it with the AW-RP150 touchscreen remote camera controller. Buyers comparing the PTZ range can review the AW-UE150A 4K PTZ camera and the NDI-focused AW-UE100 4K PTZ camera.
Key Features
- 1-Inch 4K MOS Sensor — The most sensitive imager in Panasonic’s PTZ line for clean images in challenging lighting.
- 20x Optical Zoom — An f/2.8-4.5 lens (35mm equivalent 24.5-490mm) covers wide rooms and distant subjects, extendable with i.Zoom and D.Extender.

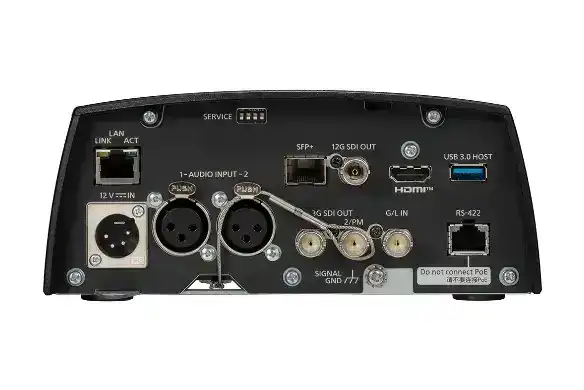

- Multi-Format Output — 12G-SDI, 3G-SDI, HDMI 2.0, SFP+ fiber, and ST 2110 IP serve SDI, HDMI, and IP production paths.
- Optical Low-Pass Filter — Reduces moiré when shooting against LED video walls in staging and worship environments.
- High-Speed Frame Rates — Up to 119.88p in HD enables slow-motion replay for sports and live production.
- XLR Audio Inputs — Two balanced XLR channels with phantom power for embedded audio.
- PoE++ Power — IEEE 802.3bt PoE++ or 12V DC simplifies cabling on long camera runs.
- Controller and Robotics Integration — Works with AW-RP150, AW-RP60, and Panasonic robotic camera systems for repeatable, broadcast-style moves.
Typical Applications
- Broadcast studio — Multi-format output and controller integration fit live broadcast and studio production.
- House of worship — High-sensitivity sensor and LED-wall moiré reduction suit worship broadcast and IMAG.
- Auditorium — 20x zoom and remote control cover large stages and seating from fixed positions.
- All-hands room — Clean 4K capture and IP output support corporate live streaming and town halls.
- Government space — Remote PTZ operation and IP workflows fit council chambers and legislative coverage.
Technical Specifications

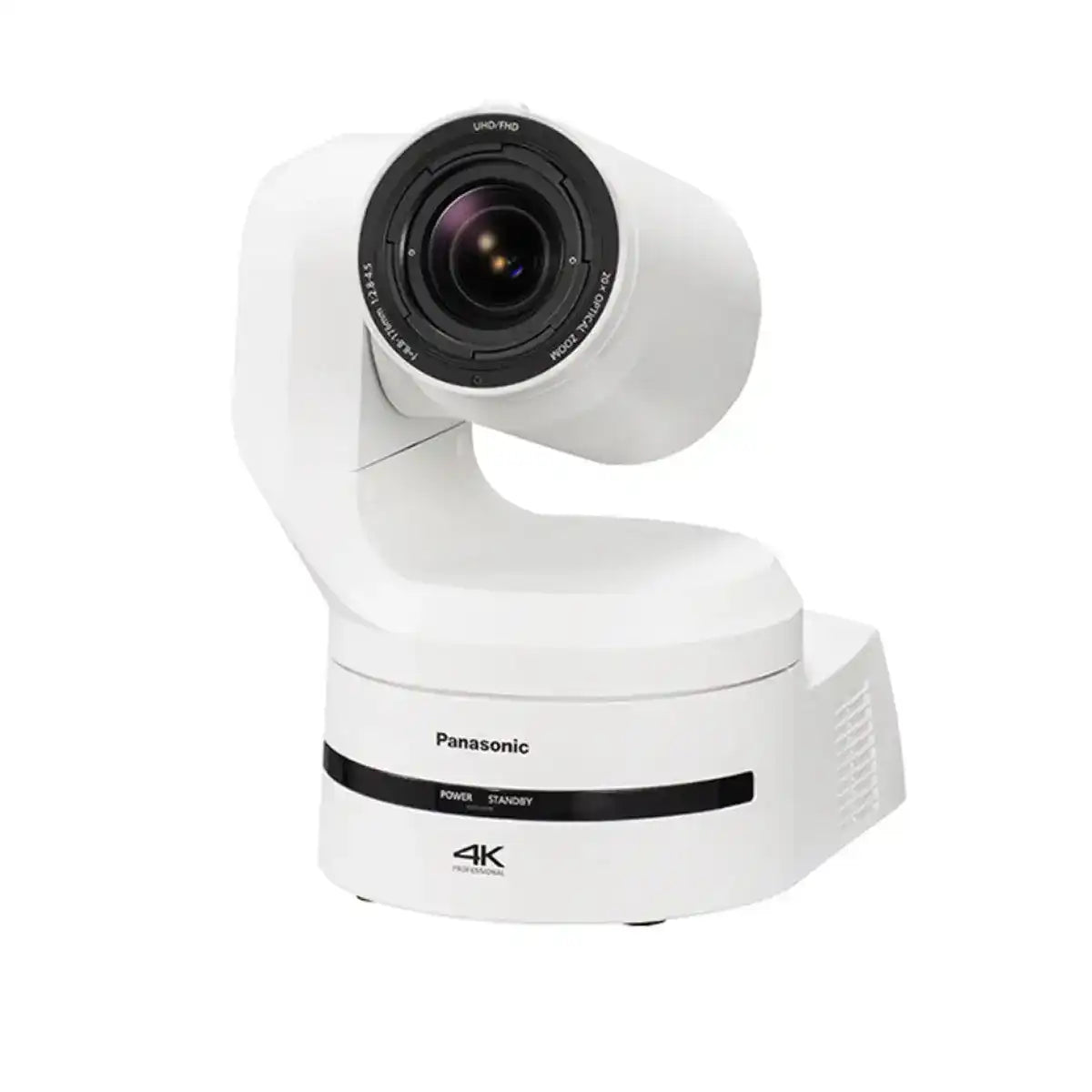

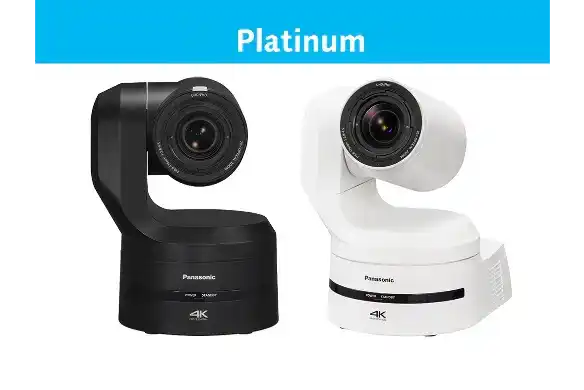

| Model | AW-UE160 (W: Pearl White / K: Black) |
|---|---|
| Sensor | 1-type (1-inch) 4K MOS, approx. 9,620,000 effective pixels |
| Lens | 20x optical zoom, f/2.8-4.5 (f=8.8-176.0mm; 35mm equiv. 24.5-490.0mm); i.Zoom and D.Extender |
| Angle of View | Horizontal 75.1° (wide) to 4.0° (tele) |
| Minimum Illumination | 2 lx (F2.8, 59.94p, 50 IRE, +42 dB) |
| SDI Output (4K) | 2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p |
| HDMI | HDMI 2.0, 4:2:2/10-bit, up to 4K 2160/59.94p (no HDCP) |
| 12G-SDI Out | SMPTE 2082-1 / 424M / 292M, 75 ohm BNC, Level-A/B |
| IP Output | SMPTE ST 2110-10/-20/-21/-30 (HD) |
| Fiber | SFP+ single fiber (output only) |
| Audio | 2 x XLR (MIC/LINE), phantom power; 48 kHz, 24-bit (SDI/HDMI) |
| Control | LAN (RJ-45), RS-422; AW-RP150, AW-RP60, AK-HRP series |
| Power | 12V DC; PoE++ (IEEE 802.3bt) |
| Current Consumption | 5.0 A (XLR IN), 1.5 A (PoE++) |
| Operating Temperature | 0°C to +40°C (32°F to +104°F) |
| Mass | Approx. 4.6 kg (10.14 lb), excluding mount bracket |
| Note | 4K/12G-SDI requires interface kit AK-HUC01 on some workflows; verify configuration |
Specifications sourced from Panasonic / vendor data. Exact pan/tilt speed and range, IP codec and NDI licensing details, and dimensions require manual review against the current Panasonic AW-UE160 spec sheet.
Competitor Comparison
| Criteria | Panasonic AW-UE160 | Sony BRC-X1000 | Canon CR-N700 |
|---|---|---|---|
| Sensor | 1-inch 4K MOS, high sensitivity | 1-inch Exmor R CMOS | 1-inch CMOS |
| Optical zoom | 20x optical | 12x optical | 15x optical |
| 12G-SDI | Yes, native 12G-SDI for single-cable 4K | 4K via HDMI; SDI output is HD on the base unit | Yes, 12G-SDI on the CR-N700 |
| IP standard | SMPTE ST 2110 plus standard IP control | IP streaming, ST 2110 depends on configuration | NDI and IP streaming supported |
| Fiber output | SFP+ single-fiber output built in | No native fiber output | No native fiber output |
| High frame rate | Up to 119.88p in HD for slow motion | Up to 60p in 4K, no native HFR replay mode | Up to 60p in 4K |
| Controller ecosystem | AW-RP150 / RP60 and robotic system integration | Sony RM-IP500 control ecosystem | Canon RC-IP1000 and IP control |
Competitor specifications are drawn from published manufacturer data and should be verified against current datasheets before procurement.
Frequently Asked Questions
Which controllers work with the AW-UE160? It is compatible with the Panasonic AW-RP150, AW-RP60, and AK-HRP1010/1015/250 remote operation panels, with additional ROP support planned.
Can it output 4K over a single SDI cable? Yes. Native 12G-SDI carries 4K on one coax run; confirm whether your workflow requires the AK-HUC01 interface kit.
Does it support IP production? Yes. It outputs SMPTE ST 2110 and supports IP control, fitting modern IP-based studio and live infrastructures.
How is it powered? Via 12V DC or PoE++ (IEEE 802.3bt), which reduces cabling on long runs to fixed camera positions.
Is it suitable for shooting against LED walls? Yes. The optical low-pass filter reduces moiré when shooting LED video walls, a benefit in staging and worship production.
What warranty applies? Panasonic professional cameras carry a manufacturer warranty; confirm the current term and any extended coverage with Creation Networks.
