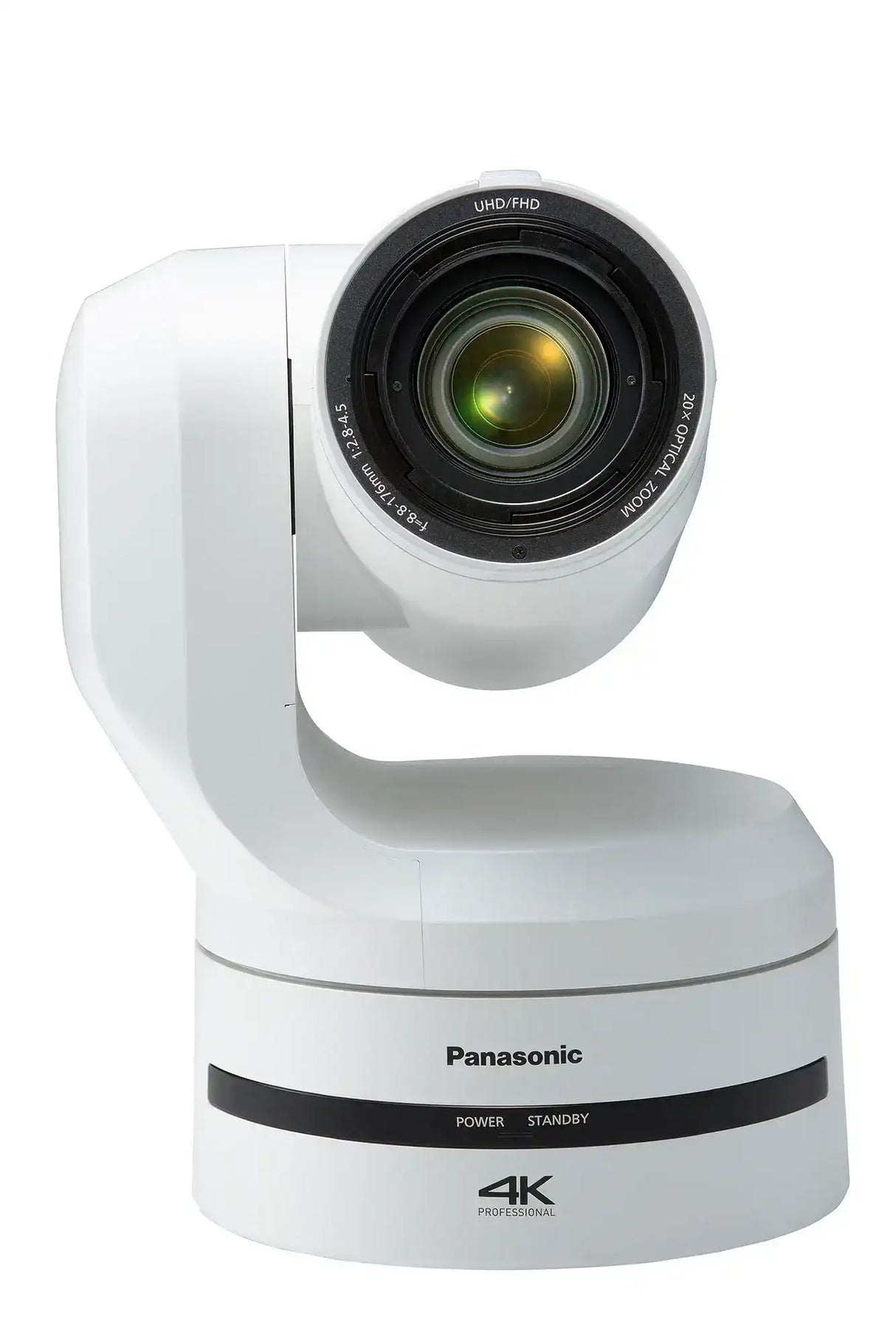

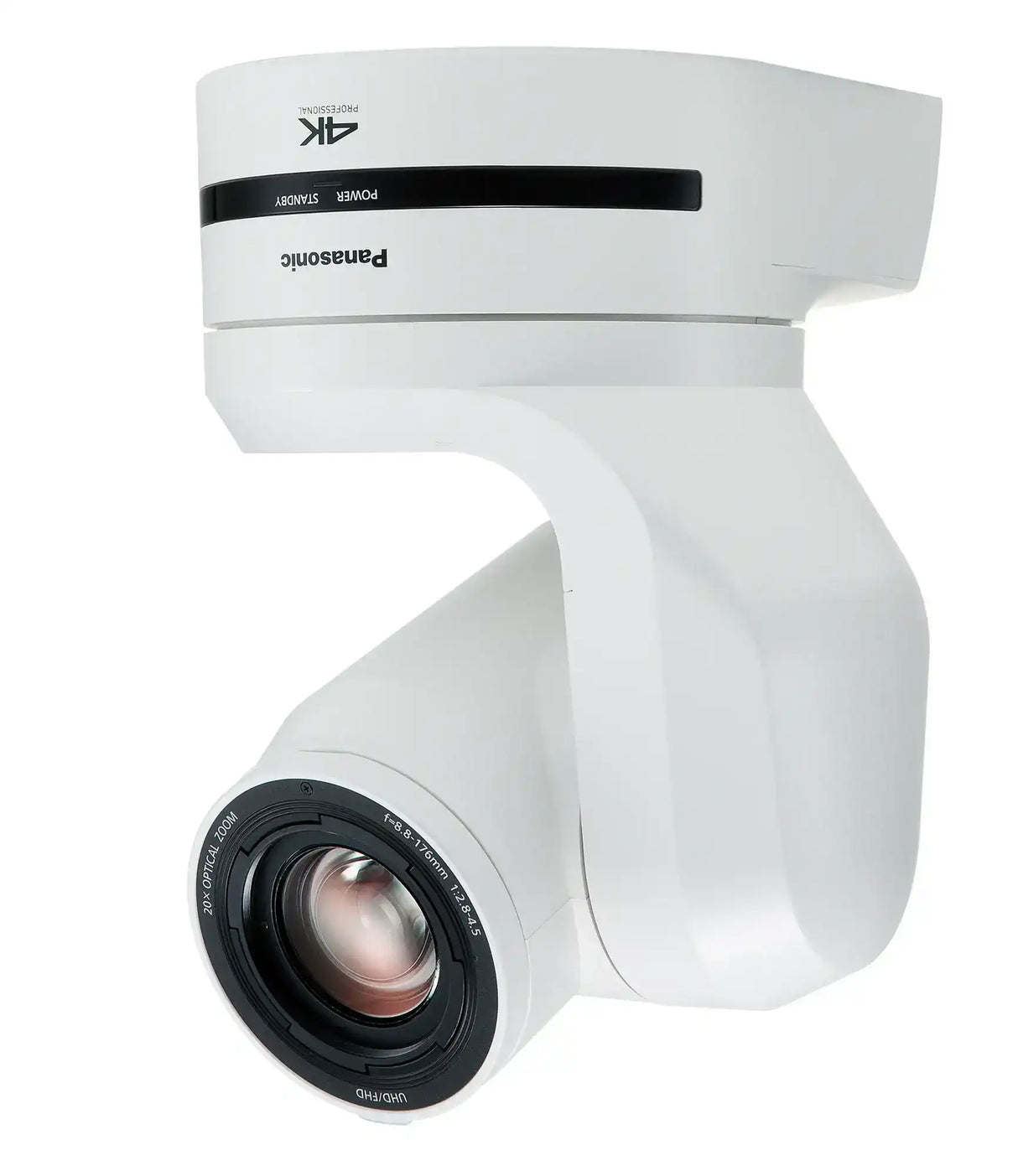

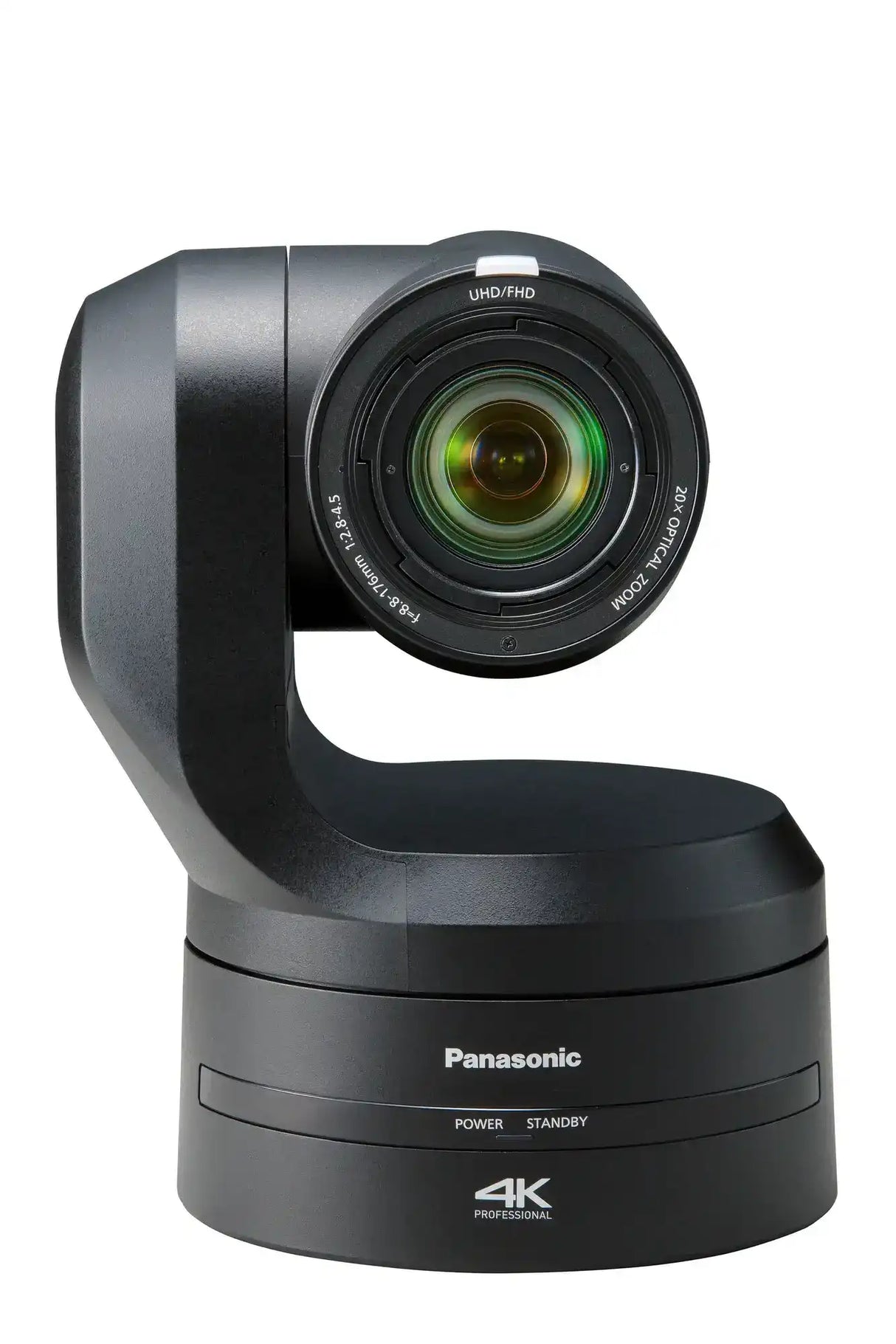

Panasonic AW-UE150A UHD 4K 20x PTZ Camera
Product Overview
The Panasonic AW-UE150A is a professional UHD 4K PTZ camera with 20x optical zoom, built for broadcast studios, live event production, and large-venue commercial AV. This broadcast-grade pan-tilt-zoom camera delivers 4K/60p capture with IP streaming over NDI, SRT, and 12G-SDI, making it a strong fit for remote production, house of worship broadcast, and auditorium capture workflows.
Product Description
The AW-UE150A is equipped with a high-sensitivity 1.0-type 4K MOS sensor, a wide 75.1-degree horizontal angle of view, and a 20x optical zoom for flexible framing across studio and live-event installations. It supports the NDI High Bandwidth protocol for low-latency IP-based 4K transmission, in addition to SRT and NDI HX2, and offers 12G-SDI, dual 3G-SDI, HDMI, and fiber output for integration into established production systems. Built-in auto-tracking, an optical low-pass filter that reduces moire when shooting monitors and LED walls, HDR (HLG) support, and an enhanced optical image stabilizer make it suitable for demanding broadcast and streaming environments. For multi-camera builds, pair it with the Panasonic AW-RP150 controller, or compare it with other Panasonic PTZ cameras such as Panasonic AW-UE160, Panasonic AW-UE100, Panasonic AW-UE50.
Key Features
- 1.0-Type 4K MOS Sensor - High-sensitivity large sensor supports 4K/60p capture with strong low-light performance.
- 20x Optical Zoom - Wide 75.1-degree horizontal angle plus long reach covers framing needs across large venues.
- NDI High Bandwidth, SRT and NDI HX2 - Multiple IP protocols enable low-latency 4K transmission over the network.
- 12G-SDI, 3G-SDI, HDMI and Fiber Output - Broad baseband connectivity for integration into existing production infrastructure.
- Built-In Auto-Tracking - Automated subject tracking supports unmanned and remote-production shooting.
- Optical Low-Pass Filter - Reduces luminance and color moire when shooting monitors and LED walls.
- HDR (HLG) Support - Delivers true-to-life image reproduction for HDR production pipelines.
- Enhanced Optical Image Stabilizer - Minimizes image shake during pan and tilt operations.
Typical Applications
- broadcast studio
- house of worship
- auditorium
- all-hands room
- government space
Technical Specifications
| Camera Type | UHD 4K integrated PTZ camera |
|---|---|
| Sensor | 1.0-type 4K MOS, high sensitivity |
| Optical Zoom | 20x |
| Horizontal Angle of View | 75.1 degrees (wide end) |
| Max Capture | 4K / 60p |
| IP Protocols | NDI High Bandwidth, NDI HX2, SRT |
| Video Output | 12G-SDI, 2x 3G-SDI, HDMI, fiber |
| Imaging Features | Optical low-pass filter, HDR (HLG), optical image stabilizer, auto-tracking |
| Control Compatibility | Panasonic AK-HRP1010GJ / HRP1015GJ remote operation panels |
Specifications sourced from Panasonic / vendor data. pan/tilt range, power input, dimensions, and net weight require manual review against the current Panasonic AW-UE150A spec sheet.
Competitor Comparison
| Criteria | Panasonic AW-UE150A | Sony BRC-X1000 | Canon CR-N700 |
|---|---|---|---|
| Sensor | 1.0-type 4K MOS for high sensitivity and shallow depth of field. | 1.0-type Exmor R CMOS, also a large-format 4K sensor class. | 1.0-type CMOS, comparable large-sensor 4K imaging. |
| Optical Zoom | 20x optical, covering wide 75.1-degree to telephoto framing. | 12x optical, narrower reach than the UE150A. | 15x optical, between the two on zoom range. |
| Max Frame Rate | 4K/60p capture. | 4K/30p over its primary outputs. | 4K/60p capture. |
| IP Streaming | NDI High Bandwidth, NDI HX2 and SRT for low-latency IP workflows. | NDI HX as an option; no native NDI High Bandwidth. | NDI HX2 and SRT supported. |
| Baseband Output | 12G-SDI, dual 3G-SDI, HDMI and fiber. | 3G-SDI and HDMI; no 12G-SDI on a single link. | 12G-SDI and HDMI output. |
| Auto-Tracking | Built-in auto-tracking included on the camera. | Requires external analytics/software for tracking. | Built-in subject tracking included. |
| Studio Integration | Color-matches Panasonic studio cameras via AK-HRP remote panels. | Integrates with Sony control ecosystems. | Integrates with Canon control ecosystems. |
Competitor specifications are based on commonly published manufacturer data and require verification against each vendor current spec sheet before purchase decisions.
Frequently Asked Questions
What outputs does the AW-UE150A support? It provides 12G-SDI, two 3G-SDI, HDMI, and fiber output, plus IP transmission over NDI High Bandwidth, NDI HX2, and SRT.
Can it be controlled remotely? Yes. It works with Panasonic remote camera controllers such as the AW-RP150, and color-matches Panasonic studio cameras through the AK-HRP1010GJ/HRP1015GJ remote operation panels.
Is it suitable for shooting LED walls? Yes. The optical low-pass filter reduces luminance and color moire when filming monitors and LED walls.
Does it support auto-tracking? Yes, built-in auto-tracking supports unmanned and remote-production shooting for houses of worship, auditoriums, and lecture capture.
What warranty and support are available? The camera carries Panasonic's professional video warranty; contact Creation Networks for current terms, system design, and integration support.
