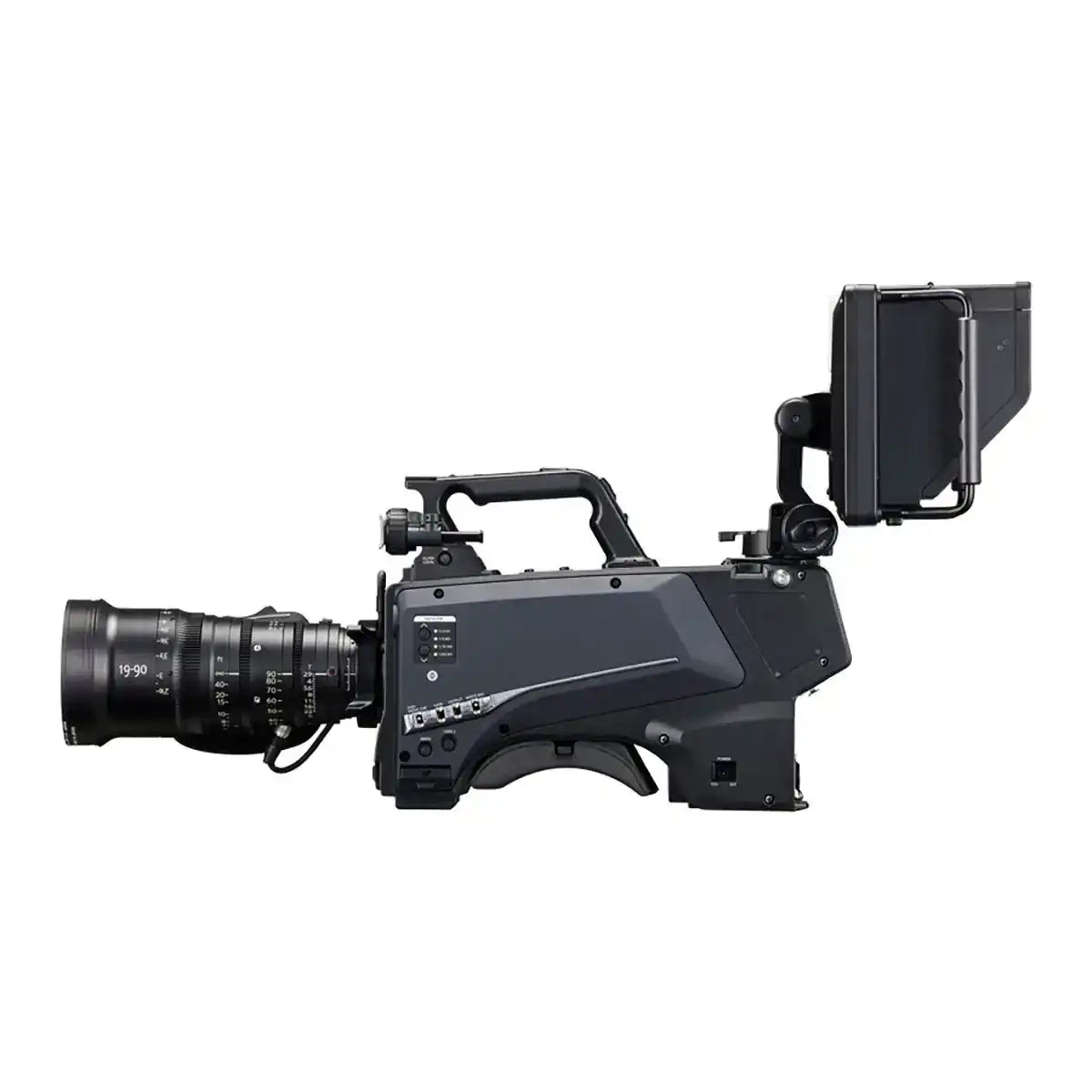

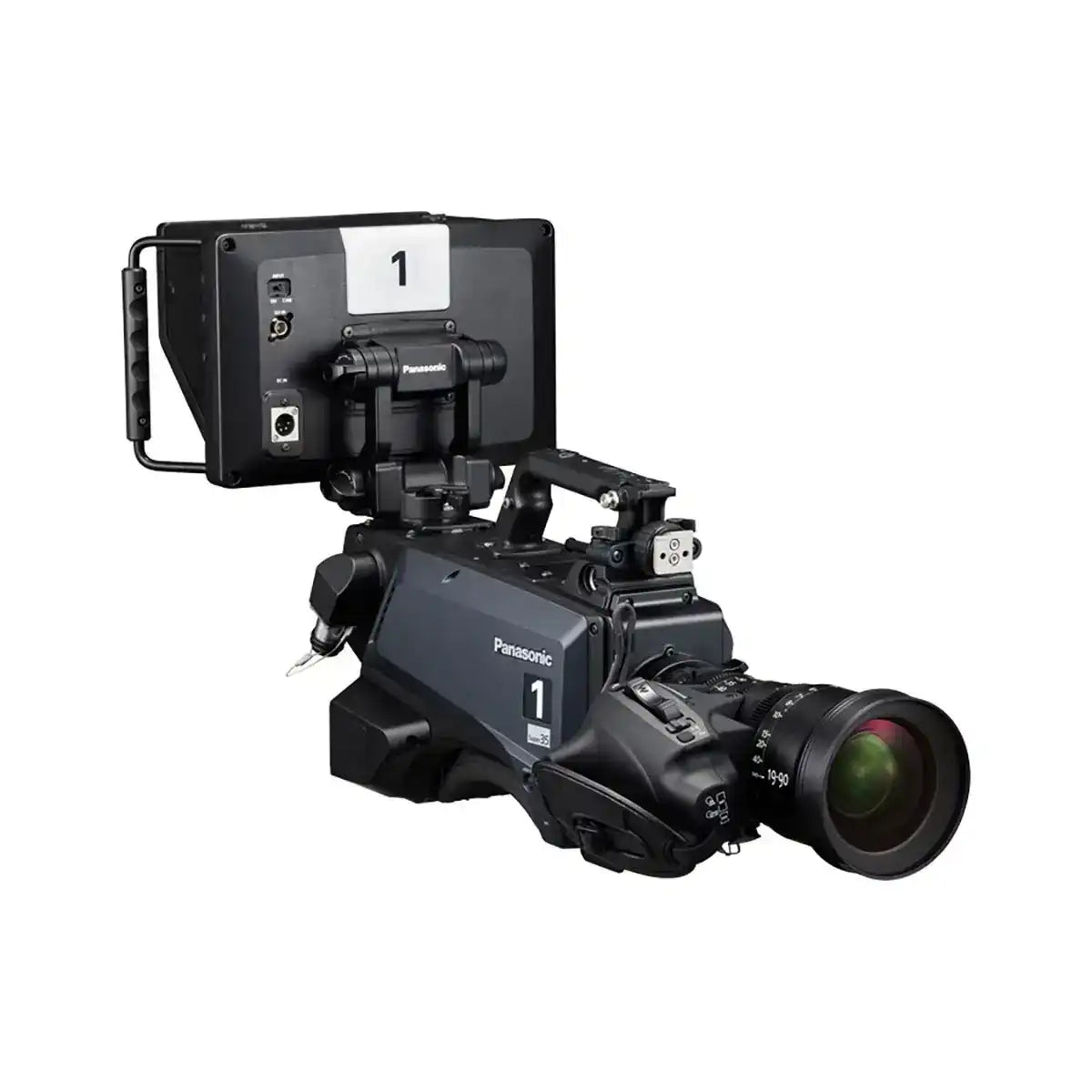

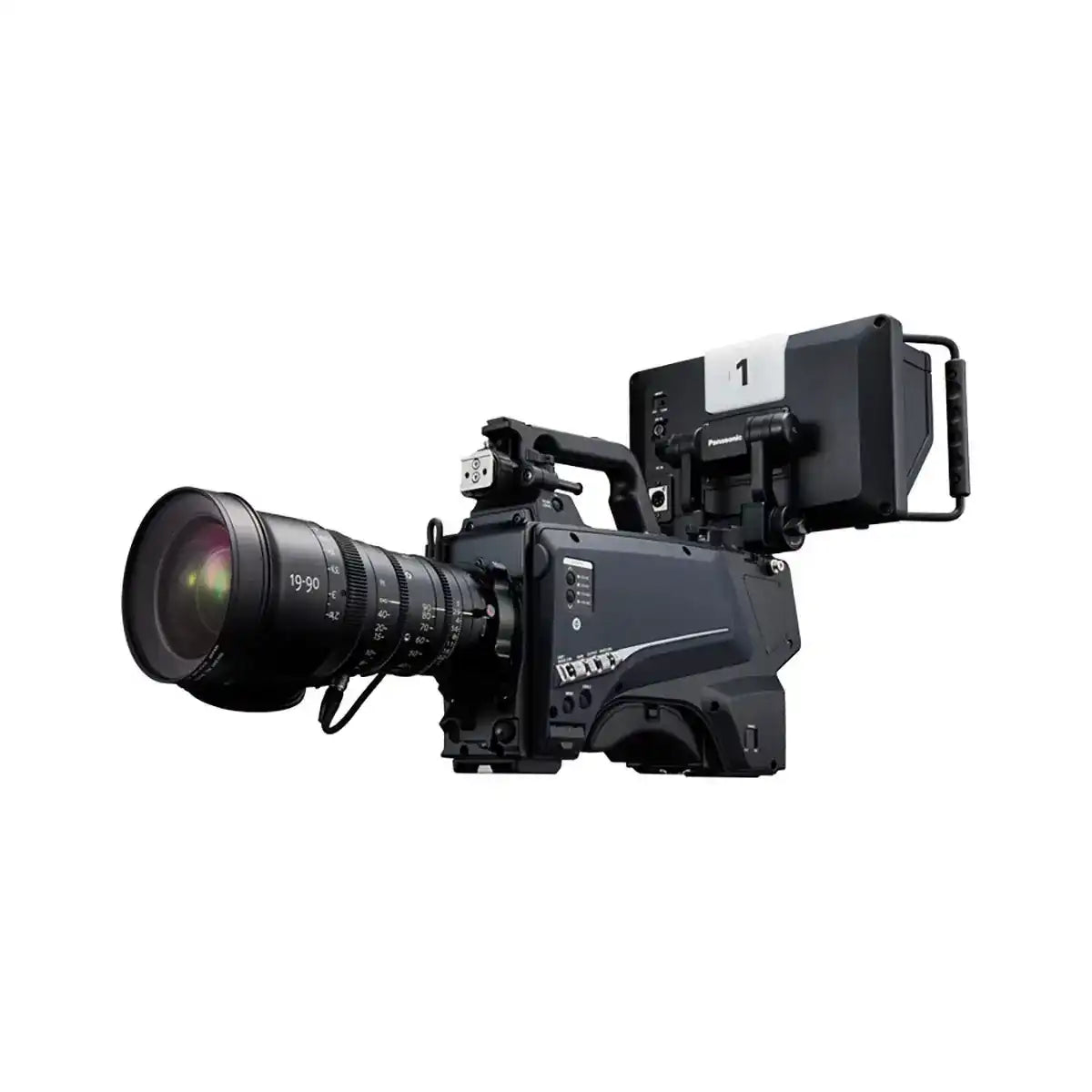

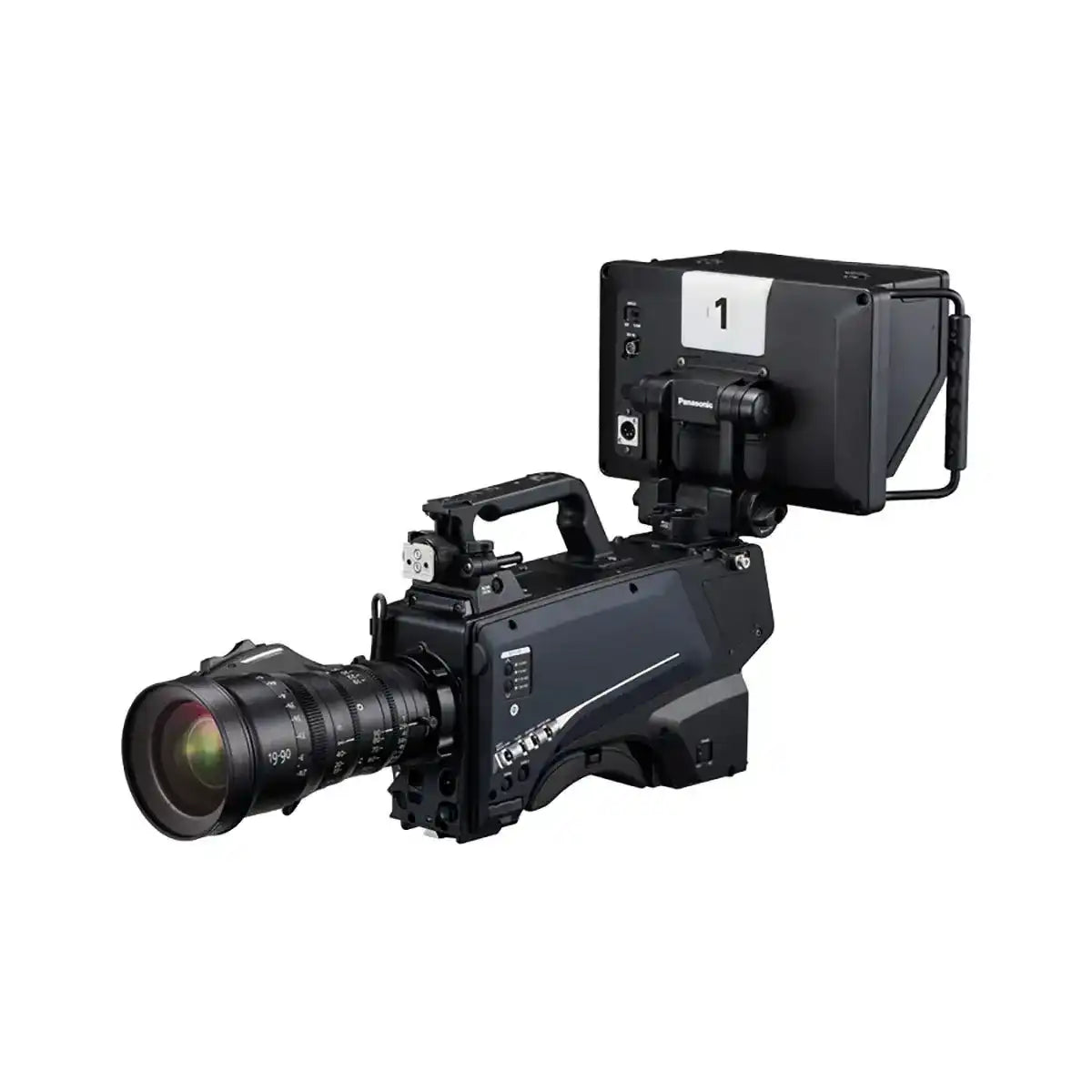

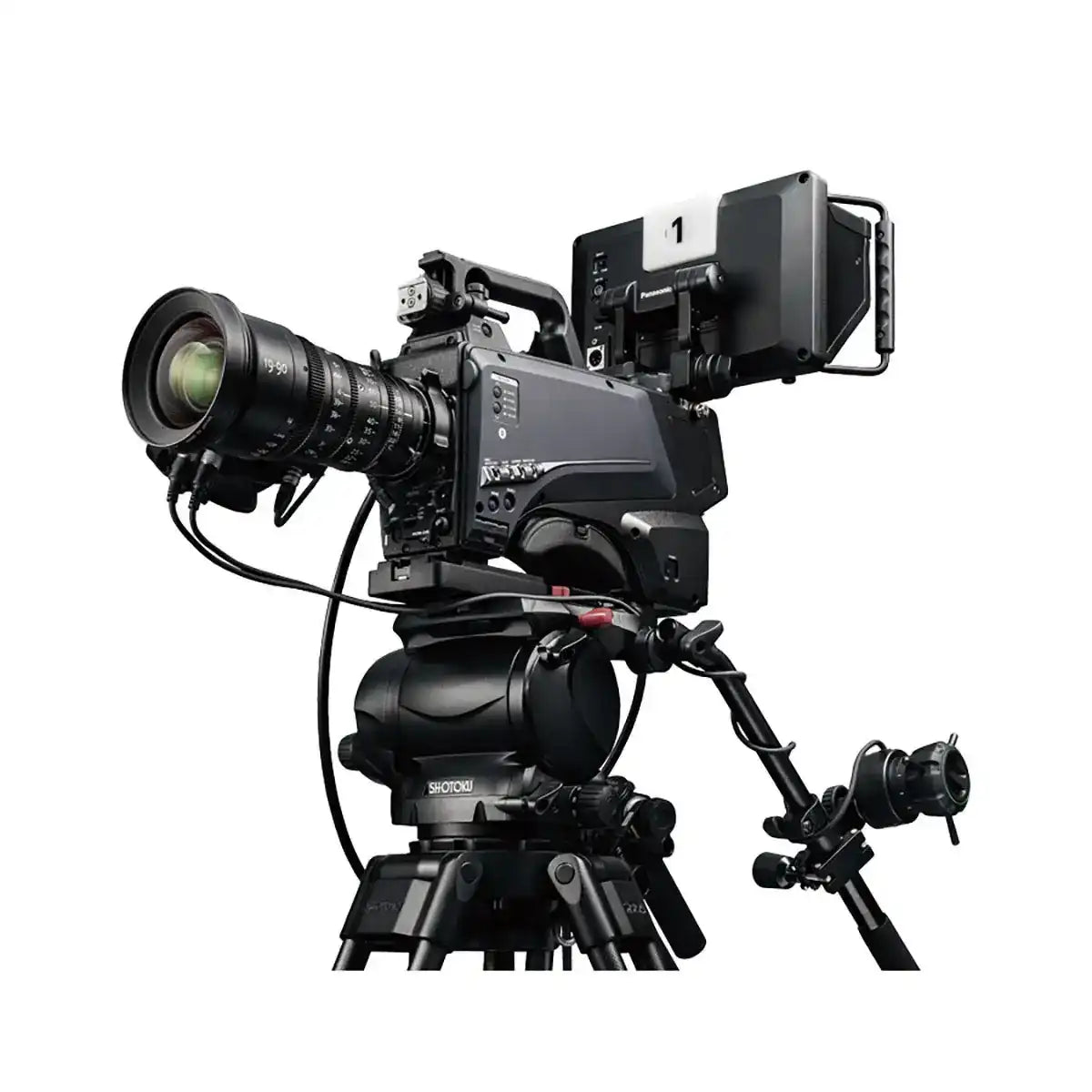

Panasonic AK-PLV100GSJ 4K CINELIVE Studio Camera with PL Mount, Black
Product Overview
The Panasonic AK-PLV100GSJ is a 4K CineLive PL-mount studio camera built for live cinematic production in broadcast studios, auditoriums, and large event venues. Its 5.7K Super 35 mm image sensor delivers shallow depth of field and cinematic tonality while retaining studio-camera operability and control-room integration. This PL-mount live studio camera supports both baseband 12G-SDI and IP (SMPTE ST 2110) workflows, making it a flexible large-sensor camera for facilities pursuing cinematic live video.
Product Description
The AK-PLV100GSJ combines a 17.25-megapixel 5.7K Super 35 mm sensor with dual native ISO (800/2500) and 14-stop dynamic range via V-Log/V-Gamut, importing the colorimetry of Panasonic's VariCam cinema line. It outputs 12G-SDI directly from the camera head for CCU-free operation, or connects to the AK-UCU700/UCU600 or AK-HCU250 control units for uncompressed long-distance transmission up to roughly 2 km. IP operation supports SMPTE ST 2110-20 HD and ST 2110-22 JPEG XS UHD for low-latency 4K transport and interoperability with other IP systems. Image tools include a motorized ND filter, FILM-REC gamma curves, 2x digital extender, DRS, focus assist, skin-tone detail correction, and 12-axis color correction. For control rooms standardizing on Panasonic system cameras, the AK-PLV100GSJ pairs with the 2/3-inch AK-UC4000 and AK-UC3300, the IP-native AK-UCX100, and the AK-HCU250 control unit.
Key Features
- 5.7K Super 35 mm Sensor — A 17.25-megapixel imager delivers cinematic shallow depth of field with high resolving power when down-sampled to UHD/HD.
- Dual Native ISO 800/2500 — Enables high-sensitivity shooting (F11 at 59.94 Hz) with minimal added noise across lighting conditions.
- 14-Stop Dynamic Range — V-Log/V-Gamut capture provides wide latitude and a color space broader than BT.2020 for HDR work.
- PL Lens Mount — Accepts cinema PL glass for film-style optical character in a live environment.
- Direct 12G-SDI Output — The camera head outputs 12G-SDI without a CCU for simplified single-unit deployment.
- IP and Baseband Flexibility — Supports SMPTE ST 2110-20 HD, ST 2110-22 JPEG XS UHD, and 12G/3G/HD-SDI baseband signals.
- Motorized ND Filter — Clear, 1/4, 1/16, and 1/64 steps with remote operation for fast light matching.
Typical Applications
- Broadcast studio cinematic live production
- Auditorium and house of worship multi-camera events
- All-hands rooms and large commercial meeting spaces
- Multi-purpose rooms requiring shallow depth of field
Technical Specifications
| Pickup Device | 17.25-megapixel 5.7K Super 35 mm sensor |
|---|---|

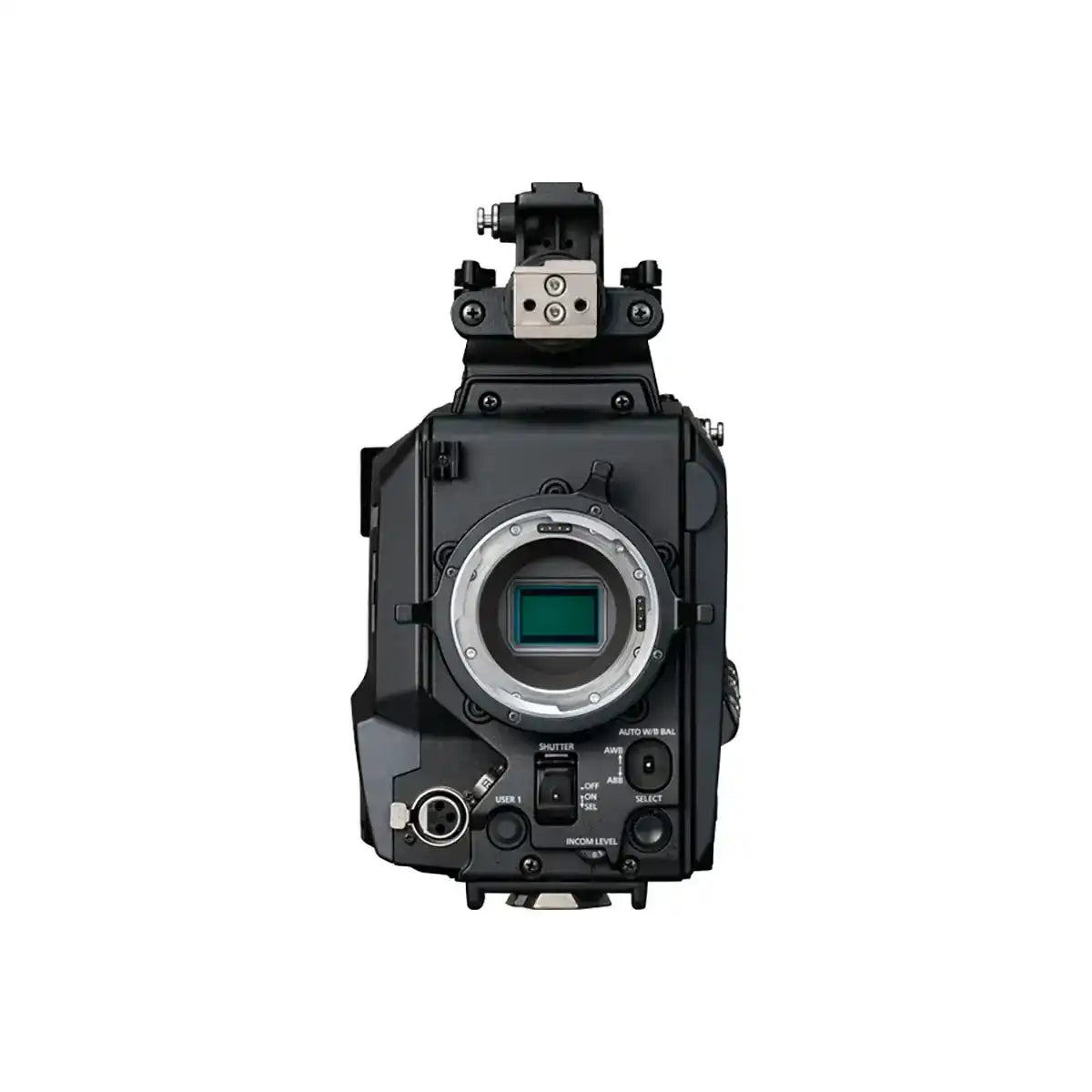

| Lens Mount | 35 mm PL mount |
| Dual Native ISO | 800 / 2500 |
| Optical Filter (ND) | Clear, 1/4, 1/16, 1/64 (motorized) |
| Sensitivity | F11 (59.94 Hz) / F12 (50 Hz), 2000 lx, 3200 K |
| Horizontal Resolution | 4K: 2,000 TV lines or above (center); HD: 1,000 TV lines or above |
| S/N Ratio | 62 dB or above |
| Recording Formats | 3840x2160 and 1920x1080 at 59.94p/50p/29.97p/25p/23.98p |

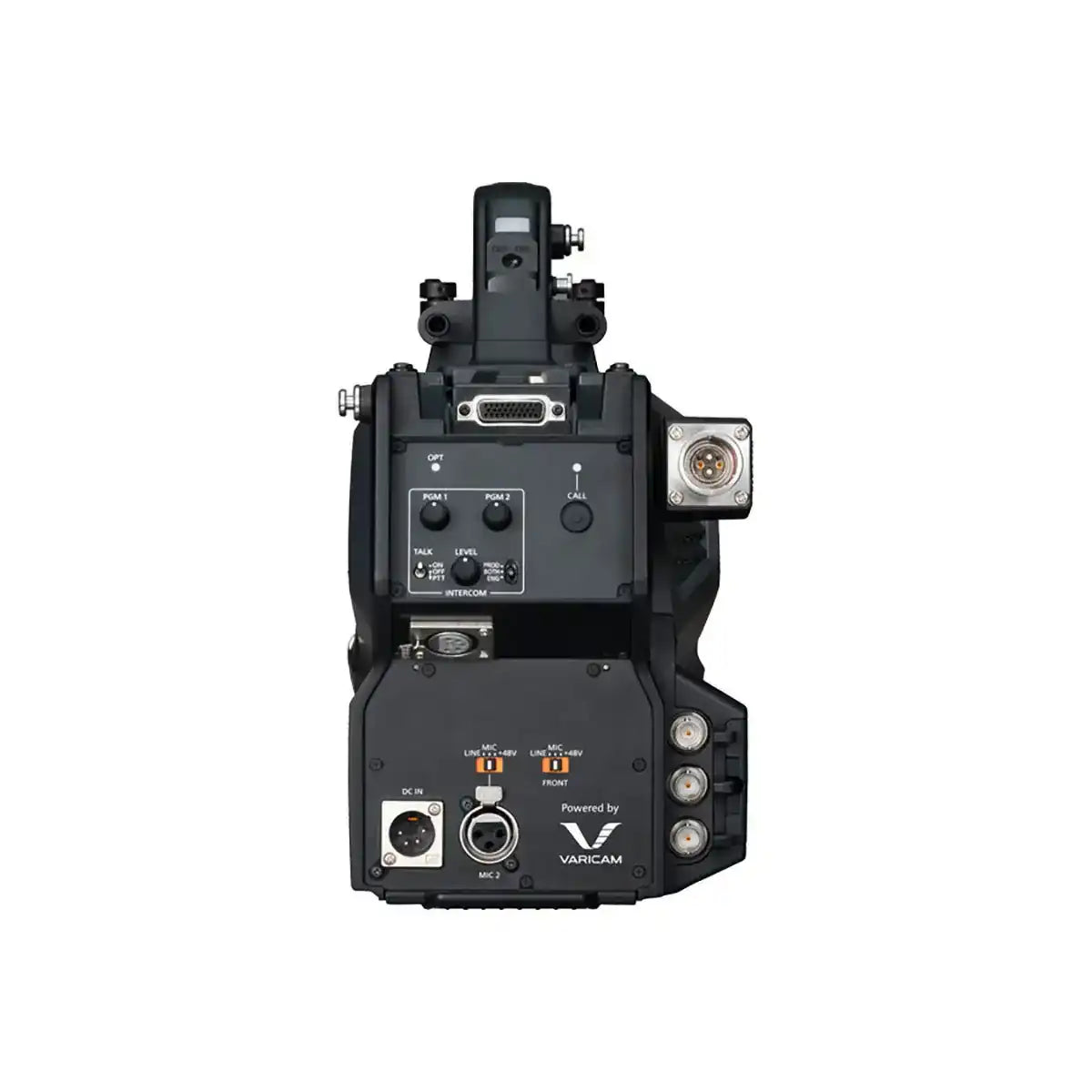

| Video Outputs | SDI OUT1 (12G/6G/3G/1.5G-SDI), SDI OUT2 (3G/1.5G-SDI), AUX (BNC) |
| IP Transport | SMPTE ST 2110-20 HD, ST 2110-22 JPEG XS UHD |
| Long-Distance Transmission | Up to ~2 km (AK-UCU700/UCU600); ~1.2 km (AK-HCU250) |
| Power Supply | DC 12 V (external), DC 190 V (AK-HCU250), or AC 240 V (AK-UCU600) |
| Power Consumption | 82 W (external 12 V); 92 W (with CCU) |
| Operating Temperature | -10 °C to 45 °C (14 °F to 113 °F) |
| Weight | Approx. 4.2 kg (9.26 lb), body only |
| Dimensions | W 151 mm x H 267 mm x D 389 mm (excluding protrusions) |
Specifications sourced from Panasonic / vendor data. PL lens compatibility is mount-dependent; verify specific lens support, firmware-dependent IP features, and HDR delivery formats against the current Panasonic AK-PLV100GSJ spec sheet.
Competitor Comparison
| Criteria | Panasonic AK-PLV100GSJ | Sony HDC-F5500 | Grass Valley LDX 150 |
|---|---|---|---|
| Sensor | 5.7K Super 35 mm, 17.25 MP, shallow depth of field | Super 35 mm 4K CMOS with optical low-pass filter | Native large-sensor CMOS with 4K modes |
| Lens Mount | PL mount for cinema glass | PL mount (B4 adapter optional) | B4 with large-sensor adapter options |
| Native ISO | Dual native ISO 800/2500 | Dual base ISO 800/3200 | High-sensitivity imager, single base |
| CCU-Free Output | Direct 12G-SDI from the head without a CCU | Requires HDCU for full system features | Requires XCU base station for full features |
| IP Support | ST 2110-20 HD and ST 2110-22 JPEG XS UHD | ST 2110 via system interface | ST 2110 via XCU IP base station |
| Ecosystem Fit | Shares CCUs with Panasonic 2/3-inch studio cameras | Sony HDCU/RCP ecosystem | Grass Valley XCU/OCP ecosystem |
Frequently Asked Questions
Can the AK-PLV100GSJ operate without a camera control unit? Yes. The head outputs 12G-SDI directly and supports SMPTE ST 2110 IP, enabling CCU-free deployment. A CCU adds uncompressed long-distance transport and redundancy.
What lenses does it use? The camera has a 35 mm PL mount for cinema lenses. Confirm specific lens compatibility before purchase.
Does it integrate with existing Panasonic studio systems? It is compatible with Panasonic's 2/3-inch studio camera CCUs (AK-UCU600/UCU700 and AK-HCU250); replacing an existing head with the AK-PLV100GSJ adds a large-sensor cinematic option.
What HDR workflow does it support? V-Log/V-Gamut capture provides 14-stop dynamic range and a wide color gamut for HDR delivery; verify specific output formats against the current spec sheet.
What warranty applies? Coverage follows Panasonic's standard professional broadcast warranty; confirm current terms and extended-warranty availability at the time of purchase.
